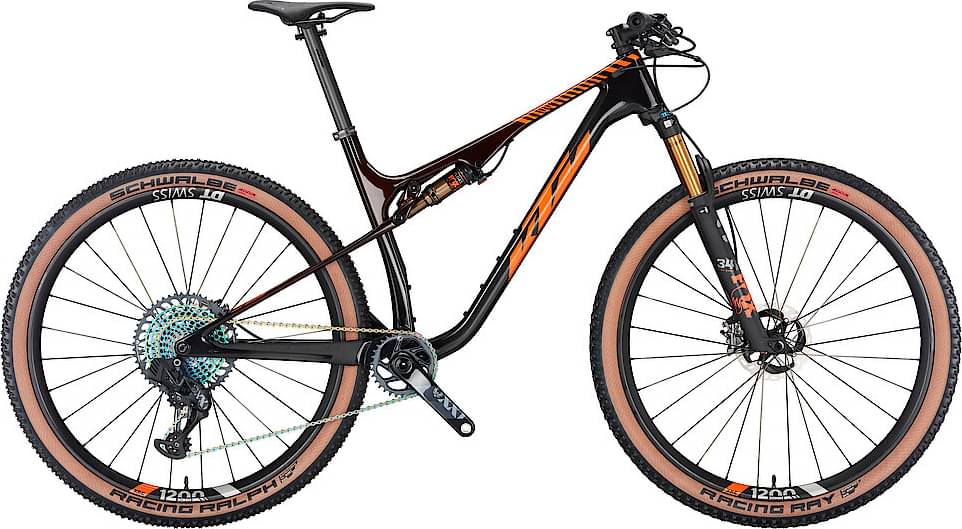

KTM SCARP MT EXONIC 2025
2025 Mountain
Estimate price |
10,469$
Weight | 9.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Shimano XTR Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scarp 29" Premium Carbon SLL115mm UDH / M-2926
Suspension Fork
FOX 34 Float SC 29" Factory 120mm remote 15x110
Rear Shock
FOX Float DPS Factory remote 190x45
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS 12speed
Shift Levers
SRAM AXS Rocker-Paddle
Cassette
SRAM XX1 Eagle XG-1299 / 10-52 rainbow
Crank
SRAM XX1 Eagle DUB Carbon 32T
Chain
SRAM XX1 Eagle 12s
Wheels
Rims
DT Swiss XRC 1200 Spline 30 Carbon CL 110-15TA / 622x30TSS TLR
Tires
Front: Schwalbe Racing Ray Evo SuperRace TLE 60-622, Rear: Schwalbe Racing Ralph Evo SuperRace TLE 60-622
Brakes
Brakes
Shimano XTR M9100 / M9100 2-Piston
Cockpit
Stem
KTM Prime MTB 6°
Handlebar
KTM Prime Carbon flat 740mm
Headset
KTM Prime drop/in 1.1/8"-1.5"
Seat
Saddle
Selle Italia SLR Boost flow Carbon Rails
Seatpost
KTM Prime Carbon zero 30.9/400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.436 mm | 1.399 mm | 1.366 mm | 1.335 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 699 mm | 720 mm | 742 mm | 763 mm |
| Rake | 51 mm | 50 mm | 51 mm | 50 mm |
| Trail | 100 mm | 101 mm | 100 mm | 101 mm |
| Stack | 593 mm | 603 mm | 612 mm | 622 mm |
| Reach | 413 mm | 431 mm | 448 mm | 466 mm |
| Top Tube Length | 583 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1131 mm | 1152 mm | 1174 mm | 1195 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 790 mm | 790 mm | 790 mm | 796 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
