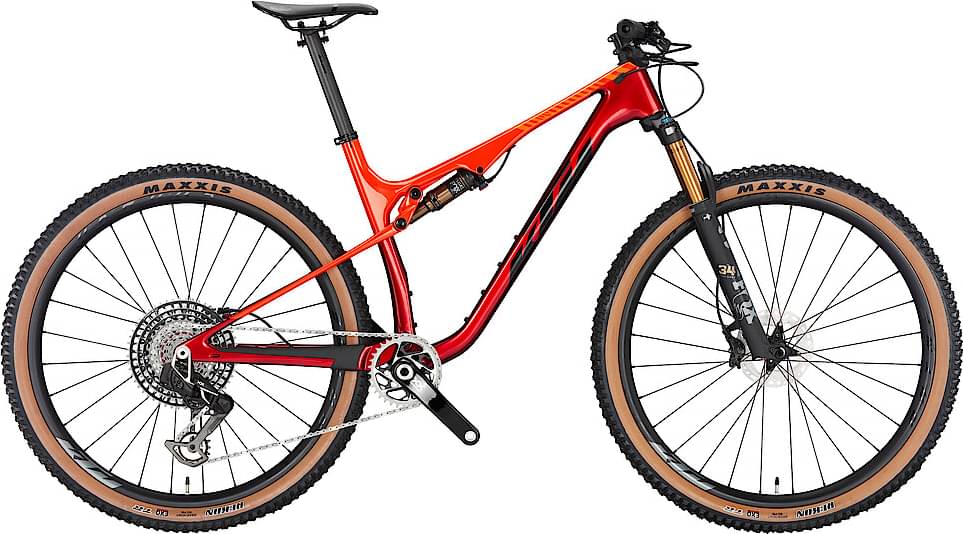

KTM SCARP MT PRIME 2025
2025 Mountain
Estimate price |
9,306$
Weight | 10.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork Fox Factory Float 34
-
Groupset XX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scarp 29" Premium Carbon SLL115mm UDH / M-2926
Suspension Fork
FOX 34 Float SC 29" Factory 120mm remote 15x110
Rear Shock
FOX Float DPS Factory remote 190x45
Drivetrain
Rear Derailleur
SRAM XX Eagle SL T-Type 12speed
Shift Levers
SRAM POD AXS Controller
Cassette
SRAM GX Eagle T-Type XS-1275 / 10-52
Crank
SRAM XX Eagle SL Carbon T-Type 32T
Chain
SRAM GX Eagle T-Type 12s
Wheels
Rims
KTM Prime Carbon Trail 29 CL 110/15TA /622x30TSS made by DT Swiss
Tires
Front: Maxxis Rekon EXO/TR 62-622, Rear: Maxxis Rekon EXO/TR 62-622
Brakes
Brakes
Shimano Deore XT M8100 / M8100 2-Piston
Cockpit
Stem
KTM Prime MTB 6°
Handlebar
KTM Prime Carbon flat 740mm
Headset
KTM Team drop/in 1.1/8"-1.5"
Seat
Saddle
Selle San Marco Aspide Short Open Fit Narrow
Seatpost
KTM Prime Carbon zero 30.9/400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.436 mm | 1.399 mm | 1.366 mm | 1.335 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 699 mm | 720 mm | 742 mm | 763 mm |
| Rake | 51 mm | 50 mm | 51 mm | 50 mm |
| Trail | 100 mm | 101 mm | 100 mm | 101 mm |
| Stack | 593 mm | 603 mm | 612 mm | 622 mm |
| Reach | 413 mm | 431 mm | 448 mm | 466 mm |
| Top Tube Length | 583 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1131 mm | 1152 mm | 1174 mm | 1195 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 790 mm | 790 mm | 790 mm | 796 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
