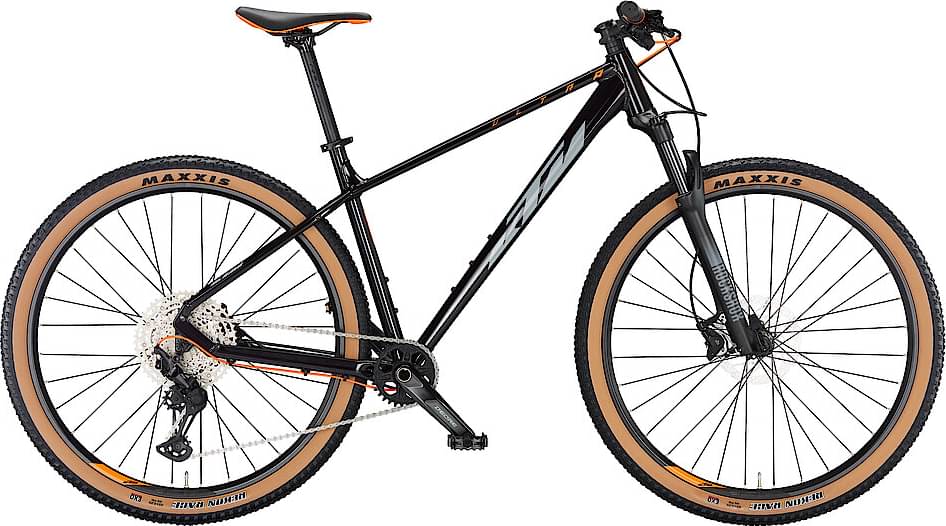

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" Alloy 6061 MTB ULTRA TB / M-1306
Suspension Fork
RockShox Judy Silver TK 29" 100mm remote 15x110 taper
Drivetrain
Rear Derailleur
Shimano Deore XT M8100-12 SGS shadow+
Shift Levers
Shimano Deore M6100-12
Cassette
Shimano M6100-12 / 10-51
Crank
Shimano Deore M6100 32T
Chain
Shimano M6100-12
Pedals
KTM Team MTB SB
Wheels
Rims
KTM Line - Shimano HB-MT410 CL 32H 110 TA / KTM 28" Sport 32H; 622x22 / Richman 2.0 INOX, black
Brakes
Brakes
Shimano M4100 / MT410 2-Piston
Cockpit
Stem
KTM Team 7°
Handlebar
KTM Comp flat 2X 720mm
Headset
KTM Team drop/in 1.1/8"-1.5"
Seat
Saddle
KTM Comp MTB Sport
Seatpost
KTM Comp 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.509 mm | 1.465 mm | 1.446 mm | 1.424 mm | 1.437 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 657 mm | 678 mm | 700 | 721 mm | 738 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 45 mm |
| Trail | 97 mm | 97 mm | 97 mm | 97 mm | 96 mm |
| Stack | 605 mm | 614 mm | 629 mm | 642 mm | 661 mm |
| Reach | 401 mm | 419 mm | 435 mm | 451 mm | 460 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm | 635 mm | 650 |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm | 570 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1088 mm | 1109 mm | 1131 mm | 1152 mm | 1169 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 762 mm | 769 mm | 799 mm | 831 mm | 860 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
