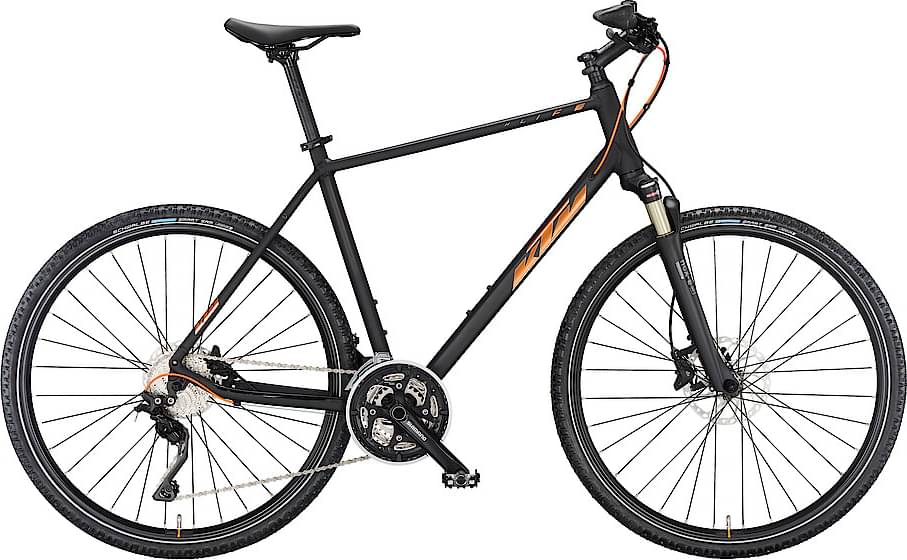

KTM X-LIFE 1964 CROSS 2025
2025 Urban
Estimate price |
1,511$
Weight | 12.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28" Alloy 6061 OFFROAD TB / T-2390
Suspension Fork
Suntour NCX-E Air LO 63mm
Drivetrain
Rear Derailleur
Shimano Deore XT T8000-10 SGS shadow
Front Derailleur
Shimano Deore T6000
Shift Levers
Shimano Deore T6000-10 display
Cassette
Shimano HG500-10 / 11-34
Crank
Shimano Deore T551 48-36-26T
Chain
Shimano HG54-10
Pedals
KTM Team MTB SB
Wheels
Rims
KTM Line - Shimano HB-M6000 CL 32H 100 QR / KTM 28" Casual 32H; 622x19 / Richman 2.0 double butted INOX, black
Tires
Front: Schwalbe Smart Sam Perf. 44-622 RT Addix, Rear: Schwalbe Smart Sam Perf. 44-622 RT Addix
Brakes
Brakes
Shimano MT402 (3-F) / MT410 2-Piston
Cockpit
Stem
KTM Comp 17°
Handlebar
KTM Comp rizer15 640mm
Headset
KTM Team drop/in 1.1/8"-1.5"
Seat
Saddle
KTM Comp Hybrid
Seatpost
KTM Comp 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.511 mm | 1.539 mm | 1.564 mm | 1.563 mm | 1.552 mm |
| Front Center | 636 mm | 647 mm | 658 mm | 674 mm | 695 mm |
| Rake | 41 mm | 42 mm | 42 mm | 42 mm | 41 mm |
| Trail | 80 mm | 79 mm | 79 mm | 79 mm | 80 mm |
| Stack | 600 mm | 617 mm | 635 mm | 650 | 669 mm |
| Reach | 397 mm | 401 mm | 406 mm | 416 mm | 431 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm | 615 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm | 630 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 137 mm | 155 mm | 174 mm | 190 mm | 210 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1070 mm | 1081 mm | 1092 mm | 1108 mm | 1129 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 797 mm | 830 mm | 861 mm | 886 mm | 911 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
