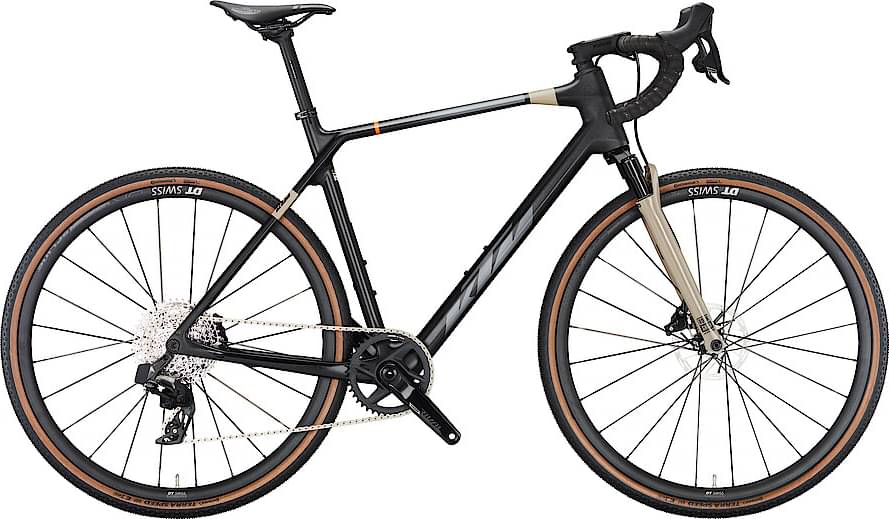

KTM X-STRADA PRIME 2024
2024 Road
Estimate price |
5,275$
Weight | 9.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 40mm -
Fork RockShox Rudy Ultimate XPLR
-
Groupset Rival XPLR AXS, Rival AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Rival Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Strada Gravel Premium Carbon / R-2980
Suspension Fork
RockShox Rudy Ultimate XPLR 40mm 12x100 taper
Drivetrain
Rear Derailleur
SRAM Rival XPLR eTap AXS 12speed
Shift Levers
SRAM Rival eTap AXS HRD
Cassette
SRAM Rival XPLR XG-1251 / 10-44
Crank
SRAM Rival 1 wide DUB 42T
Chain
SRAM Rival flattop 12s
Wheels
Rims
DT Swiss GR 1600 SPLINE CL 100/12TA / 622x24TC
Brakes
Brakes
SRAM Rival hydraulic
Cockpit
Stem
KTM Team Road 8°
Handlebar
KTM TEAM Road flare 16°
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle San Marco Shortfit Open Fit Wide
Seatpost
KTM Team 27.2/350
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.445 mm | 1.457 mm | 1.486 mm | 1.46 mm | 1.453 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 293 mm | 294 mm |
| Front Center | 631 mm | 637 mm | 643 mm | 658 mm | 674 mm |
| Rake | 42 mm | 41 mm | 43 mm | 43 mm | 42 mm |
| Trail | 95 mm | 89 mm | 80 mm | 80 mm | 81 mm |
| Stack | 554.9 mm | 573.2 mm | 596.1 mm | 603.8 mm | 616.2 mm |
| Reach | 384 mm | 393.5 mm | 401.2 mm | 413.5 mm | 424.1 mm |
| Top Tube Length | 544.9 mm | 565.2 mm | 585.6 mm | 605.9 mm | 626.2 mm |
| Seat Tube Angle | 73.6 ° | 73.1 ° | 72.6 ° | 72.2 ° | 71.7 ° |
| Seat Tube Length | 490 mm | 520 mm | 550 mm | 570 mm | 590 mm |
| Head Tube Angle | 68.1 ° | 69.1 ° | 70.2 ° | 70.2 ° | 70.2 ° |
| Head Tube Length | 125 mm | 140 mm | 160 mm | 170 mm | 185 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1054 mm | 1060 mm | 1066 mm | 1082 mm | 1098 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 56 mm | 54 mm |
| Standover Height | 776 mm | 799 mm | 824 mm | 838 mm | 855 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
