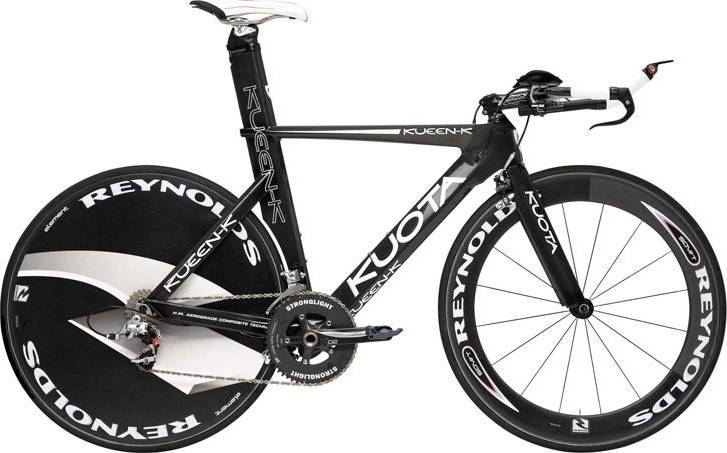

Kuota Kueen-K Frameset 2010
2010 Road
Estimate price |
3,949$
Weight | 1.2 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High Modulus 3K Monocoque Carbon
Suspension Fork
Kuota Rear Brake Mount Carbon Fork
Drivetrain
Front Derailleur
Braze-On Required
Bottom Bracket
68mm / English
Brakes
Brakes
Tektro
Cockpit
Headset
1 1/8" to 1 1/4" Integrated
Seat
Seatpost
Kuota Integrated - Dual Position
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Top Tube Length | 486 mm | 511 mm | 526 mm | 546 mm | 566 mm |
| Seat Tube Angle | 79 ° | 78.5 ° | 78.5 ° | 78 ° | 78 ° |
| Seat Tube Length | 685 mm | 710 mm | 735 mm | 755 mm | 770 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 386 mm | 386 mm | 386 mm | 386 mm | 386 mm |
| Standover Height | 716 mm | 723 mm | 745 mm | 763 mm | 779 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Kueen-K Frameset is part of the Kuota Kueen K model. Kuota launched 4 frames of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Triathlon frames average price
If you want an acceptable Triathlon frame you should know that the average price is 3089$. However, even though the average price of a Triathlon frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
This frame was released in 2010 and its price was 3949$. Comparing the average cost of a Triathlon frame to this one, you will see that Kueen-K Frameset price is 27.84% more expensive.
Average weight for Triathlon frames
On a deeper look, we notice that the average weight of a Triathlon frame is 2.23 kg (4.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Kueen-K Frameset weighs 1.2 kg (2.65 lbs) and is much lighter than the average. In short, the average Triathlon frame weight is 85.83% higher than this one.
Kueen-K Frameset components
Fork material
The fork on this frame is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Brakes
Stopping the bike when needed, it’s essential for your safety. This frame has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Kueen-K Frameset comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
