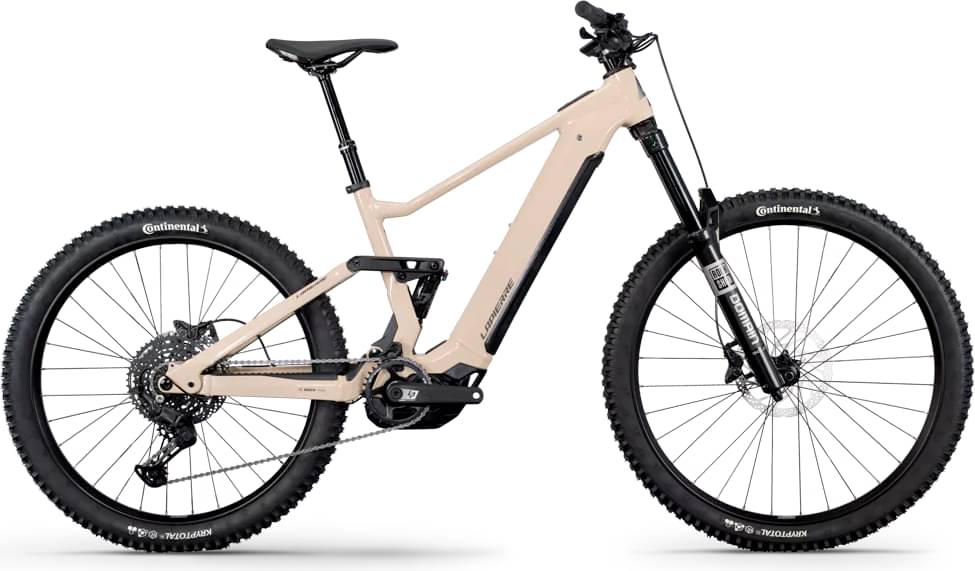

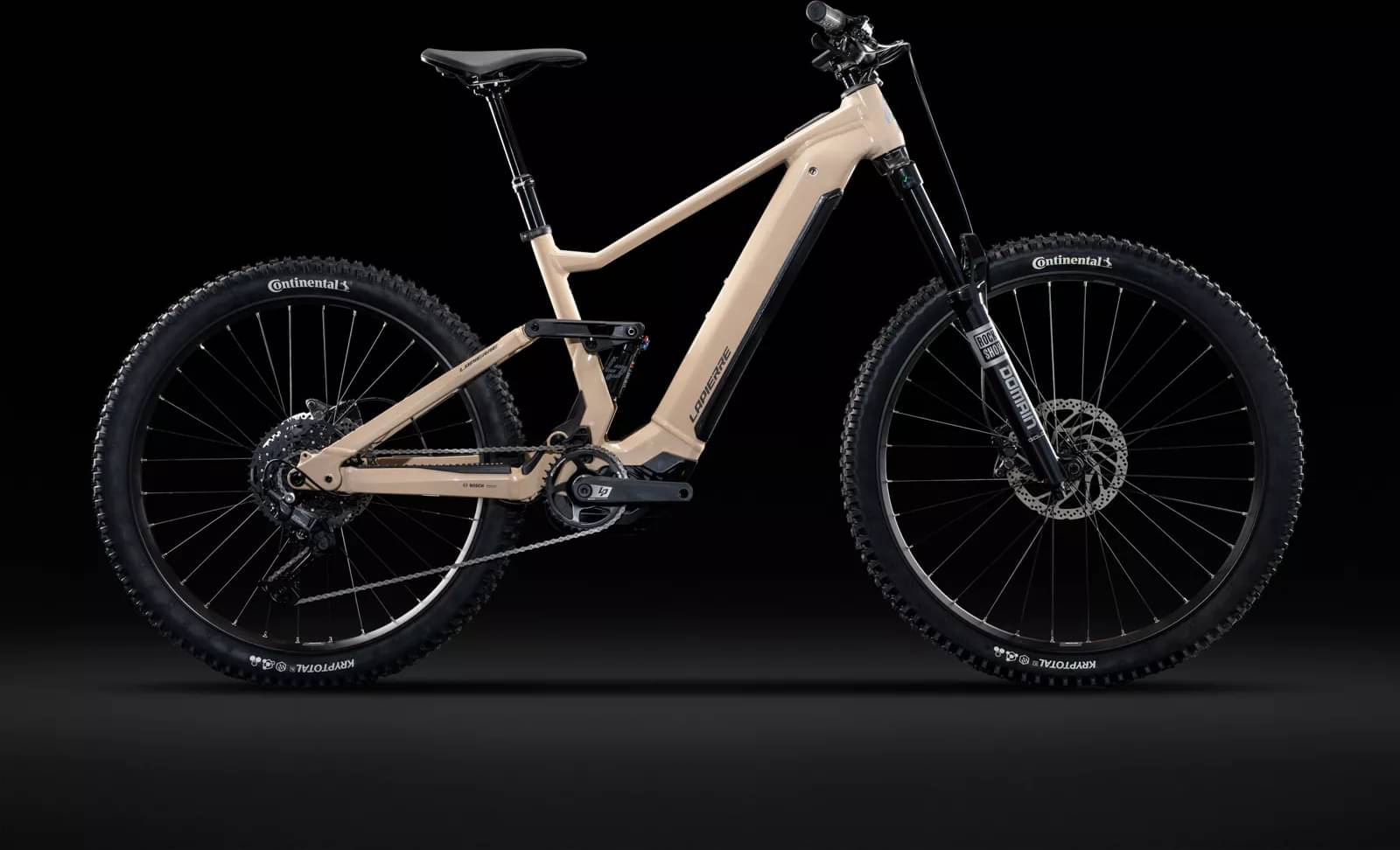

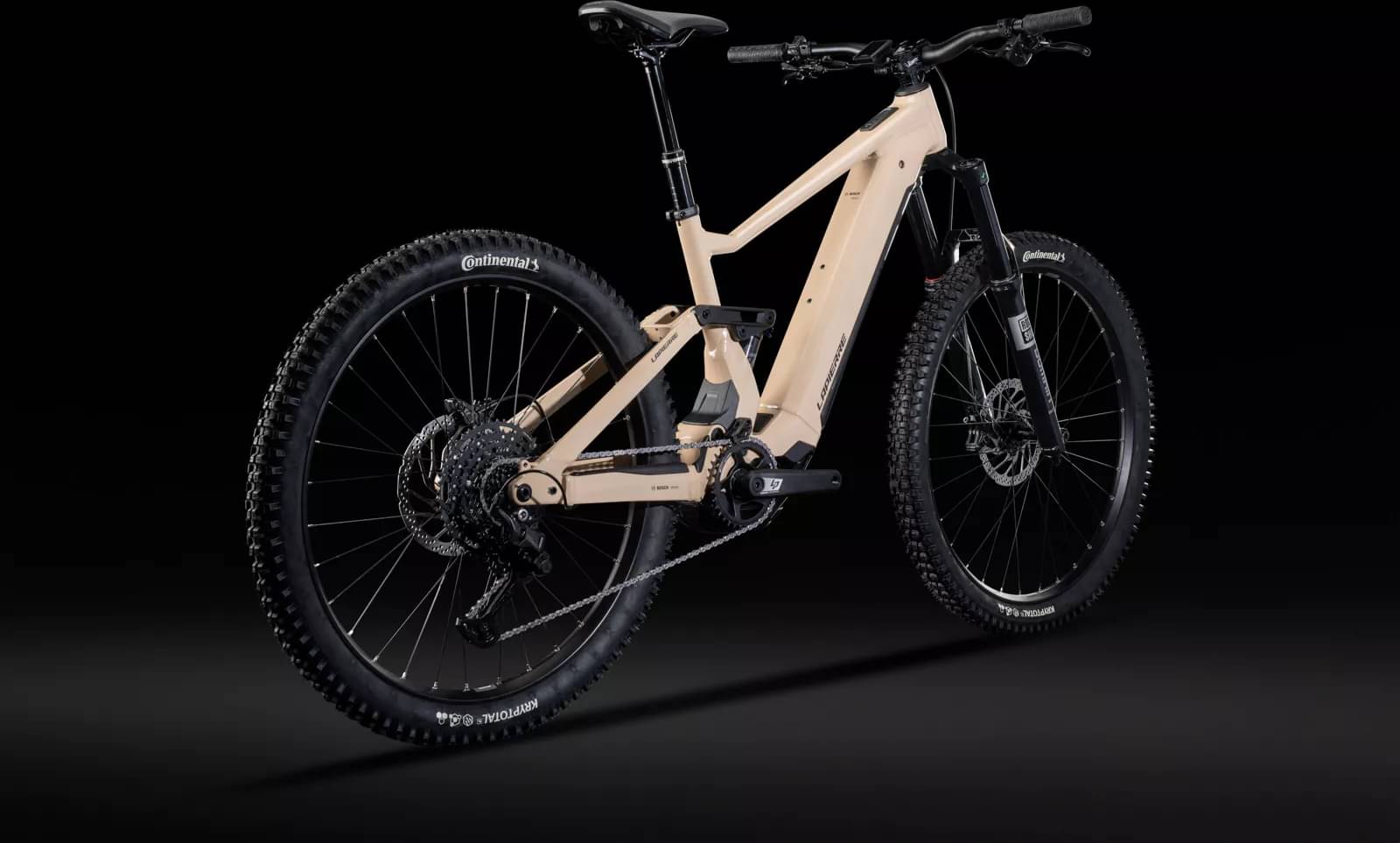

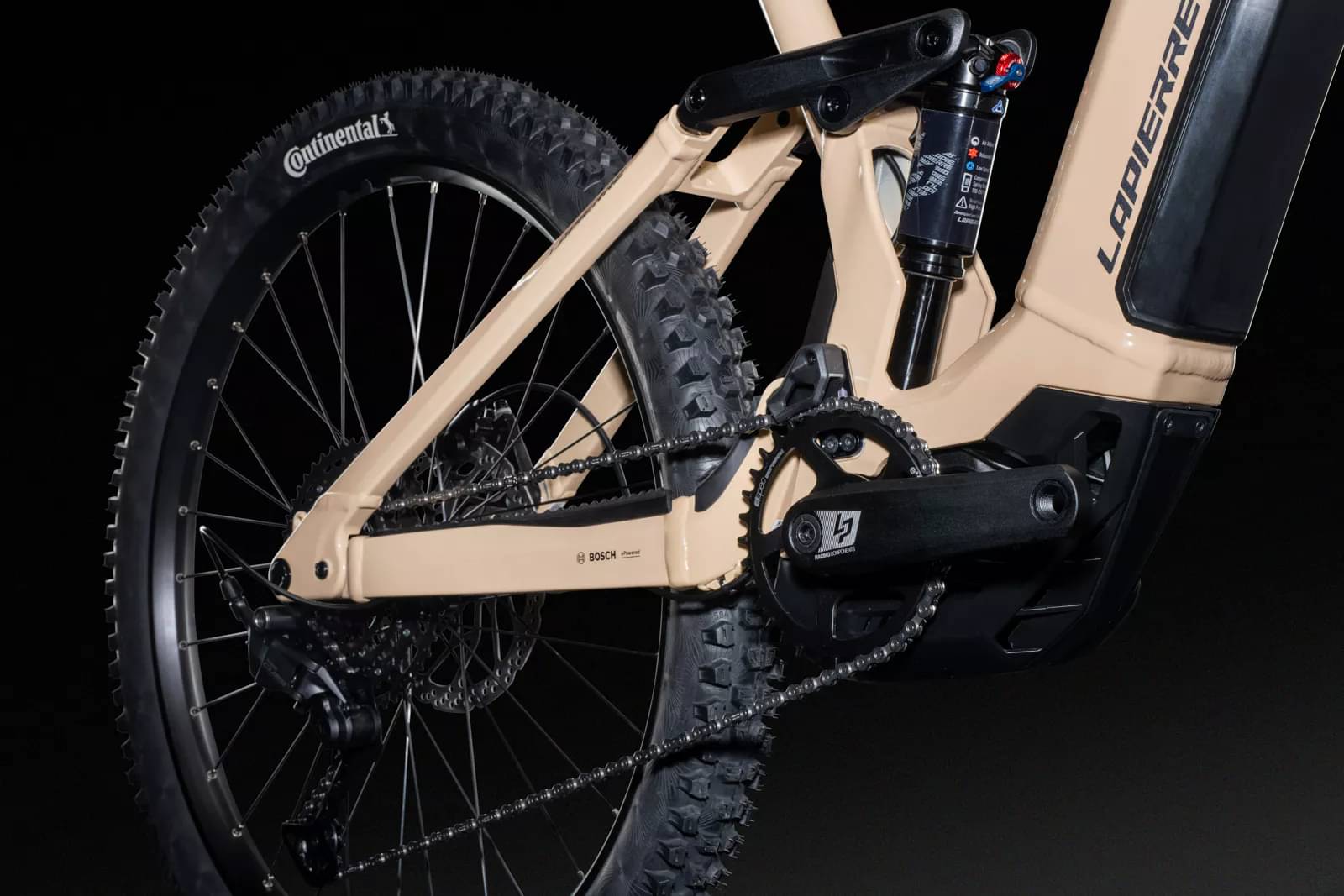

Lapierre Overvolt AM 4.6 2025
2025 E-bike
Estimate price |
6,514$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Fork RockShox Domain
-
Groupset CUES -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Performance line CX “25kph” BDU384 / Powertube Horizontal 600Wh / Kiox 300 -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Suprême 5 alloy
Suspension Fork
RockShox Domain GOLD ISOLATOR R 29’’ 15x110 170mm 44mm offset
Rear Shock
Lapierre Shock 205x60mm Trunnion/30x8mm
Drivetrain
Shift Levers
Shimano CUES U6000 10s
Cassette
Shimano CUES LG300 11-48T 10s
Crank
Samox EC40-F13-ISIS 160mm + E13 Helix Core steel chainring 34T 55CL
Chain
Shimano CUES LG500 9/10/11s
Pedals
XLC by VP
Wheels
Rims
Ryde Disc30 32H, 30-622 Black Anod. front / Disc35 32H, 35-684 Black Anod. Rear
Tires
Front : Continental Kryptotal F Enduro Super soft 60-622 Rear : Continental Kryptotal R Enduro Soft 60-584
Brakes
Brakes
Shimano SM-RT30 203mm centerlock
Brake Levers
Shimano M4100 4 pistons
Cockpit
Stem
Lapierre Thirty Five alloy 0°, Ø: 35mm, L: 35mm (S/M), 45mm (L/XL)
Handlebar
Lapierre Thirty Five Alloy 6061 DB, Width: 800mm, Rise: 30mm, Backsweep: 8°, Upsweep: 6°, Ø: 35mm
Grips
Lapierre Grips S/M: Small Diameter L/XL: Large Diameter
Seat
Saddle
Selle Royal Vivo Men
Seatpost
Lapierre dropper by JD YSP18, Ø: 31.6mm, travel 130mm (S,M), 150mm (L), 170mm (XL) + Shimano lever
Motor & Battery
Motor
Bosch Performance line CX “25kph” BDU384 / Powertube Horizontal 600Wh / Kiox 300
Battery
Bosch Performance line CX “25kph” BDU384 / Powertube Horizontal 600Wh / Kiox 300
