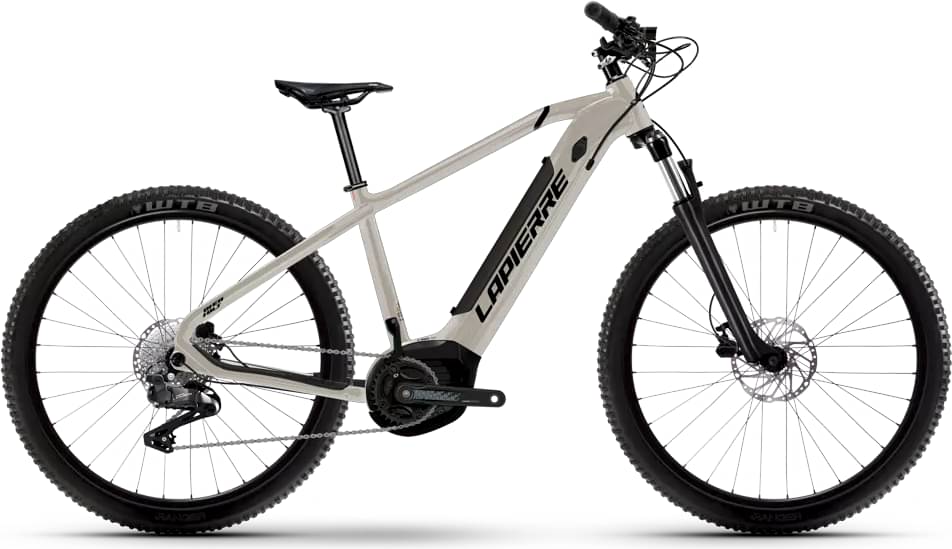

Lapierre Overvolt HT 5.5 HIGH 2025
2025 E-bike
Estimate price |
3,115$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch Performance line "25kph" / Intube battery 500Wh/LED Remote -
Drivetrain 1 × 9 -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Overvolt Bosch Supreme 5 alloy
Suspension Fork
SR Suntour XCM 32 DS 15x110 29” 120mm travel
Drivetrain
Rear Derailleur
Shimano CUES U3020 9s Shadow
Shift Levers
Shimano CUES U4000 9s
Cassette
Shimano CUES LG300 11-36T 9s
Crank
Samox 170mm + 34T steel chainring
Bottom Bracket
Bosch, press-fit
Chain
Shimano CUES LG500 9/10/11s
Pedals
XLC by VP
Wheels
Rims
Schürmann Yak25 584x25 (S), 622x25 (M,L) Disc Rim 32H with Silver Eyelets
Tires
WTB Ranger Comp 2.3x29’’
Brakes
Brakes
Tektro TR180mm/180mm-24 6 bolts
Brake Levers
Tektro HD-M275
Cockpit
Stem
Lapierre Alloy 0° Ø: 31.8mm L: 45mm
Handlebar
XLC Alloy 6061 DB, Width: 720mm, Rise: 15mm, Ø: 31.8mm
Grips
Velo Lock-On
Seat
Saddle
Lapierre
Seatpost
Kalloy Alloy, Ø: 31.6mm, L: 350mm
Motor & Battery
Motor
Bosch Performance line "25kph" / Intube battery 500Wh/LED Remote
Battery
Bosch Performance line "25kph" / Intube battery 500Wh/LED Remote
