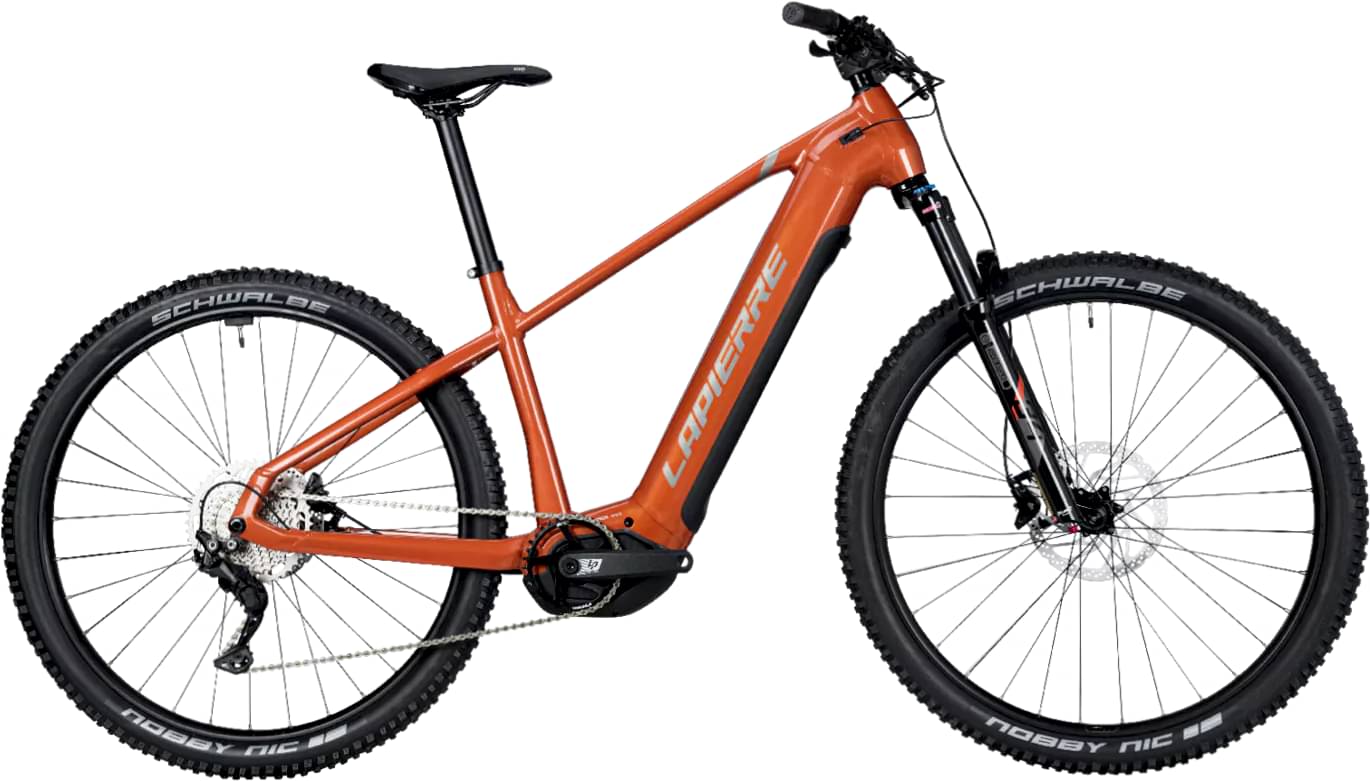

Lapierre Overvolt HT 7.6 High 2024
2024 E-bike
Estimate price |
4,536$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR
-
Groupset CUES, e*thirteen -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Performance line CX “25kph” / Intube battery 625Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Overvolt Bosch Supreme 5 alloy

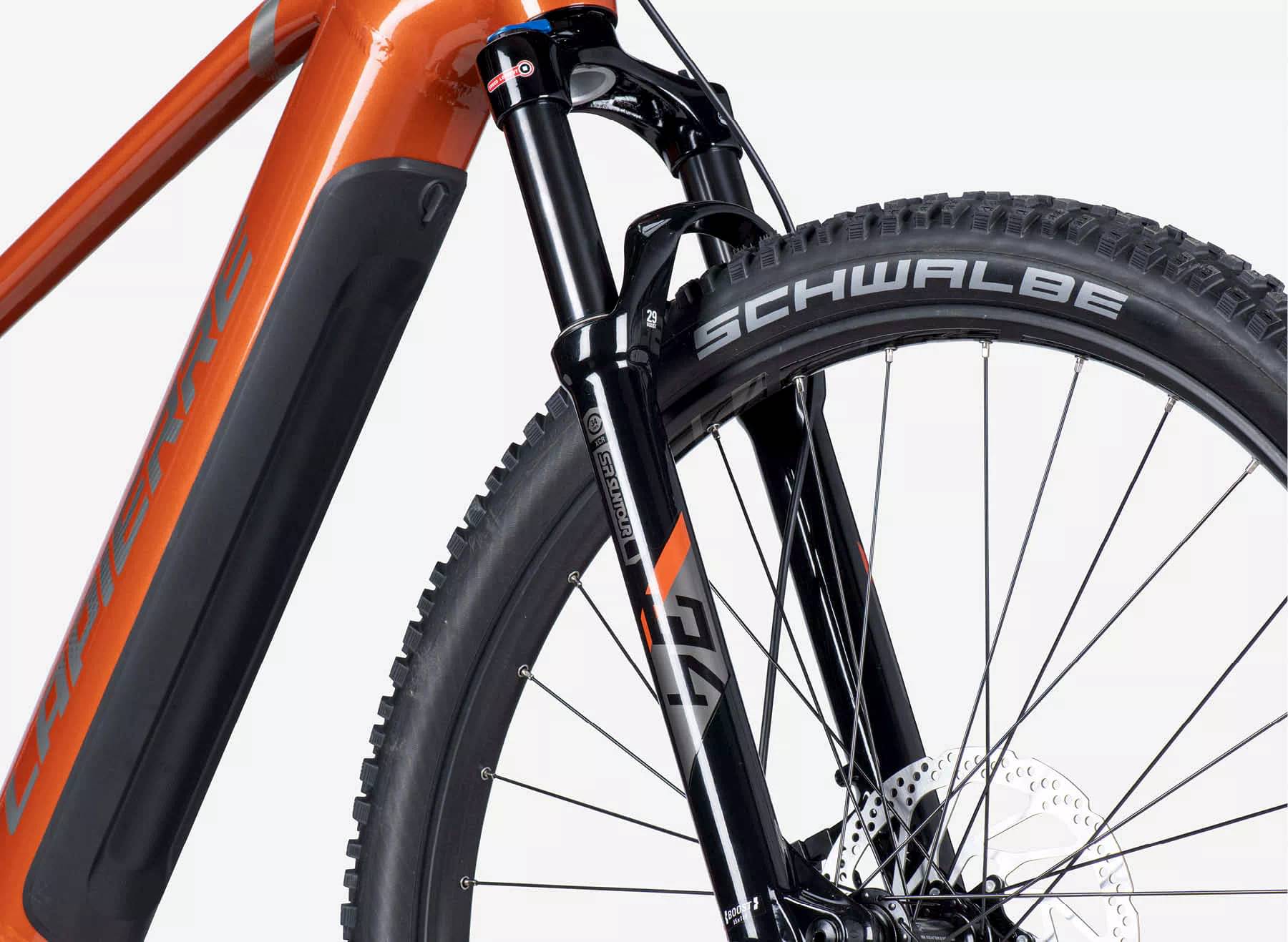

Suspension Fork
SR Suntour XCR 34 COIL 2CR DS 15x110 29” 120mm travel
Drivetrain

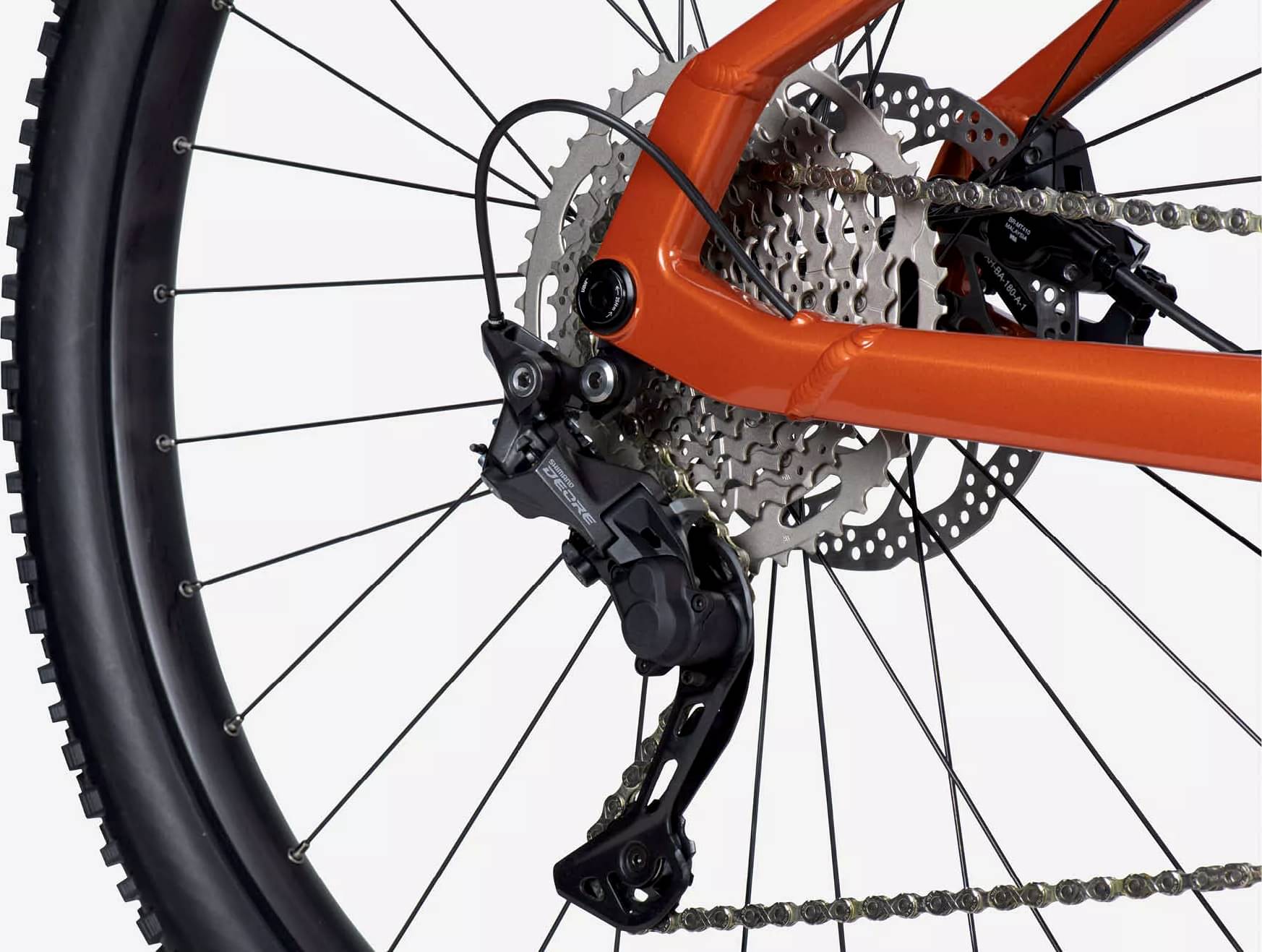

Rear Derailleur
Shimano CUES U6000 10/11s Shadow+
Shift Levers
Shimano CUES U6000 10s
Cassette
Shimano CUES LG300 11-48T 10s

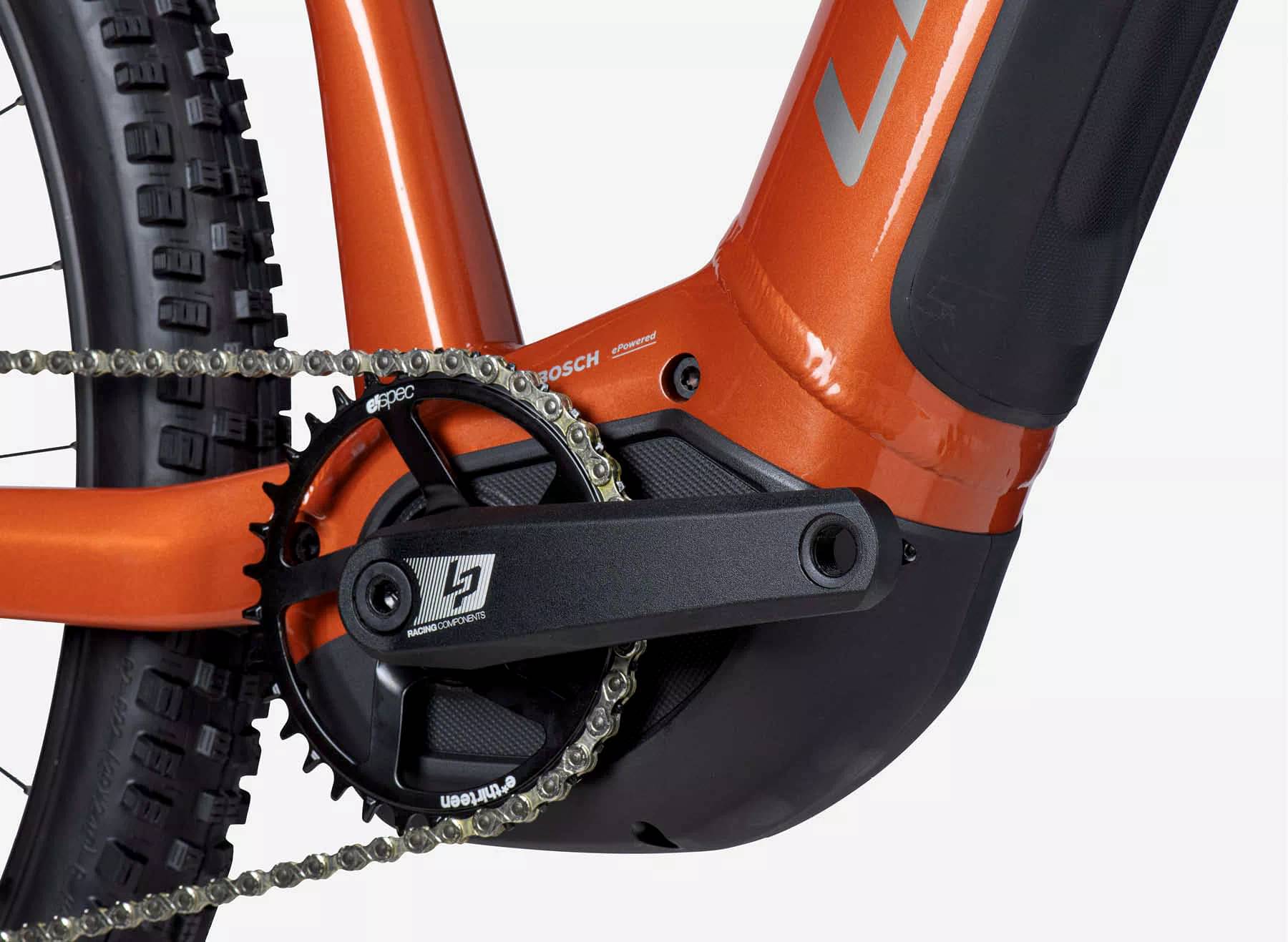

Crank
Samox EC40-F13-ISIS 160mm (S,M), 165mm (L,XL) + E13 E-spec steel chainring 34T
Bottom Bracket
Bosch, press-fit
Chain
Shimano CUES LG500 9/10/11s
Pedals
VP VPE-527
Wheels
Rims
Lapierre 27.5" eAM+ 32H, 35-584
Tires
Schwalbe Nobby Nic, Performance, 50EPI, 65-584 (S), 62-622 (M,L,XL)
Brakes
Brakes
Shimano ASMRT30 203mm/180mm (S/M), 203mm/203mm (L/XL) center lock
Brake Levers
Shimano MT401 2 Pistons

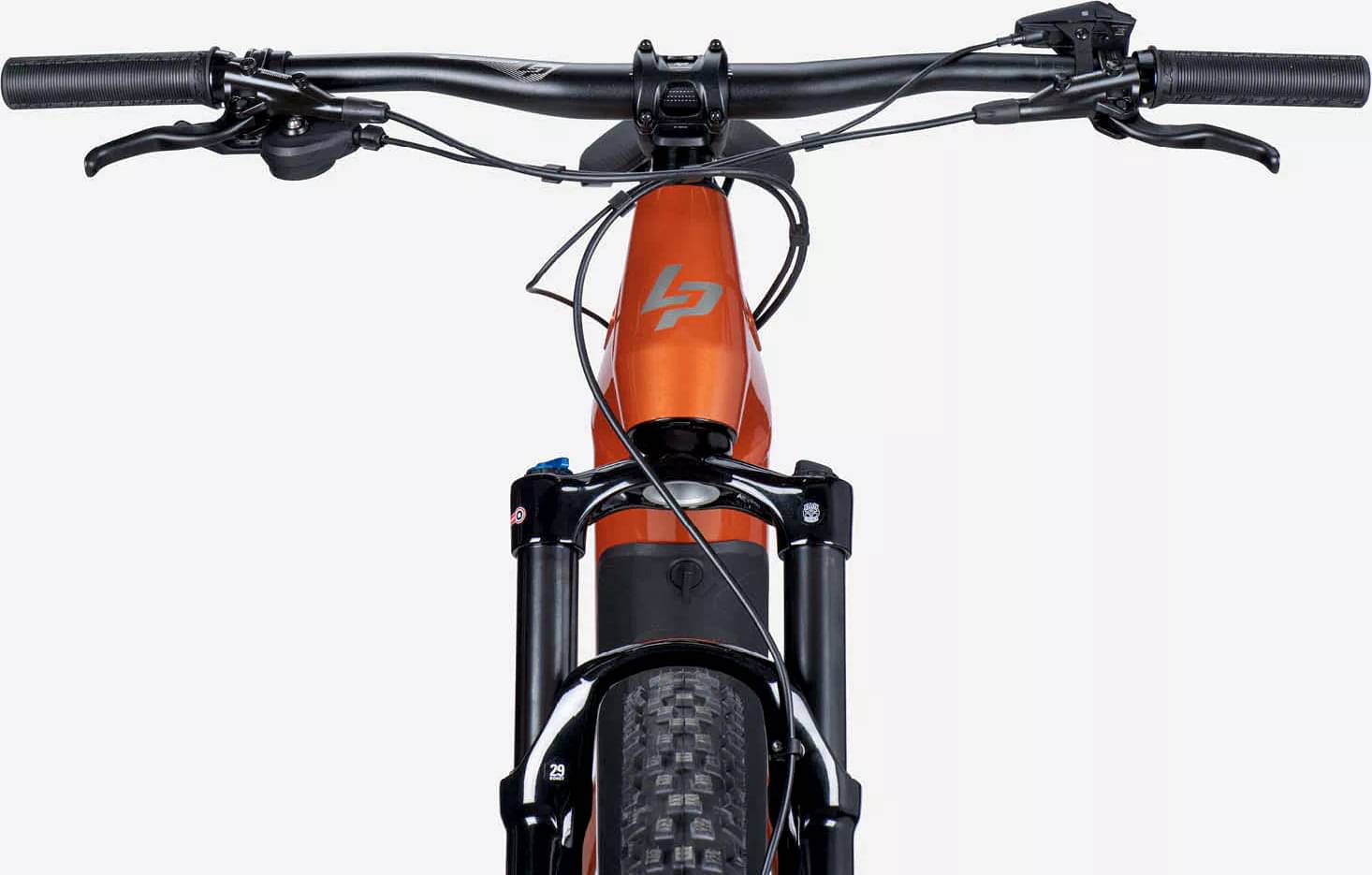

Cockpit
Stem
Alloy, 0°, Ø: 31.8mm, L: 40mm (S,M), 50mm (L,XL)
Handlebar
Lapierre Alloy 6061 DB, Width: 760mm, Rise: 15mm (S/M) 30mm (L,XL), Ø: 31.8mm
Grips
Lapierre Grips S/M: Small Diameter L/XL: Large Diameter
Seat
Saddle
Selle Royal Vivo Men
Seatpost
Alloy, Ø: 34,9mm, L: 300mm (S,M), 350mm (L), 400mm (XL)
Motor & Battery
Motor
Bosch Performance line CX “25kph” / Intube battery 625Wh
Battery
Bosch Performance line CX “25kph” / Intube battery 625Wh
