Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano 105 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Carbon UD SL
Drivetrain
Rear Derailleur
Shimano 105 Di2 R7150, 12s
Front Derailleur
Shimano 105 Di2 R7150
Shift Levers
Shimano 105 ST-R7120
Cassette
Shimano R7100 11-34T 12s
Crank
Shimano 105 R7100, 50-34T 170mm (XS,S), 172.5mm (M,L), 175mm (XL)
Bottom Bracket
Shimano Press Fit BB7141B
Chain
Shimano M7100 12s
Wheels
Rims
DT Swiss E1800 Spline 30mm (22mm width), Centerlock, Tubeless compatible, XD Driver
Tires
Schwalbe One Perf, RaceGuard, MicroSkin, TLE 25-622
Brakes
Brakes
Shimano 105 Di2 BR-R7170, 160 mm

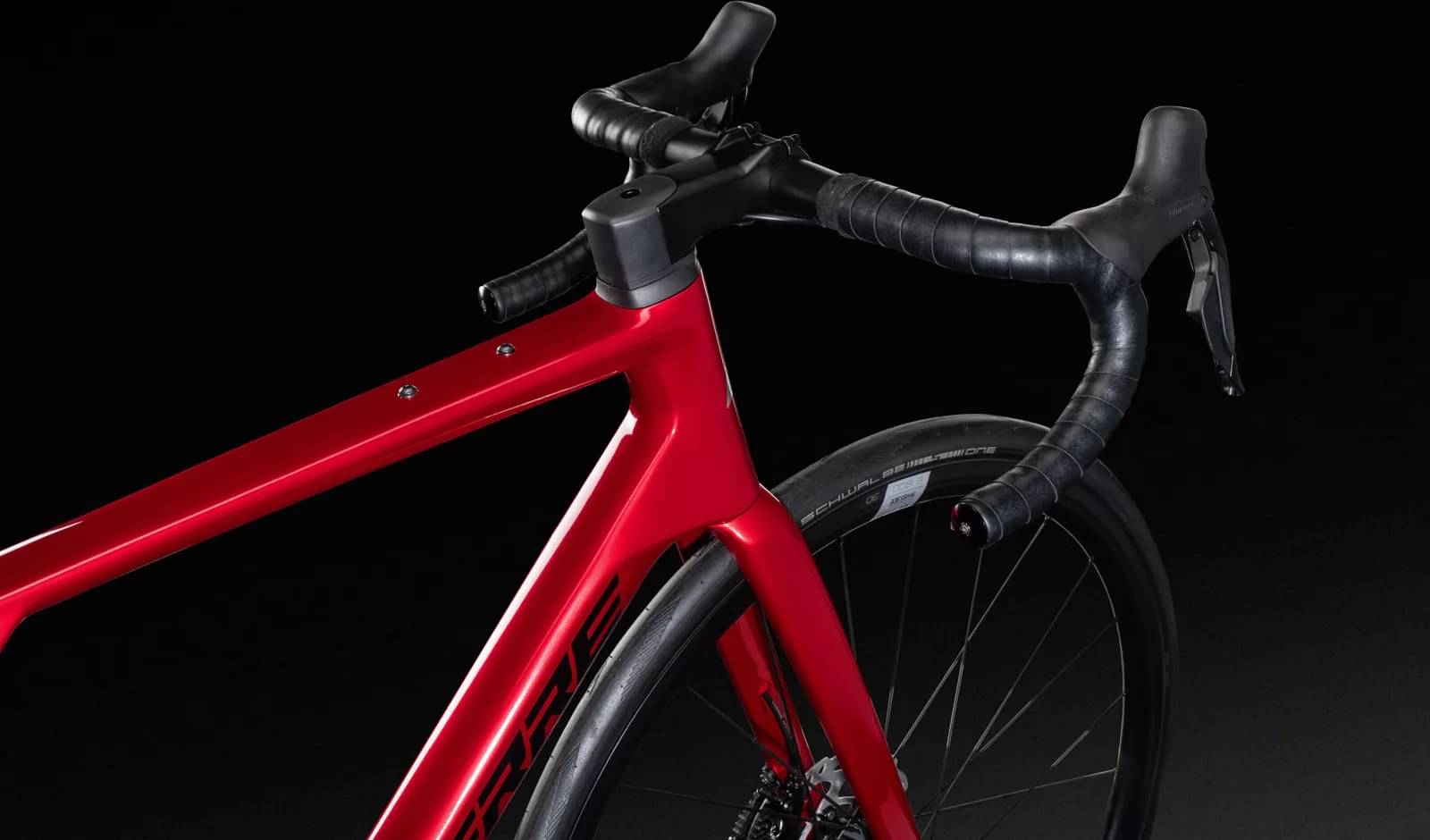

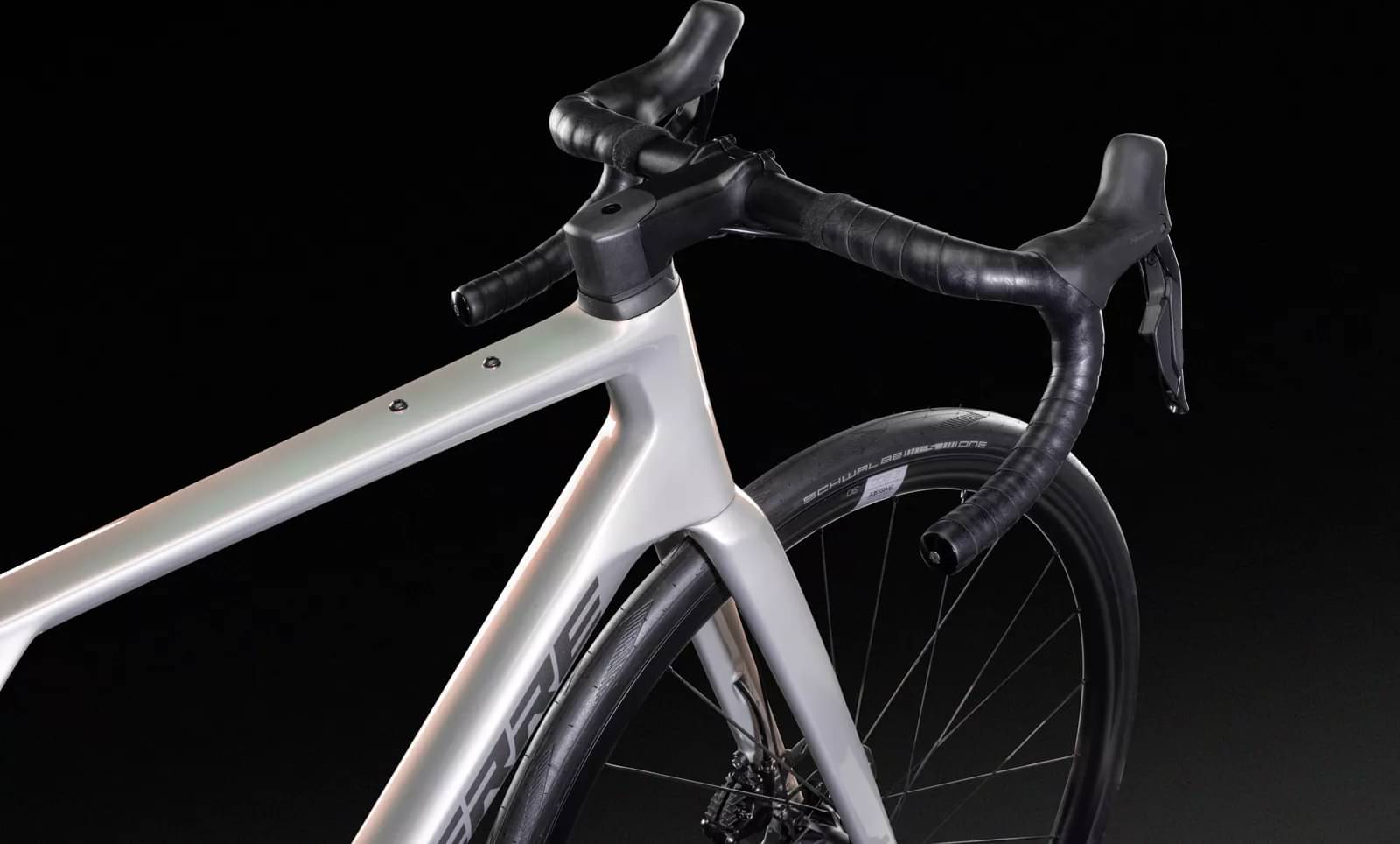

Cockpit
Stem
Lapierre alloy, semi-integrated routing, -10°, Ø: 31.8mm, 80mm (XS), 90mm (S), 100mm (M), 110mm (L), 120mm (XL,XXL)
Handlebar
Lapierre alloy, Width: 380mm (XS), 400mm (S,M), 420mm (L,XL,XXL), Drop: 120mm, Reach: 70mm, Flare: 10°
Seat
Saddle
Fizik Aliante R5 150mm
Seatpost
Lapierre alloy, Ø: 27.2mm, L: 350mm
