Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alivio, Acera -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

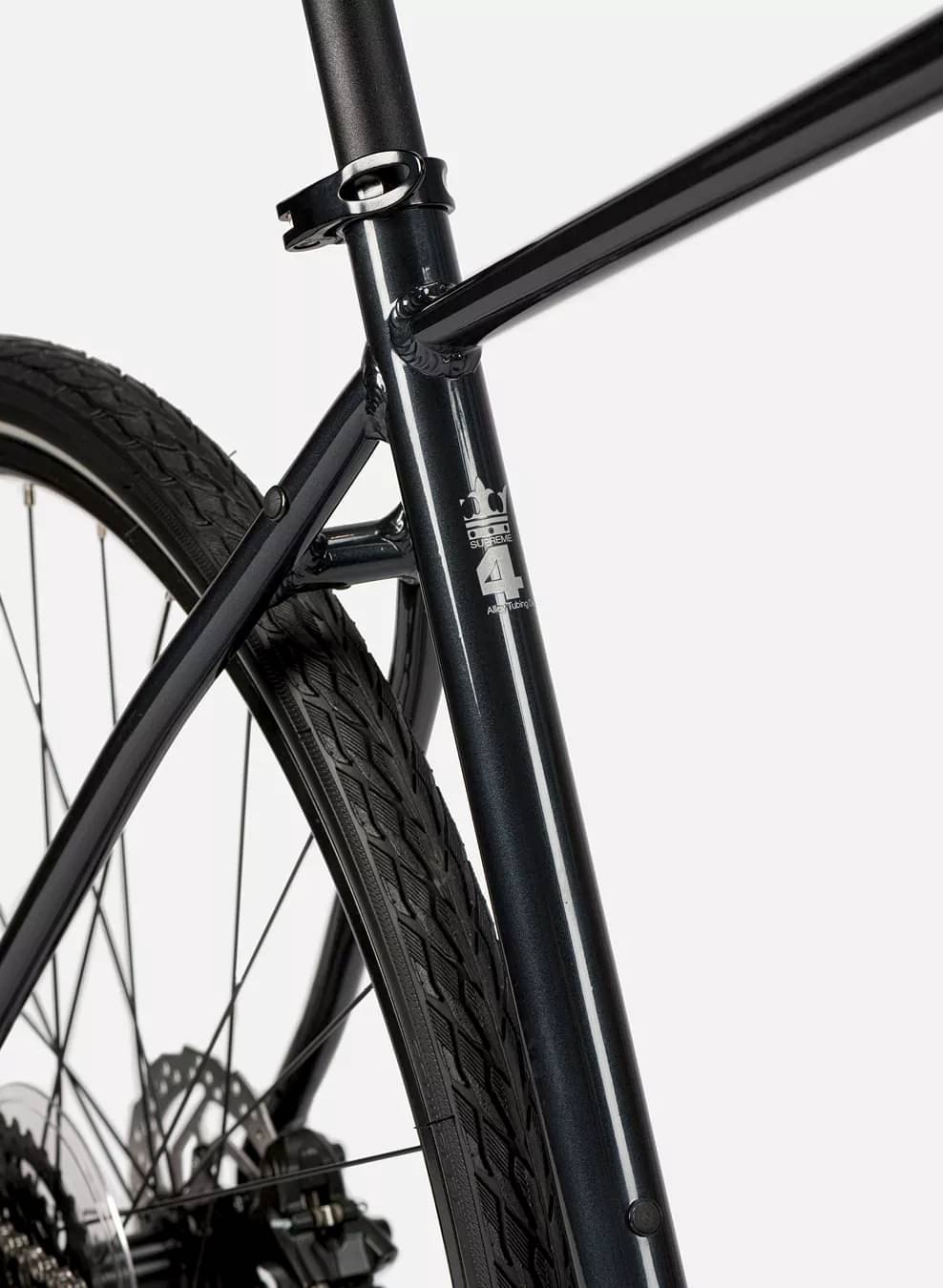

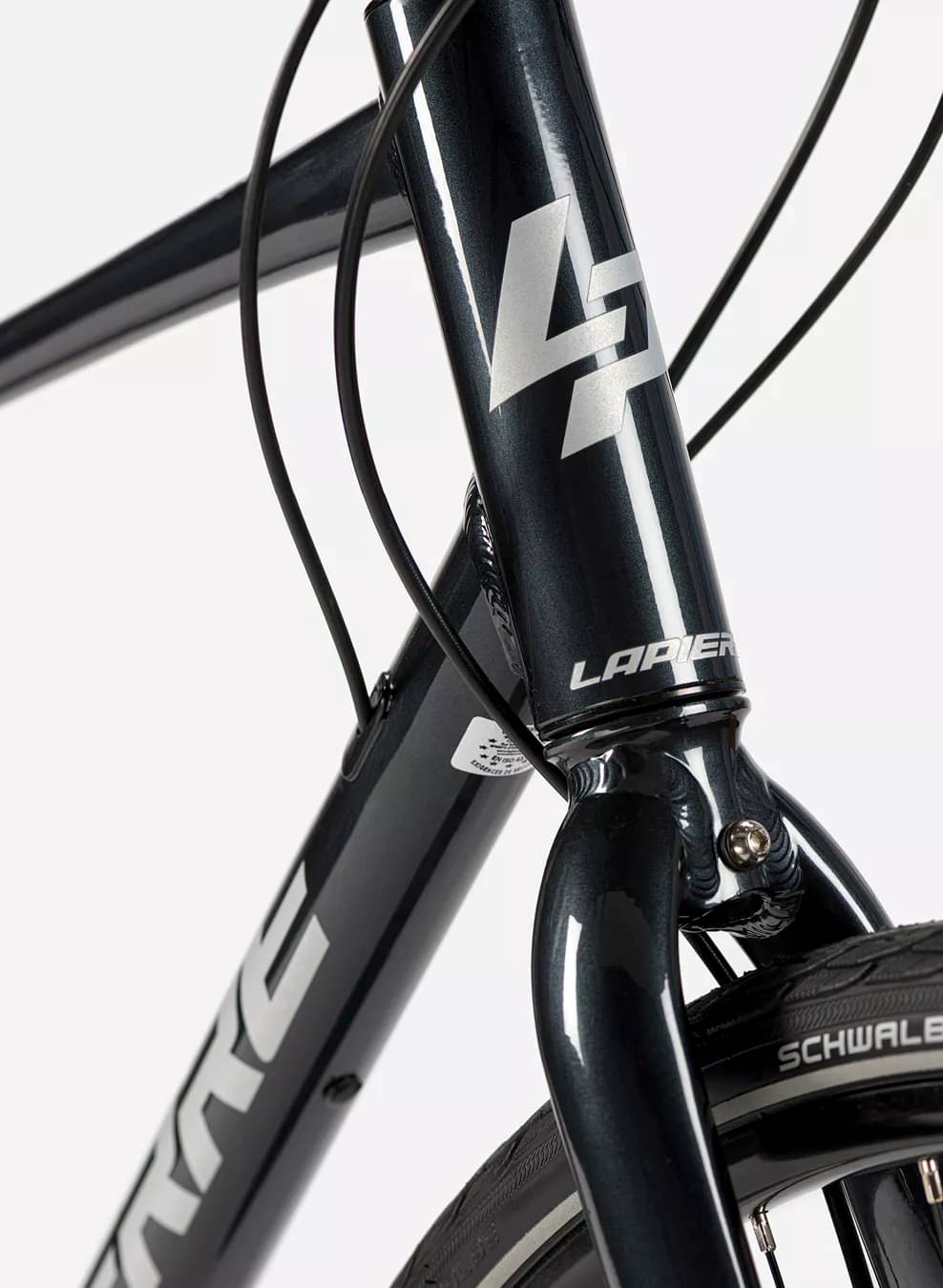

Frame
Frame
Shaper 700c Supreme 4 Alloy Disc Brake

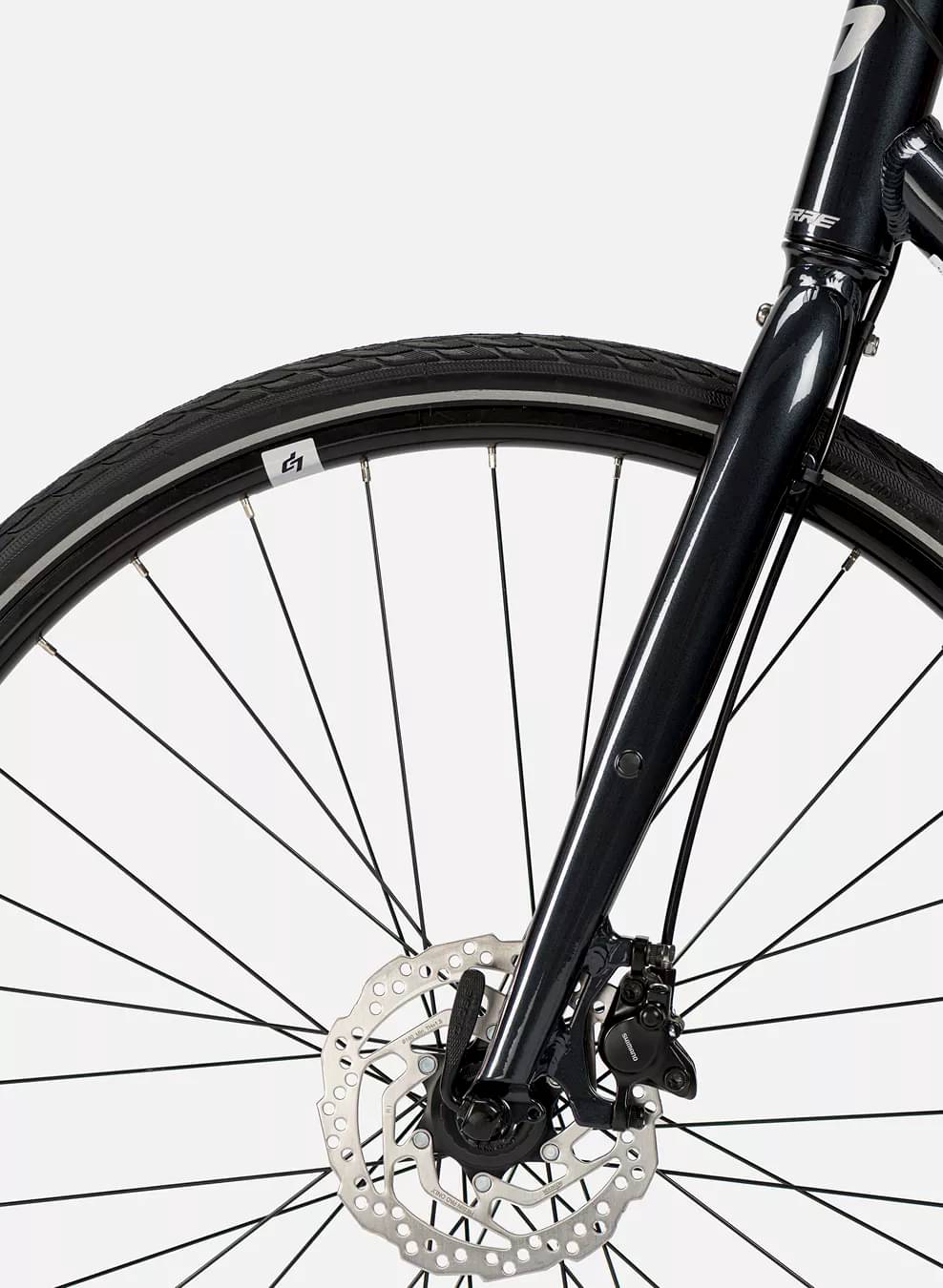

Suspension Fork
Shaper 700c Alloy PM Disc Brake
Drivetrain
Rear Derailleur
Shimano Alivio T4000 9s
Front Derailleur
Shimano Acera T3000
Shift Levers
Shimano Acera M3000 9s
Cassette
Sunrace CSM90 9s 11–34T
Crank
Shimano Acera M371 48x36x26T 170mm (S) 175mm (M/L/XL)
Bottom Bracket
Square 126mm
Chain
X9 1/2"x 11/128" 9s
Pedals
Xerama SP-822N

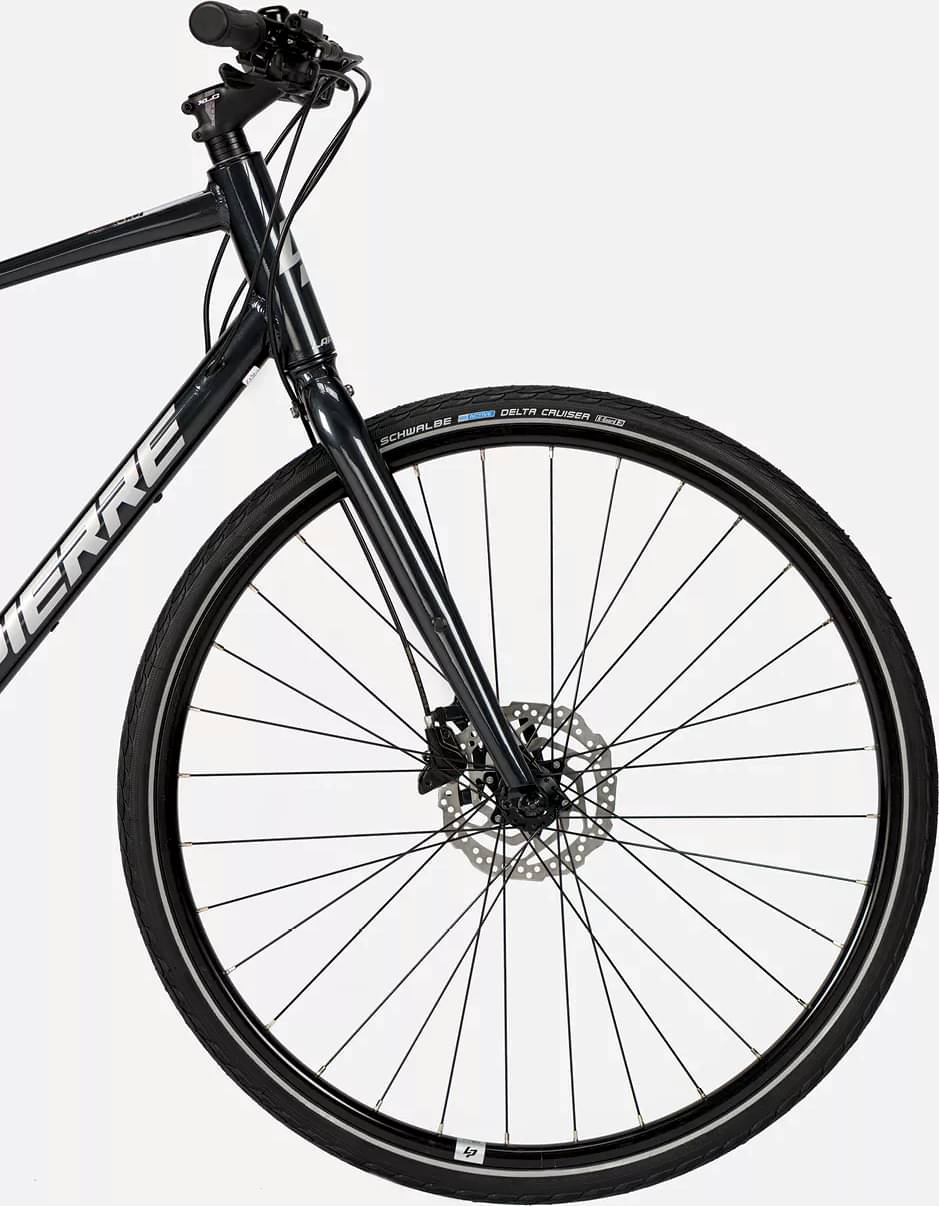

Wheels
Rims
Lapierre DW 32H 622-21c
Tires
Schwalbe Delta Cruiser 700x35c 622–37

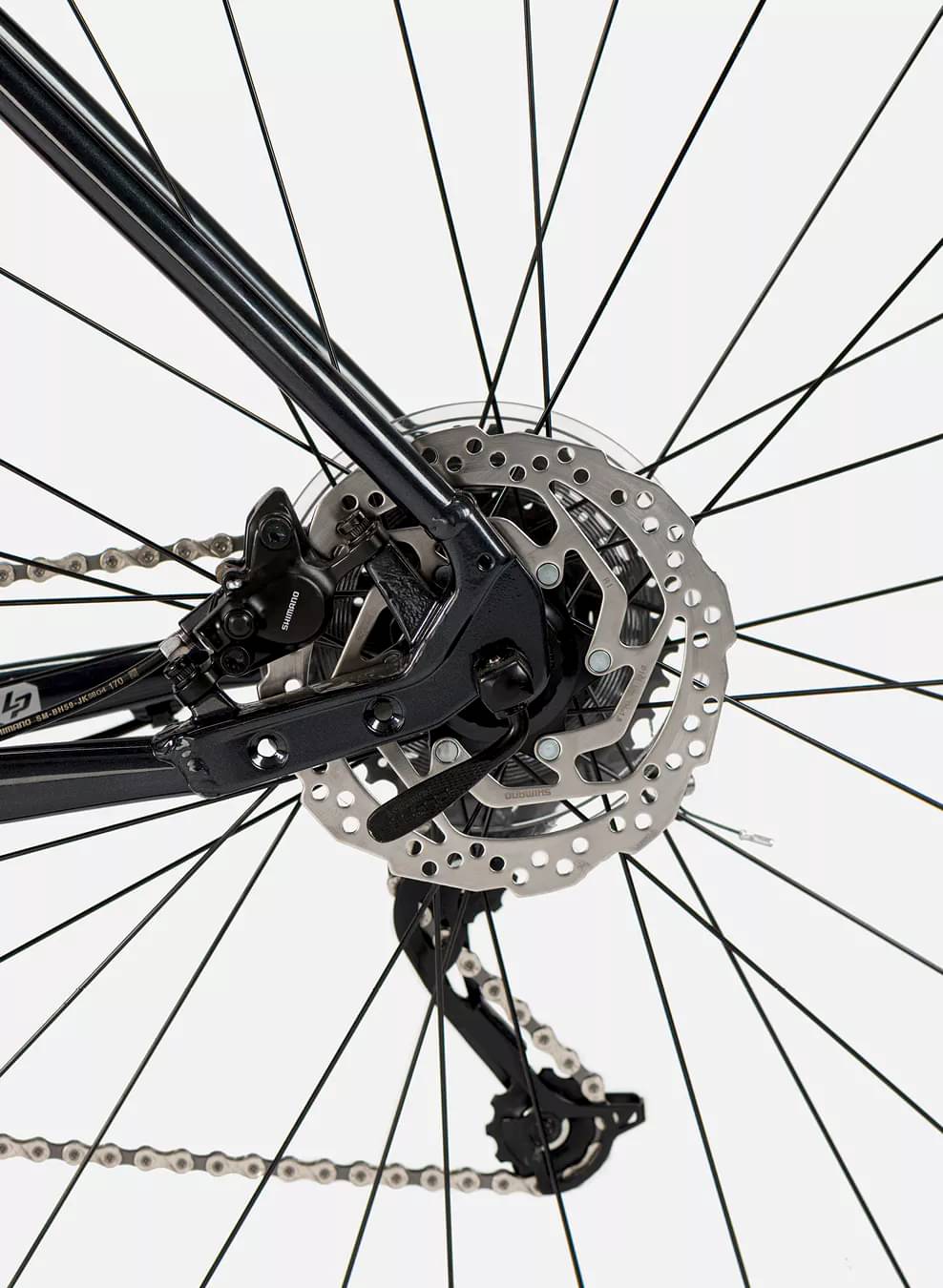

Brakes
Brakes
Shimano 160mm Centerlock
Brake Levers
Shimano MT200 Hydraulic Disc

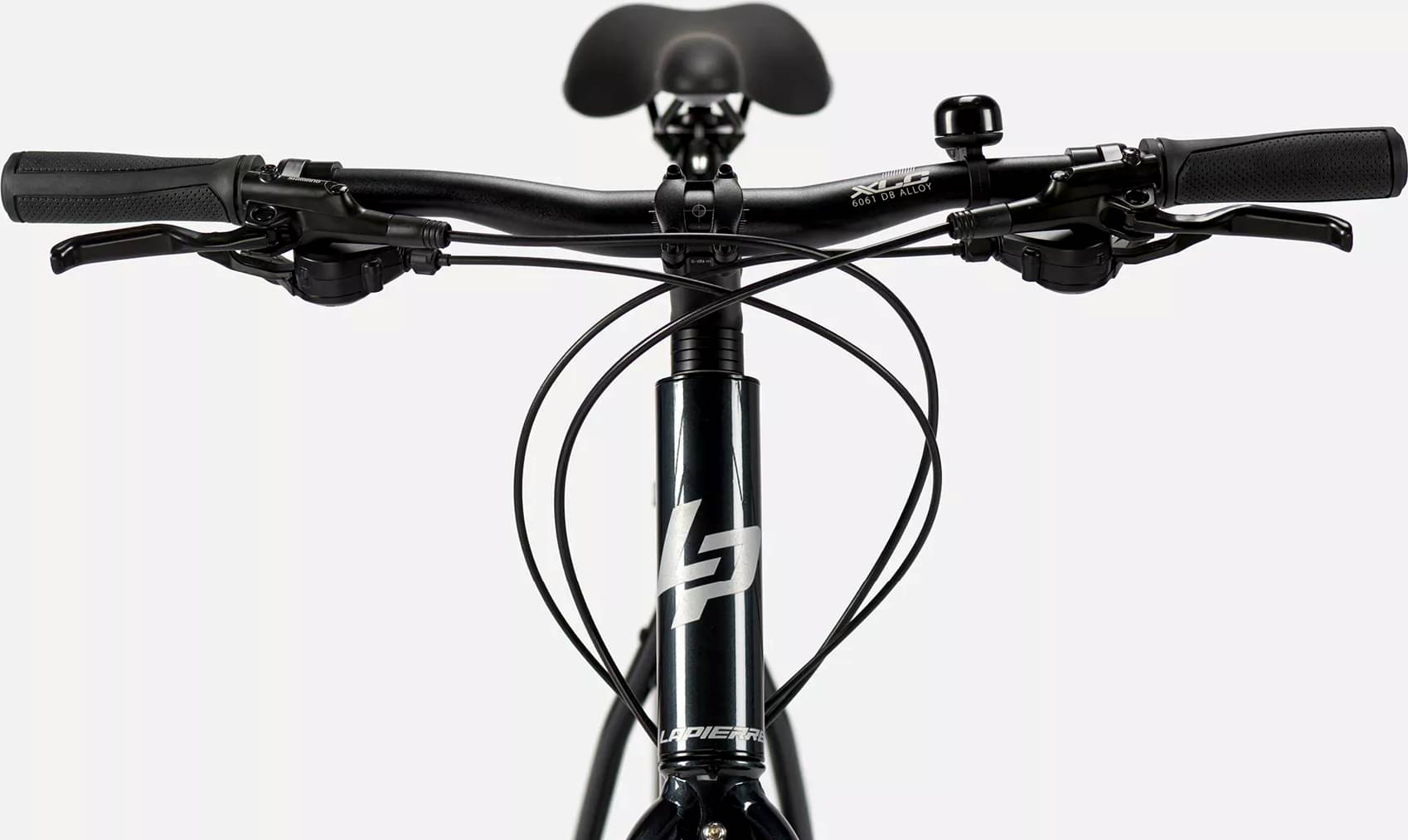

Cockpit
Stem
XLC Alloy Ø: 31.8mm L: 90mm R:17°
Handlebar
XLC Alloy 6061 W: 640mm R: 15mm Ø: 31.8mm
Grips
Ergonomic 125mm
Seat
Saddle
Selle Royal Shadow
Seatpost
XLC Alloy Ø: 27.2mm L: 350mm
