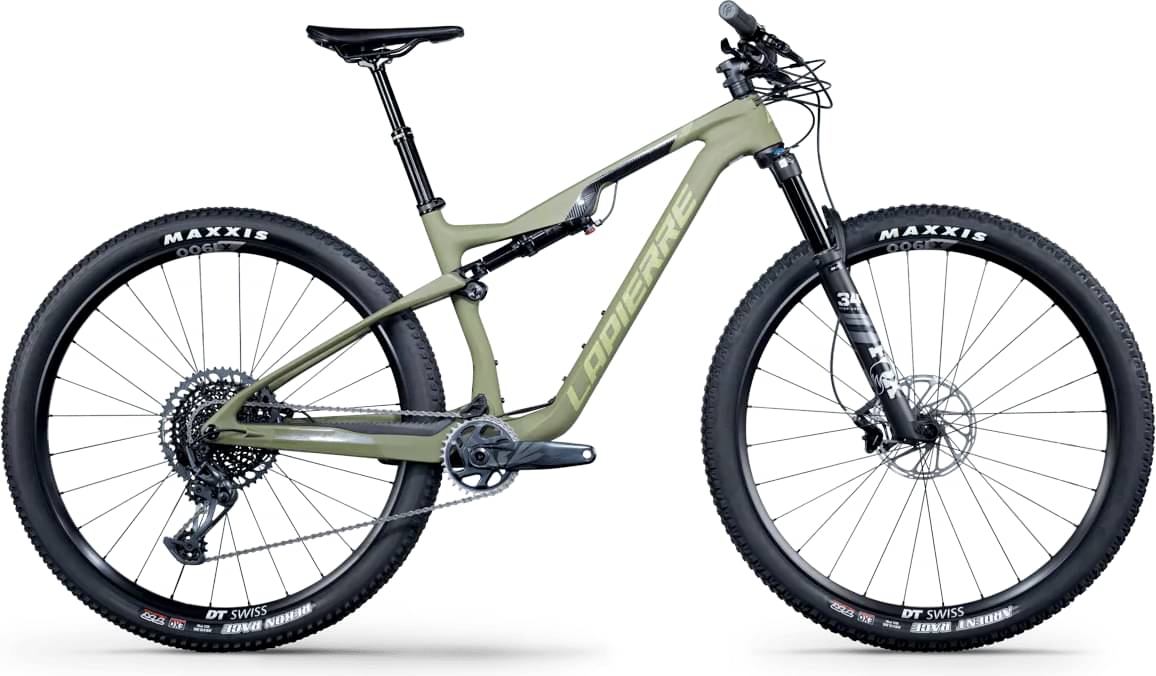

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 110mm -
Fork Fox Performance Float 34
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
XR full Carbon 110mm travel 29’’, pressfit, boost, metric, Thru axle
Suspension Fork
Fox 34 Float SC Performance 29’’ 15x110, 120mm travel, Grip, Push-Lock, 44mm offset + FOX 2-pos Remote
Rear Shock
Fox Float Performance Elite, 2-Pos Remote, LV Evol, 210x55mm
Drivetrain
Rear Derailleur
SRAM XO1 Eagle 12spd
Shift Levers
SRAM GX Eagle Lunar 12s
Cassette
SRAM XG1275 10-52T 12s
Crank
SRAM GX Eagle Boost DUB Lunar 32T 170mm (S) , 175mm (M, L, XL)
Bottom Bracket
SRAM DUB PF 92 MTB Wide
Chain
SRAM Nx Eagle 12s
Pedals
NW 91K steel cage
Wheels
Rims
DT Swiss EX1900 SPLINE® 622x25c, SRAM XD Driver, 6-bolt
Tires
Front : Maxxis Ardent Race EXO TR 29x2.35 60 TPI Rear : Maxxis Rekon Race EXO TR 29x2.35 60 TPI
Brakes
Brakes
SRAM Centerline 180mm/160mm 6-bolt
Brake Levers
SRAM LEVEL TL Gloss Black 2 pistons

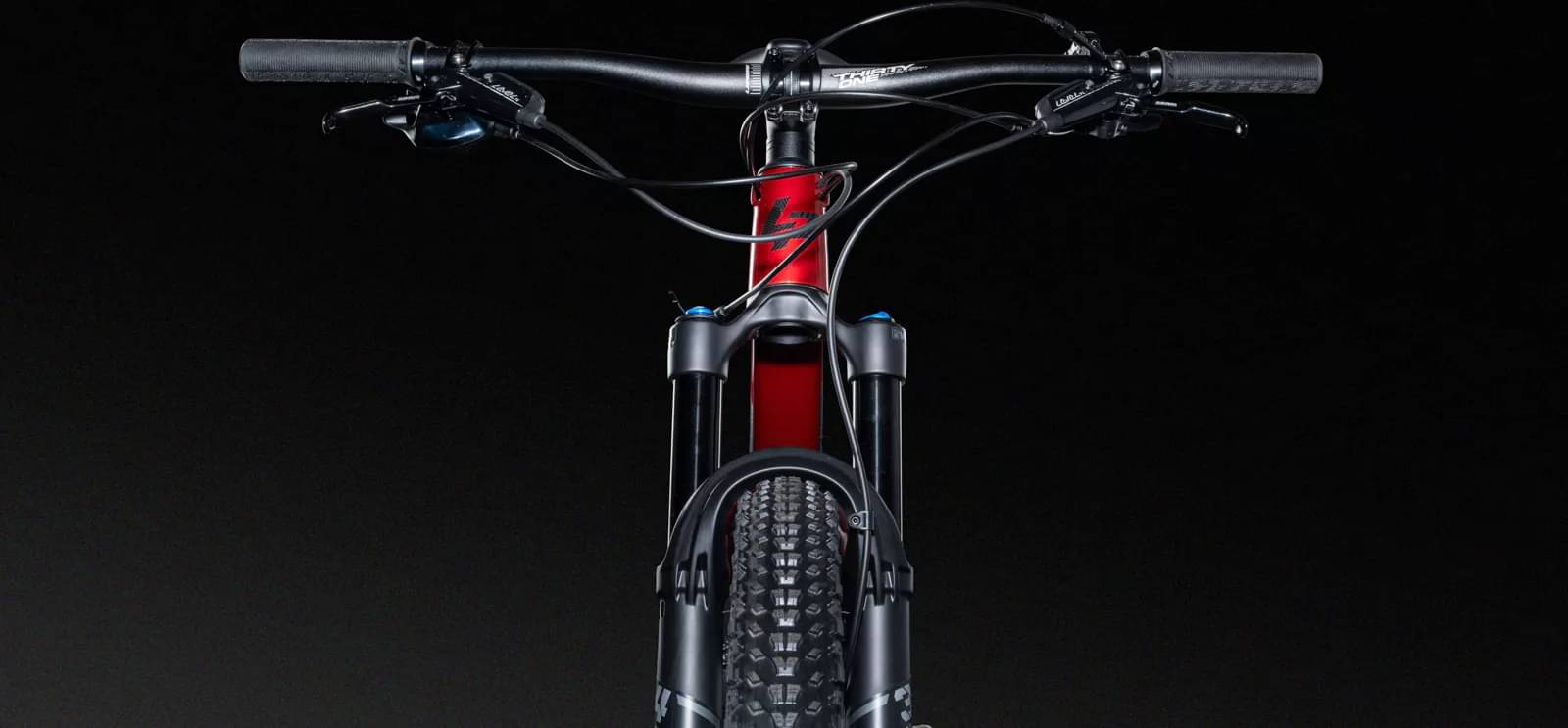

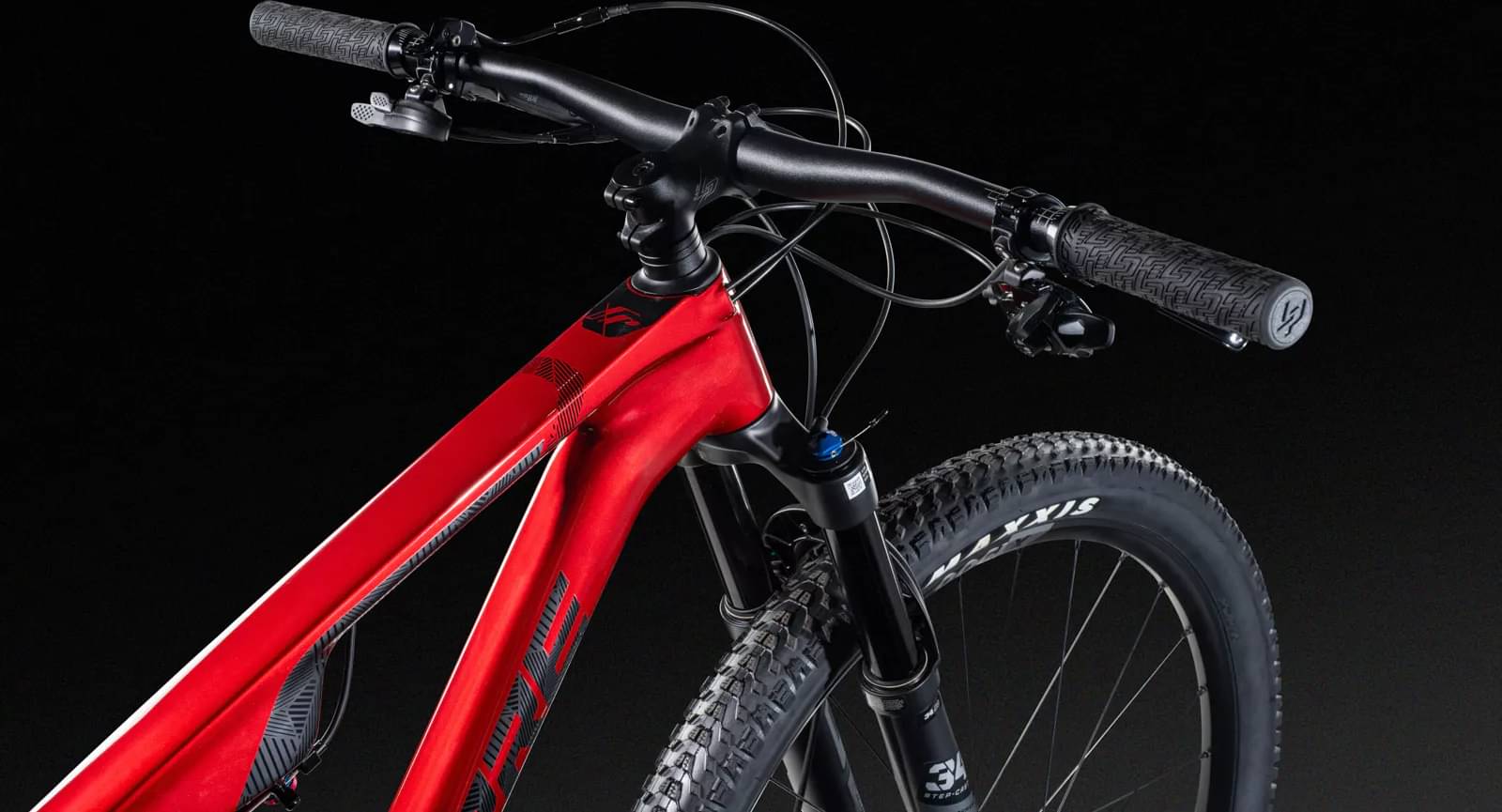

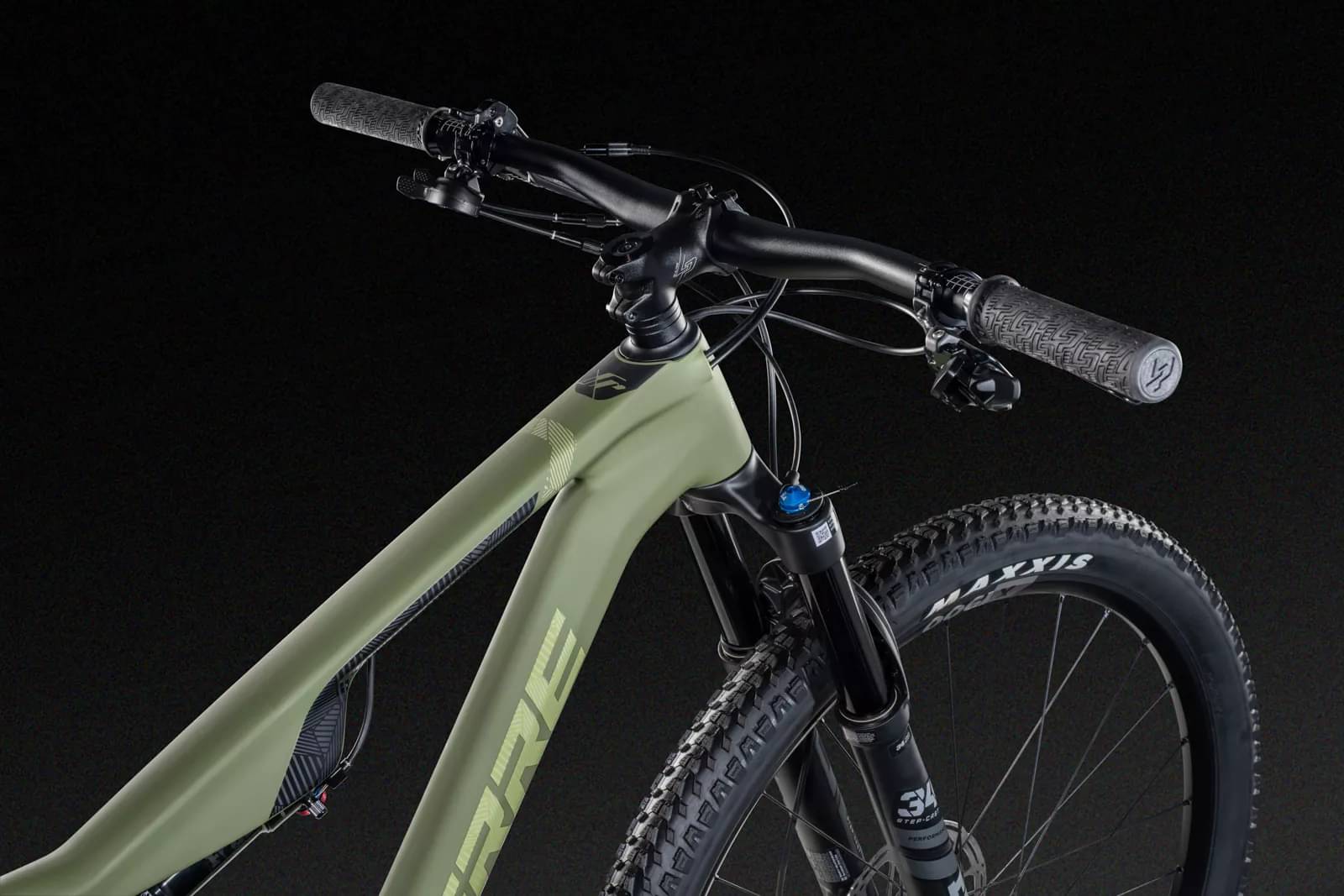

Cockpit
Stem
Lapierre AL6061 alloy, -6°, Ø: 31.8mm, L: 60mm (S,M), 70mm (L,XL)
Handlebar
Lapierre Thirty One 6061DB, Width: 760mm, Rise: 15mm, Ø: 31.8mm
Grips
Lapierre grips anodized, S/M: small diameter, L/XL: large diameter
Seat
Saddle
Fizik Argo Vento X 140mm
Seatpost
Lapierre dropper, Ø: 31.6mm, travel 100mm (S,M), 130mm (L,XL)
