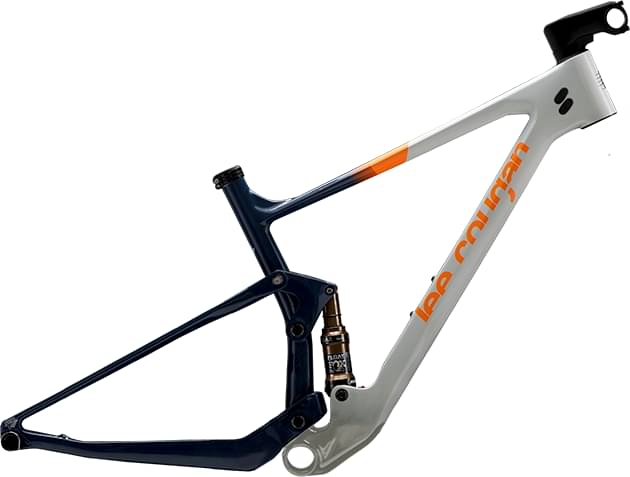

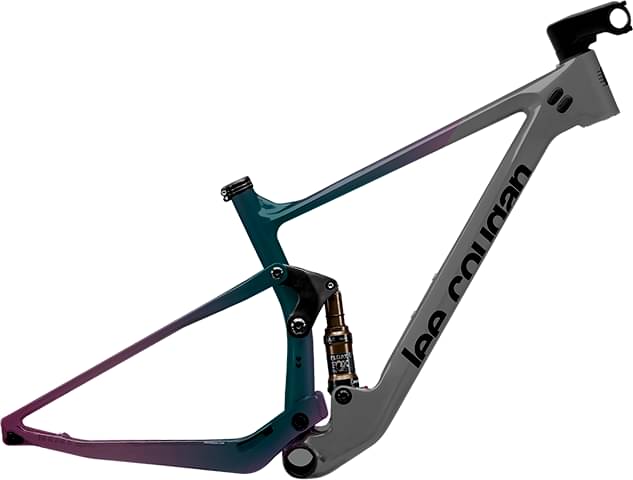

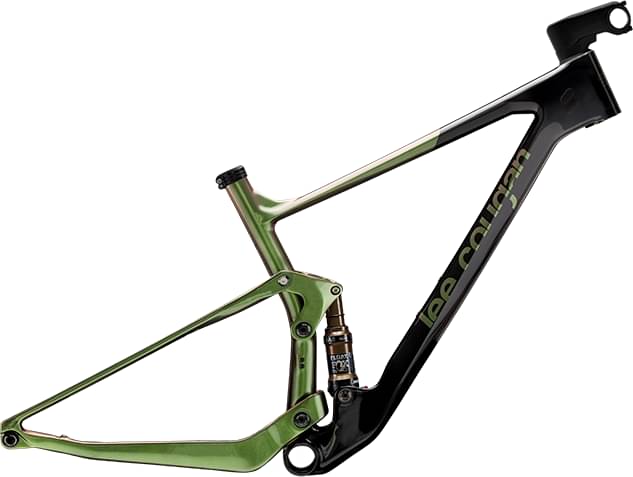

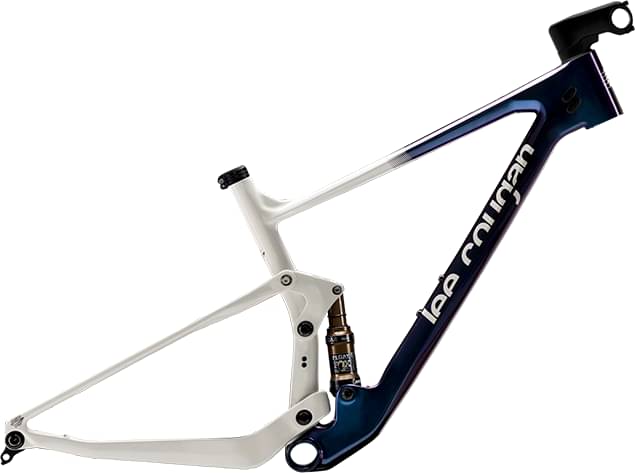

leecougan Lee Cougan Crossfire 428 Frame Kit 2025
2025 Mountain
Estimate price |
2,093$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Drivetrain
Shift Levers
Electronic
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.376 mm | 1.344 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm |
| Front Center | 681 mm | 702 mm | 723 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 99 mm | 99 mm | 99 mm |
| Stack | 588 mm | 597 mm | 606 mm |
| Reach | 417 mm | 434 mm | 451 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 460 mm | 495 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1105 mm | 1126 mm | 1147 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
