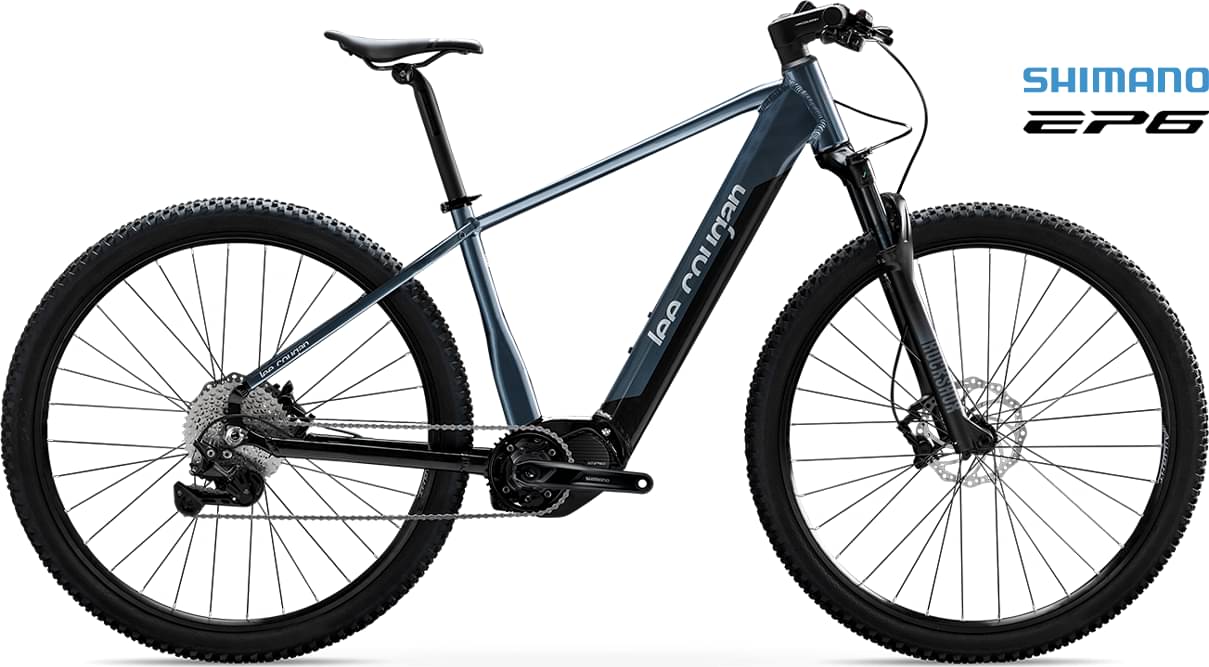

leecougan Lee Cougan Edge 63 2024
2024 E-bike
Estimate price |
3,117$
Weight | 22.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery The 630 Wh with 150 km of autonomy retains more than 60% of its maximum initial capacity after 1,000 full charges. Full charge in 6 hours. -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
Rock Shox Judy Air RL. 100 mm Travel, 51 mm Rake with handlebar remote control
Drivetrain
Rear Derailleur
Shimano Deore. RD-M5120, 10 Speed
Shift Levers
Mechanical
Cassette
Shimano Deore, 11-42
Crank
Shimano Deore 34T
Wheels
Rims
29
Brakes
Brakes
Shimano MT401. 2-finger brake control in anodized alloy lever specially designed for small hands as well.
Motor & Battery
Motor
Compact power unit Shimano EP6, 250 watt of power and 85 Nm of advance with pedal assistance up to 25 km/h
Battery
The 630 Wh with 150 km of autonomy retains more than 60% of its maximum initial capacity after 1,000 full charges. Full charge in 6 hours.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Top Tube Length | 580 mm | 610 mm | 620 mm |
| Seat Tube Angle | 74.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 490 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 140 mm | 140 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1158 mm | 1168 mm | 1178 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
