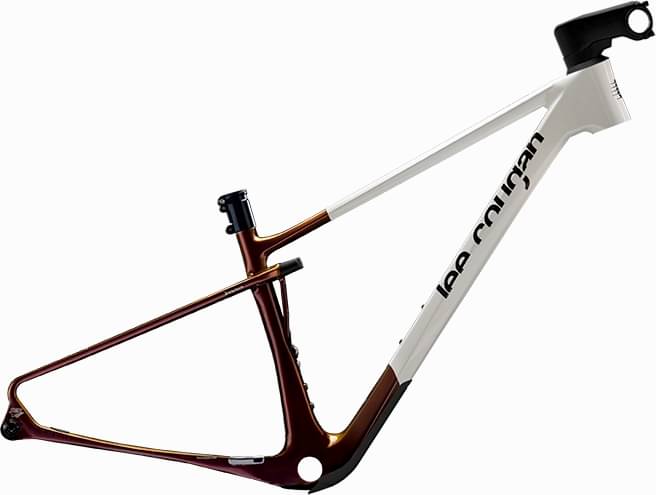

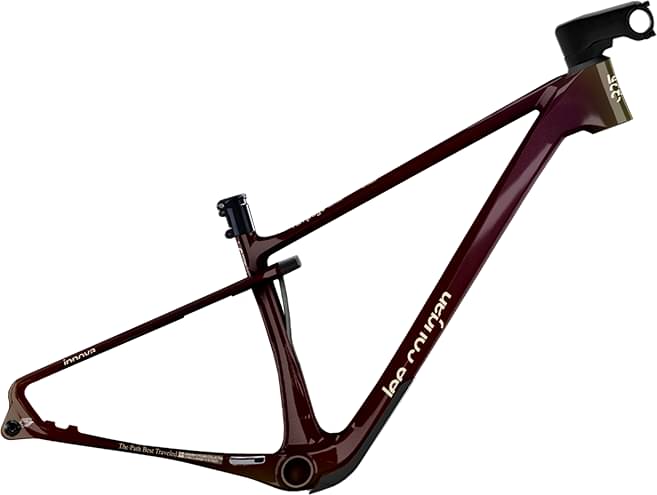

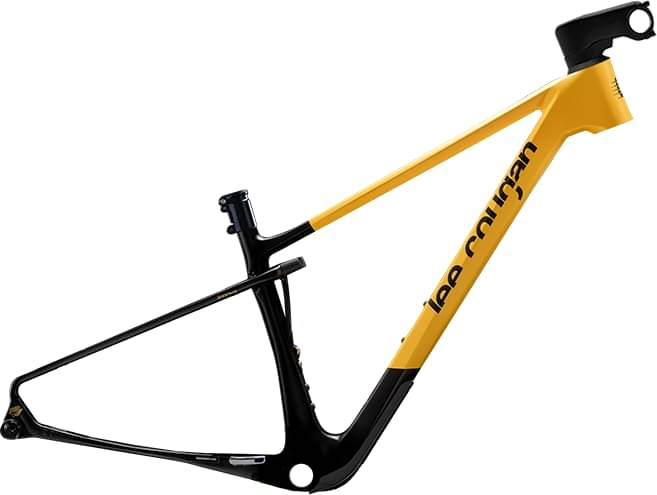

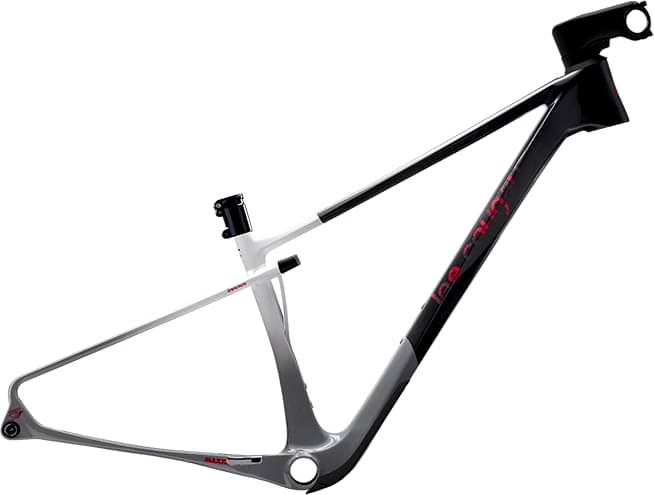

leecougan Lee Cougan Innova SuperGravel Frame Kit 2025
2025 Road
Estimate price |
3,256$
Weight | 1.3 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Drivetrain
Shift Levers
Electronic
Wheels
Tires
FREEDOM. Tire clearance for big rubber (up to 2.4”), bike packing-ready, and built to last even on the roughest, longest adventures.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.438 mm | 1.374 mm | 1.373 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Stack | 616.1 mm | 621.1 mm | 630.5 mm |
| Reach | 428.5 mm | 452 mm | 459.2 mm |
| Top Tube Length | 590 mm | 615 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 475 mm | 515 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1107 mm | 1133 mm | 1143 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
