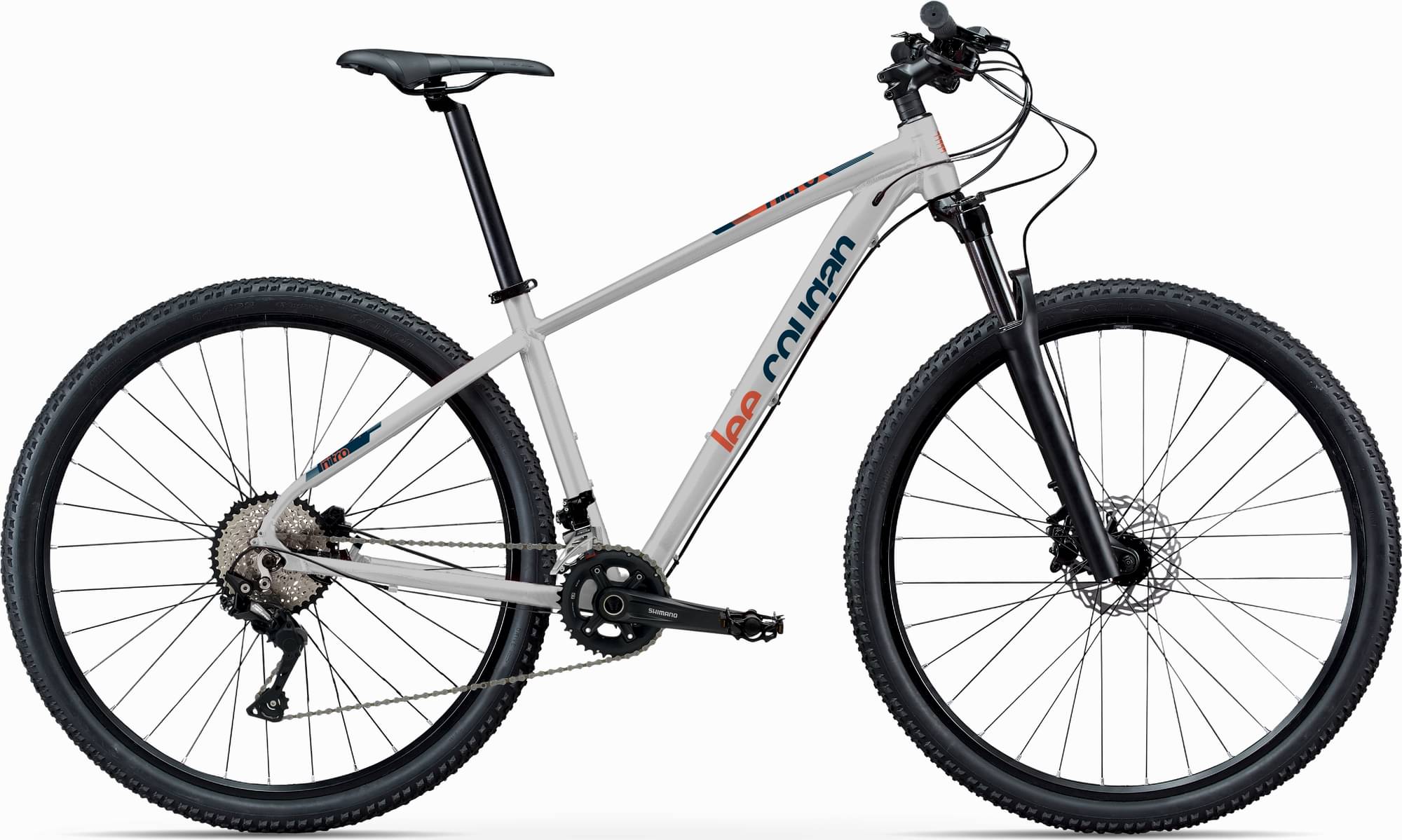

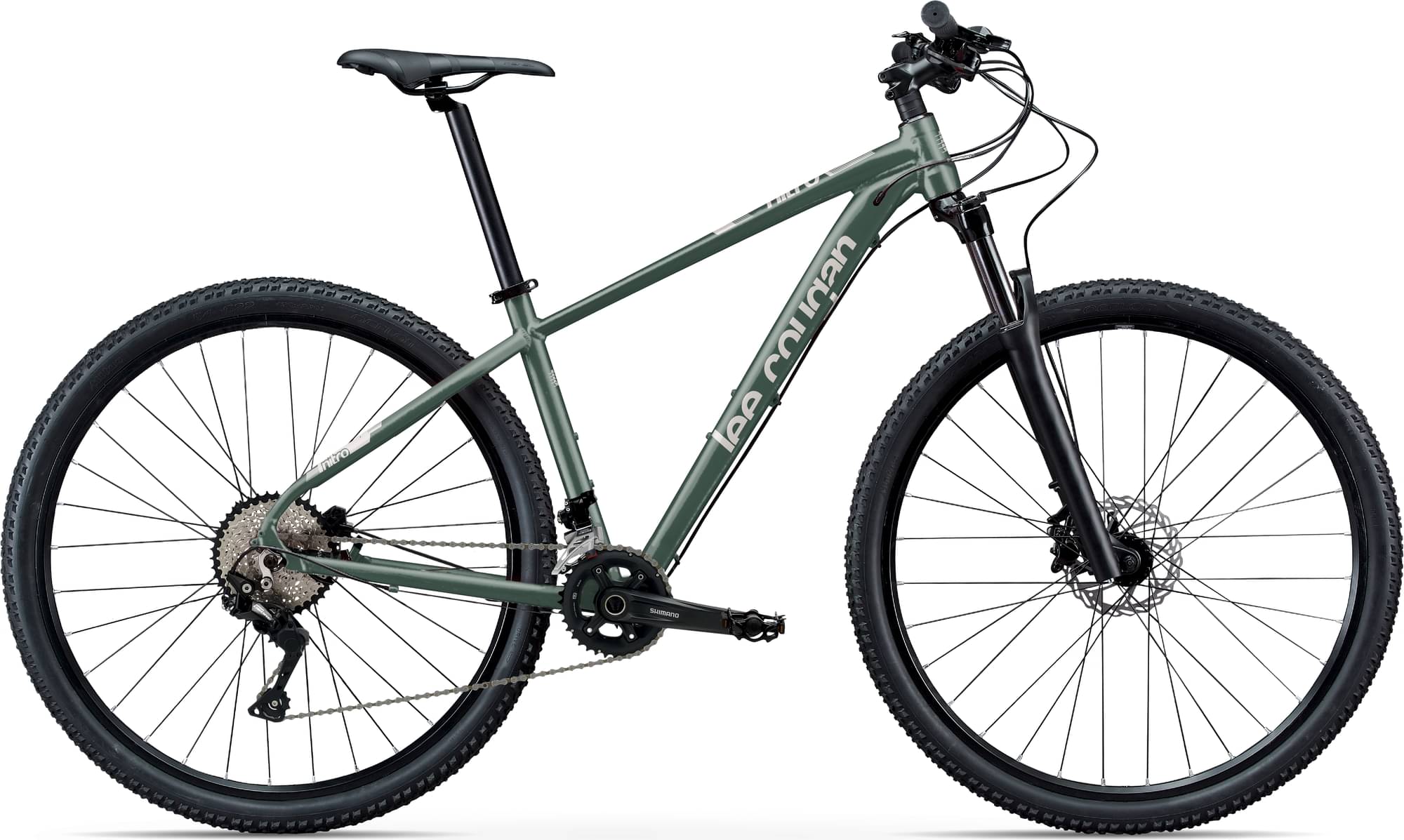

leecougan Lee Cougan Nitro 2024
2024 Mountain
Estimate price |
813$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RST
-
Groupset Alivio -
Suspension Hardtail -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RST Alfa. RST Alfa Suspension Fork, 100 mm Remote lock out, Qr 9 mm Axle 1?1/8 Head Tube
Drivetrain
Rear Derailleur
Shimano Alivio. More maneuverability. Clean, compact and integrated. More maneuverability with a shorter chainstay length for bikes with larger wheels. More rigidity and an aggressive design to fit mountain bikes of all wheel sizes. Quick wheel mounting/unmounting with additional B-tension or direct rear derailleur mounting. Clean cable routing, compact design and integrated look with integrated hydraulic brake lever and shifter.
Cassette
Shimano Alivio, 11-34
Crank
Shimano Alivio 36-22
Wheels
Rims
Loose Ball. Free ball, 36 holes, QR 9 mm Front disc only
Brakes
Brakes
Mechanical Disc
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Front Center | 625 mm | 644 mm | 667 mm | 682 mm |
| Top Tube Length | 572 mm | 592 mm | 615 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 480 mm | 510 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
