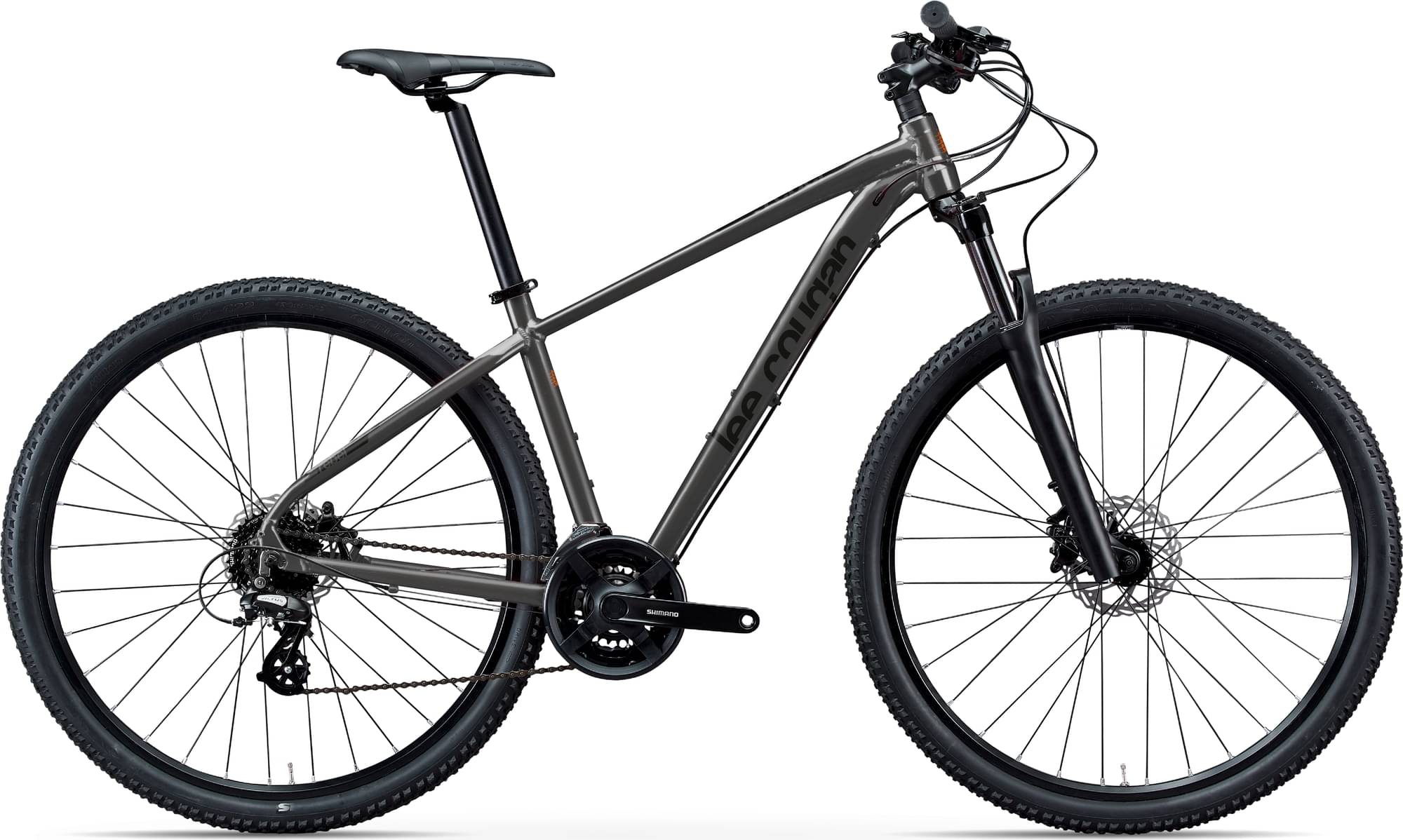

leecougan Lee Cougan Rebel 2025
2025 Mountain
Estimate price |
697$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RST
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RST 100 mm. RST Suspension Fork, 100 mm Lock Out, Qr 9 mm Axle 1?1/8 Head Tube
Drivetrain
Rear Derailleur
Shimano Altus. 24S, Hydraulic disc brakes 160mm rotors; 3×8 speed, internal cables routing
Cassette
Shimano Altus, 10-36
Crank
Shimano Altus 44-32-22
Wheels
Rims
Loose Ball. Loose Ball, 36 Holes, QR 9 mm Front Disc Only
Brakes
Brakes
Mechanical Disc
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Front Center | 625 mm | 644 mm | 667 mm | 682 mm |
| Top Tube Length | 572 mm | 592 mm | 615 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 480 mm | 510 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
