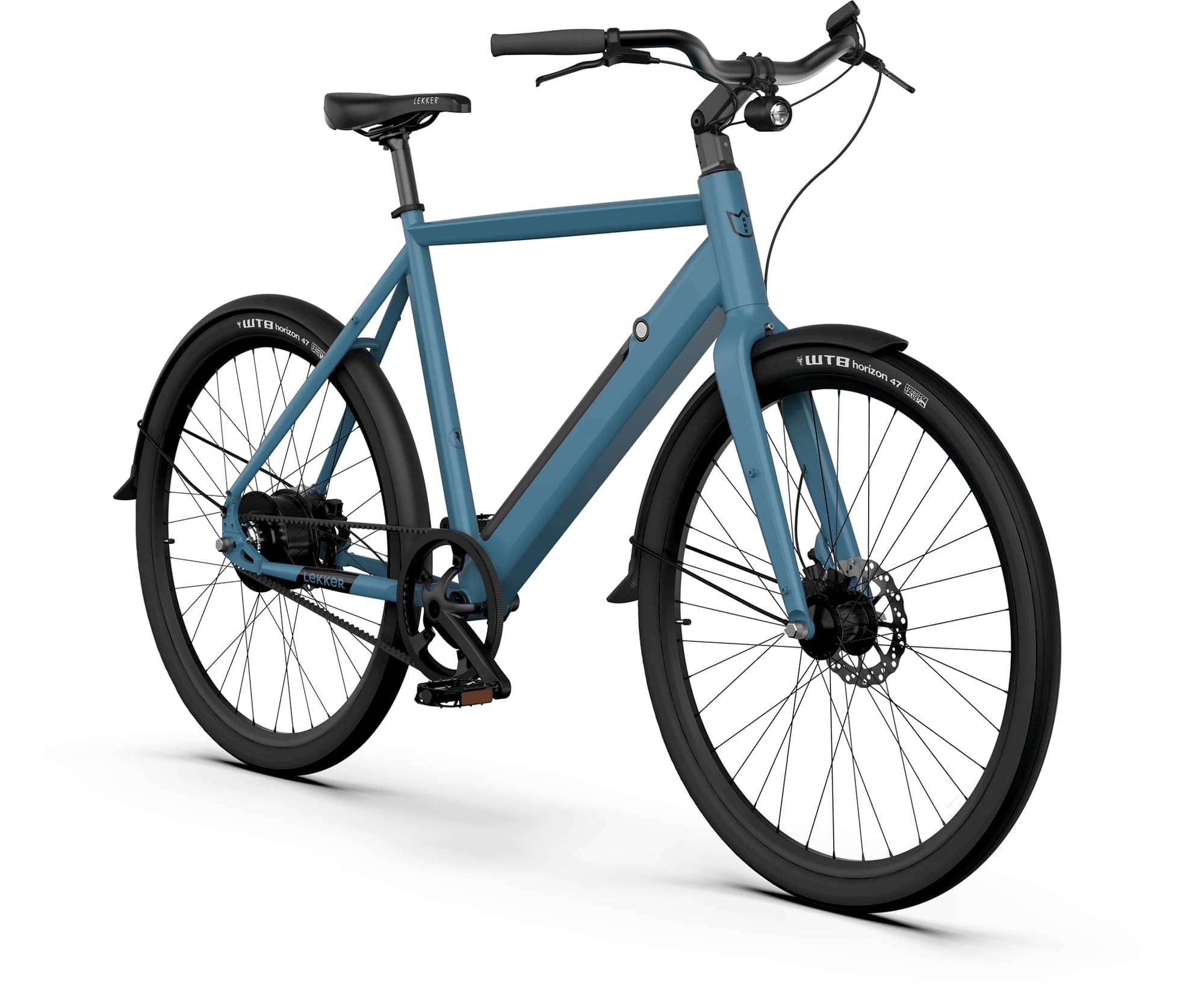

lekker Amsterdam+ 2024
2024 E-bike
Estimate price |
2,842$
Weight | 21 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Motor Bafang 30Nm hub-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
155cm - 170cm
56cm
165cm - 181cm
56cm
165cm - 181cm
60cm
179cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Powder Coated Aluminium with integrated battery case
Suspension Fork
Powder Coated Aluminium
Wheels
Rims
Double Walled Aluminium
Tires
WTB® Horizon 650B x 47 Tan-wall
Brakes
Brakes
Premium Tektro® Hydraulic Disc brakes
Cockpit
Stem
ZOOM® Adjustable Stem
Handlebar
Comfortable Commuter Handlebar
Grips
Comfortable Commuter Saddle
Headset
Prestine®
Seat
Saddle
Comfortable Commuter Saddle
Motor & Battery
Motor
Bafang Bafang® RM G310 Rear hub motor, 30Nm Torque, 5 assistance levels, 25km/h assistance, Speed Sensor
Charger
MDA257 100 - 240v / 42V 2A, 375Wh Battery:, Charger 2A = 6.2h / Supercharger 4A = 3.1h, 500Wh Battery:, Charger 2A = 8.3h / Supercharger 4A = 4.1h
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 56cm | 56cm | 60cm |
|---|---|---|---|---|
| Top Tube Length | 610 mm | 625 mm | 625 mm | 640 mm |
| Seat Tube Length | 500 mm | 560 mm | 560 mm | 600 mm |
| Head Tube Length | 150 mm | 170 mm | 170 mm | 190 mm |
| Wheelbase | 1150 mm | 1160 mm | 1160 mm | 1180 mm |
| Standover Height | 780 mm | 1160 mm | 815 mm | 855 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 165 cm | 165 cm | 179 cm |
| Rider Max Height | 170 cm | 181 cm | 181 cm | 205 cm |
