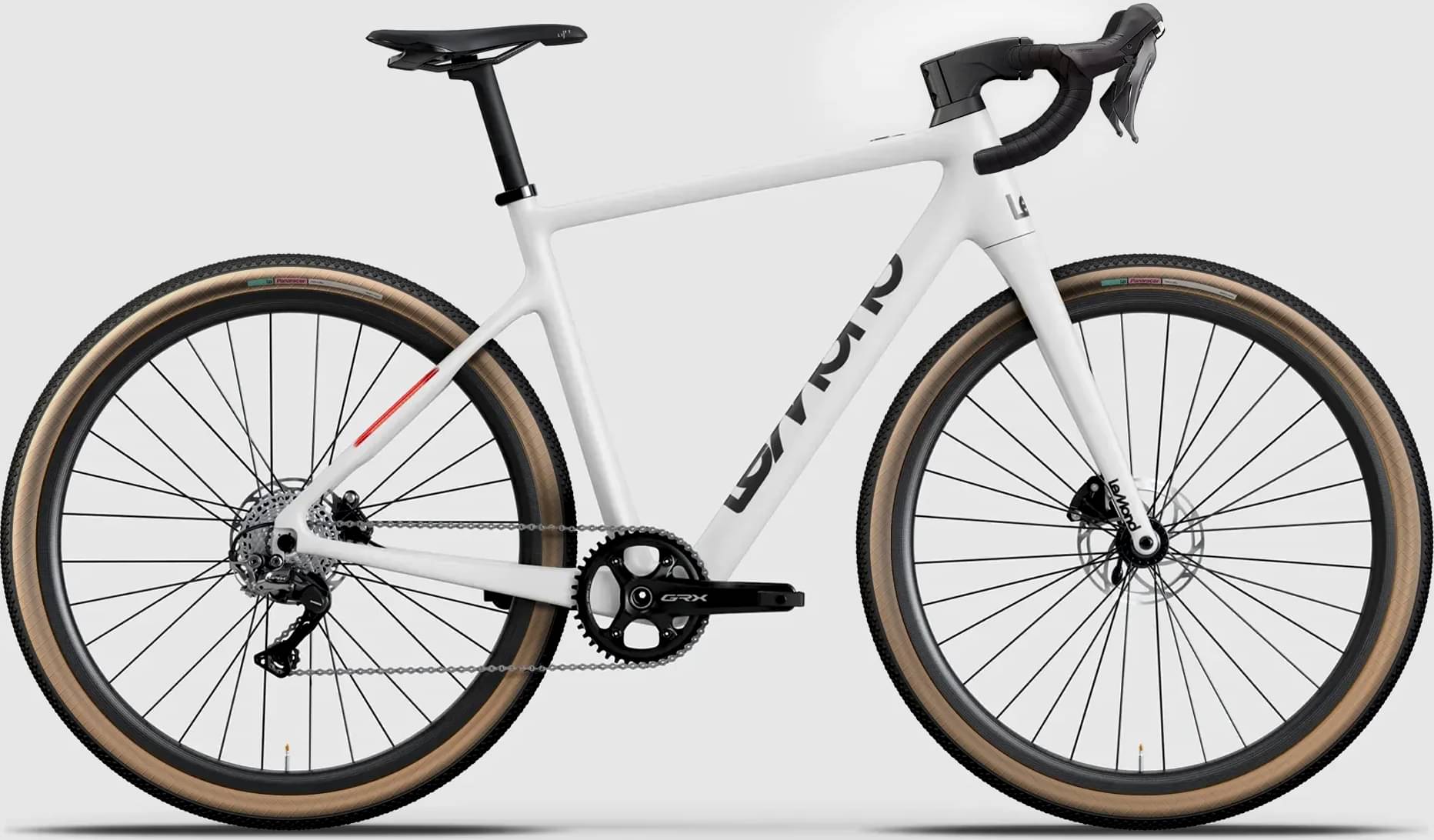

lemond Bicycles All-Road Prolog 2024
2024 E-bike
Estimate price |
6,490$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800 -
Suspension Rigid -
Motor MAHLE 250W 40Nm hub-drive -
Battery Embedded/down tube; 36V, 250W Panasonic (UL-Certified) -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 178cm
MD
172cm - 187cm
LG
182cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber; LeMond Design (Weight limit 250lbs)
Suspension Fork
Carbon fiber; LeMond Design
Drivetrain
Rear Derailleur
Shimano GRX RD-RX812
Shift Levers
Shimano GRX ST-RX810 11-speed Hydraulic Disc Brake Dual Control Lever
Cassette
Shimano CS-M7000 11-40T
Crank
Shimano GRX FC-RX810-1 1x11-speed Gravel Crankset (170mm, 40T)
Bottom Bracket
Token Ninja Thread Together PF30
Chain
Shimano HG701-11 11-speed E-Bike Compatible Chain
Pedals
Union SP-880
Wheels
Front Hub
Token M1A Front Hub, 6-bolt, 100x12mm thru axle
Rims
Token G23AR Alloy, Tubeless Ready
Tires
LeMond / Panaracer GravelKing SK 700x43c, Tubeless Ready
Brakes
Brakes
Shimano GRX BR-RX810 Hydraulic Disc Brake Calipers
Brake Levers
Shimano GRX BR-RX810 Hydraulic Disc Brake Calipers
Cockpit
Handlebar
Fizik Terra Bondcush 3mm Tacky
Seat
Saddle
Selle Royal Lift
Seatpost
LeMond Carbon 30.9mm
Motor & Battery
Motor
Mahle X35+; Rear hub; 250W Max. Torque: 40Nm
Battery
Embedded/down tube; 36V, 250W Panasonic (UL-Certified)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.487 mm | 1.5 mm | 1.512 mm |
| Trail | 82 mm | 79 mm | 79 mm |
| Stack | 565 mm | 600 mm | 635 mm |
| Reach | 380 mm | 400 mm | 420 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 530 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 165 mm | 202 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1040 mm | 1067 mm | 1099 mm |
| Standover Height | 760 mm | 811 mm | 835 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 172 cm | 182 cm |
| Rider Max Height | 178 cm | 187 cm | 198 cm |
