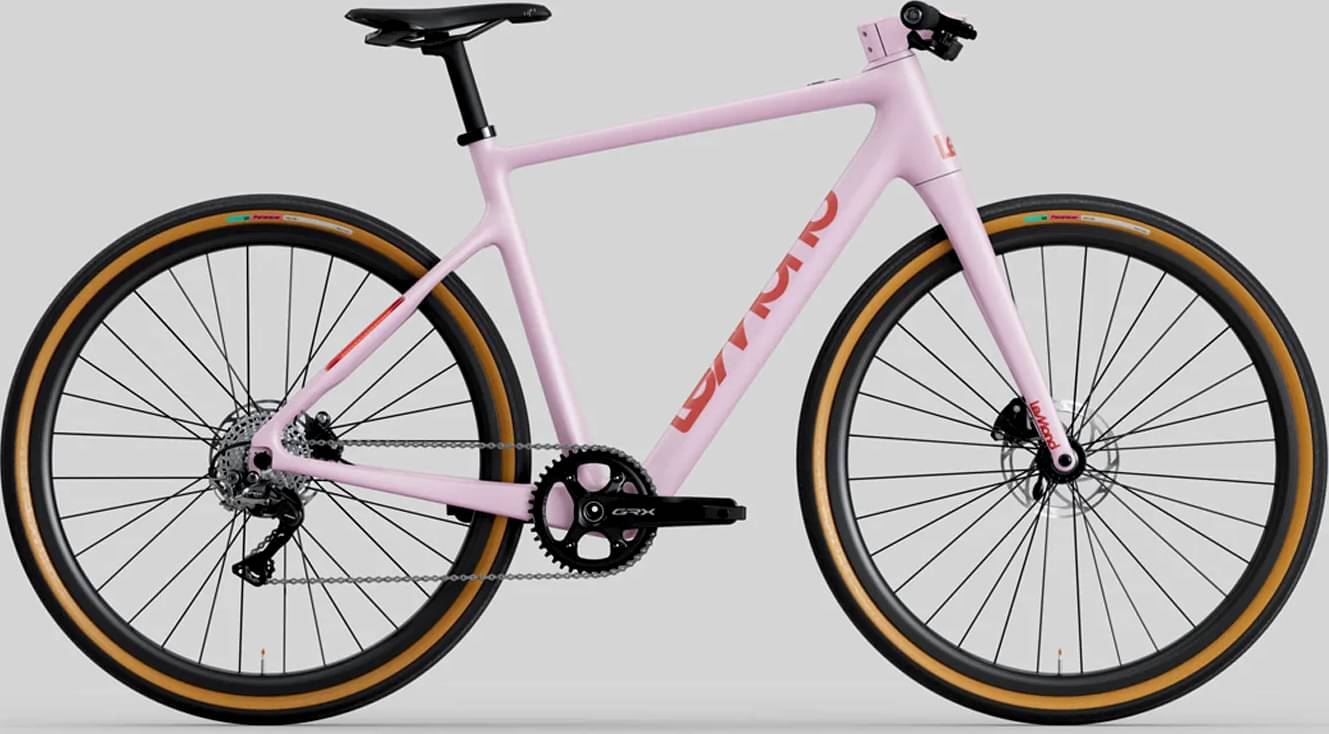

lemond Bicycles Prolog 2025
2025 E-bike
Estimate price |
5,838$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Apex -
Suspension Rigid -
Motor MAHLE 250W 40Nm hub-drive -
Battery Embedded/down tube; 36V, 250W Panasonic -
Brakes SRAM Apex Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 174cm
MD
172cm - 185cm
LG
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber; LeMond Design (Weight limit 250lbs)
Suspension Fork
Carbon fiber; LeMond Design
Drivetrain
Rear Derailleur
SRAM Apex
Shift Levers
SRAM Apex
Cassette
SRAM 11-44
Crank
SRAM Apex
Bottom Bracket
Token Ninja PF30
Chain
SRAM Apex
Pedals
Union SP-880
Wheels
Front Hub
Token D1
Rims
Token G23AR Prime
Tires
LeMond / Panaracer Gravelking Slick+ 700 x 38mm
Brakes
Brakes
SRAM Apex
Brake Levers
SRAM Apex
Cockpit
Handlebar
ESI Fit SG - black
Seat
Saddle
Selle Royal Lift
Seatpost
Carbon fiber, 30.9mm
Motor & Battery
Motor
Mahle X35+; Rear hub; 250W Max. Torque: 40Nm
Battery
Embedded/down tube; 36V, 250W Panasonic
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.487 mm | 1.5 mm | 1.512 mm |
| Trail | 80 mm | 77 mm | 77 mm |
| Stack | 565 mm | 600 mm | 635 mm |
| Reach | 380 mm | 400 mm | 420 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 530 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 165 mm | 202 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1040 mm | 1067 mm | 1099 mm |
| Standover Height | 767 mm | 818 mm | 842 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 172 cm | 180 cm |
| Rider Max Height | 174 cm | 185 cm | 198 cm |
