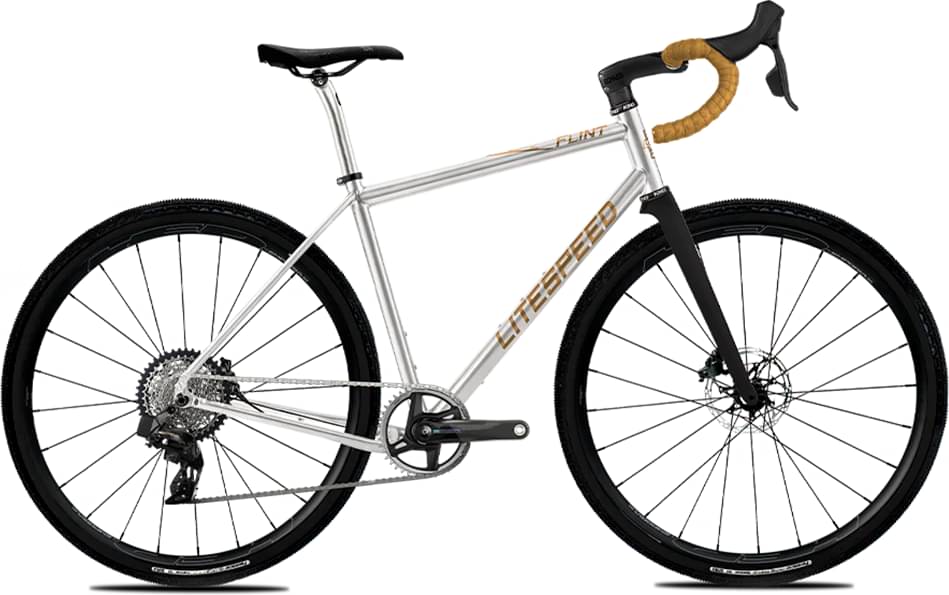

Litespeed Flint FI Titanium Bicycle SRAM RED XPLR E1 2024
2024 Road
Estimate price |
7,244$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset RED XPLR eTap, RED AXS -
Suspension Rigid -
Drivetrain 1 × 13 Electronic -
Brakes SRAM RED Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Litespeed FI Gravel
Drivetrain
Rear Derailleur
SRAM RED E1 AXS XPLR 13spd
Shift Levers
SRAM RED E1 AXS HRD
Cassette
SRAM RED XG 1391 XPLR 10-46 13spd
Crank
SRAM RED E1 1X 42T Power Meter 13spd
Bottom Bracket
SRAM DUB
Chain
SRAM RED
Wheels
Rims
SUNringle Duroc 30 Comp 700c
Tires
Panaracer X1 - 50c Black
Brakes
Brakes
SRAM RED E1 HRD
Cockpit
Stem
FSA ACR
Handlebar
FSA A-WING AGX Alloy Bar
Headset
Token A-Box - Gloss Black
Seat
Saddle
WTB Volt Medium Cromoly Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.486 mm | 1.486 mm | 1.513 mm | 1.538 mm | 1.582 mm | 1.625 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm | 342 mm | 342 mm |
| Rake | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm |
| Trail | 129 mm | 125 mm | 122 mm | 118 mm | 115 mm | 112 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 445 mm | 470 mm | 495 mm | 520 mm | 550 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° | 70.5 ° | 71 ° | 71.5 ° |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 7 mm | 7 mm | 7 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
