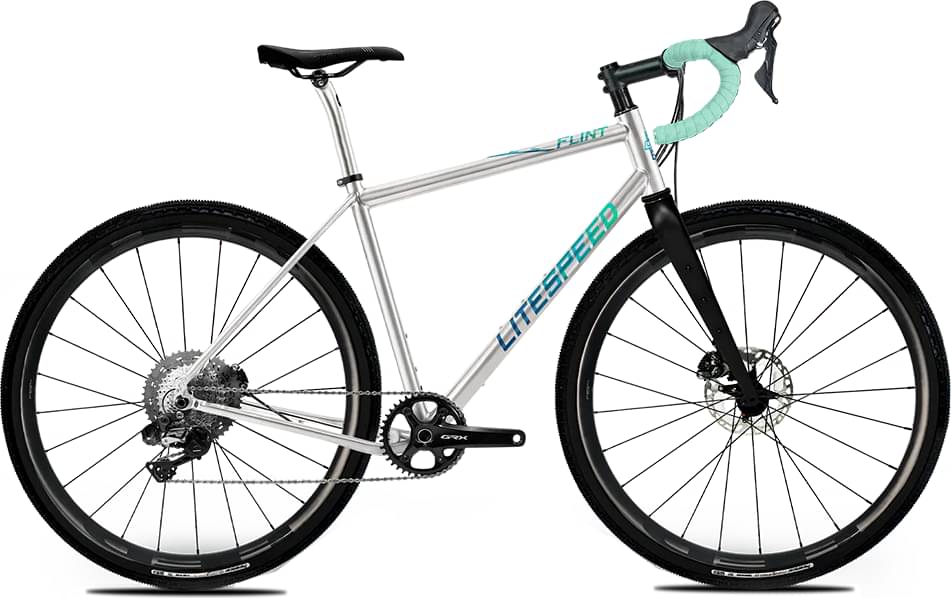

Litespeed Flint Limited Edition Titanium Frame Shimano GRX 810 Di2 1X 2024
2024 Road
Estimate price |
5,999$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Groupset GRX 800, GRX Di2 -
Suspension Rigid -
Drivetrain 1 × 11 Electronic -
Brakes Shimano GRX 800 Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Litespeed Carbon Gravel With Fender Mounts
Drivetrain
Rear Derailleur
Shimano GRX RX817 Di2
Shift Levers
Shimano GRX RX815 Di2
Cassette
Shimano XTR M9001 11-40 11 spd
Crank
Shimano GRX RX810 1x 40T - 170mm Only
Bottom Bracket
Praxis
Chain
Shimano LG500
Wheels
Tires
Panaracer X1 - 40c Black
Brakes
Brakes
Shimano GRX RX810 Hydraulic
Cockpit
Stem
FSA Gossamer
Handlebar
FSA A-Wing AGX Alloy ACR
Headset
Cane Creek 40 Series - Gloss Black
Seat
Saddle
WTB Volt Medium Cromoly Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.486 mm | 1.486 mm | 1.513 mm | 1.538 mm | 1.582 mm | 1.625 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm | 342 mm | 342 mm |
| Rake | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm |
| Trail | 129 mm | 125 mm | 122 mm | 118 mm | 115 mm | 112 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 445 mm | 470 mm | 495 mm | 520 mm | 550 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° | 70.5 ° | 71 ° | 71.5 ° |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 7 mm | 7 mm | 7 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
