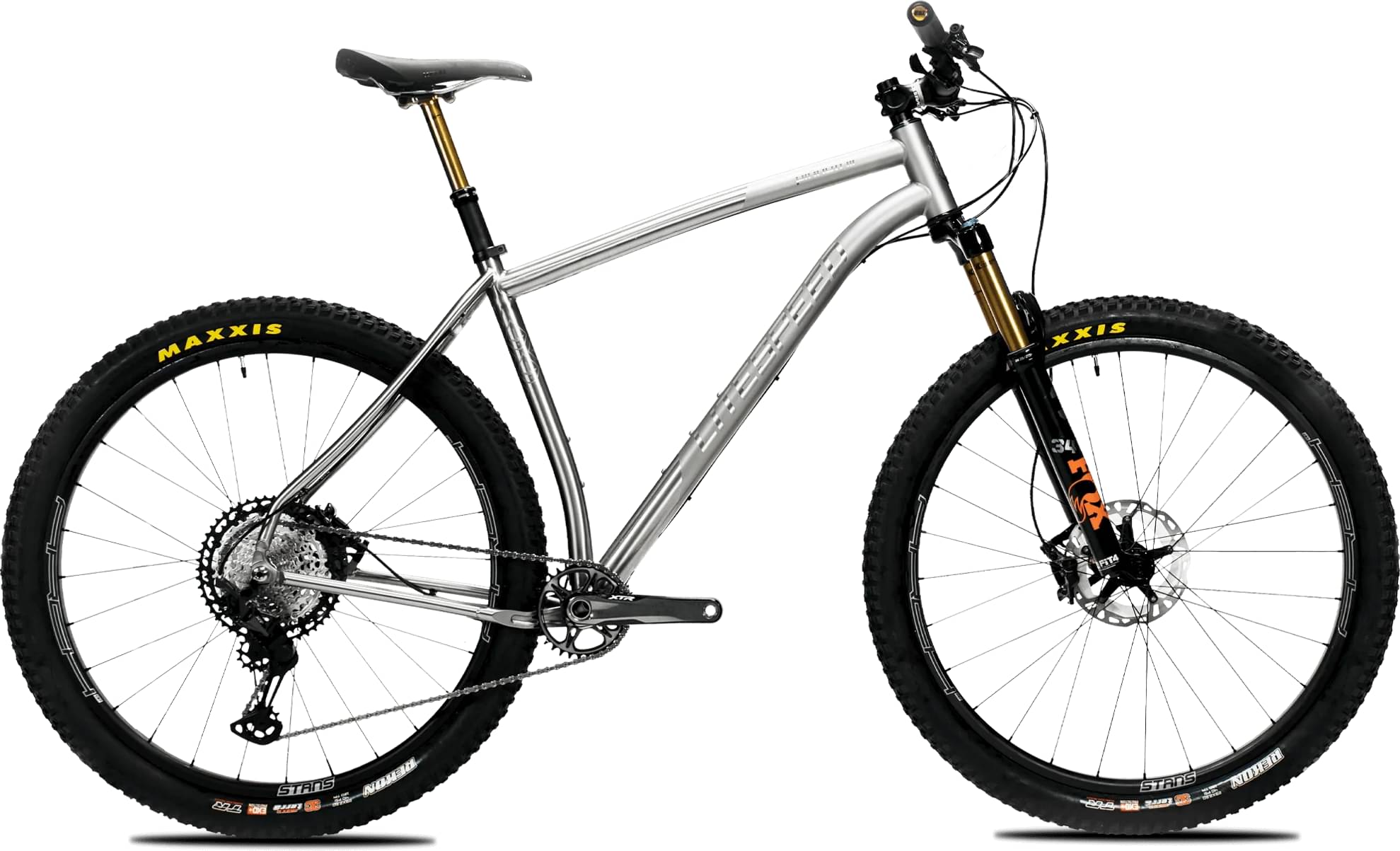

Litespeed Pinhoti III Titanium Mountain Bike XT 29 2024
2024 Mountain
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Travel Front 130mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

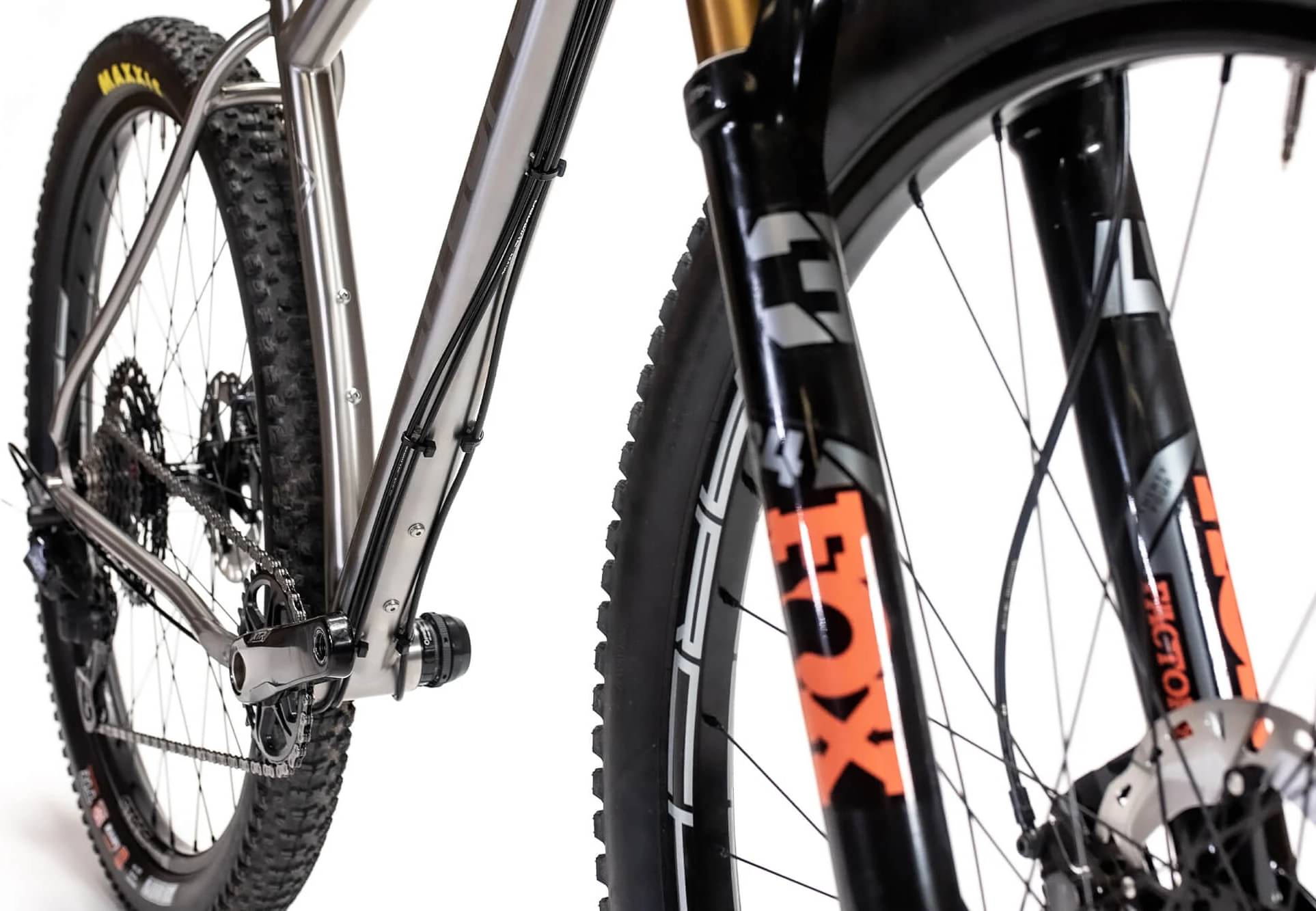

Suspension Fork
Fox 36 SL Factory - Grip X 130mm
Drivetrain
Rear Derailleur
XT M8100 12 speed
Shift Levers
XT M8100 12 speed
Cassette
XT M8100 10-51T 12 speed
Crank
XT M8120 32T

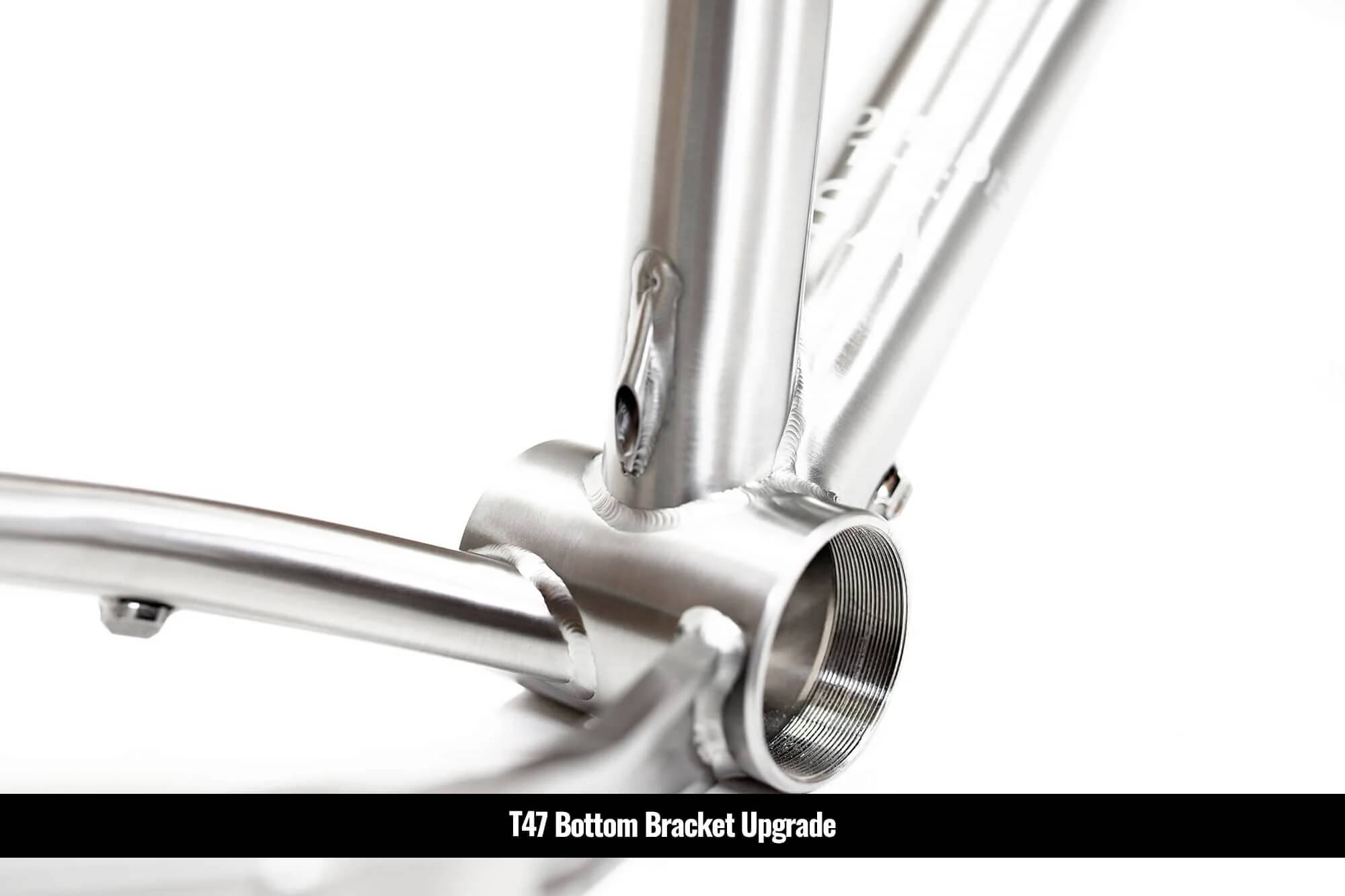

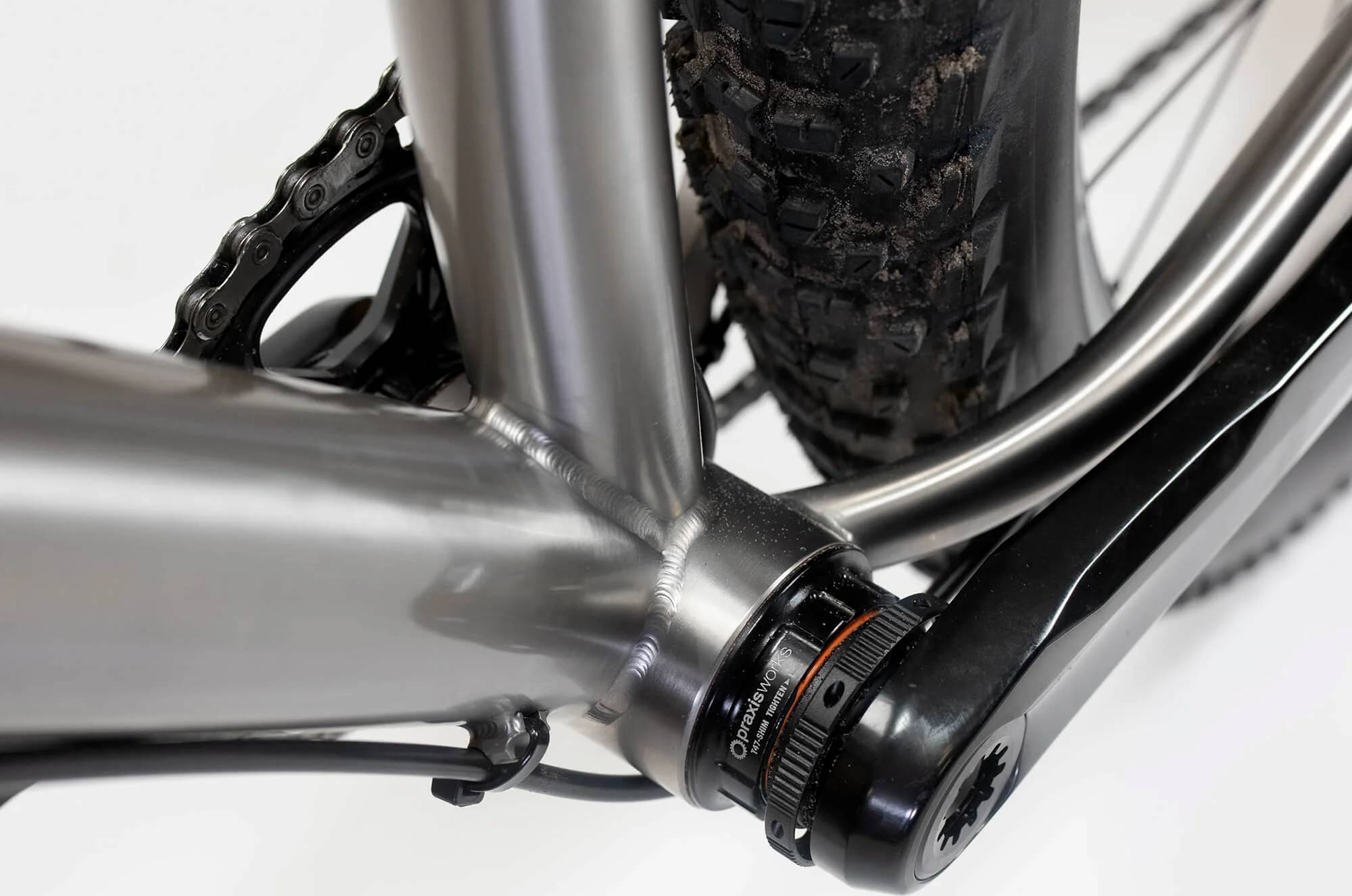

Bottom Bracket
Praxis M30
Chain
XT M8100 12 speed
Wheels
Rims
WTB Proterra Tough i30 29 CL
Tires
Front: Maxxis Rekon 29X2.6 Tubeless, Rear: Maxxis Rekon 29X2.4 Tubeless
Brakes
Brakes
XT M8120
Cockpit
Stem
Race Face Aeffect 35 70mm
Handlebar
Race Face Aeffect R35 780/20mm rise
Grips
ESI Chunky
Headset
Cane Creek 40 Series Tapered
Seat
Saddle
WTB Volt Medium Cromoly
Seatpost
Race Face Aeffect Dropper 125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.549 mm | 1.471 mm | 1.413 mm | 1.361 mm |
| Bottom Bracket Height | 369 mm | 369 mm | 369 mm | 369 mm | 369 mm |
| Rake | 4.4 mm | 4.4 mm | 4.4 mm | 4.4 mm | 4.4 mm |
| Trail | 155 mm | 154 mm | 151 mm | 150 mm | 150 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° |
| Head Tube Angle | 67 ° | 67 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
