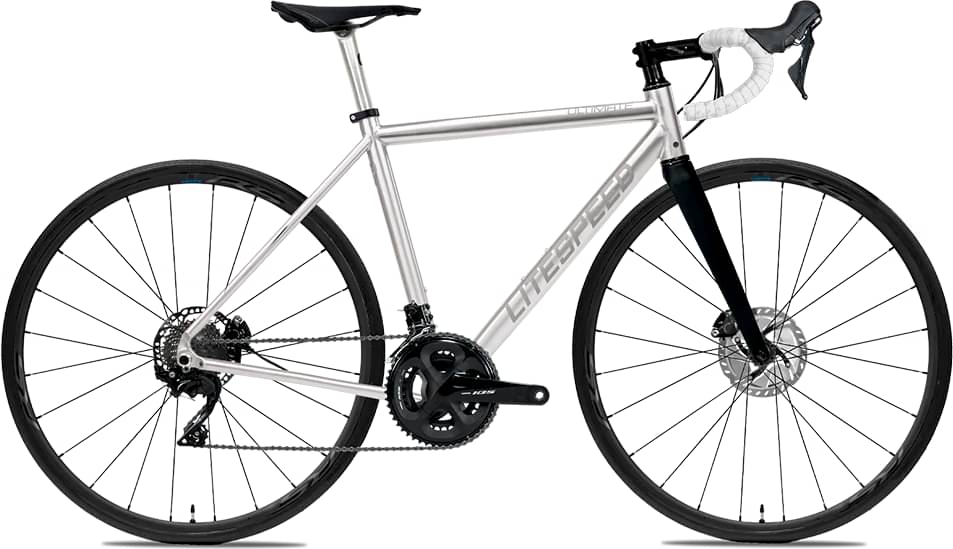

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Litespeed Carbon
Drivetrain
Rear Derailleur
Shimano 105 R7150 Di2 12 spd
Front Derailleur
Shimano 105 R7150 Di2 12 spd
Shift Levers
Shimano 105 R7170 Di2 12 spd
Cassette
Shimano 105 R7100 11-34 12 spd
Crank
Shimano 105 R7100 50/34 12 spd
Bottom Bracket
Praxis
Chain
Shimano M7100 12 spd
Wheels
Rims
DT Swiss E 1800 Spline Disc
Tires
Continental Ultrasport3 28c Folding
Brakes
Brakes
Shimano 105 R7170
Cockpit
Stem
FSA Gossamer
Handlebar
FSA Gossamer Wing Compact
Seat
Saddle
Fizik Vento Argo R5 S-Alloy 140 Black
Seatpost
FSA Gossamer Alloy 20mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.392 mm | 1.413 mm | 1.434 mm | 1.449 mm | 1.494 mm | 1.55 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm | 329 mm | 329 mm | 329 mm |
| Rake | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm |
| Trail | 104 mm | 101 mm | 97 mm | 97 mm | 97 mm | 99 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 455 mm | 475 mm | 495 mm | 515 mm | 535 mm | 555 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 7 mm | 7 mm | 6 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
