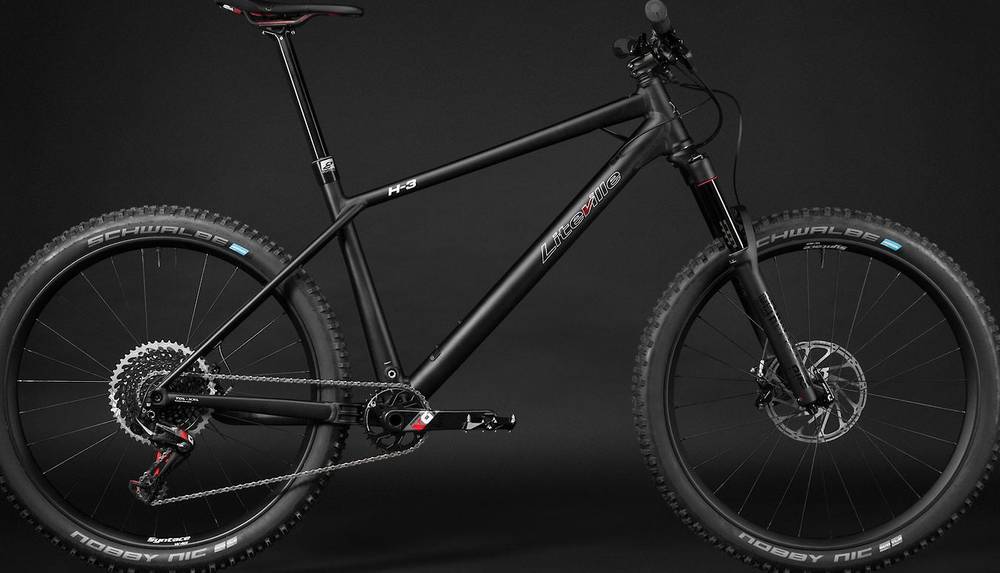

Liteville H-3 Mk2 Factory Machine 2018
2018 Mountain
Weight | 11.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Pike RCT3
-
Groupset XT -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike RCT3 Solo Air
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT, 11-speed, with Syntace RockGuard SL
Front Derailleur
Shimano XT, 2x11
Shift Levers
Shimano XT
Cassette
Shimano XT, 11-speed, 11-42 tooth
Crank
Shimano XT
Bottom Bracket
73mm BSA
Chain
Shimano XT
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Syntace
Rear Hub
Syntace
Rims
Syntace W40i HR/VR
Tires
Schwalbe Nobby Nic, with Syntace tubeless kit
Brakes
Brakes
Shimano XT M8000, 203mm front rotor, 180mm rear rotor
Brake Levers
Shimano XT M8000
Cockpit
Stem
Syntace Megaforce2
Handlebar
Syntace Vector Carbon High10, 760mm width
Grips
Syntace Screw-On Gripz Moto black 30/33
Headset
Syntace SuperSpin
Seat
Saddle
SQ Lab 611 Ergowave Liteville Edition
Seatpost
Eightpins dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.45 mm | 1.41 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm |
| Stack | 602 mm | 602 mm | 611 mm | 620 mm | 629 mm |
| Reach | 396 mm | 416 mm | 433 mm | 450 mm | 467 mm |
| Top Tube Length | 578 mm | 598 mm | 618 mm | 638 mm | 658 mm |
| Seat Tube Angle | 73.4 ° | 73.4 ° | 73.3 ° | 73.3 ° | 73.3 ° |
| Seat Tube Length | 410 mm | 430 mm | 450 mm | 470 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 415 mm | 420 mm | 425 mm | 430 mm | 435 mm |
| Wheelbase | 1129 mm | 1154 mm | 1180 mm | 1207 mm | 1233 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
H-3 Mk2 Factory Machine is part of the Liteville H 3 model. Liteville released 4 bikes variations of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 11.2 kg (24.69 lbs), Liteville bike is much lighter than average. To sum up, it’s 15.89% lighter than the average weight of Trail bikes.
Overview of components
Fork
Liteville H-3 Mk2 Factory Machine 2018 bike is equipped with the RockShox Pike RCT3 fork, and has 140mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Liteville H-3 Mk2 Factory Machine 2018, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Liteville H-3 Mk2 Factory Machine has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the H-3 Mk2 Factory Machine. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
