Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney, Altus -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
148cm - 163cm
SM
158cm - 169cm
MD
164cm - 175cm
LG
170cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components

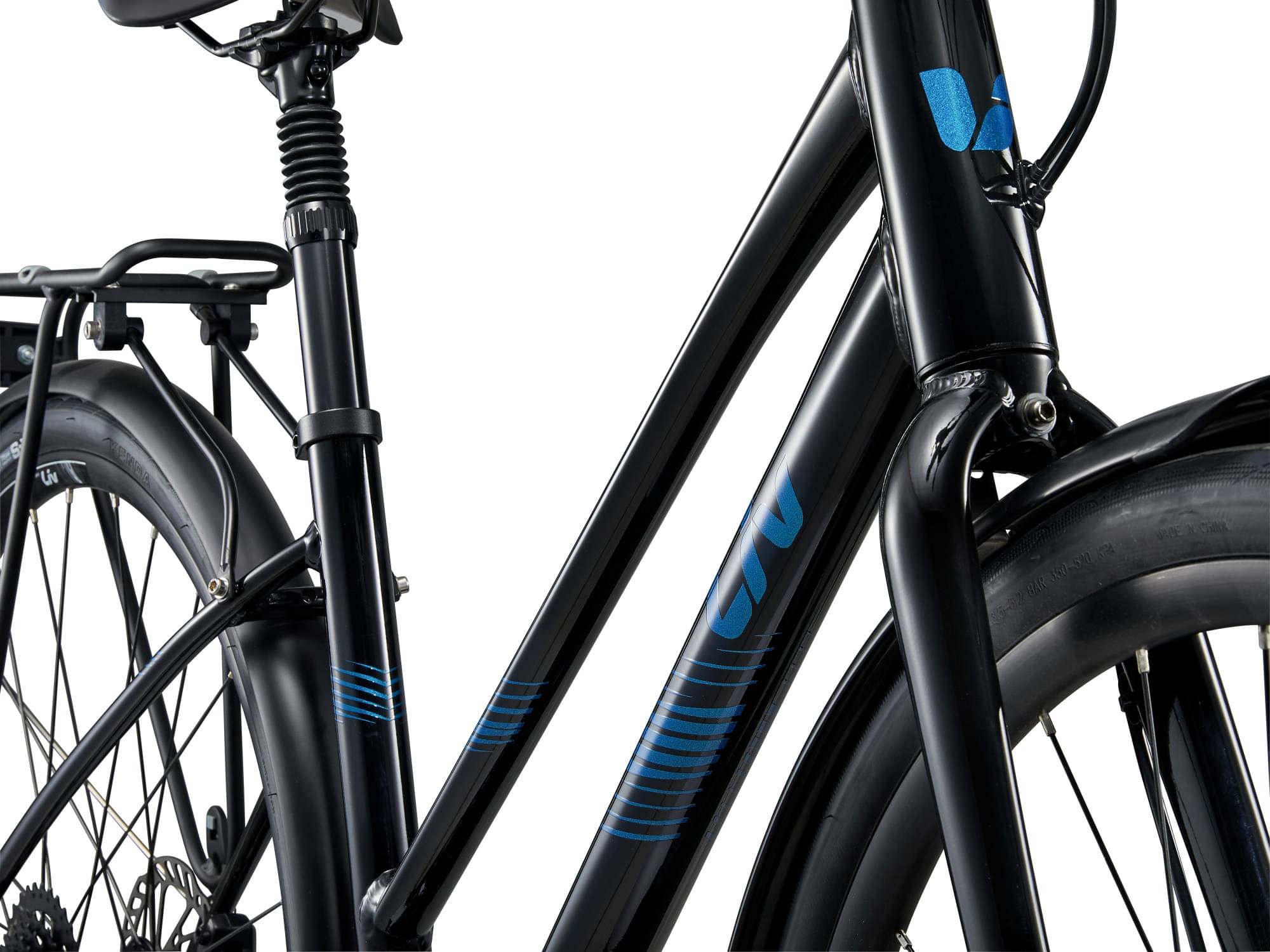

Frame
Frame
ALUXX-grade aluminium, disc
Suspension Fork
ALUXX-grade aluminium, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano Tourney
Shift Levers
Shimano Altus, 2x8
Cassette
Shimano CS-HG318, 11x34
Crank
Shimano TY-501, 30/46
Bottom Bracket
cartridge
Chain
KMC Z8.3
Pedals
Platform pedal
Wheels
Front Hub
Giant alloy, QR
Rear Hub
Giant alloy, QR
Rims
Giant GX Disc wheelset
Spokes
Stainless steel
Tires
Giant S-X2, puncture protect, 700x38c
Brakes
Brakes
Tektro HD-R280, hydraulic discs, 160mm rotors
Brake Levers
Tektro hydraulic

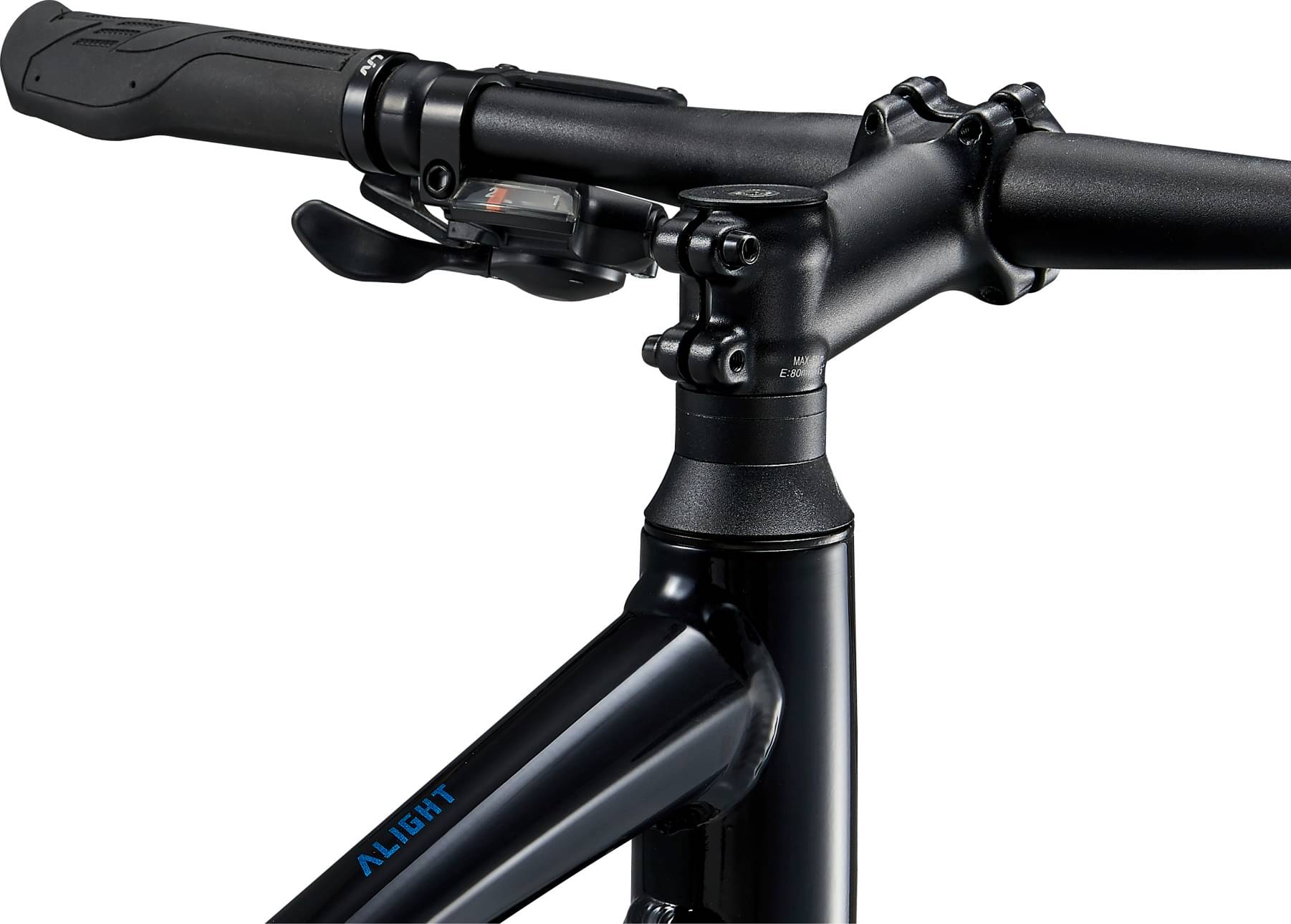

Cockpit
Stem
Giant Sport 31.8mm
Handlebar
Giant Sport, flat, 31.8mm
Grips
Liv ErgoContact
Seat
Saddle
Liv ErgoMax

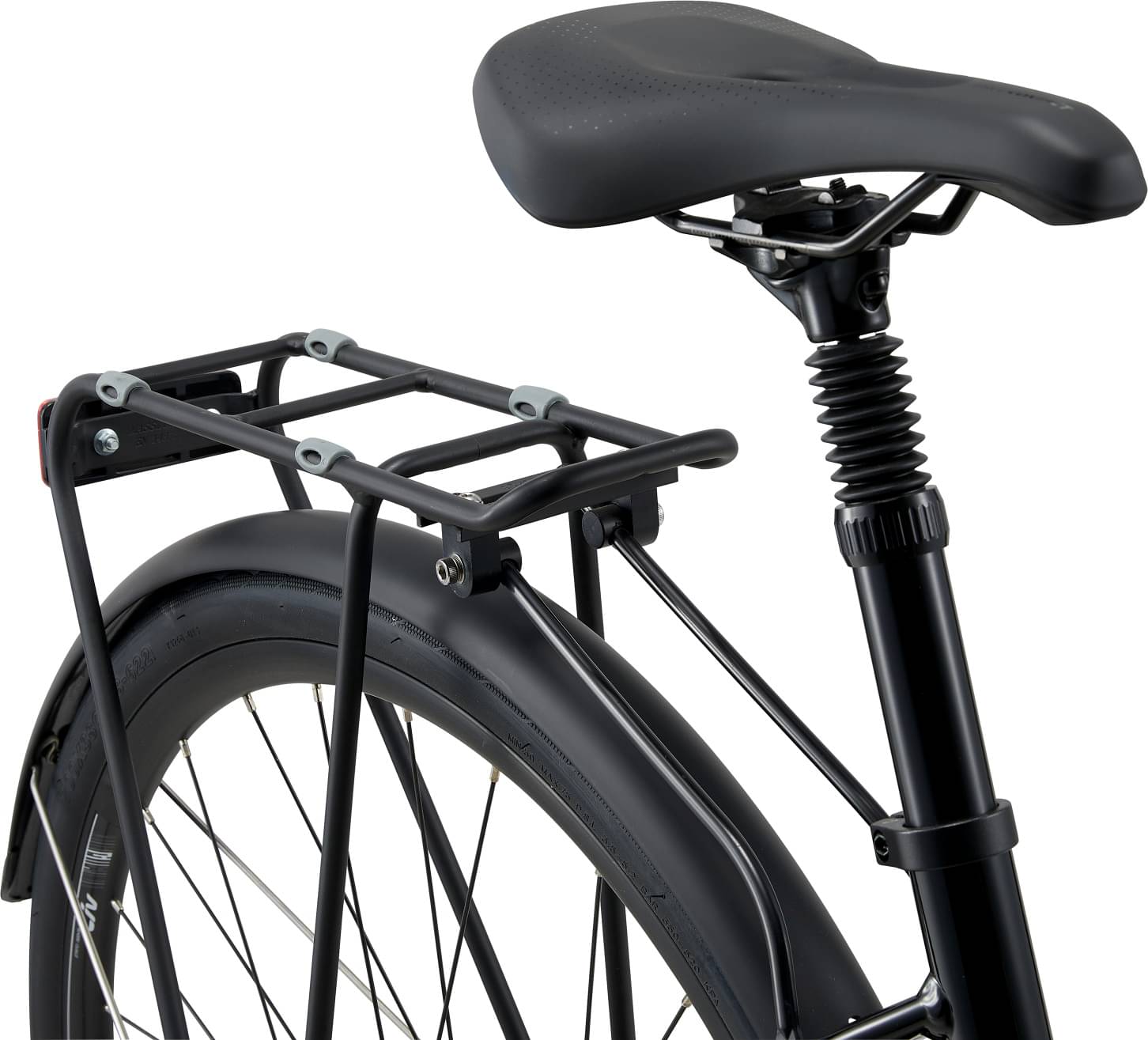

Seatpost
Alloy suspension post, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.591 mm | 1.594 mm | 1.66 mm | 1.691 mm |
| Front Center | 598 mm | 609 mm | 609 mm | 618 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 75.6 mm | 72.3 mm | 69 mm | 69.2 mm |
| Stack | 568 mm | 585 mm | 606 mm | 624 mm |
| Reach | 357 mm | 367 mm | 365 mm | 369 mm |
| Top Tube Length | 545 mm | 560 mm | 575 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 145 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1035 mm | 1046 mm | 1046 mm | 1056 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 683 mm | 719 mm | 749 mm | 779 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 148 cm | 158 cm | 164 cm | 170 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 183 cm |
