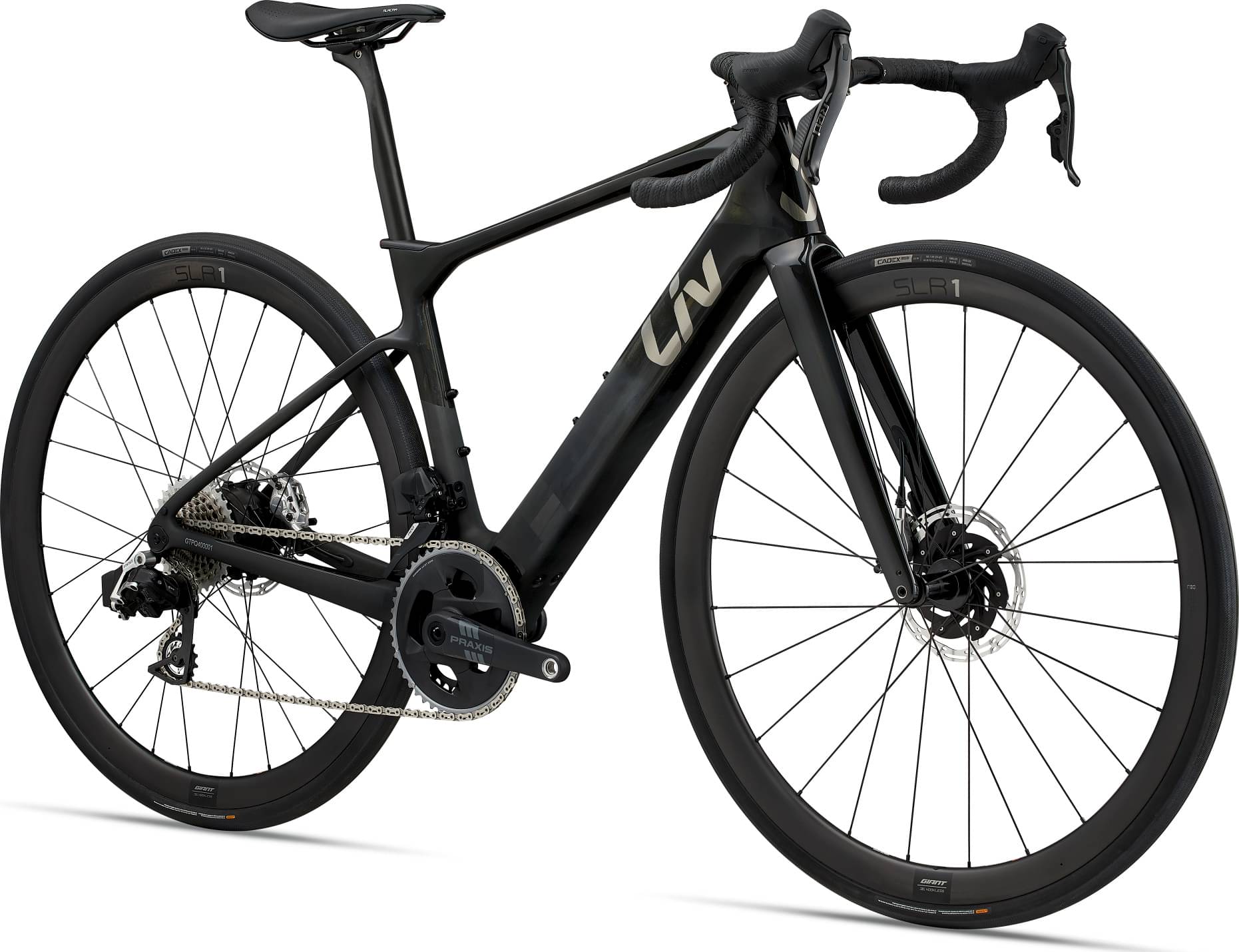

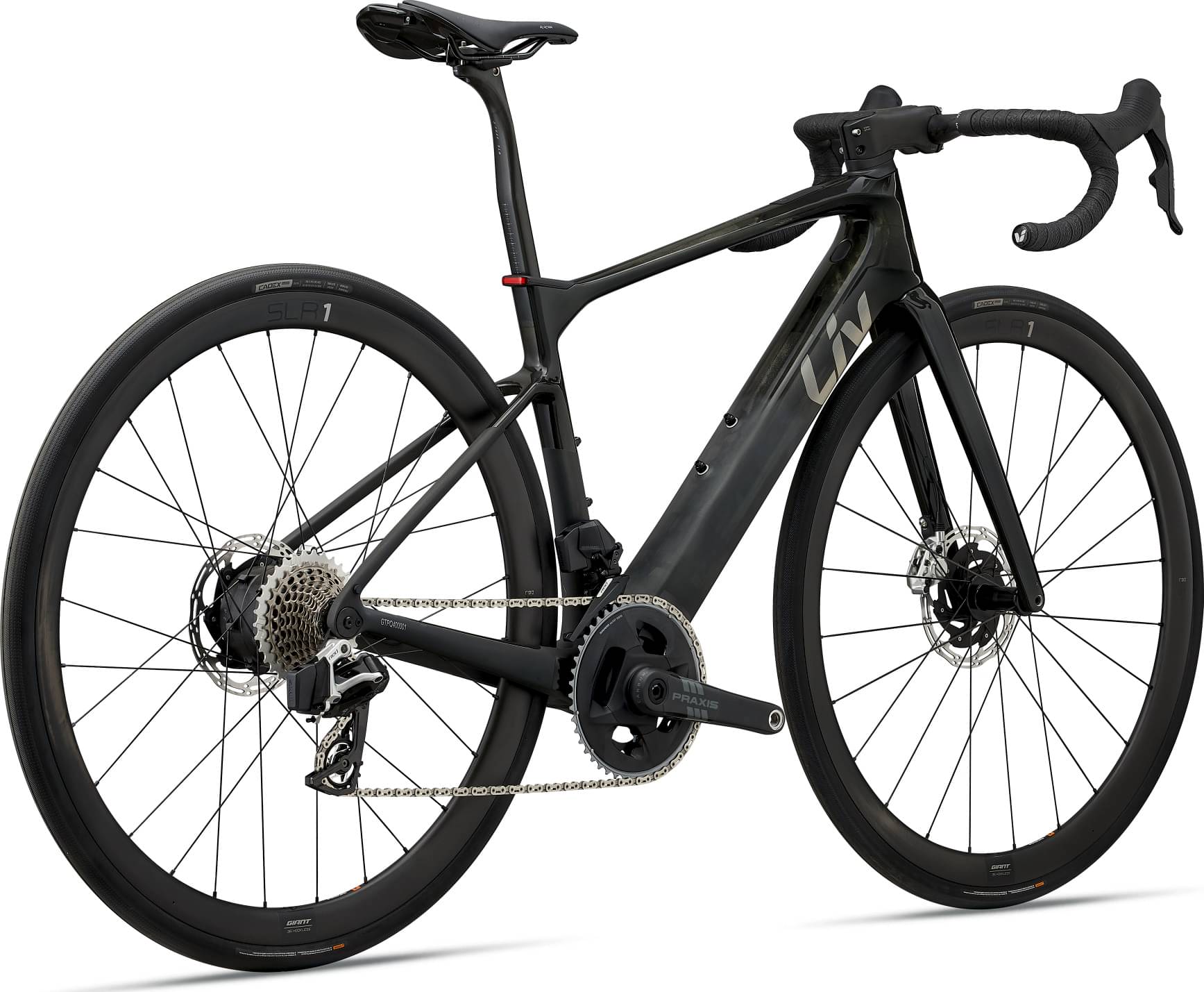

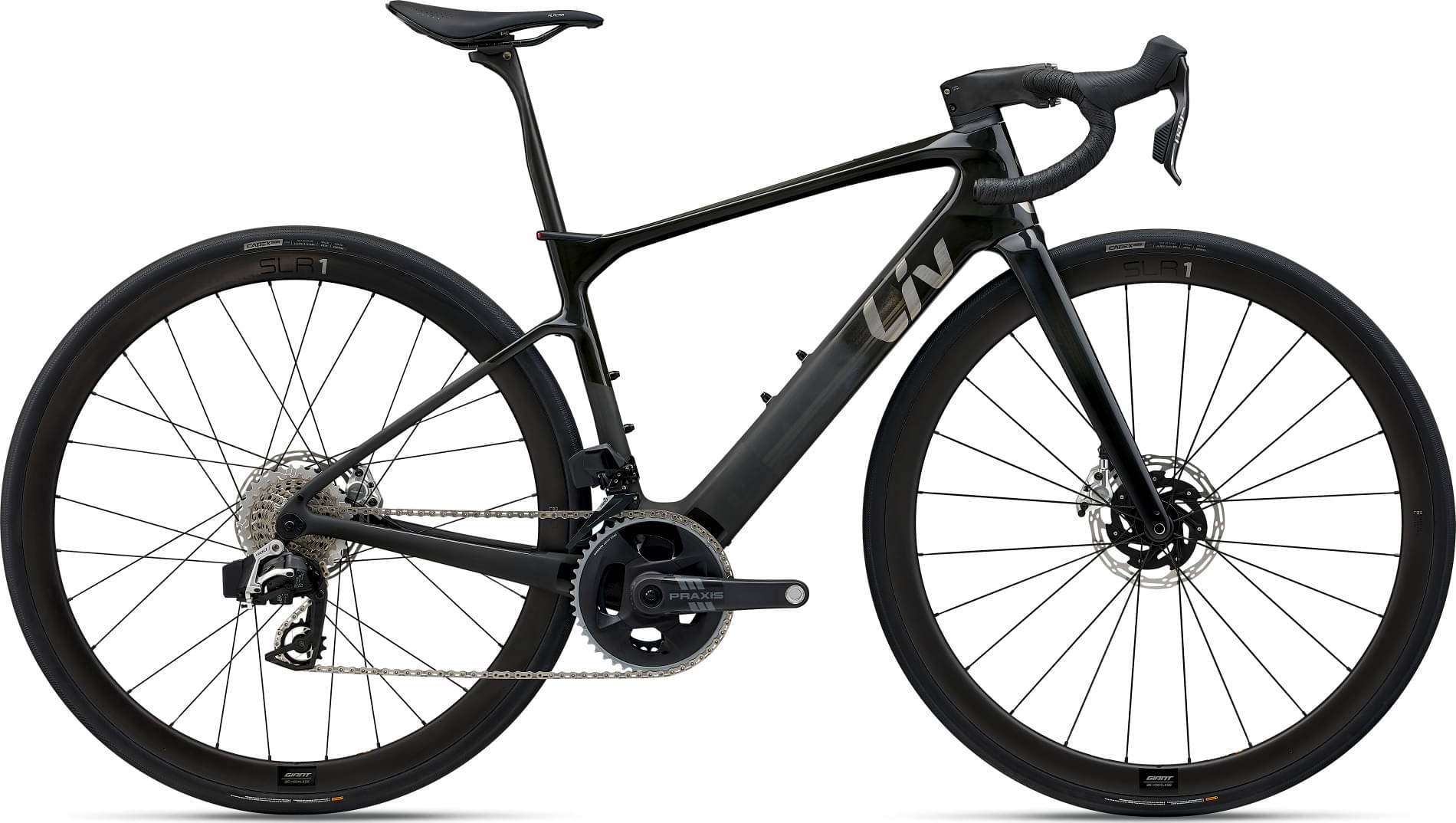

Liv Avail Advanced E+ Elite 0 2025
2025 E-bike
Estimate price |
12,214$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS -
Suspension Rigid -
Motor Yamaha 250W 75Nm mid-drive -
Battery Giant EnergyPak 400Wh, Aluminum casing with highest safety standard (UL2271, EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 163cm
SM
158cm - 169cm
MD
164cm - 175cm
LG
170cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components

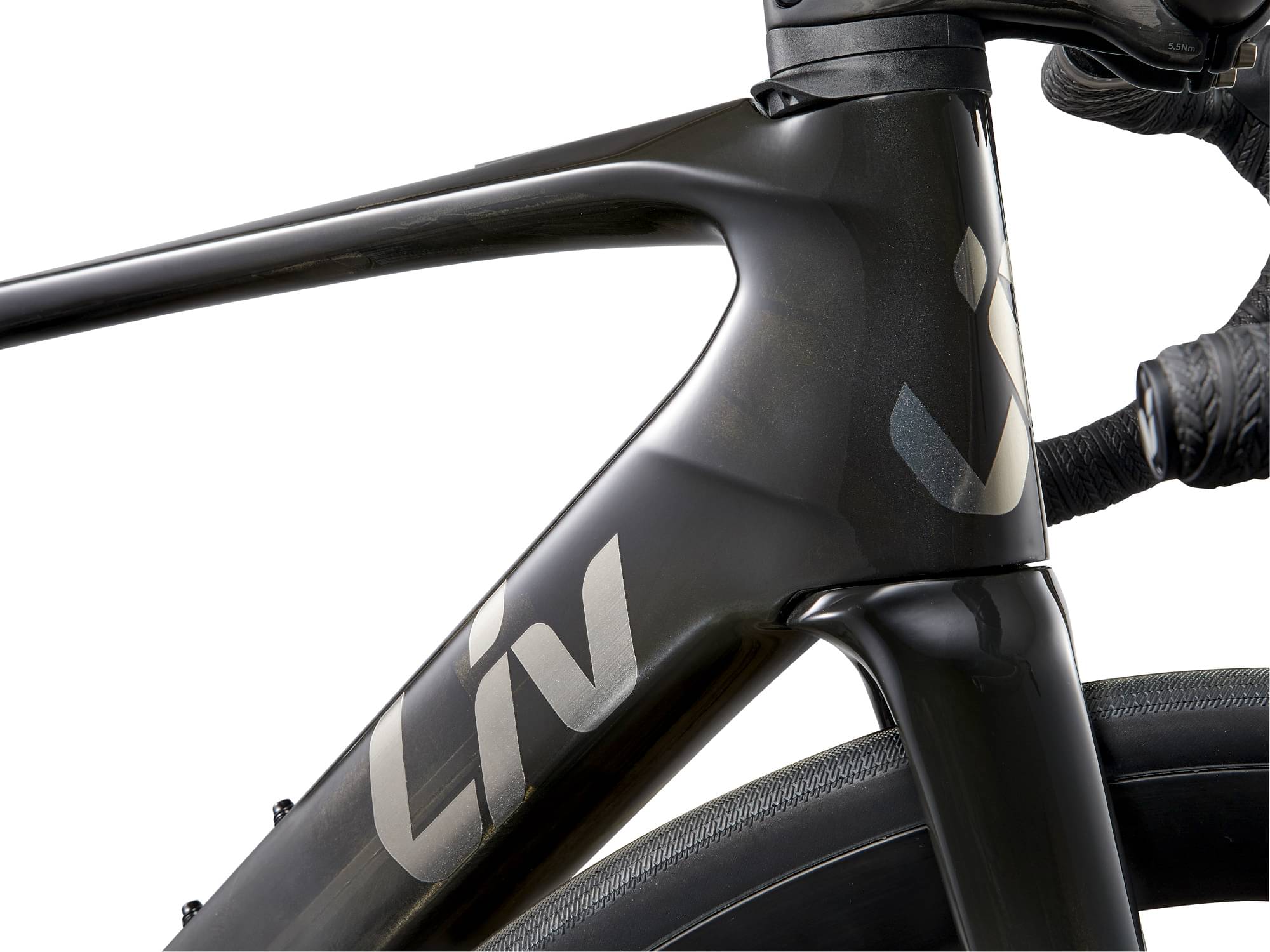

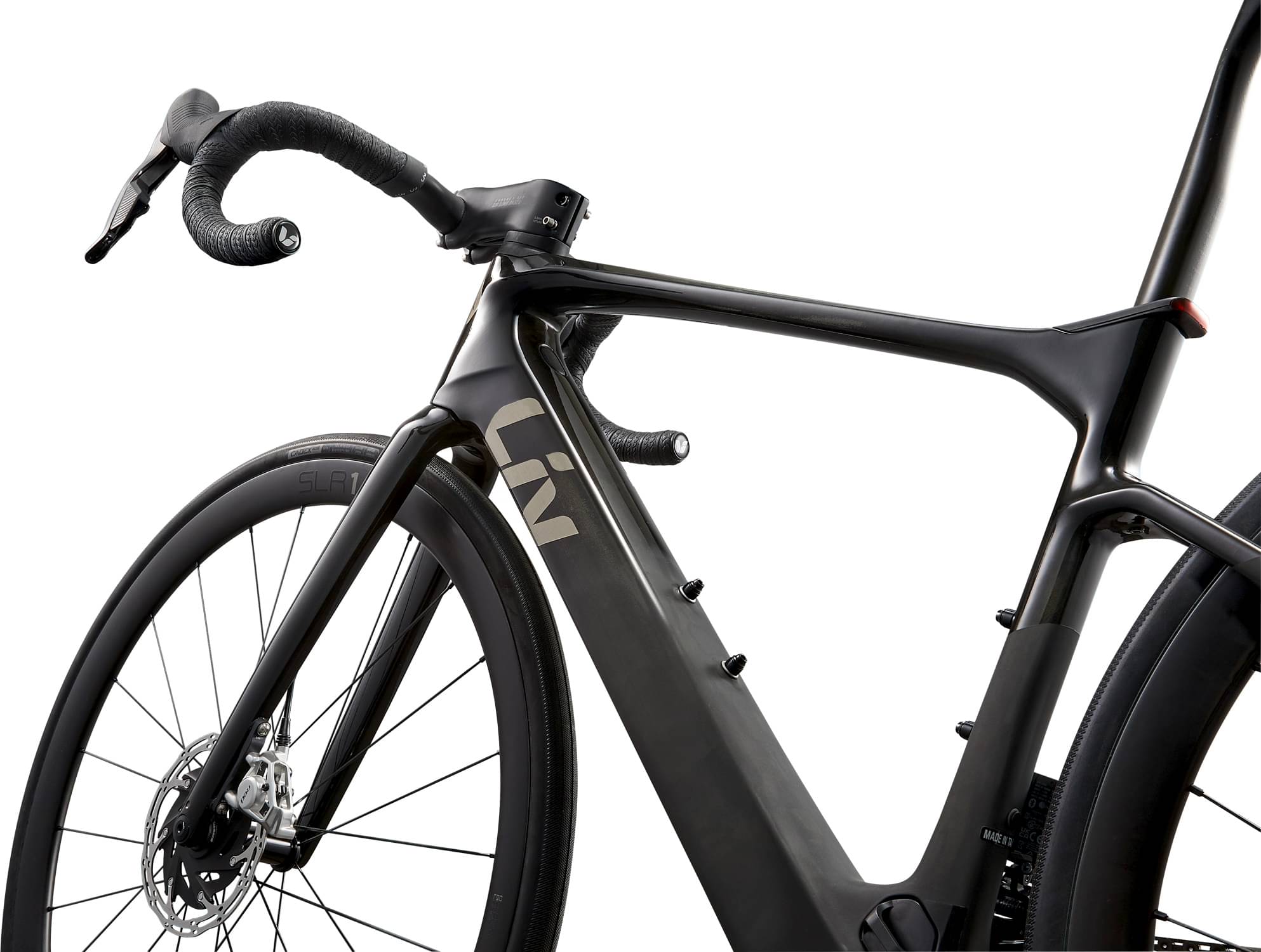

Frame
Frame
Advanced-grade composite,12x145 thru-axle

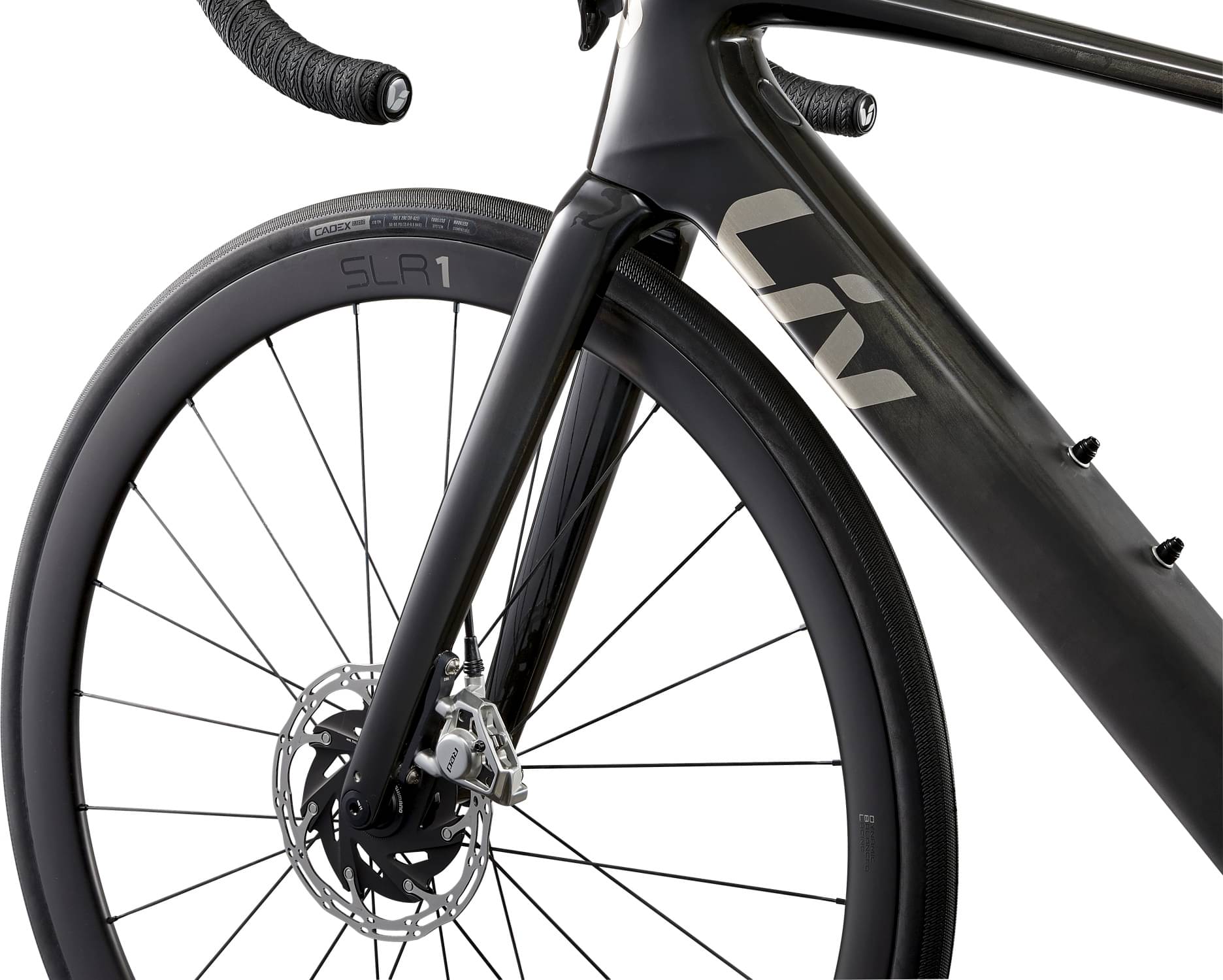

Suspension Fork
Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
Rear Shock
-

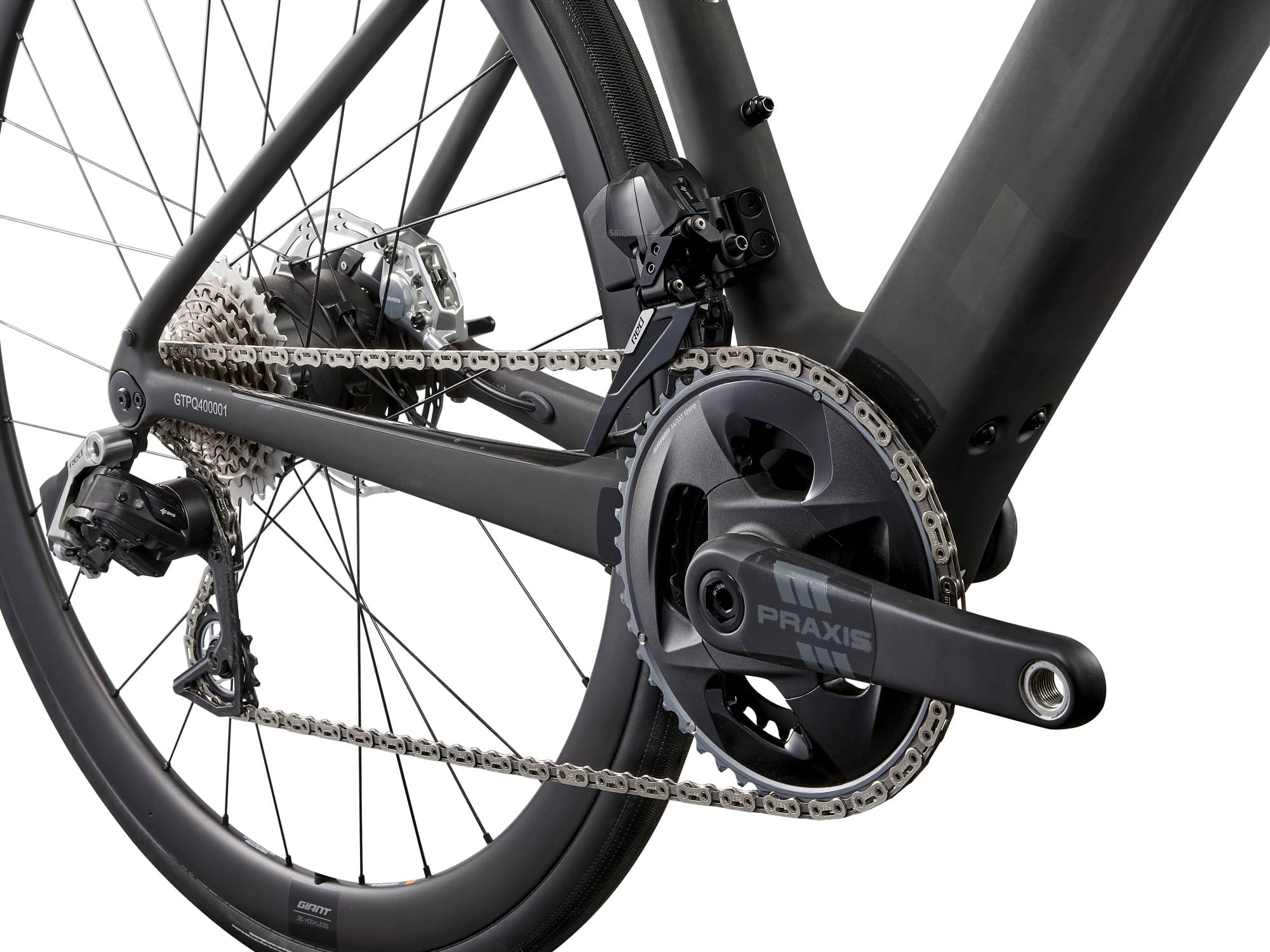

Drivetrain
Rear Derailleur
SRAM RED eTap AXS
Front Derailleur
SRAM RED eTap AXS
Shift Levers
SRAM RED eTap AXS
Cassette
SRAM RED XG-1290 10x33T 12-speed
Crank
SRAM Force X-SYNC 33/46T BCD107 chain ring Praxis E crank Carbon ISIS
Bottom Bracket
Giant E+ System BBSS
Chain
SRAM RED 12-speed
Pedals
-
Wheels
Front Hub
[F] Giant SLR 1, 24H [R] Giant SyncDrive Move Plus, 28H
Rear Hub
[F] Giant SLR 1, 24H [R] Giant SyncDrive Move Plus, 28H
Rims
Giant SLR 1 E+ 36 Carbon Disc Wheel System, Hookless, Tubeless Ready, 12mm thru-axle
Spokes
Sapim spoke E-Light [R] CX-Ray [F], e-bike optimized
Tires
Cadex Classic 95PSI 700x28C 170TPI Tubeless Foldable

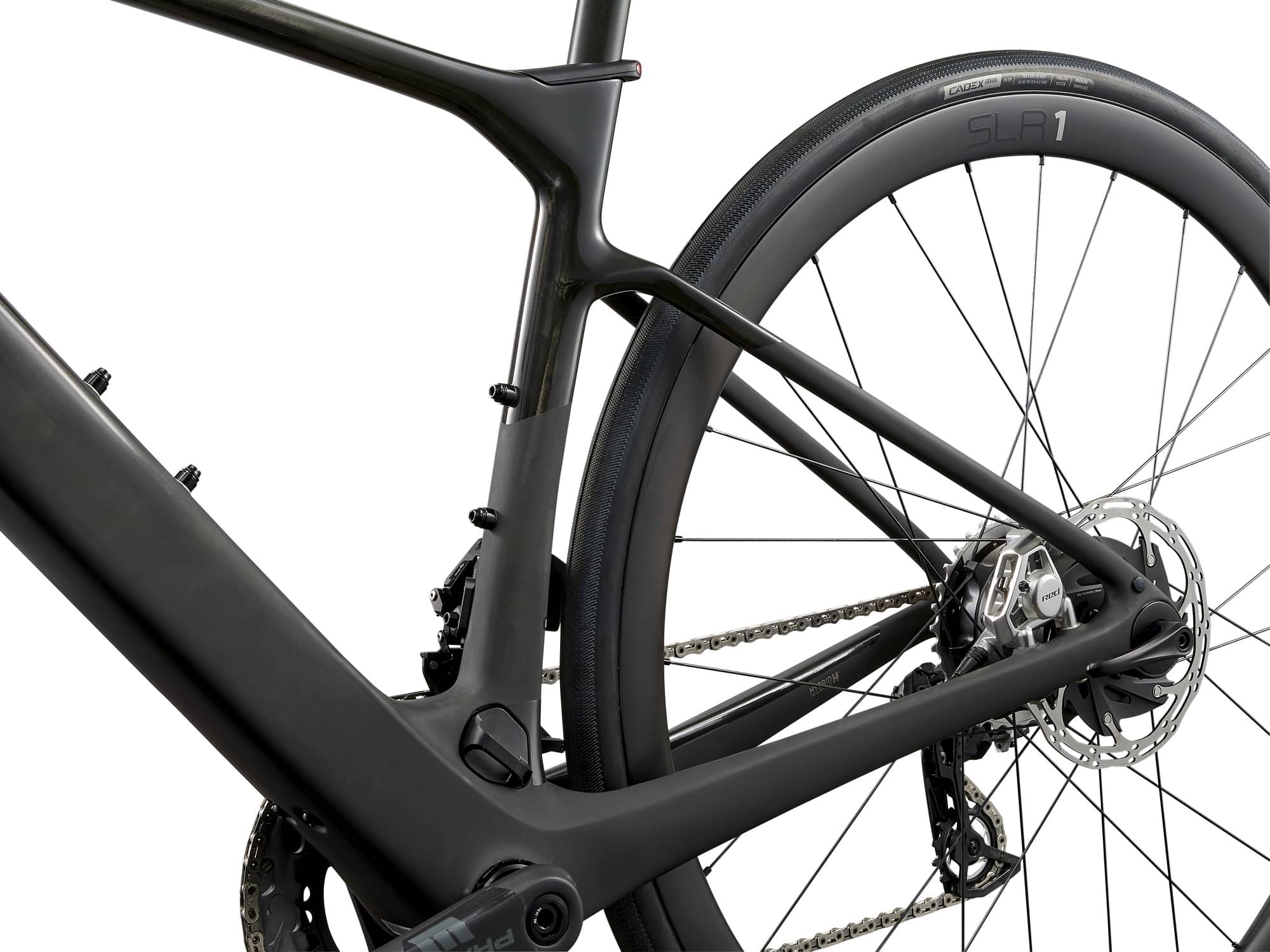

Brakes
Brakes
SRAM RED AXS HRD, Centerline 160mm center-lock [F] 160mm 6-bols [R]
Brake Levers
SRAM RED eTap AXS HRD

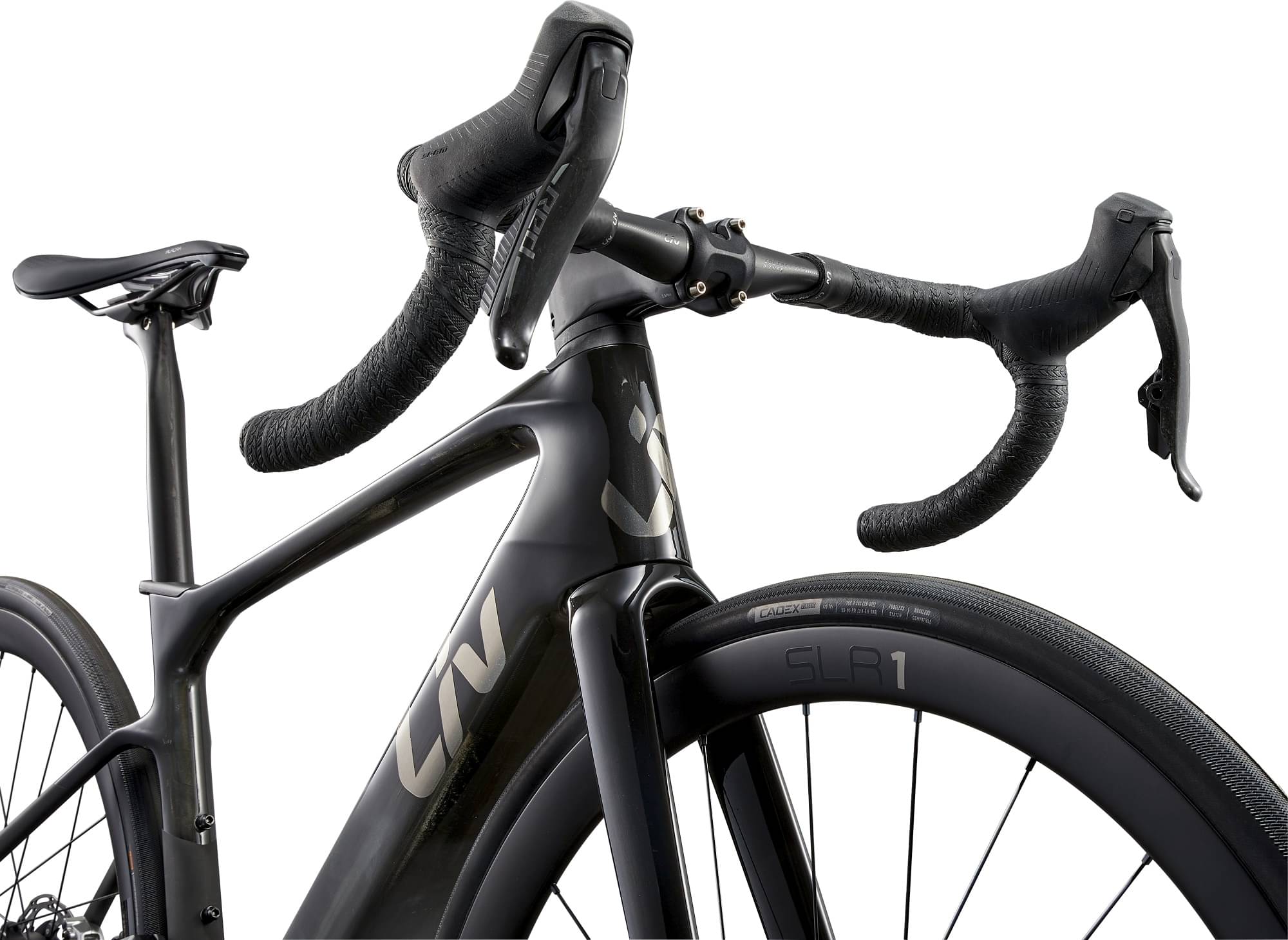

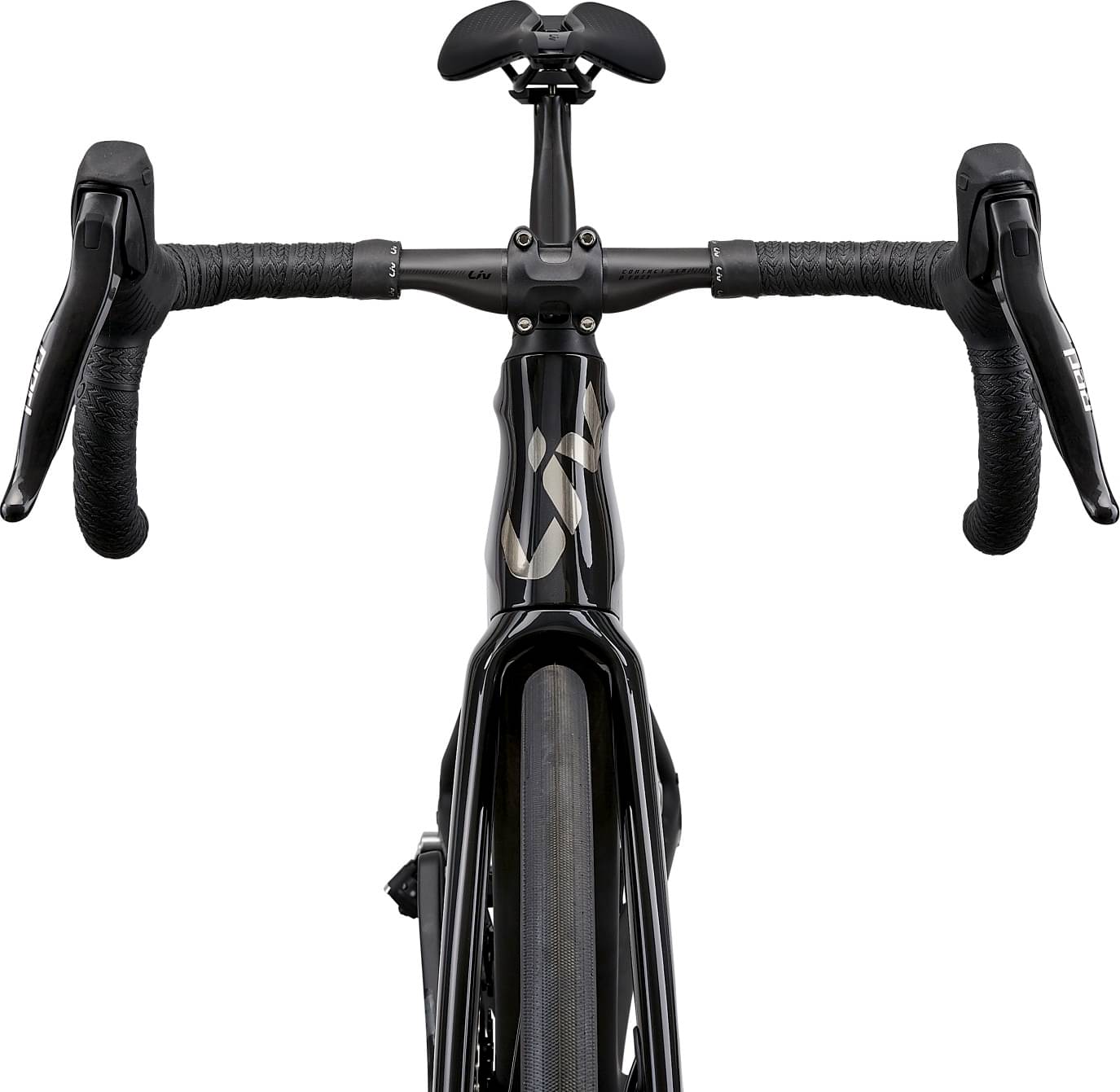

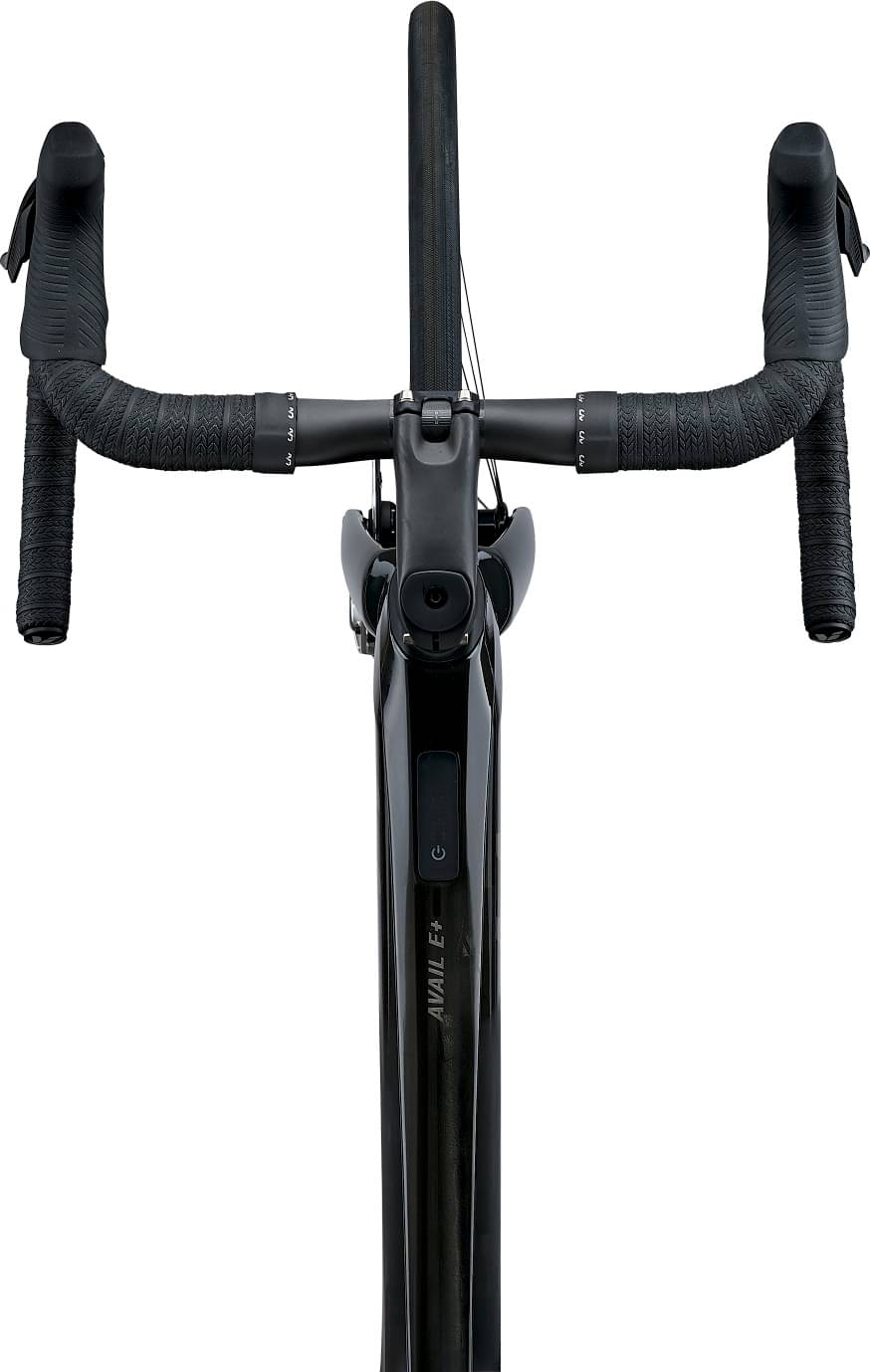

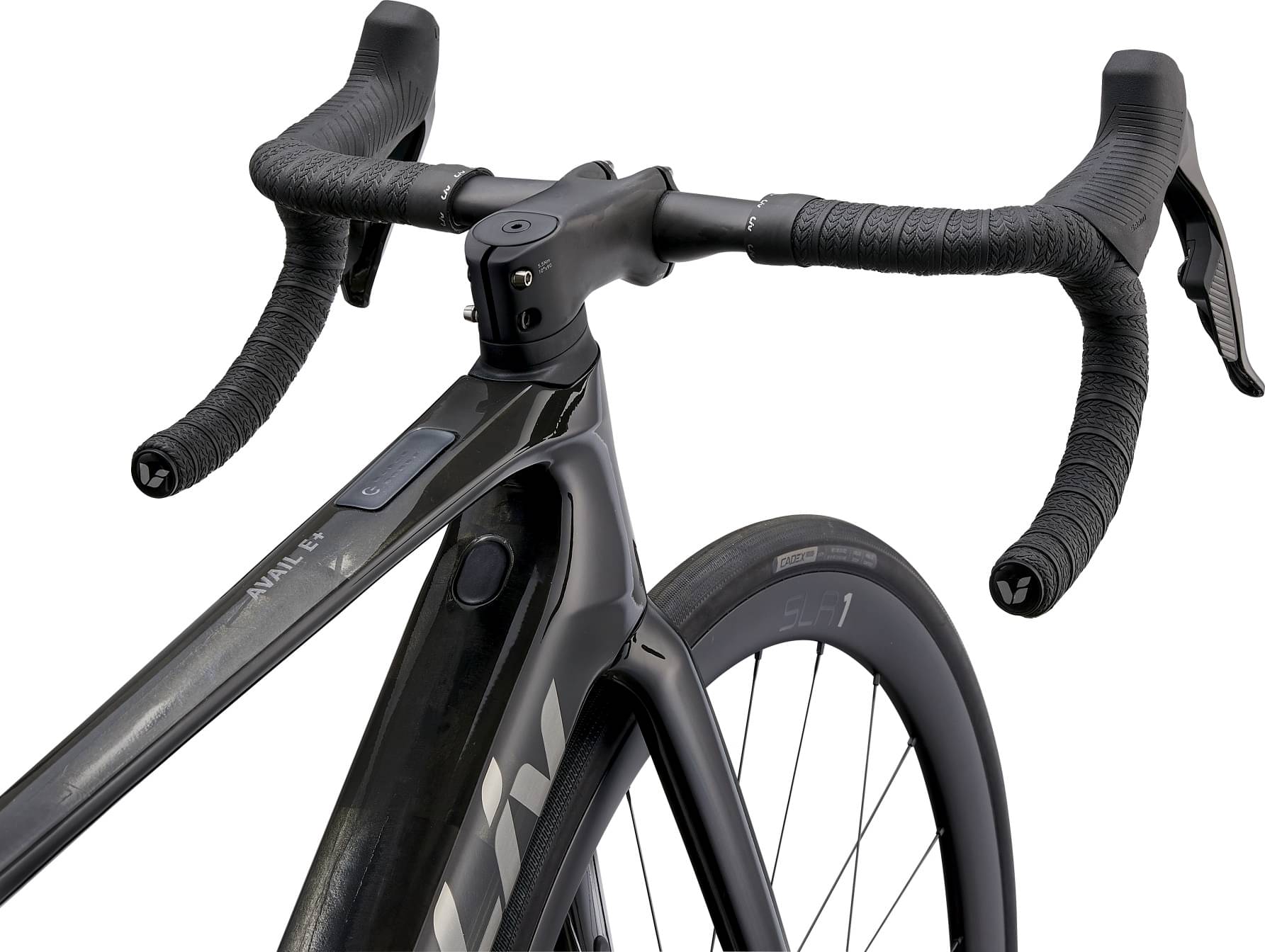

Cockpit
Stem
Contact SLR Aerolight 31.8 carbon
Handlebar
Liv Contact SLR D-Fuse 31.8 carbon
Grips
Stratus Lite 3.0
Seat
Saddle
Liv Alacra SL CS
Seatpost
Giant D-Fuse SLR, Composite, -5/+15mm offset
Motor & Battery

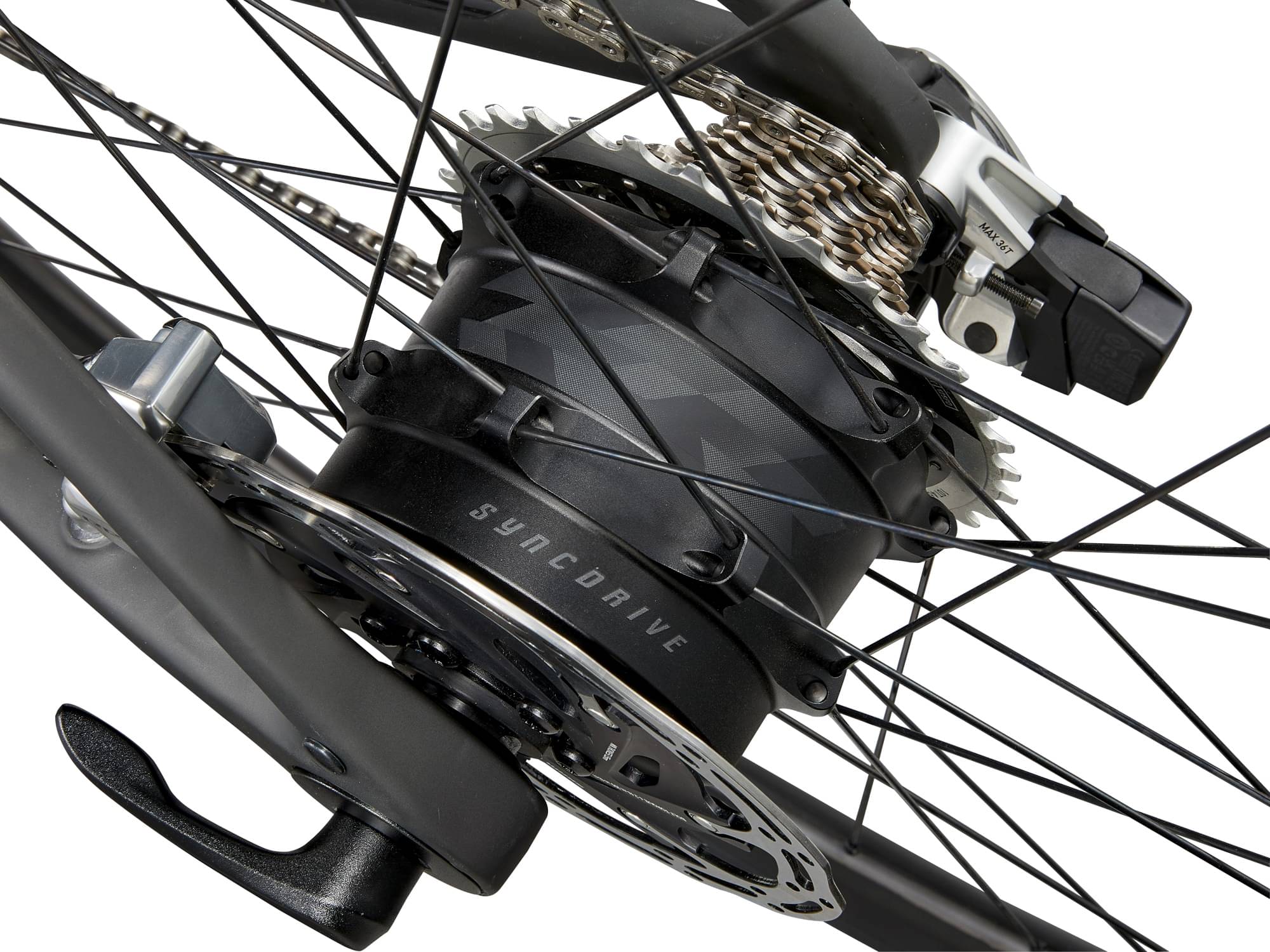

Motor
SyncDriveMove Plus Hub drive 75nm (effective)
Battery
Giant EnergyPak 400Wh, Aluminum casing with highest safety standard (UL2271, EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Remote
Mode support switch from SRAM bonus button
Charger
Giant EnergyPak 4A smart charger, 60% in 1:45 (UL1012)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.437 mm | 1.459 mm | 1.487 mm | 1.523 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 261 mm |
| Front Center | 586 mm | 592 mm | 596 mm | 605 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 72 mm | 68.3 mm | 61.8 mm | 61.8 mm |
| Stack | 528.9 mm | 545 mm | 562.8 mm | 582.4 mm |
| Reach | 368 mm | 373.6 mm | 378.4 mm | 382.4 mm |
| Top Tube Length | 515 mm | 525 mm | 540 mm | 555 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 435 mm | 470 mm | 505 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 993 mm | 999 mm | 1003 mm | 1013 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 75 mm |
| Standover Height | 677 mm | 708 mm | 743 mm | 782 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 158 cm | 164 cm | 170 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 183 cm |
