Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XXS
145cm - 156cm
XS
153cm - 162cm
SM
158cm - 169cm
MD
165cm - 174cm
LG
171cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum, 12x142mm thru-axle, disc
Suspension Fork
Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tiagra GS
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra ST-R5025
Cassette
Shimano Tiagra, 10-speed, 11x34
Crank
Shimano Tiagra, 34/50 XXS:165mm, XS:165mm, S:170mm, M:170mm, L:172.5mm
Bottom Bracket
cartridge
Chain
KMC X10-1
Pedals
N/A
Wheels
Front Hub
Giant alloy, 12mm thru-axle
Rear Hub
Giant alloy, 12mm thru-axle
Rims
Giant S-R2 Disc wheelset
Spokes
stainless
Tires
Giant Gavia Fondo 2, 700x32c, tubeless
Brakes
Brakes
Tektro MD-C550 mechanical, Shimano rotors [F]160mm, [R]160mm
Brake Levers
Shimano Tiagra GS
Cockpit
Stem
Giant Sport XXS:70mm, XS:70mm, S:80mm, M:90mm, L:90mm
Handlebar
Liv Connect, 31.8mm XXS:38cm, XS:38cm, S:40cm, M:40cm, L:42cm
Grips
Liv All Condition
Seat
Saddle
Liv Approach
Seatpost
Giant D-Fuse, composite XXS:350mm, XS:350mm, S:350mm, M:350mm, L:350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.48 mm | 1.53 mm | 1.57 mm | 1.58 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm | 256 mm |
| Front Center | 585 mm | 590 mm | 592 mm | 597 mm | 613 mm |
| Rake | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 72.8 mm | 69.5 mm | 62.9 mm | 59.6 mm | 59.6 mm |
| Stack | 514 mm | 530 mm | 553 mm | 574 mm | 593 mm |
| Reach | 354 mm | 358 mm | 361 mm | 365 mm | 375 mm |
| Top Tube Length | 494 mm | 507 mm | 517 mm | 532 mm | 547 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 375 mm | 410 mm | 445 mm | 480 mm | 515 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 103 mm | 118 mm | 138 mm | 158 mm | 178 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 986 mm | 991 mm | 993 mm | 998 mm | 1014 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 645 mm | 673 mm | 701 mm | 728 mm | 758 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 153 cm | 158 cm | 165 cm | 171 cm |
| Rider Max Height | 156 cm | 162 cm | 169 cm | 174 cm | 182 cm |
About this model

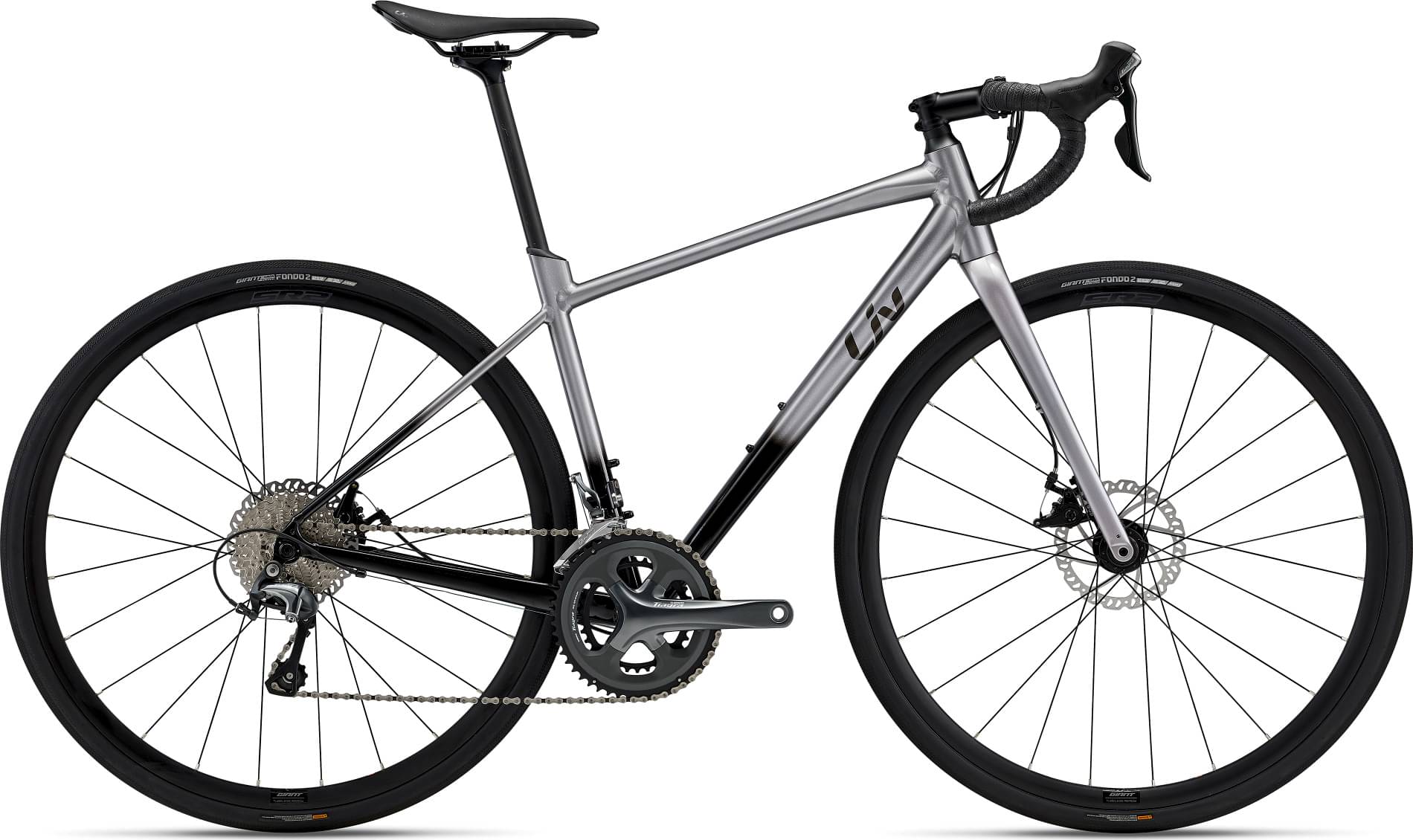

Avail AR 2 is a Liv Avail Ar model. 13 bikes variations carry this model name so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Liv released this model in 2023, its price was 1438$. Comparing this to the average Endurance bike price, we see that the price is 63.14% smaller.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the Avail AR 2 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 145 cm – 182 cm (4.76 ft – 5.97 ft). In conclusion, it won’t take much to find one that’s right for you.
