Liv Faith 2025
2025 Mountain
Estimate price |
2,791$
Weight | 13.39 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 140mm -
Groupset microSHIFT Advent X -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum 135mm Flexpoint suspension Rear 26" Wheel only
Suspension Fork
CREST SL, FLOTUNE damper, Lite tuning, wheel size 27.5", T140mm
Rear Shock
CREST FLOTRAC Lite, 165x45, Trunnion Mount
Drivetrain

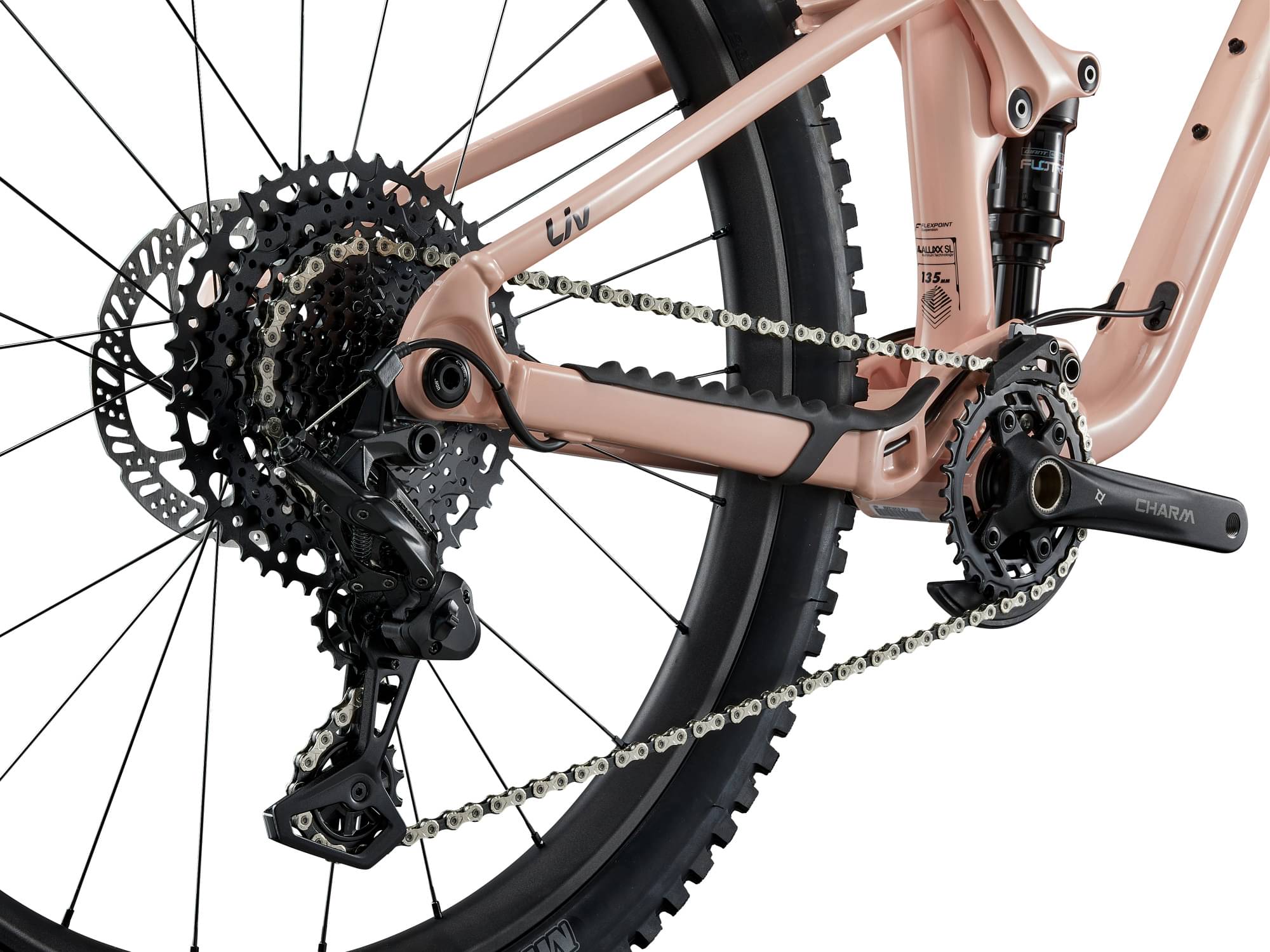

Rear Derailleur
Microshift Advent X RD-M6205AM
Shift Levers
Microshift Advent X Trail Trigger Shifter | SL-M9505-R (with nanowire)
Cassette
Microshift Advent X G-Series 10-speed Cassette 11-48T CS-G104 11-48T
Crank
ProWheel CHARM-30T 30T, 155mm
Bottom Bracket
Press-fit
Chain
KMC X10 with missing link
Pedals
Giant Pinner Lite Pedal
Wheels
Front Hub
[F] Alloy, 6 Bolt [R] Alloy, 72T Pawl Driver, 6 Bolt
Rear Hub
[F] Alloy, 6 Bolt [R] Alloy, 72T Pawl Driver, 6 Bolt
Rims
TRA wheelsystem, DBL (Dynamic balance Lacing), wheel size [F] 27.5” [R] 26"
Spokes
Sapim Laser
Tires
Maxxis M301P Minion DHF 27.5x2.5 60 TPI Folding (Front) Maxxis M327P Minion DHR II 26x2.4 60 TPI Folding (Rear)
Brakes
Brakes
Tektro F[180 rotor] R[160 rotor]
Brake Levers
Tektro HD-J285
Cockpit
Stem
Giant Contact, 8 Degrees, 40mm Length

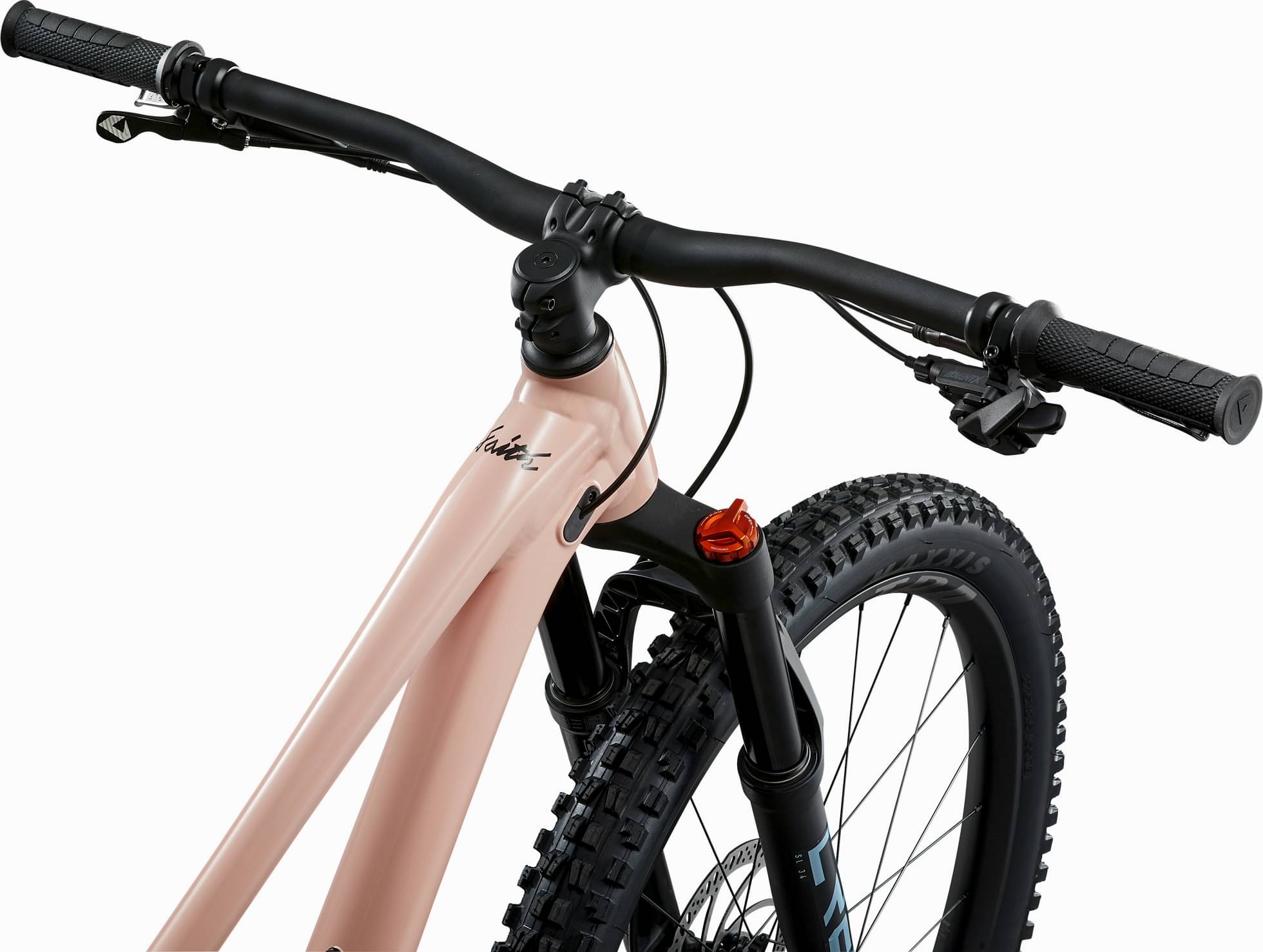

Handlebar
Giant Contact TR Riser, 20mm rise, AL6061 740mm
Grips
Giant small-hand grip
Seat
Saddle
Giant Romero
Seatpost
Contact Switch AT Lite, T100mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.425 mm |
| Bottom Bracket Height | 345 mm |
| Front Center | 723 mm |
| Rake | 41 mm |
| Trail | 126.5 mm |
| Stack | 584.5 mm |
| Reach | 410.1 mm |
| Top Tube Length | 545 mm |
| Seat Tube Angle | 77 ° |
| Seat Tube Length | 350 mm |
| Head Tube Angle | 64.5 ° |
| Head Tube Length | 105 mm |
| Chainstay Length | 425 mm |
| Wheelbase | 1147 mm |
| Bottom Bracket Drop | 10 mm |
| Standover Height | 676 mm |
| Wheels | 27" |
