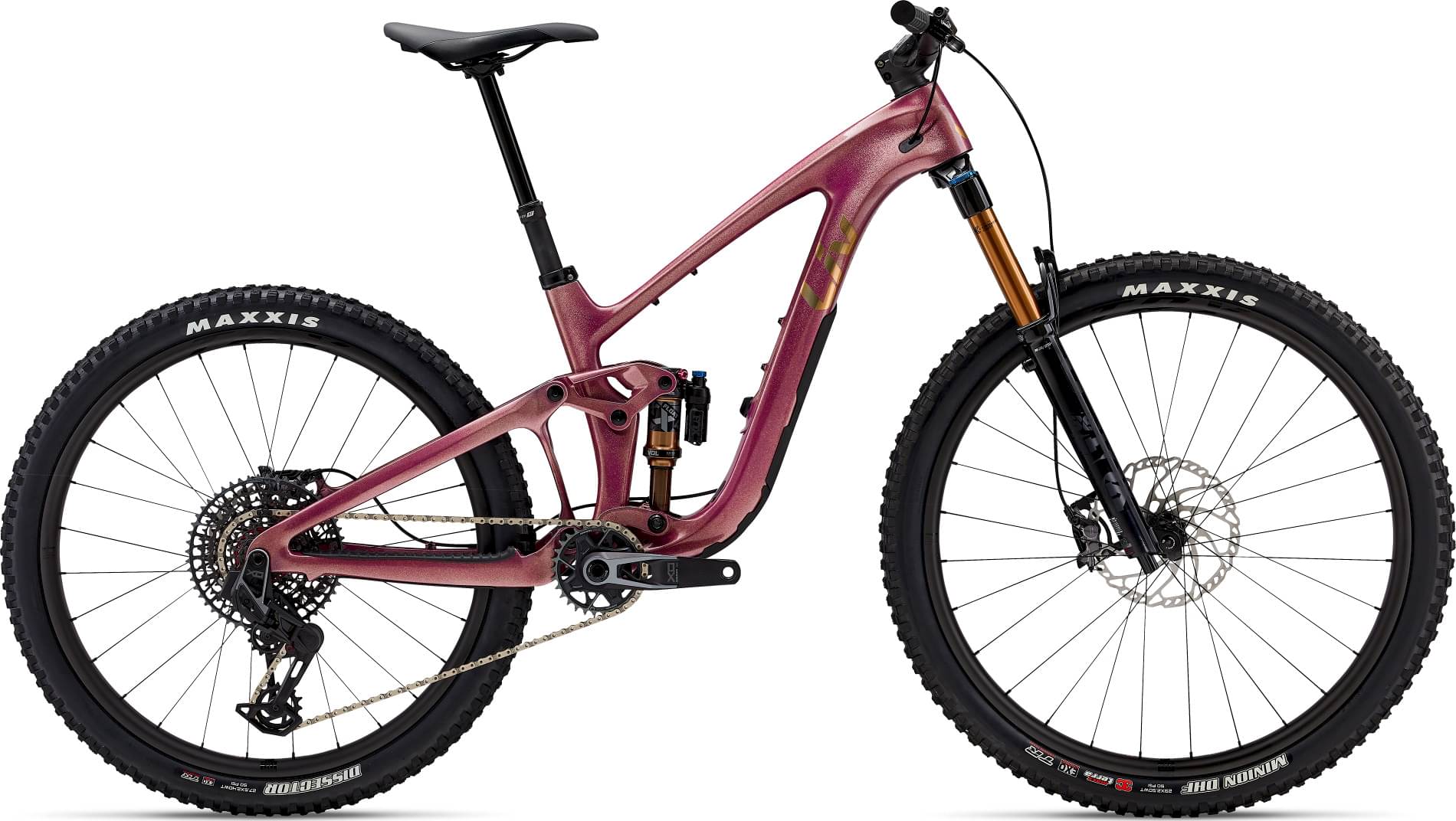

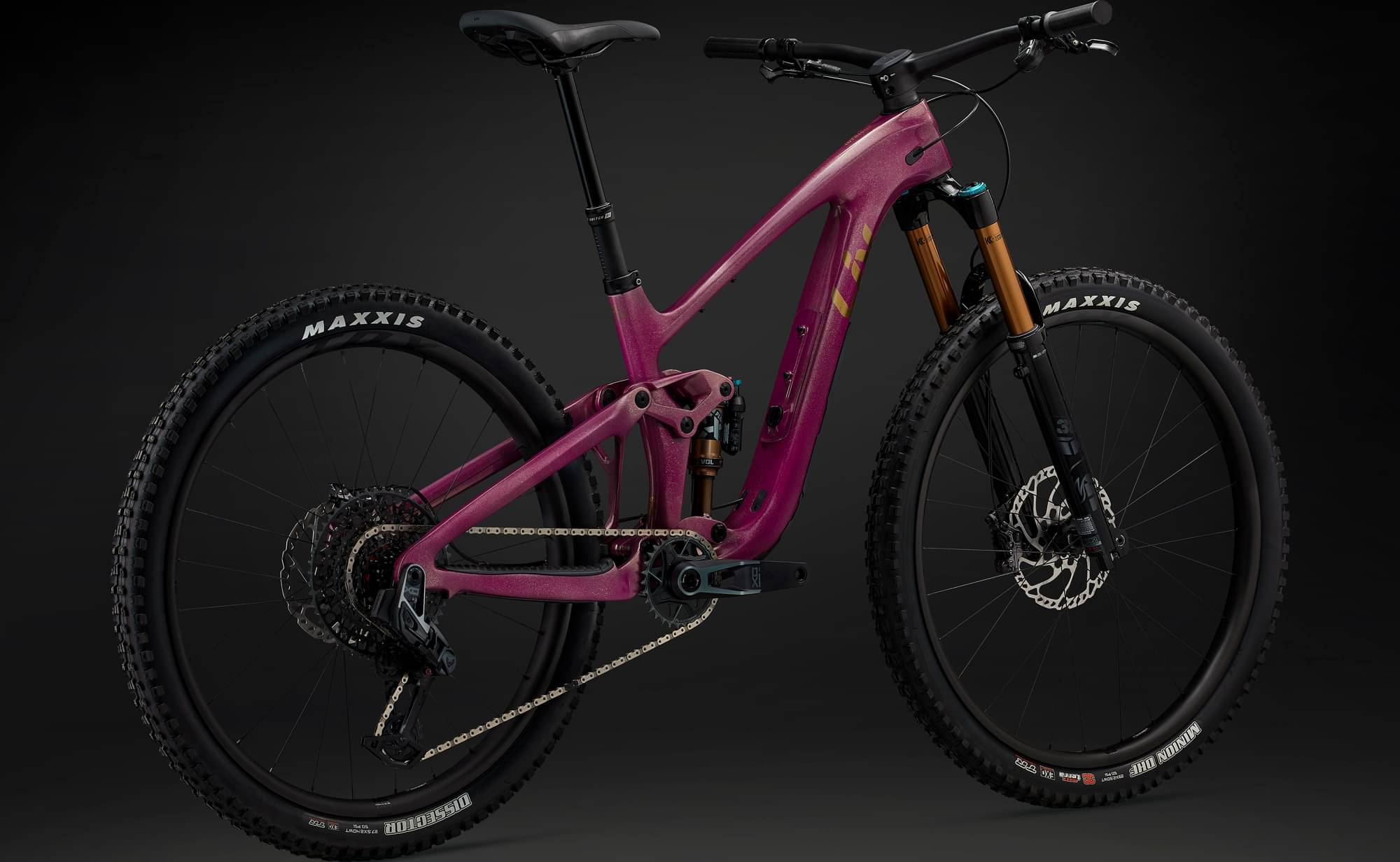

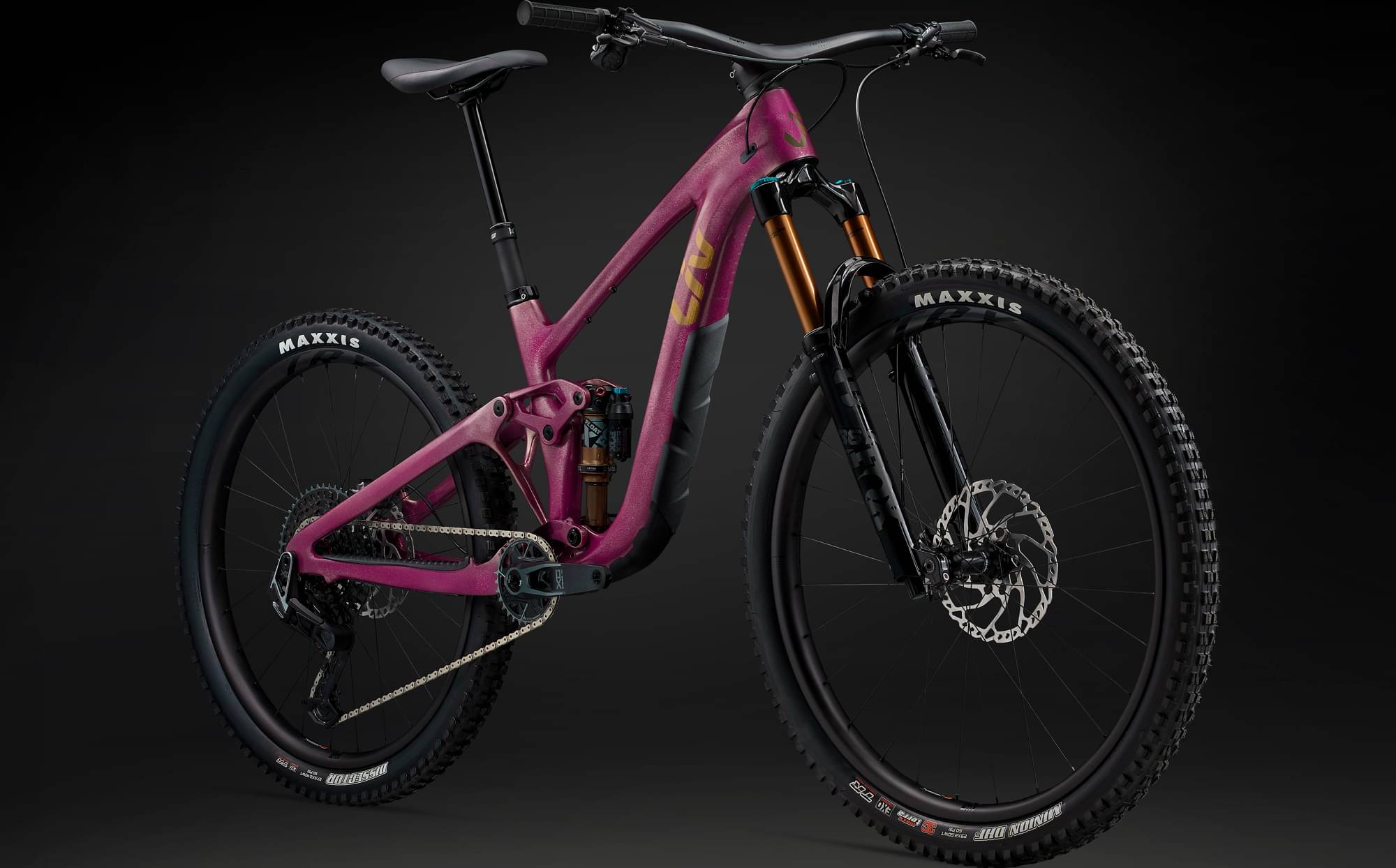

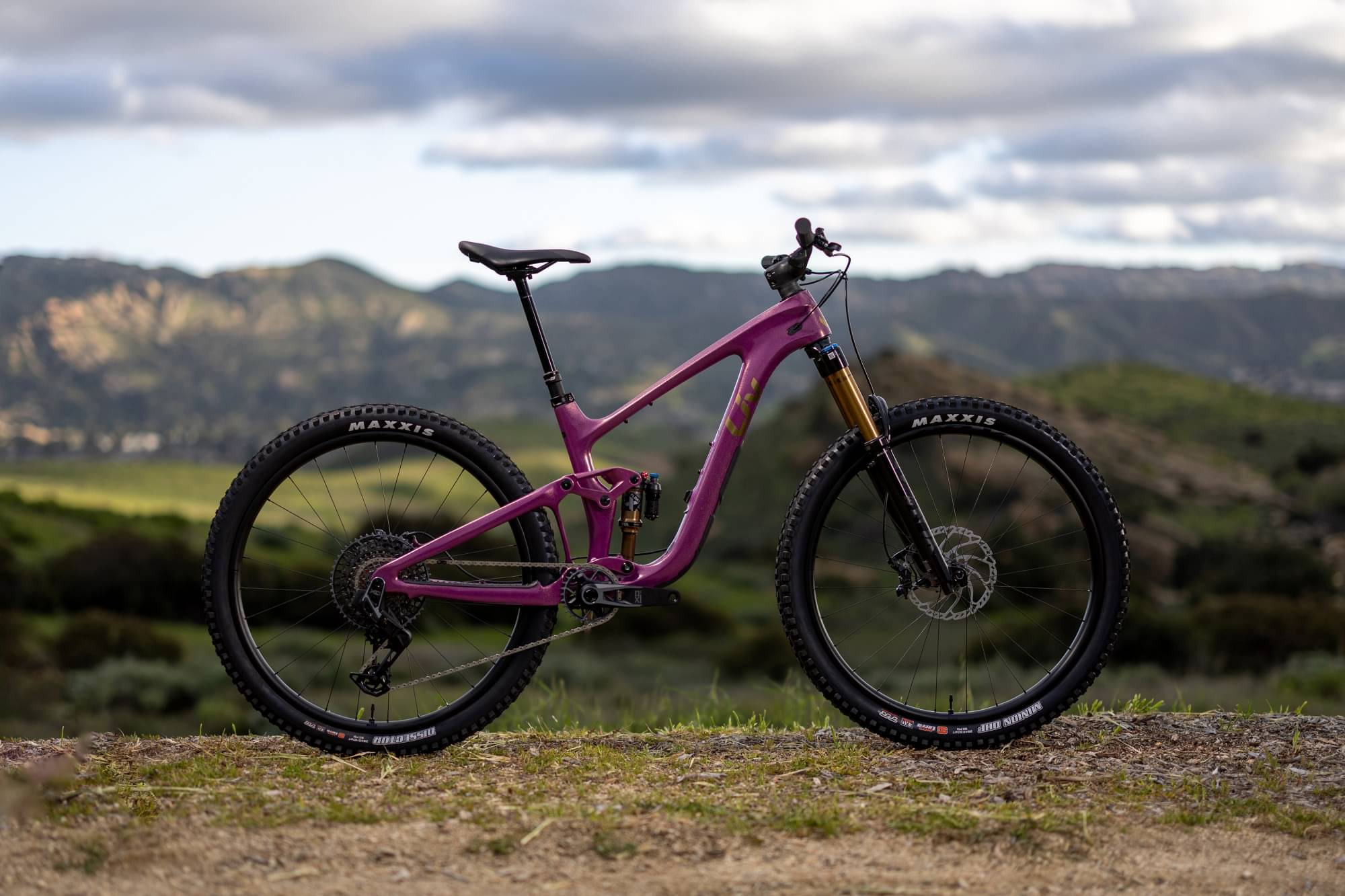

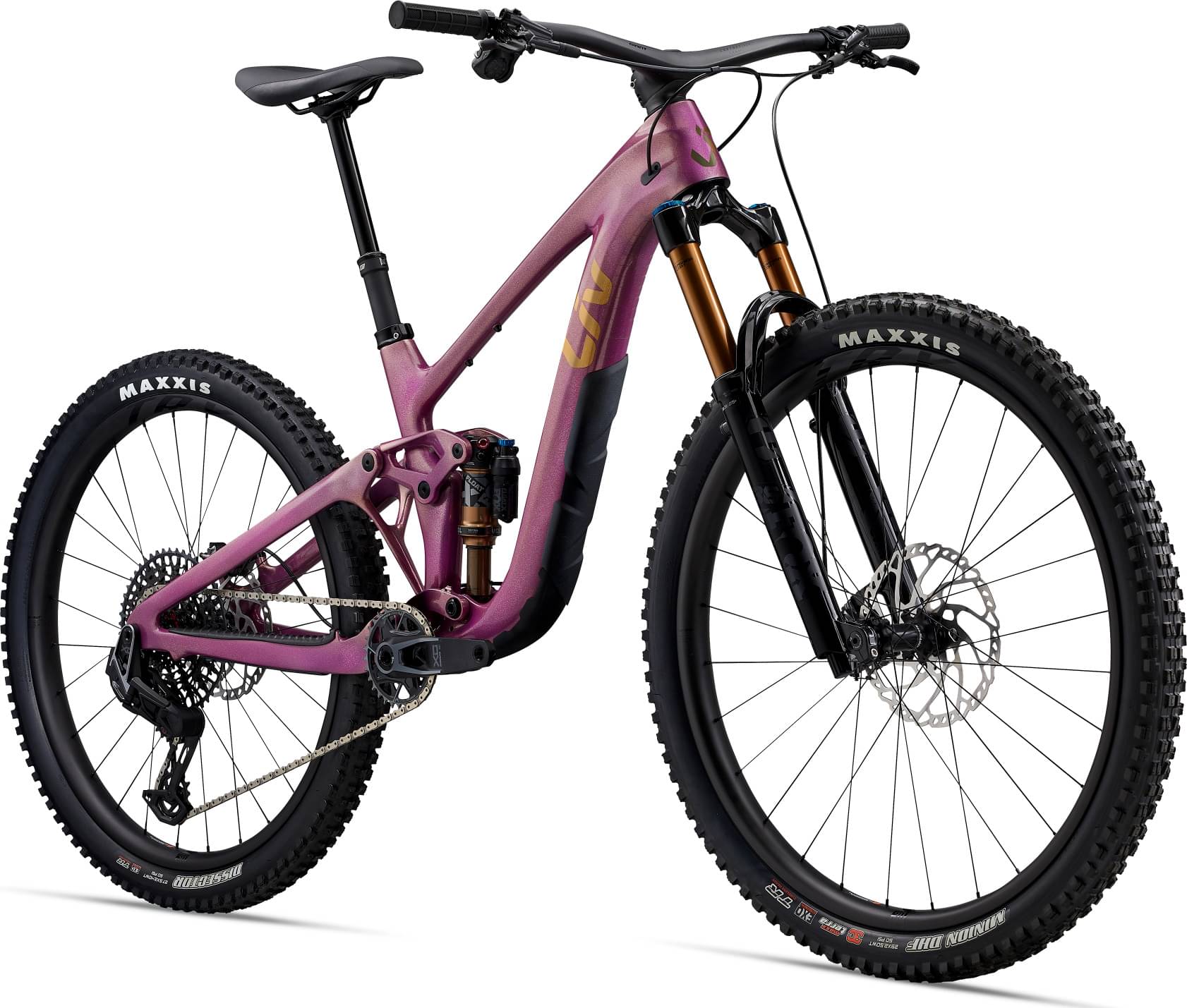

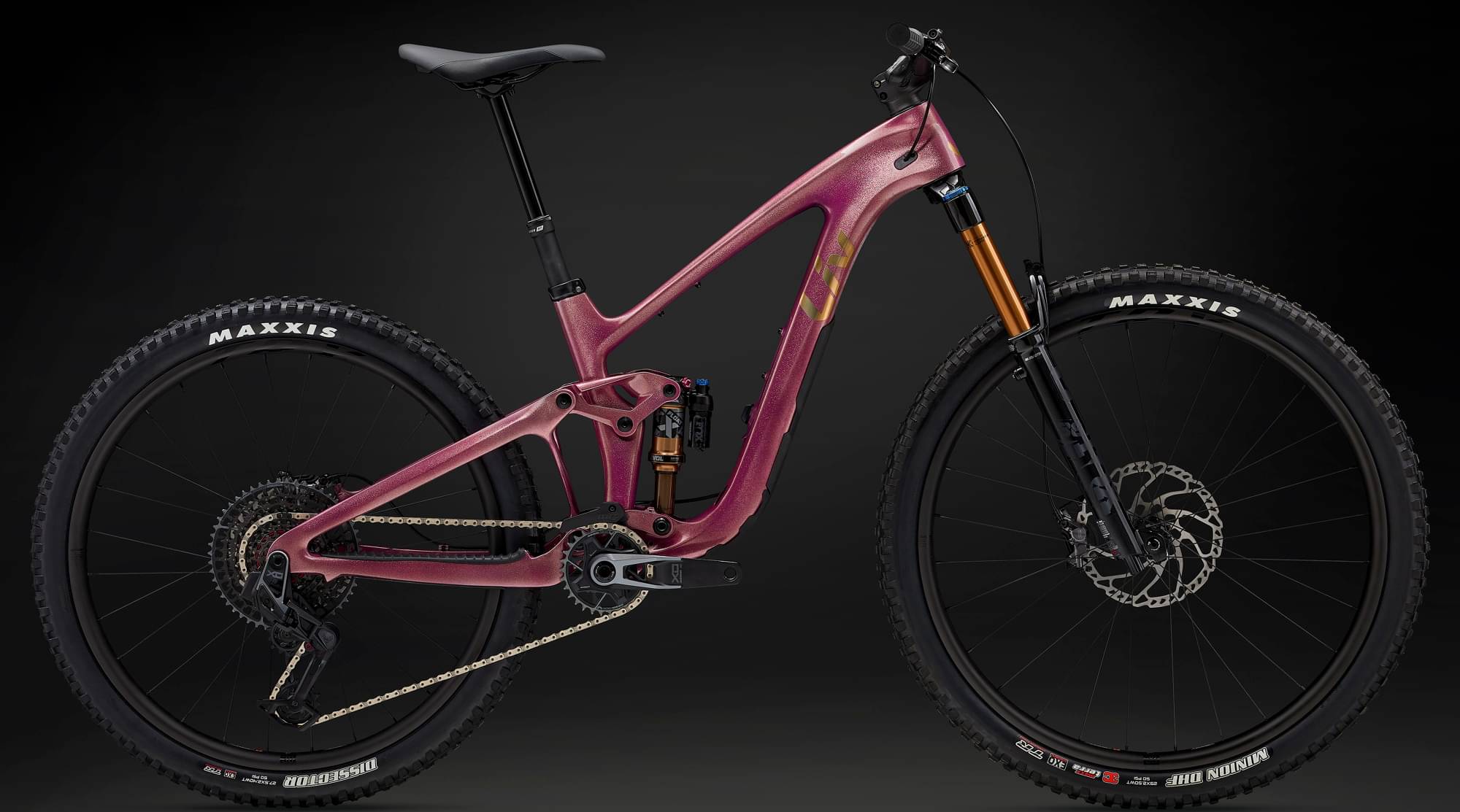

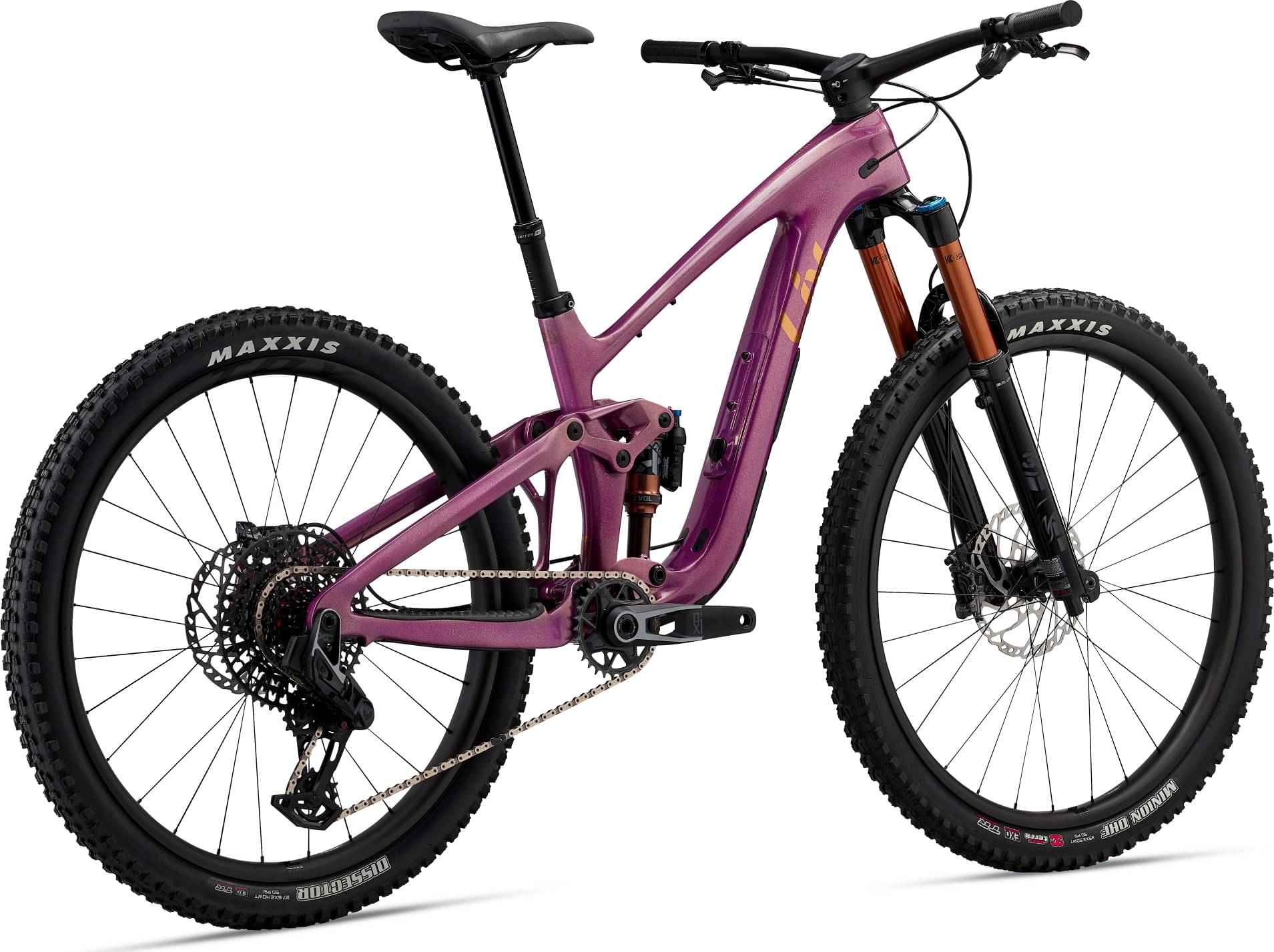

Liv Intrigue X Advanced 0 2024
2024 Mountain
Estimate price |
10,092$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset X0, X0 Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
158cm - 169cm
SM Mid
158cm - 169cm
SM Low
158cm - 169cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

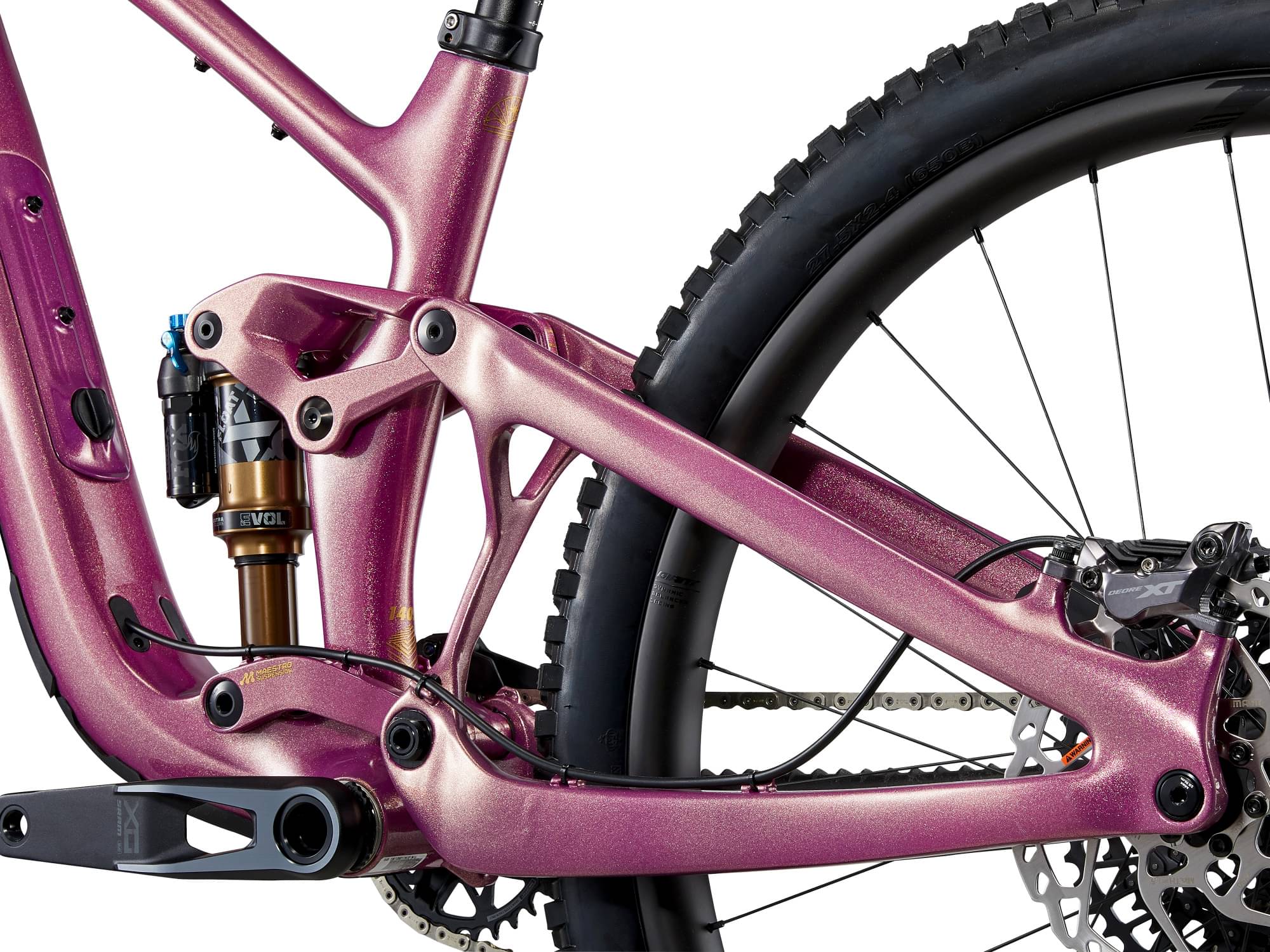

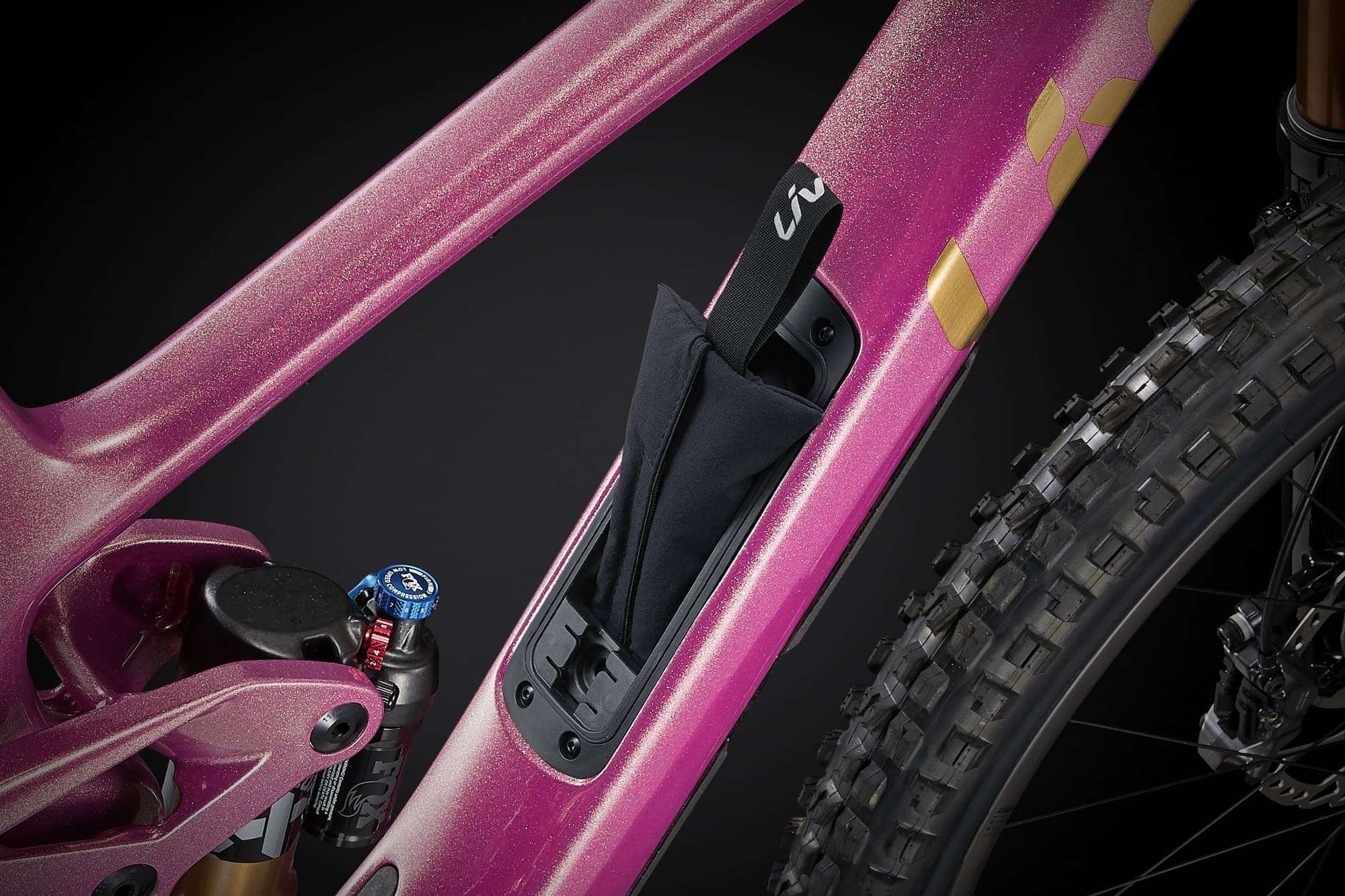

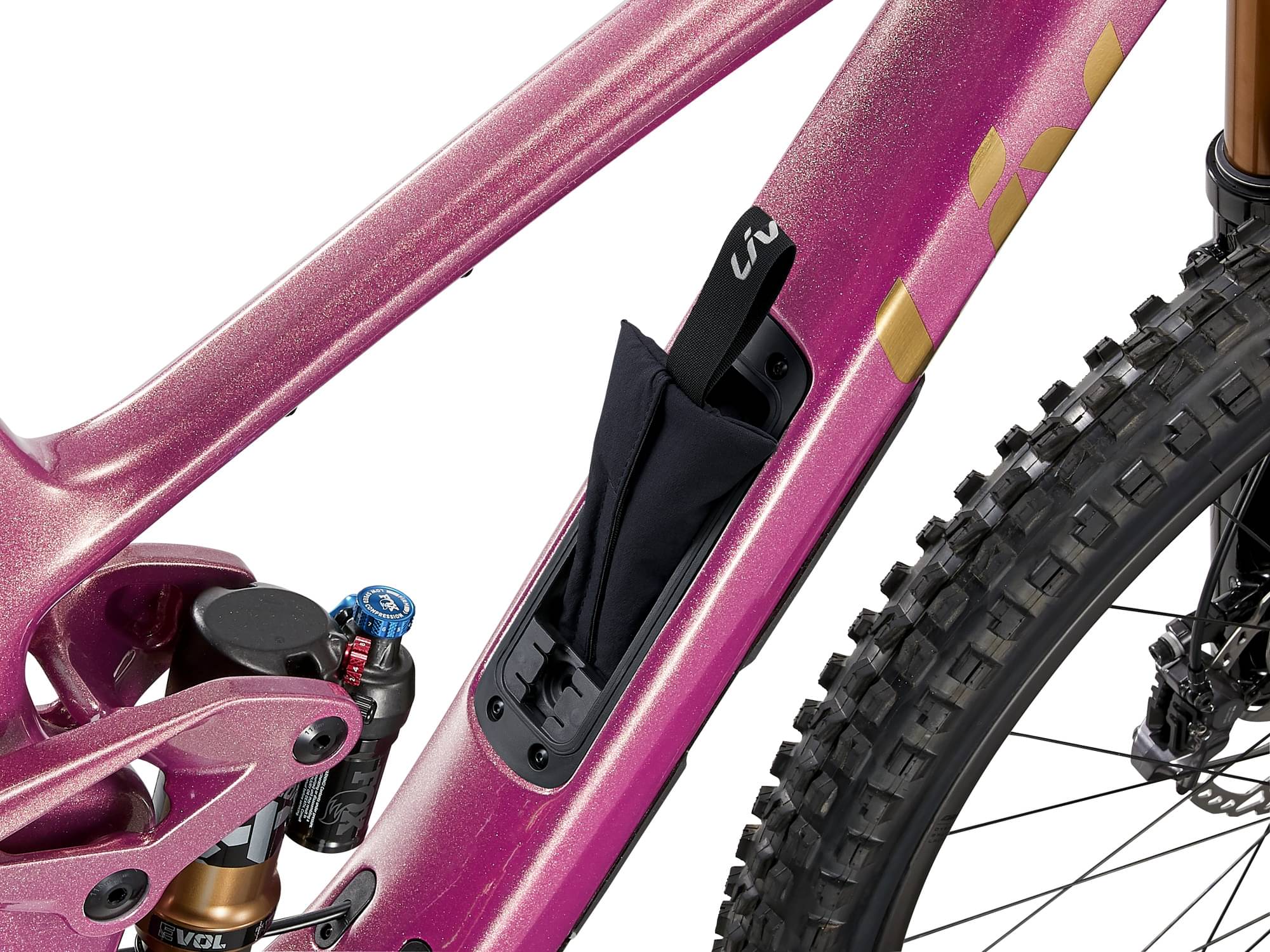

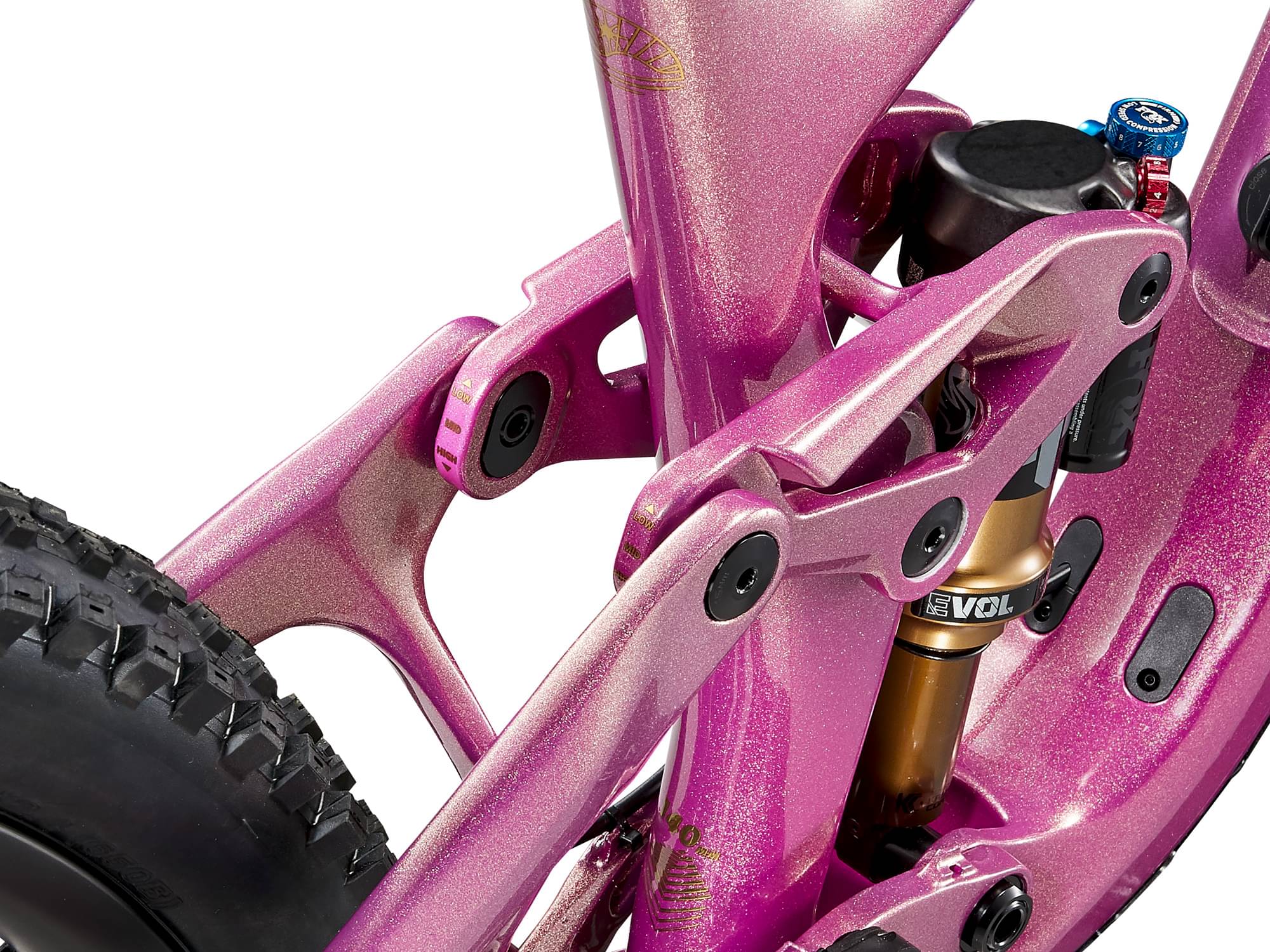

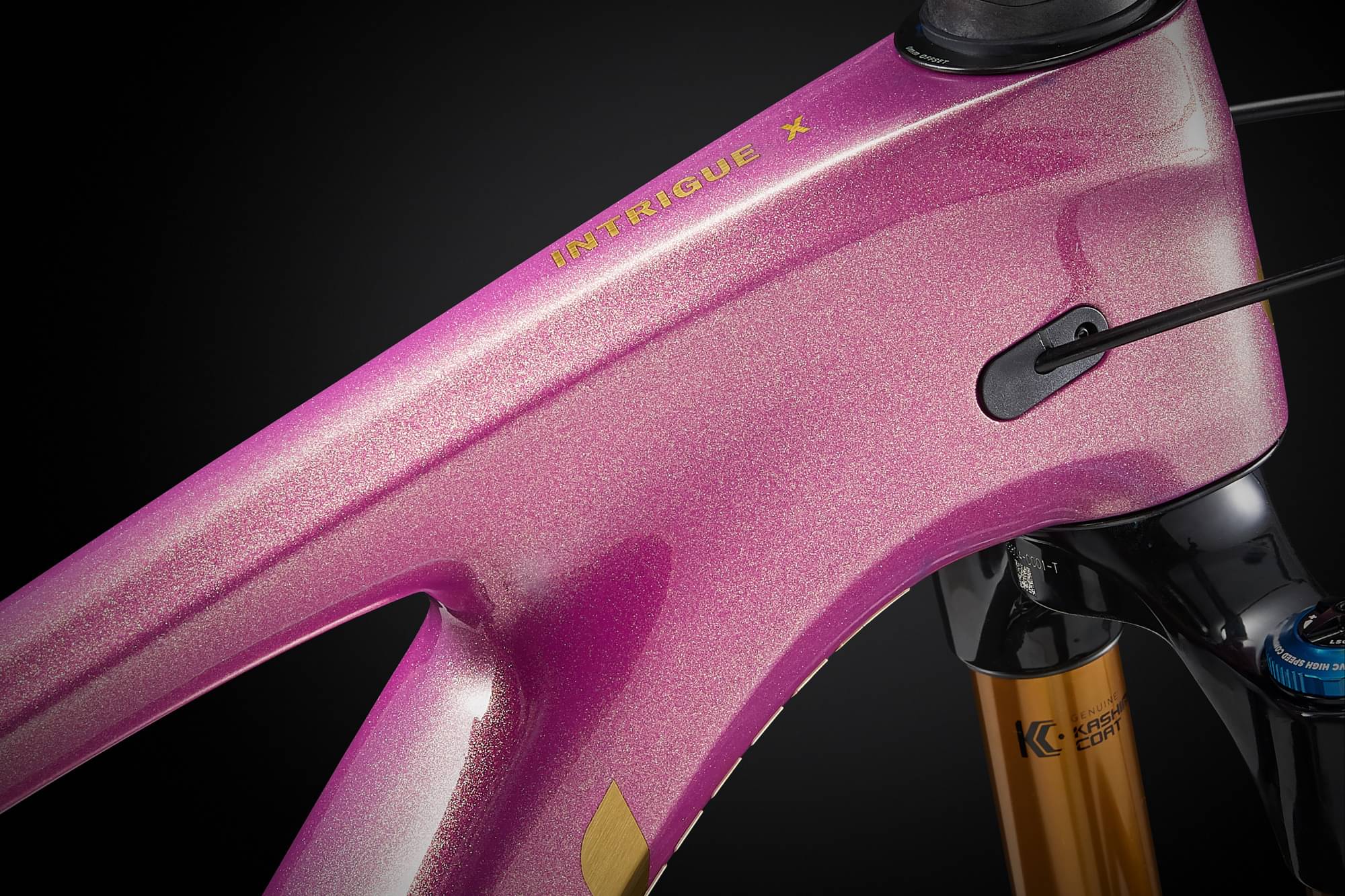

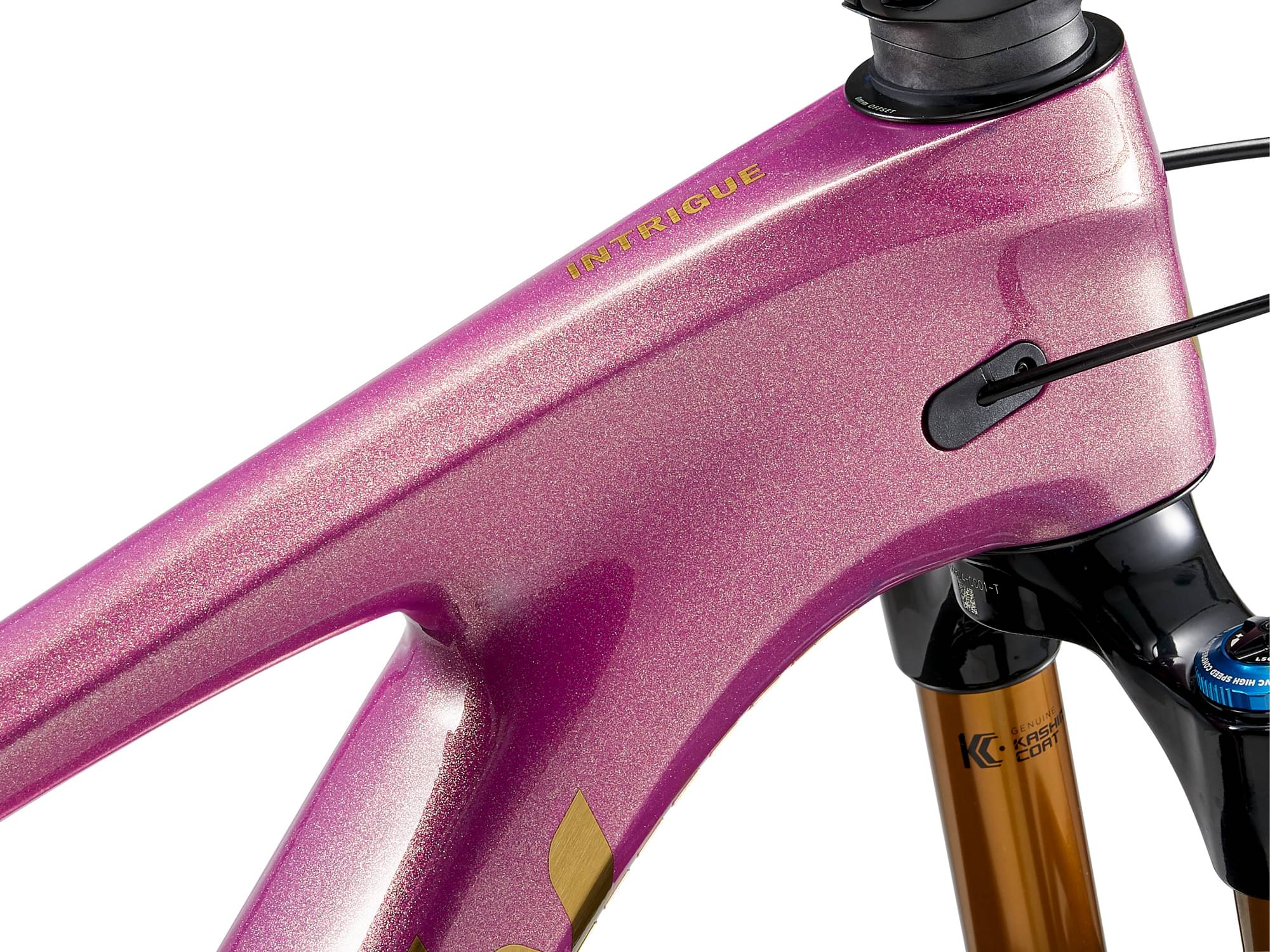

Advanced-grade composite front and rear triangles, 140mm Maestro Suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage
Suspension Fork

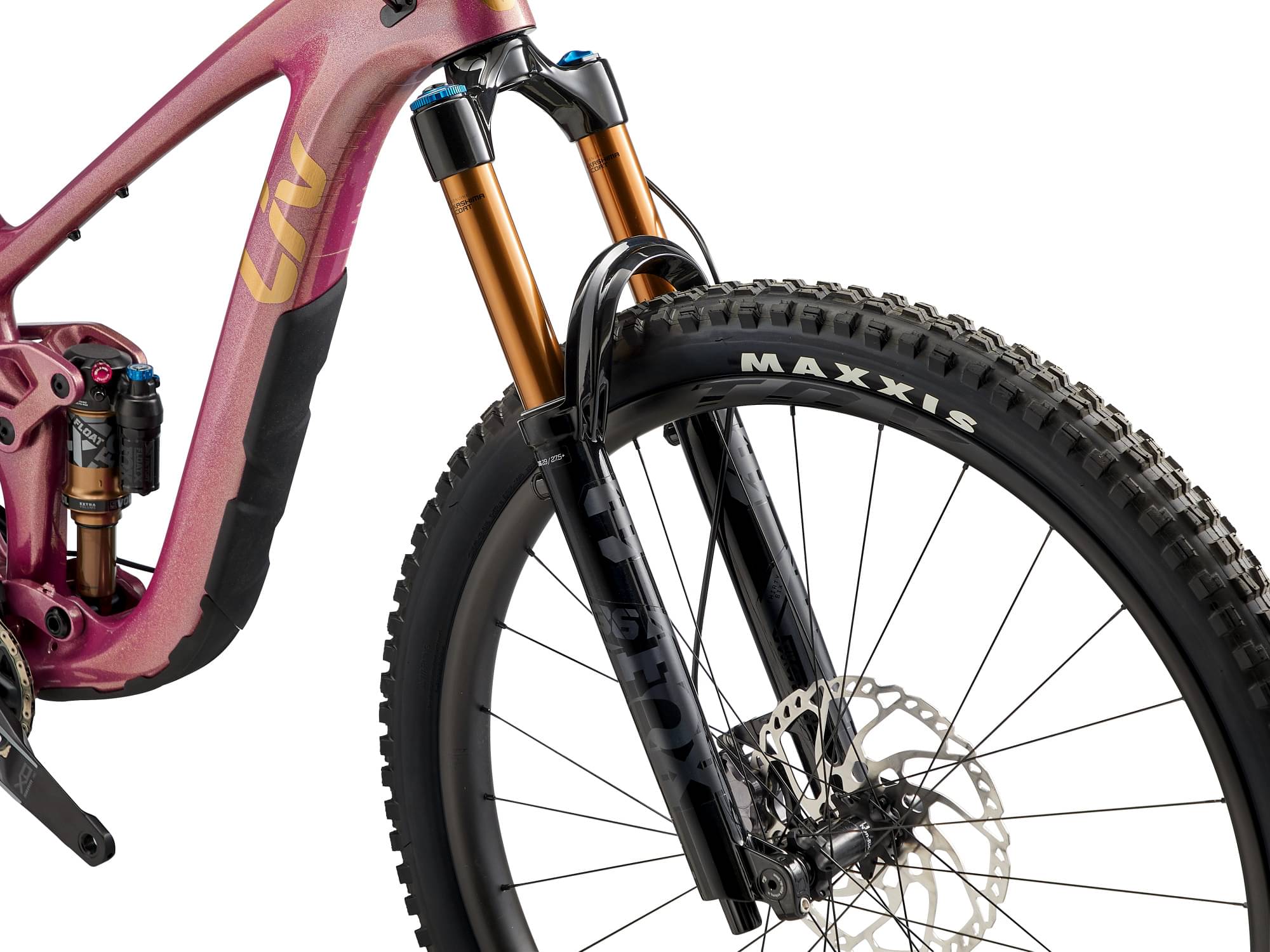

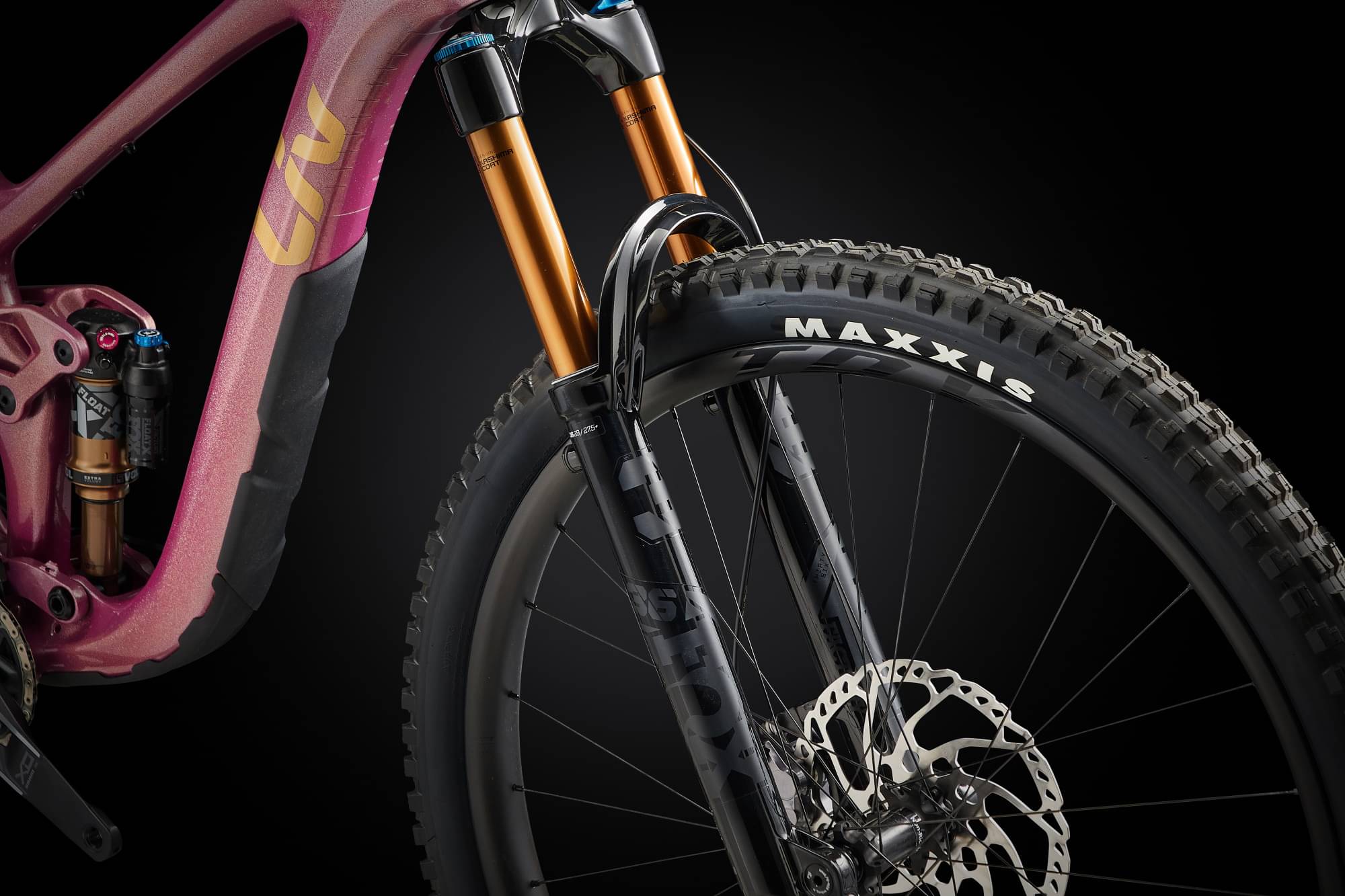

Fox 36 Factory, 150mm, Grip 2 damper, Boost 15x110 Kabolt X, tapered, 44mm offset
Rear Shock

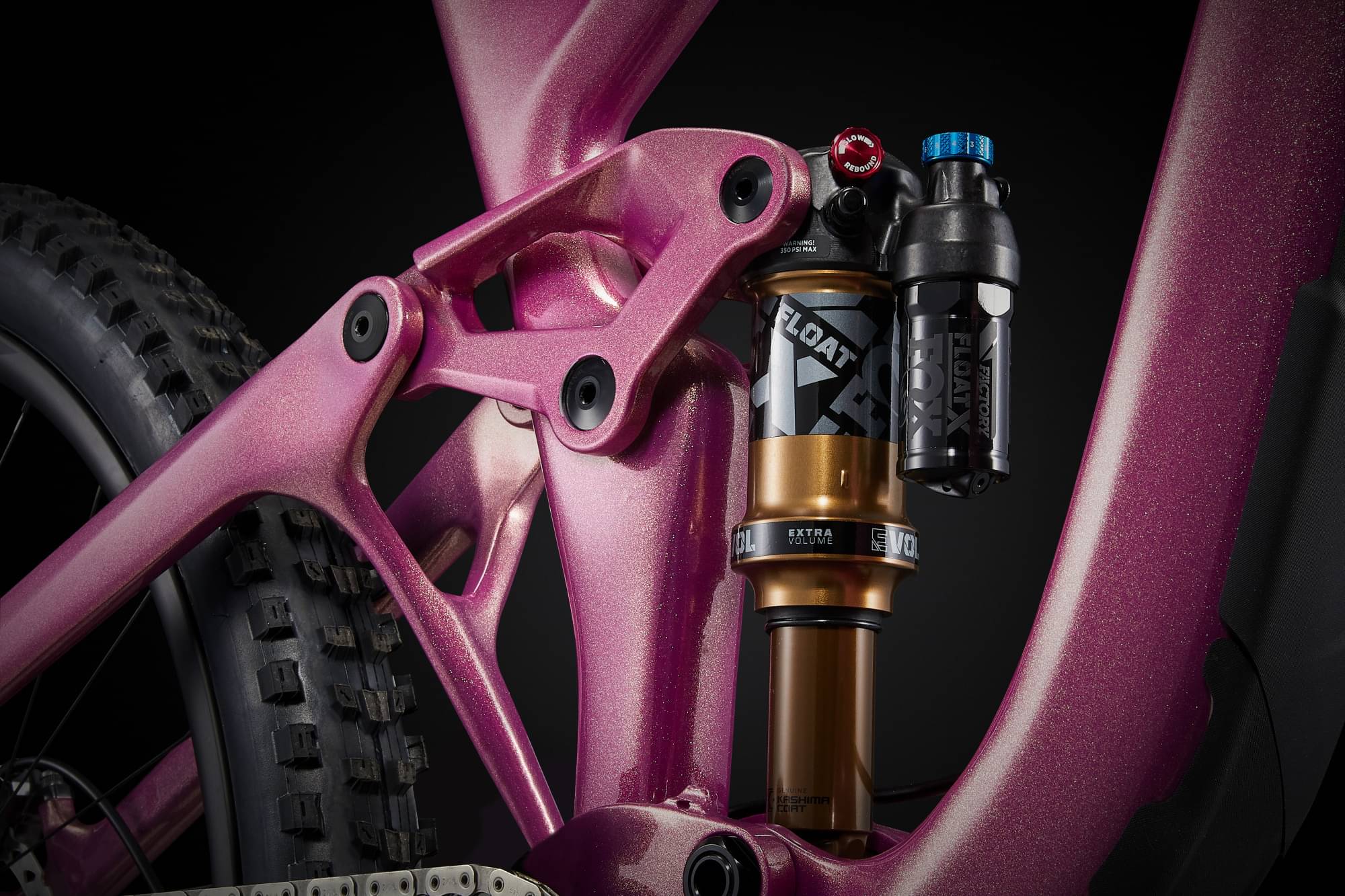

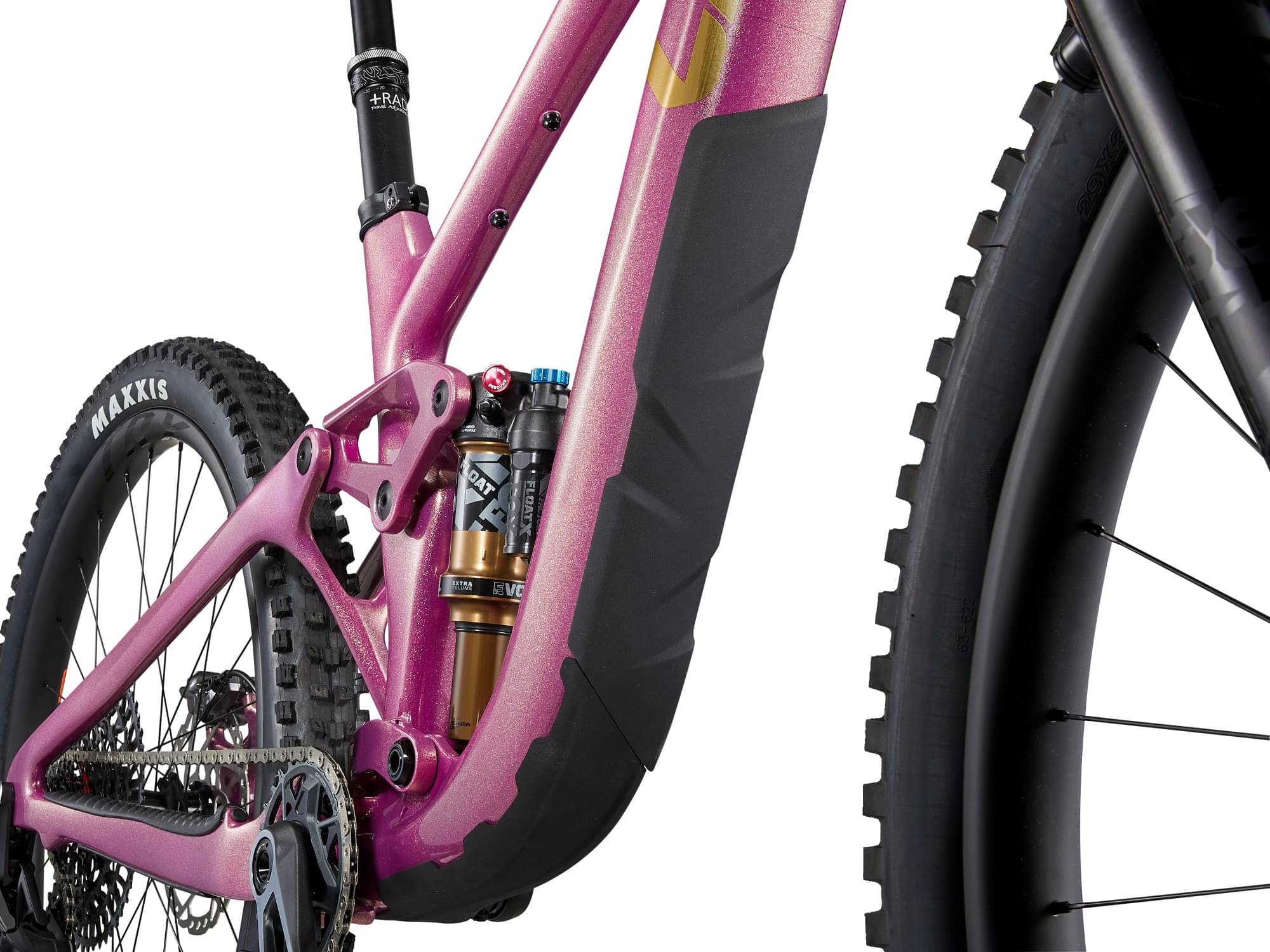

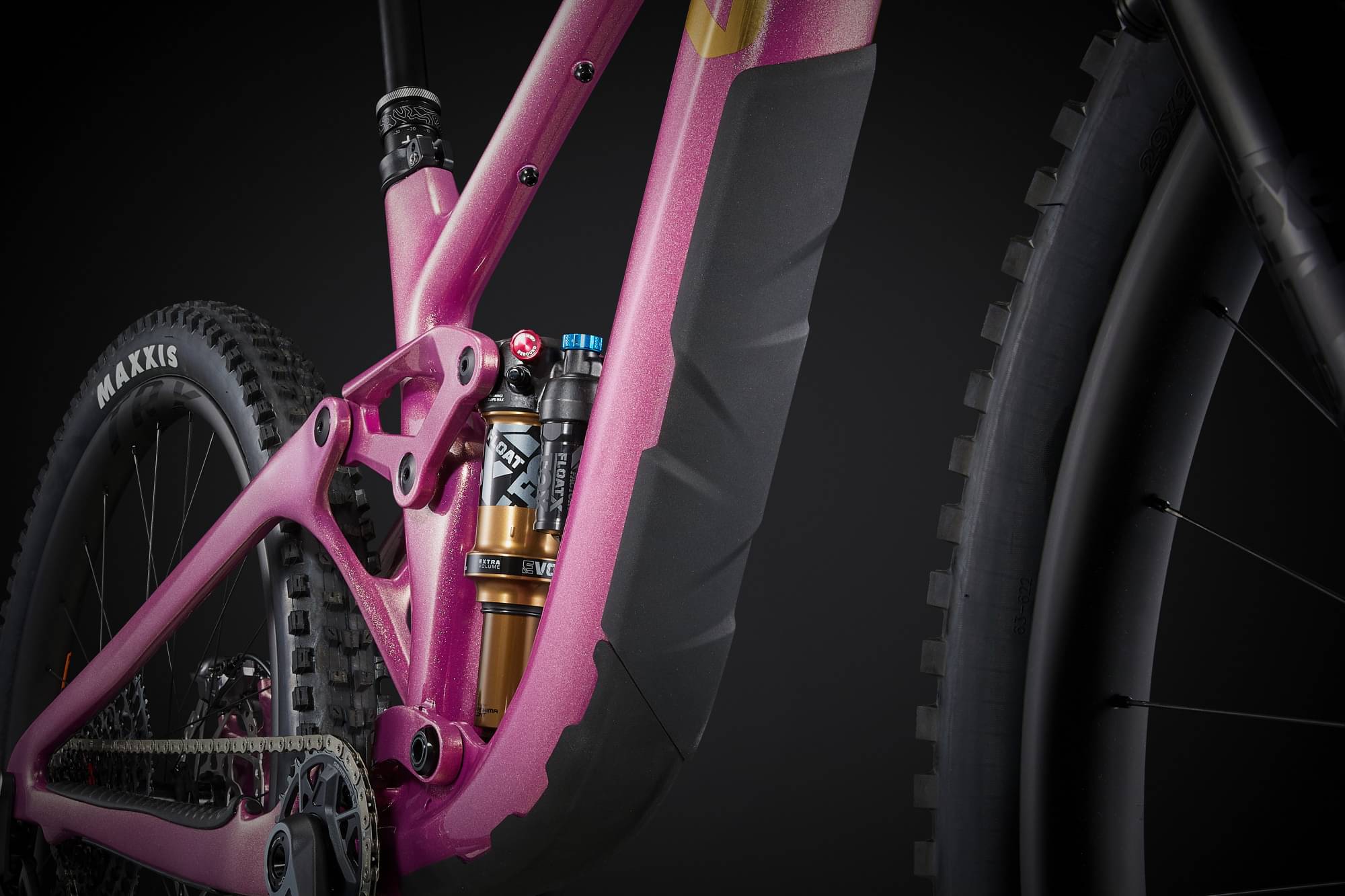

Fox Float X Factory, 185x52.5, custom tuned for Liv
Drivetrain
Rear Derailleur

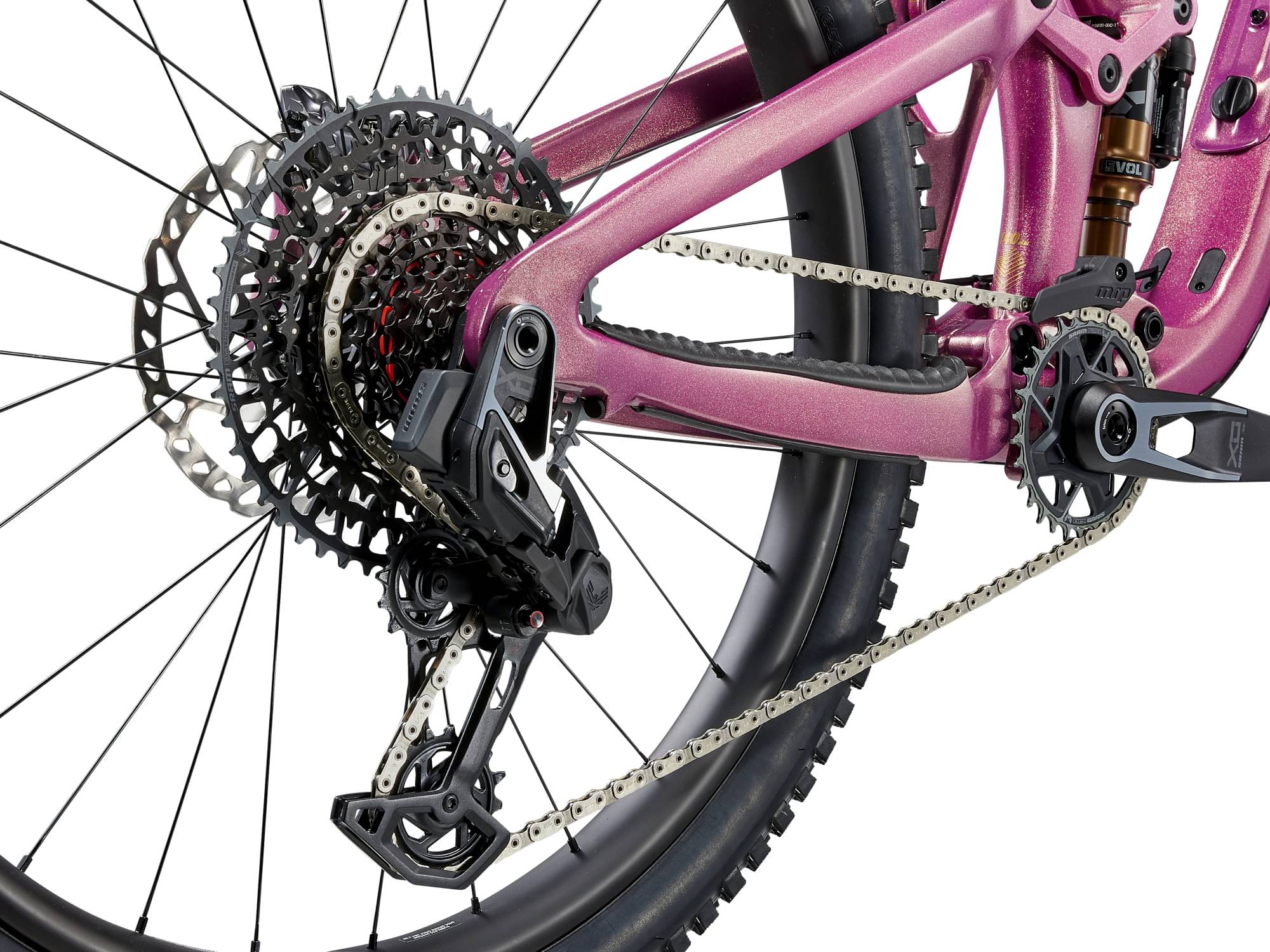

SRAM XO Eagle Transmission AXS
Front Derailleur
N/A
Shift Levers
SRAM AXS, 1x12
Cassette
SRAM XO, 10x52
Crank

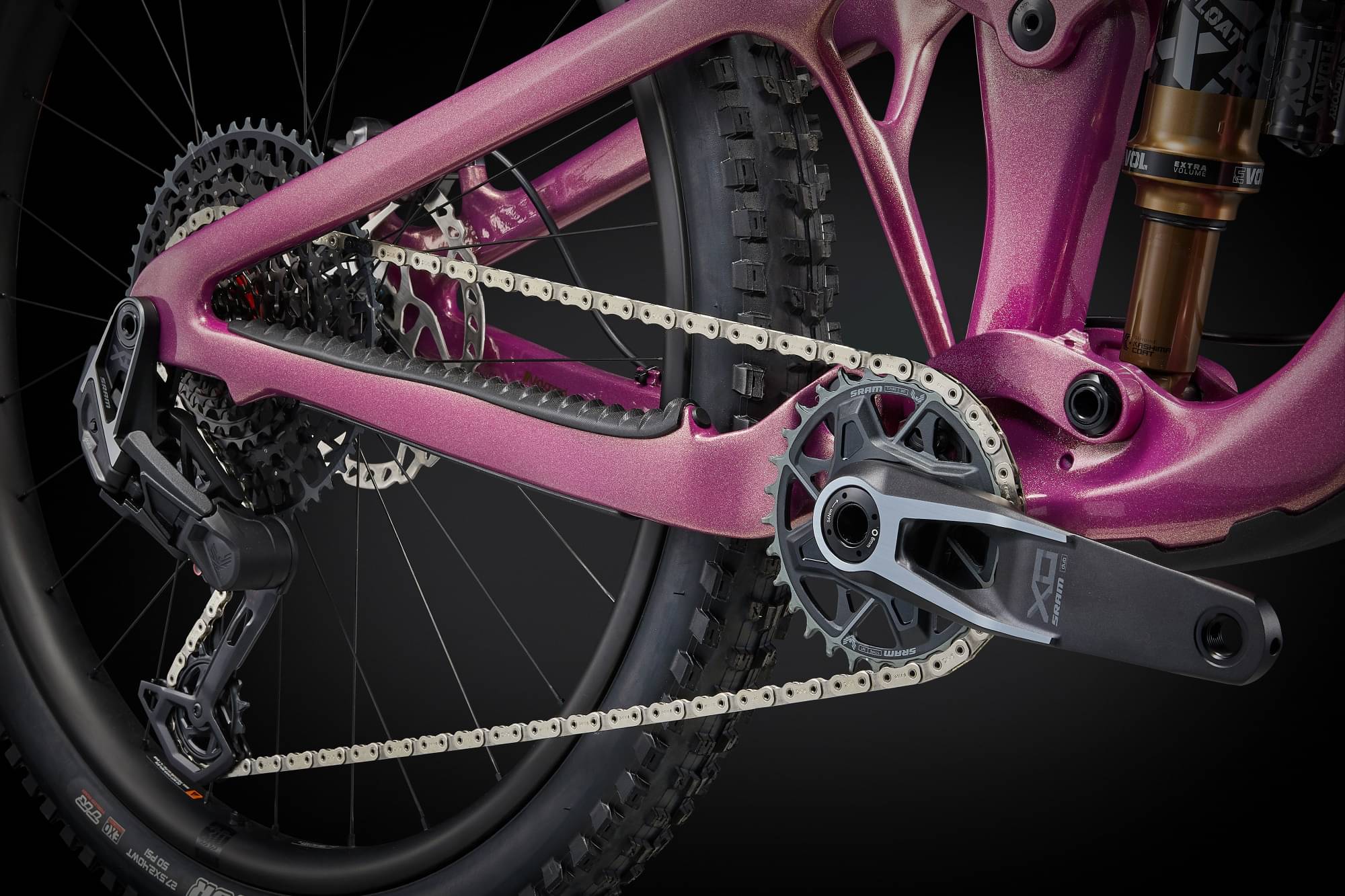

SRAM XO, 30t, 55mm chainline
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM XO Eagle
Pedals
PEDALS NOT SUPPLIED
Wheels
Front Hub
[F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Rear Hub
[F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Rims
Giant TRX 27.5""/29"" hookless carbon wheelsystem 30mm rim inner width 40mm outer width 72t, POE, 28 SP spokes, DBL technology XD driver body
Spokes
Sapim
Tires
[F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless
Brakes
Brakes
Shimano XT M8120, hydraulic, Shimano RT-66 rotors [F] 203mm, [R] 180mm
Brake Levers
Shimano XT BL-8100
Cockpit
Stem

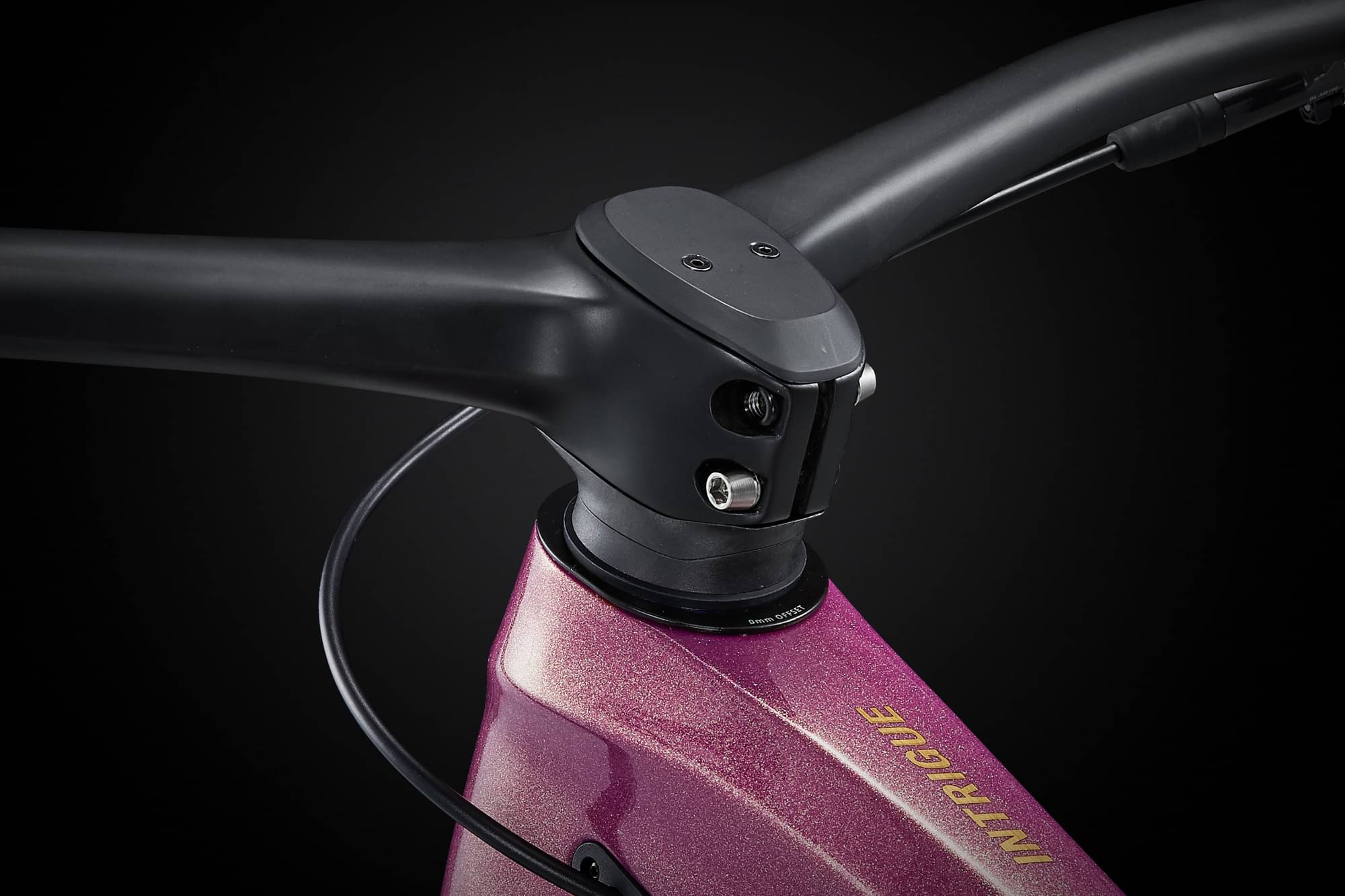

Giant Contact SL, 35mm
Handlebar

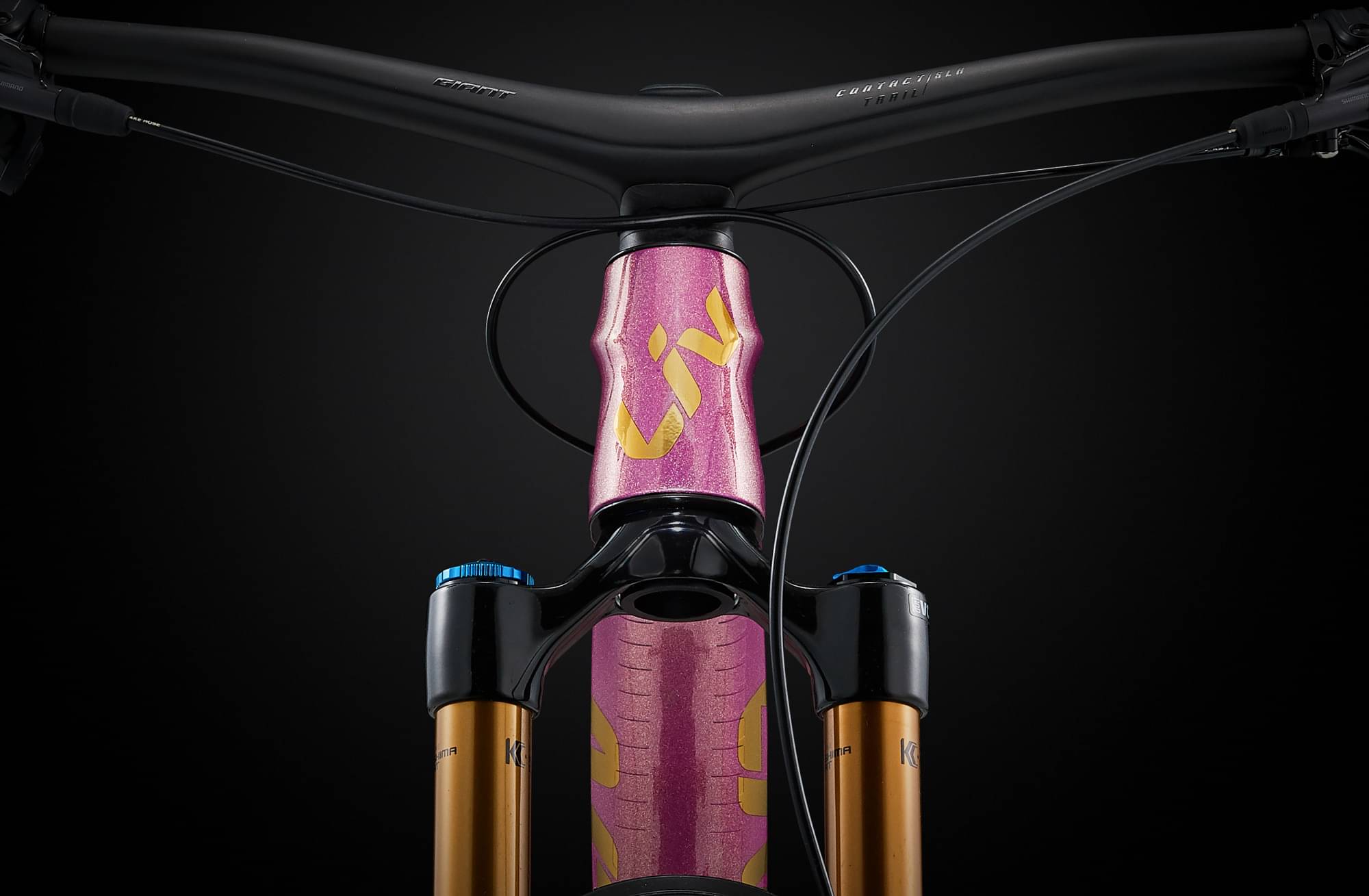

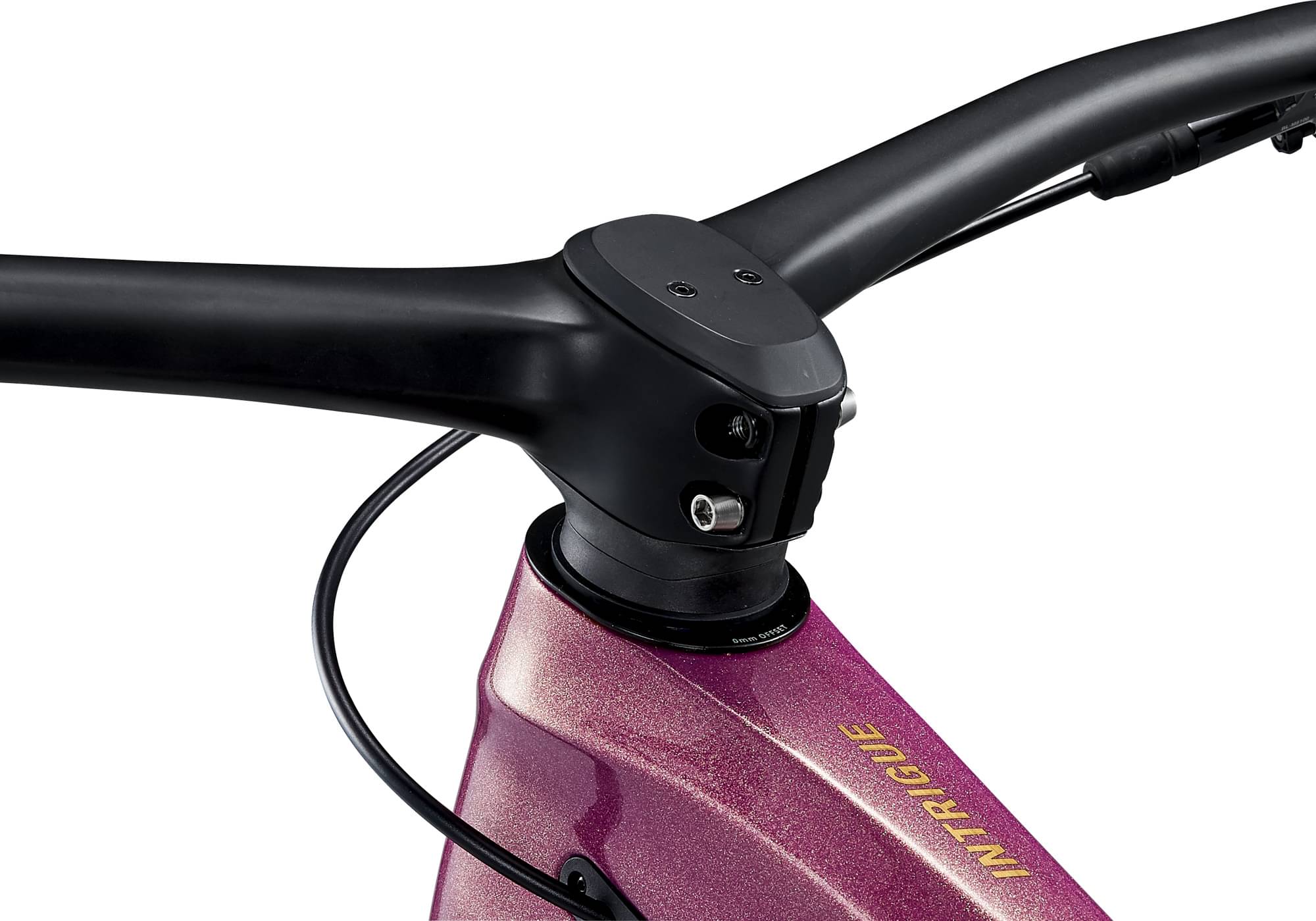

Giant Contact SLR TR35, integrated, 20mm rise, composite
Grips
Liv Tactal Pro Single Lock-on
Seat
Saddle
Liv Sylvia
Seatpost

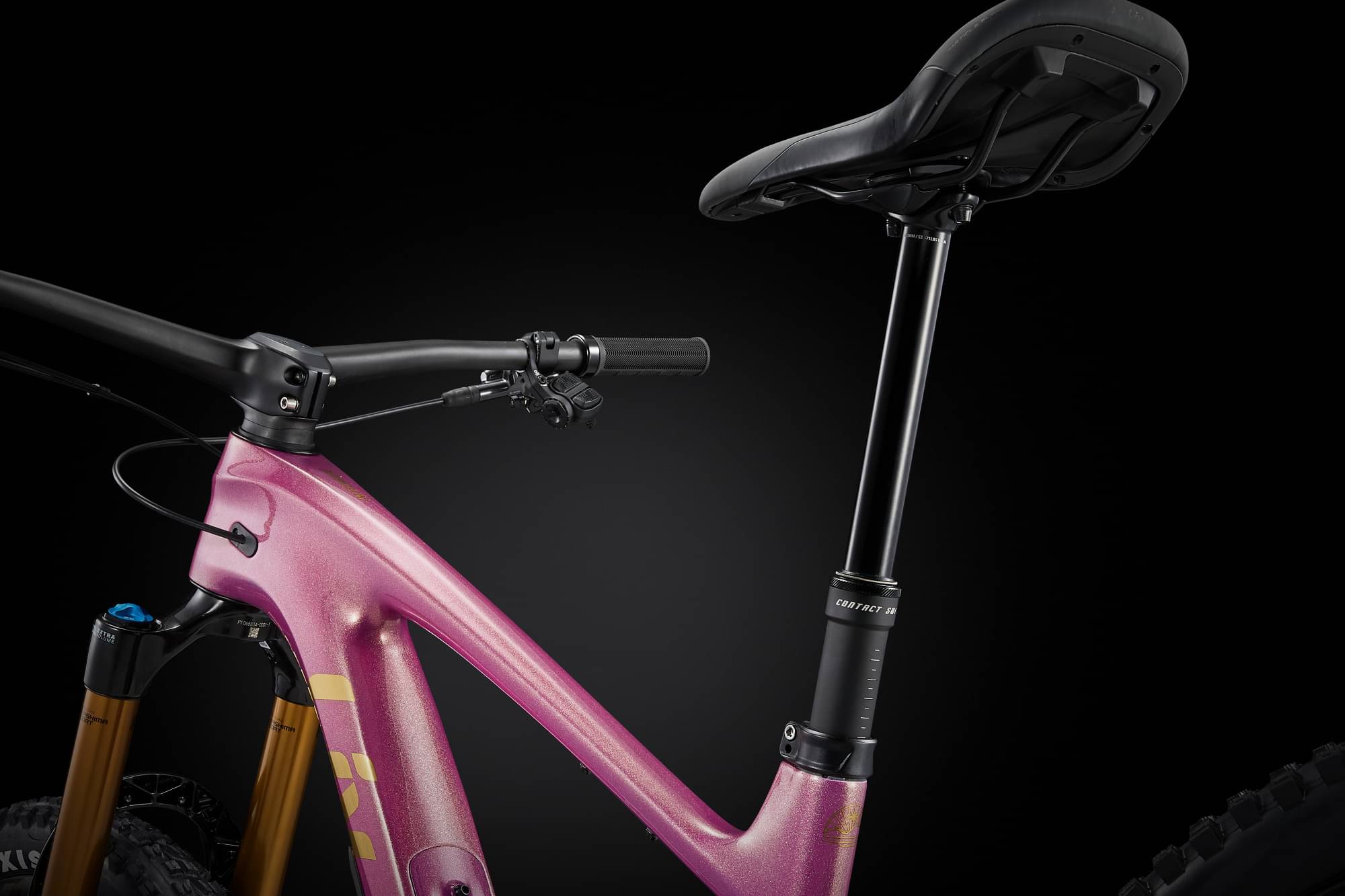

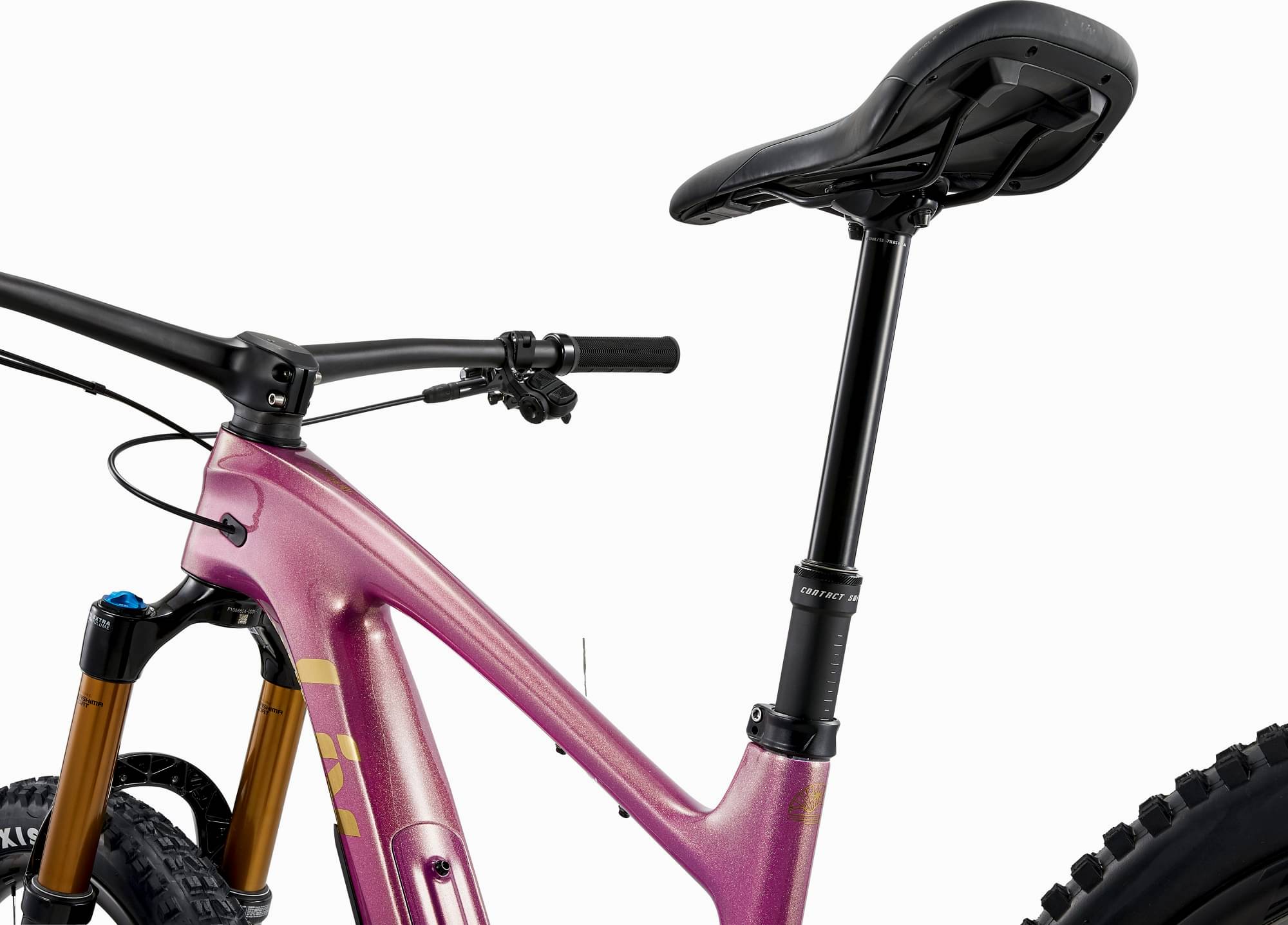

Giant Contact Switch, adjustable dropper, remote 140-170mm travel / 30.9 x 470mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Mid | SM Low |
|---|---|---|---|
| Stack Reach Ratio | 1.462 mm | 1.487 mm | 1.505 mm |
| Front Center | 737 mm | 738 mm | 737 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 128.3 mm | 131.3 mm | 134.1 mm |
| Stack | 614 mm | 617 mm | 620 mm |
| Reach | 420 mm | 415 mm | 412 mm |
| Top Tube Length | 562 mm | 563 mm | 564 mm |
| Seat Tube Angle | 76.9 ° | 76.6 ° | 76.2 ° |
| Seat Tube Length | 390 mm | 390 mm | 390 mm |
| Head Tube Angle | 65.1 ° | 64.8 ° | 64.4 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm |
| Chainstay Length | 438 mm | 439 mm | 440 mm |
| Wheelbase | 1175 mm | 1176 mm | 1176 mm |
| Bottom Bracket Drop | 15 mm | 20 mm | 25 mm |
| Standover Height | 742 mm | 737 mm | 733 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 158 cm | 158 cm |
| Rider Max Height | 169 cm | 169 cm | 169 cm |
