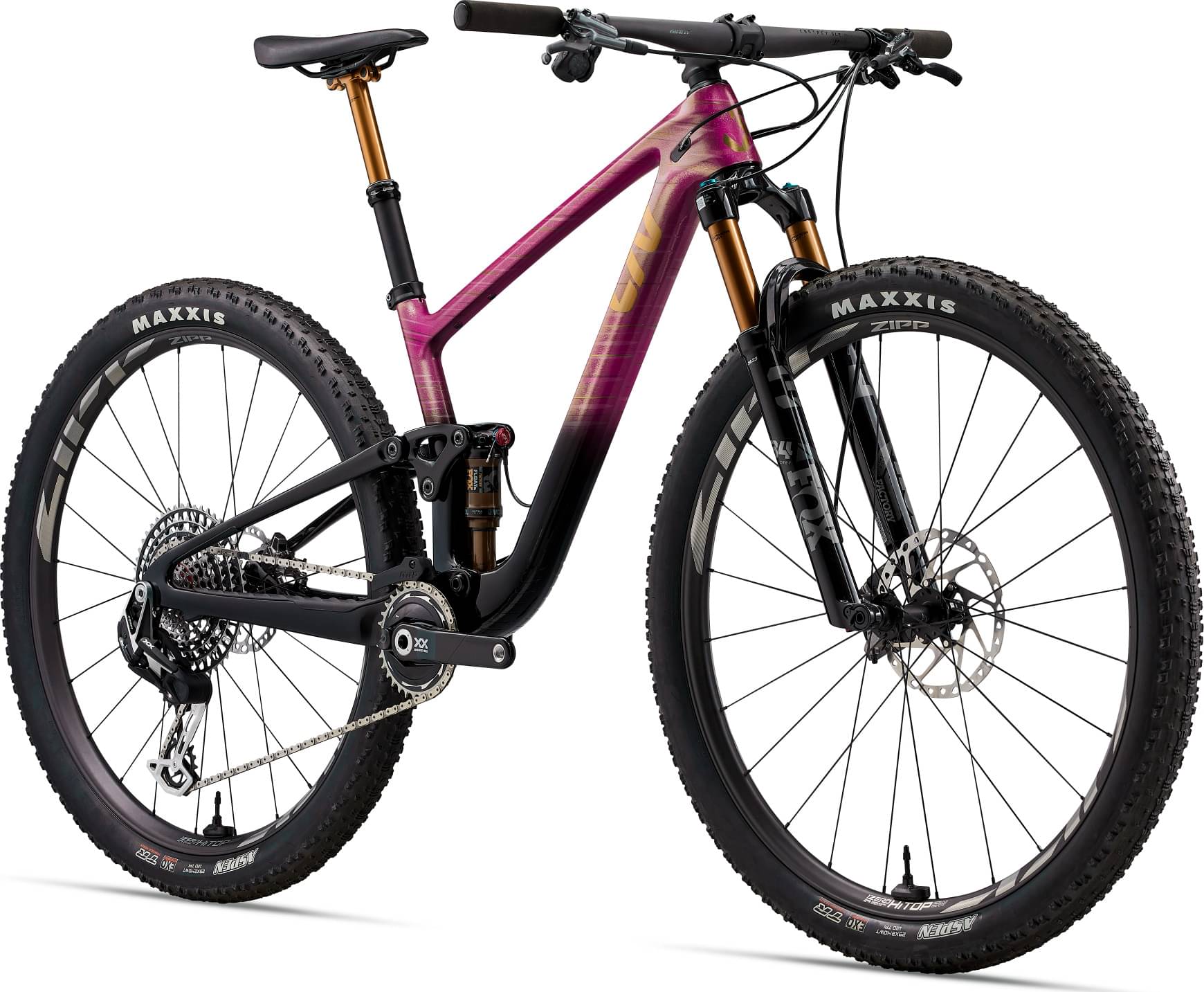

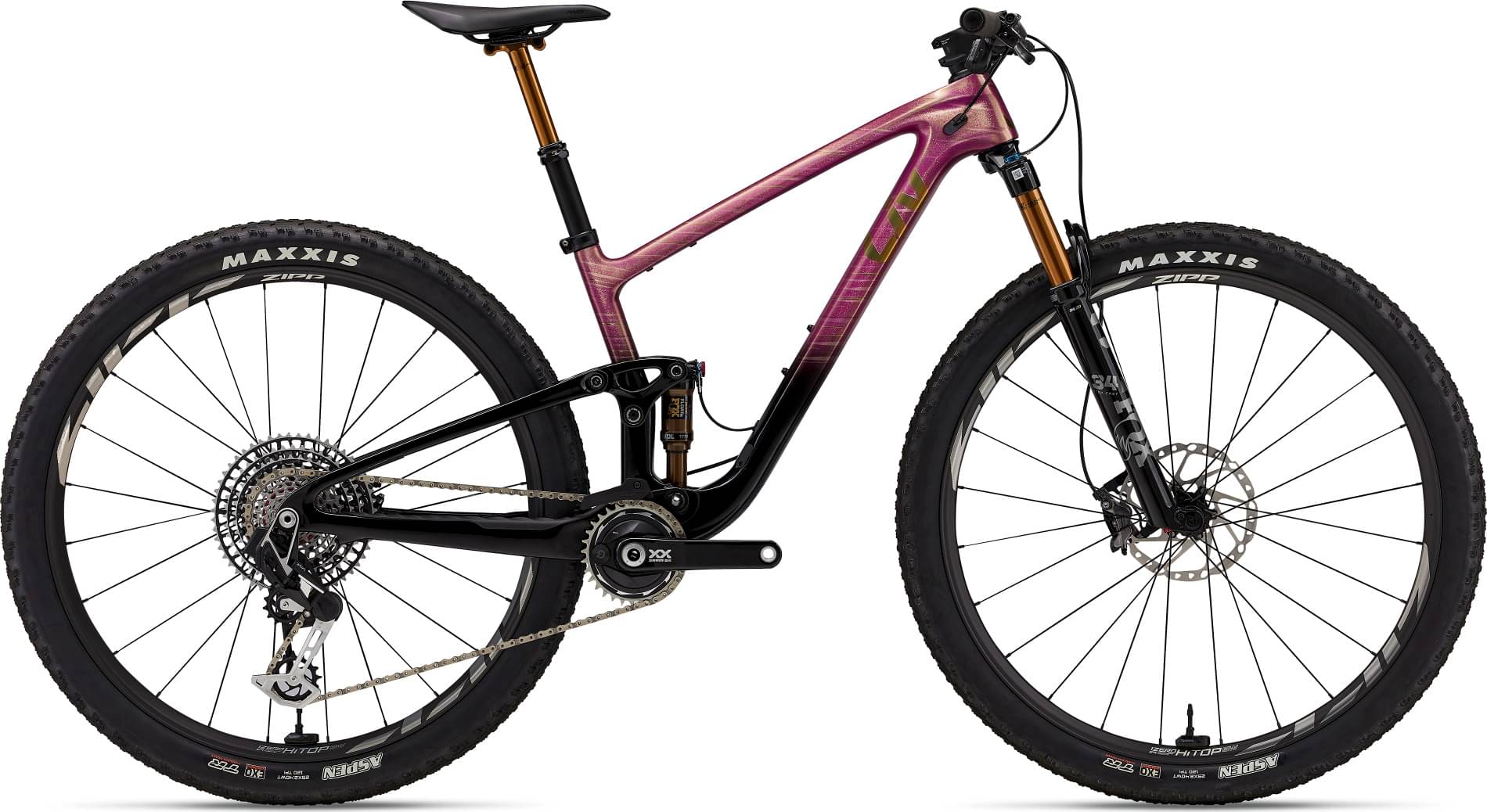

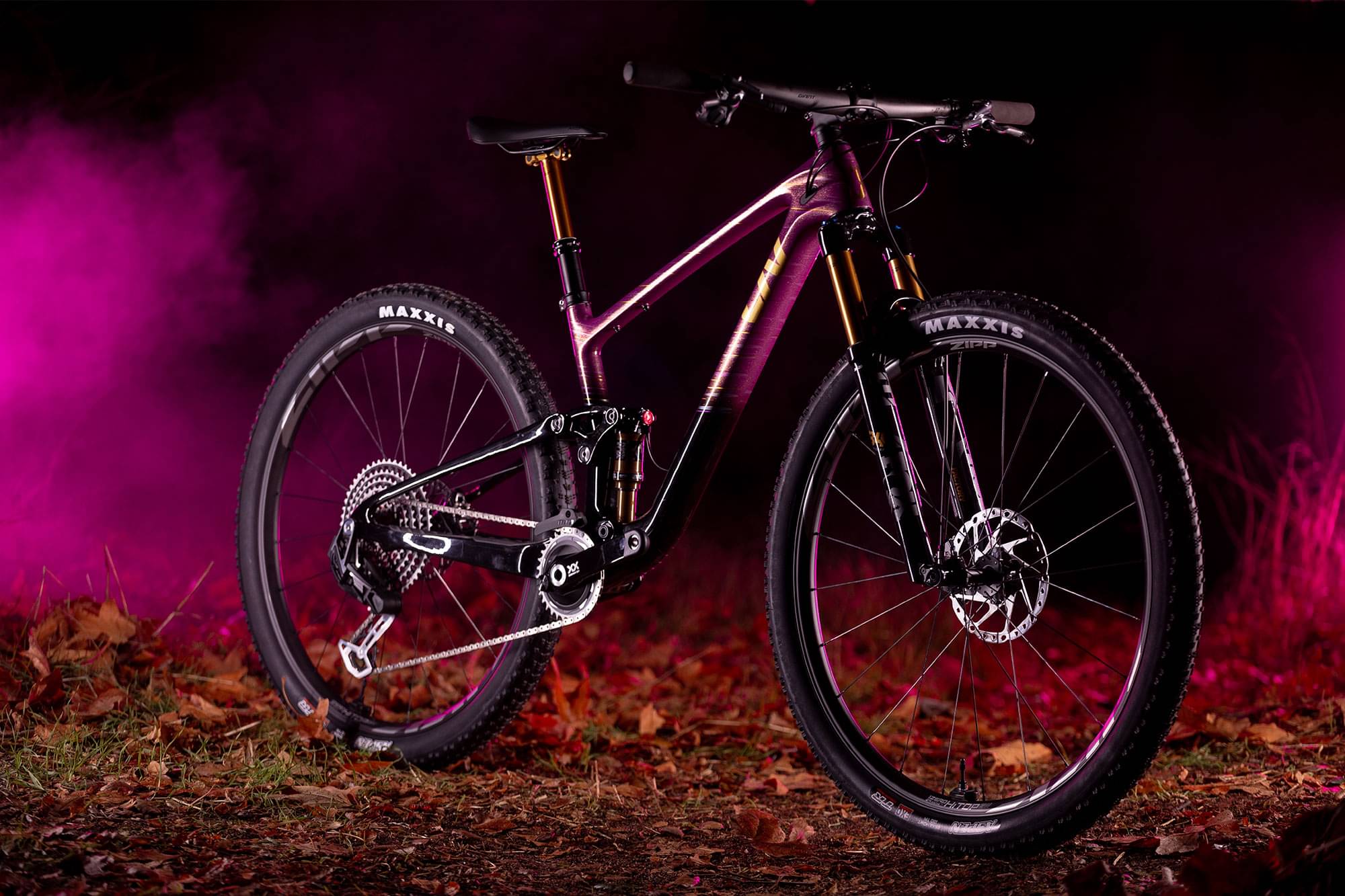

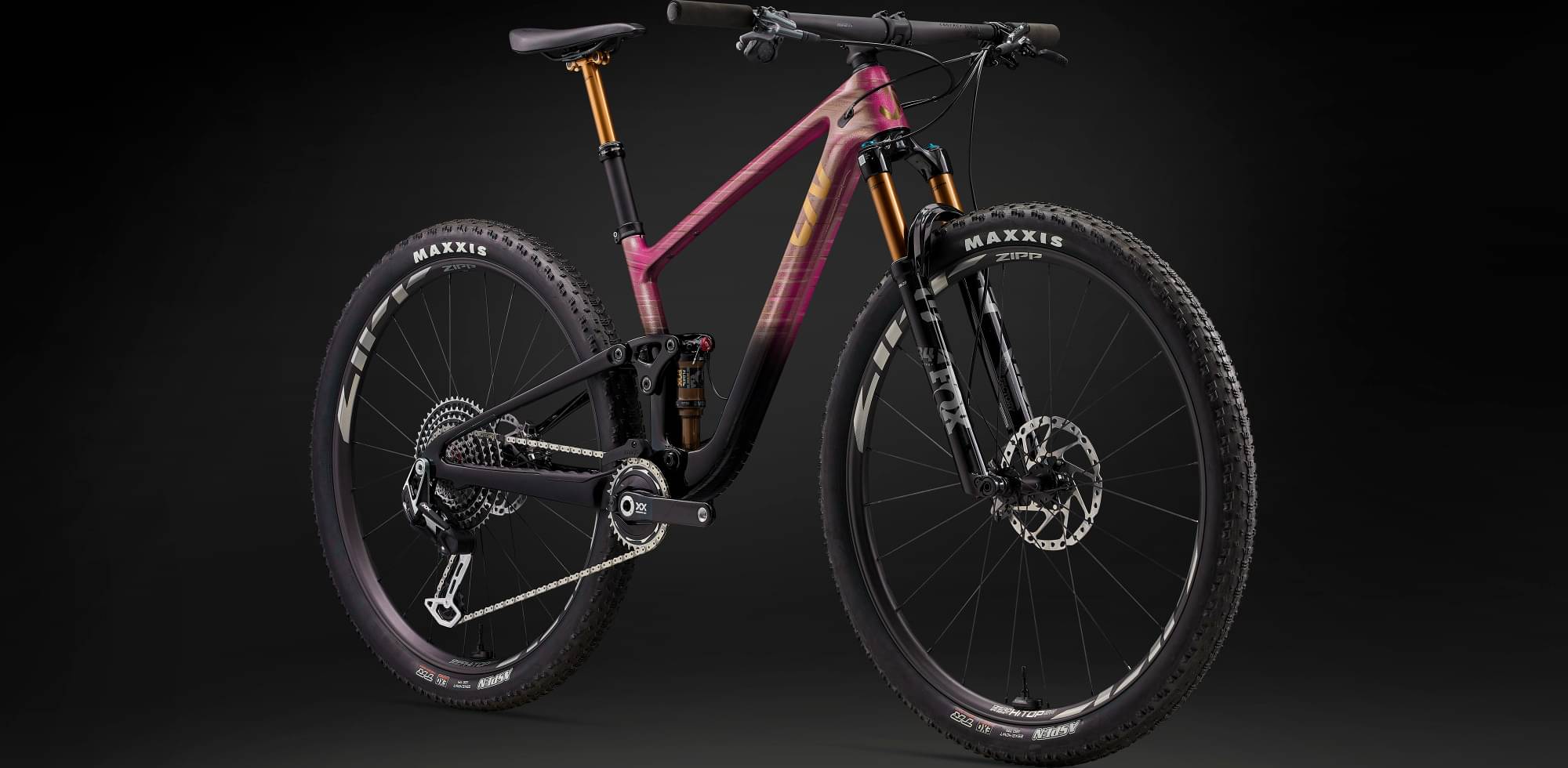

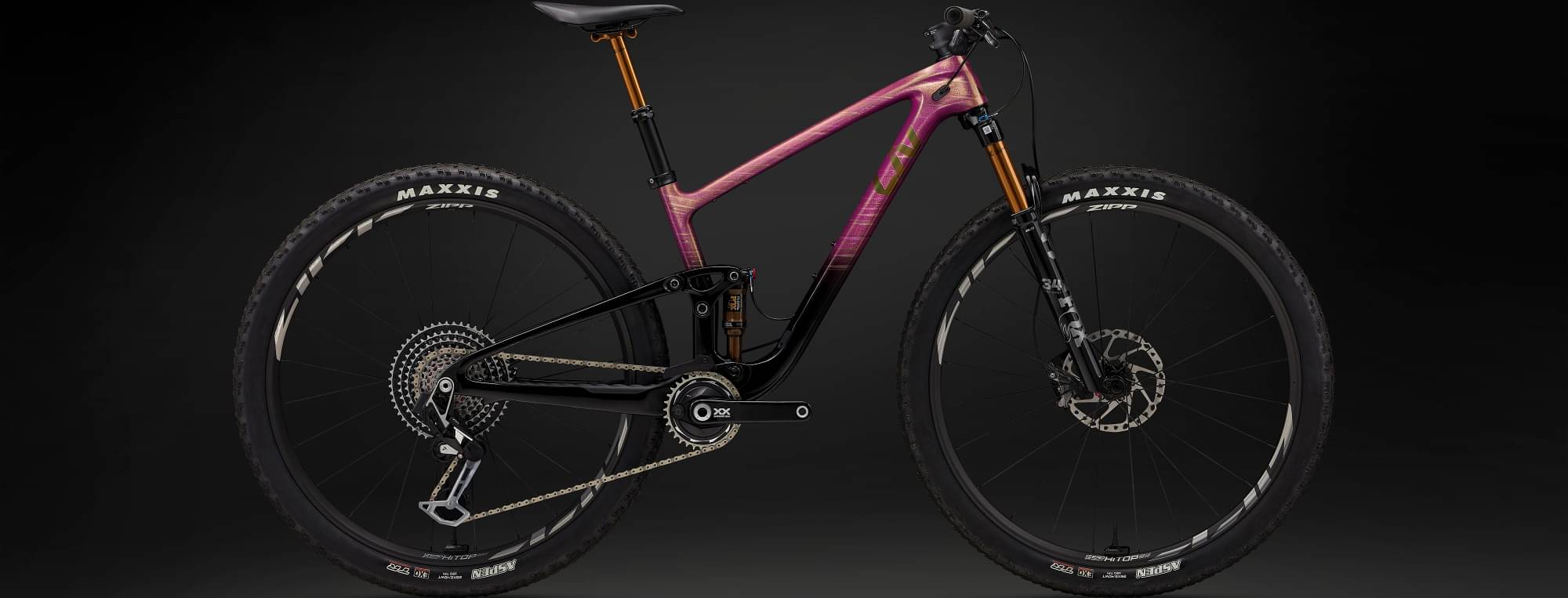

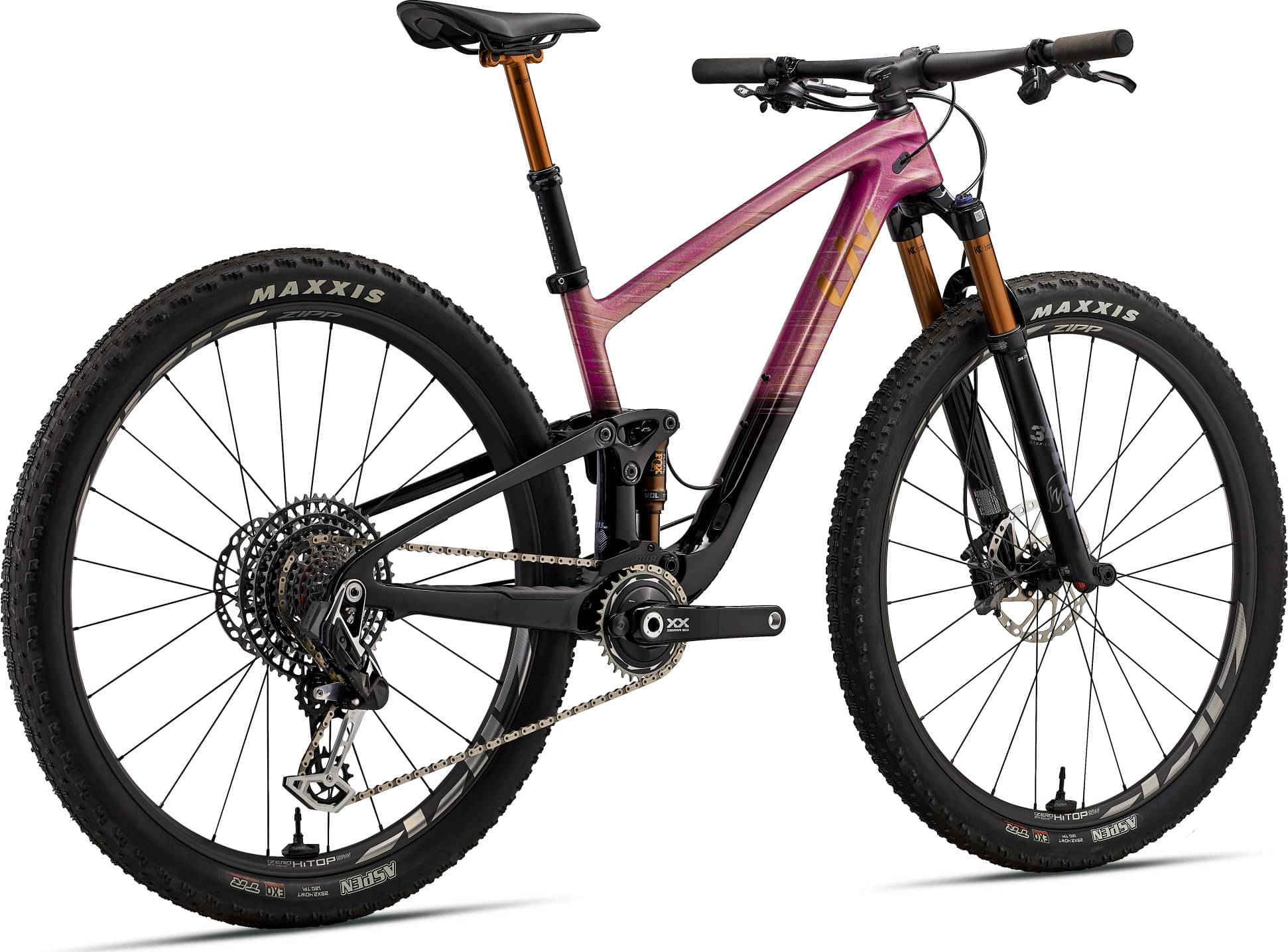

Liv Pique Advanced 29 0 2024
2024 Mountain
Estimate price |
11,468$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 115mm -
Fork Fox Factory Float 34
-
Groupset XX Eagle Transmission, XX SL Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 163cm
SM
158cm - 169cm
MD
164cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components

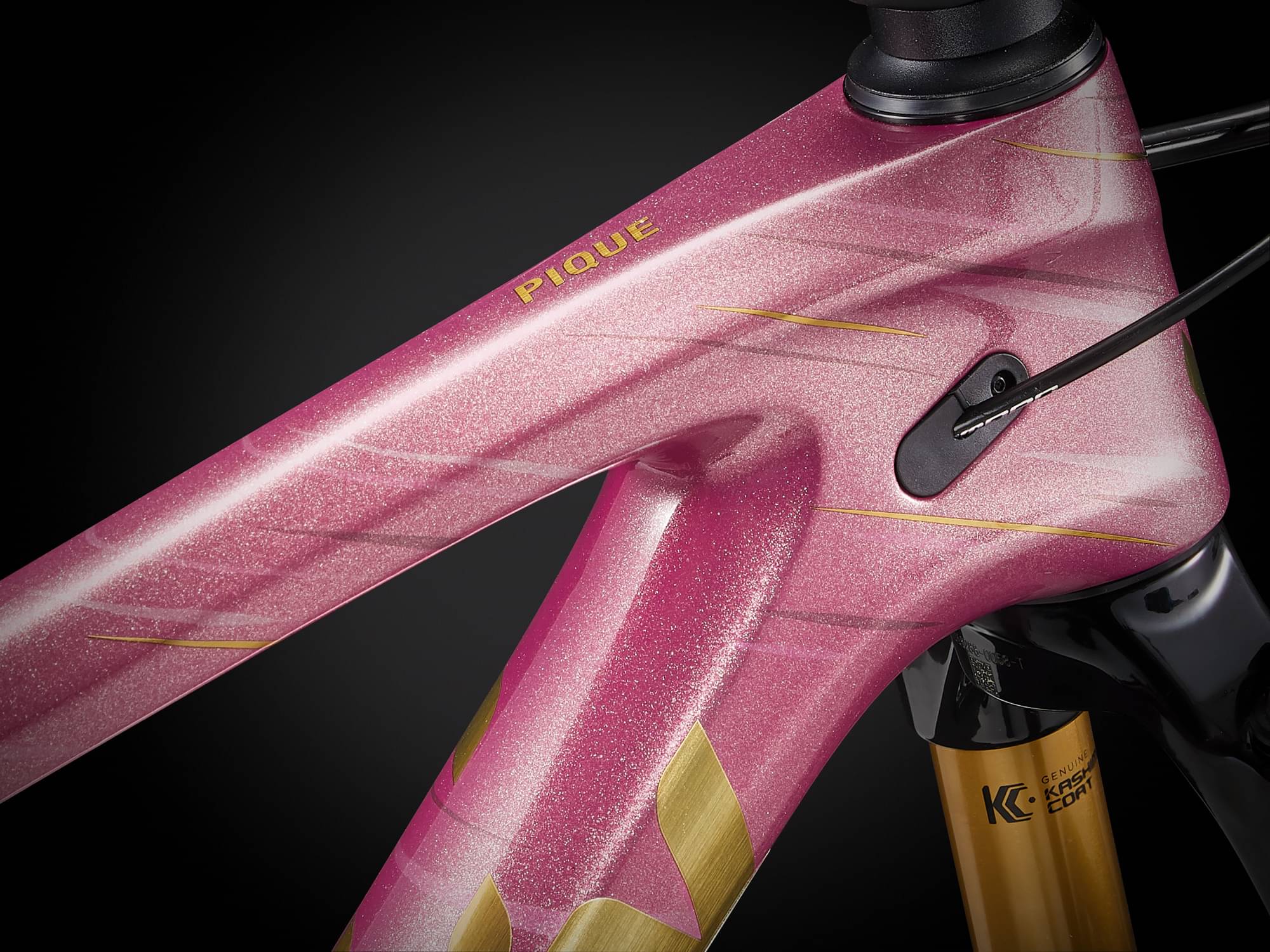

Frame
Frame

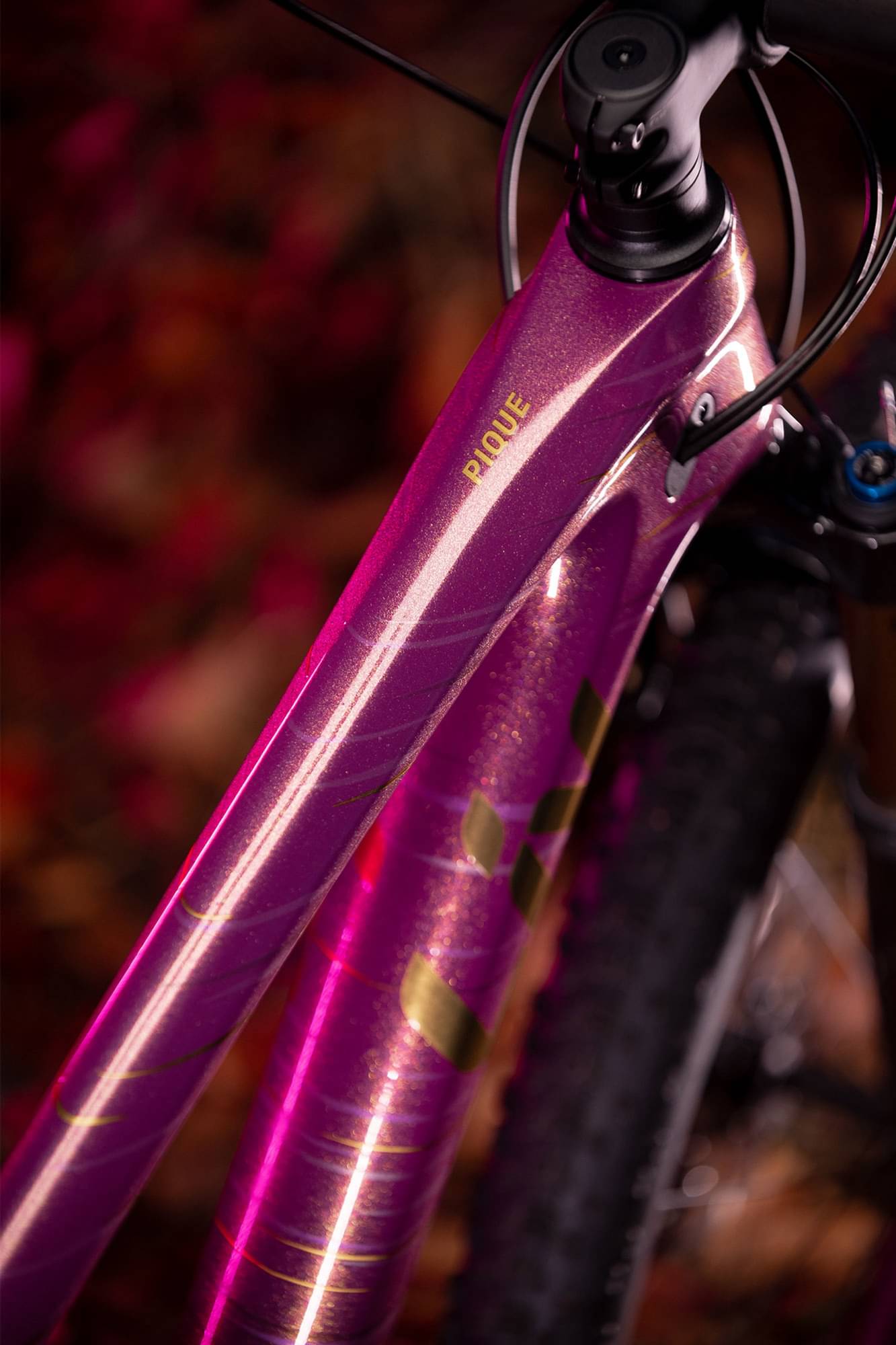

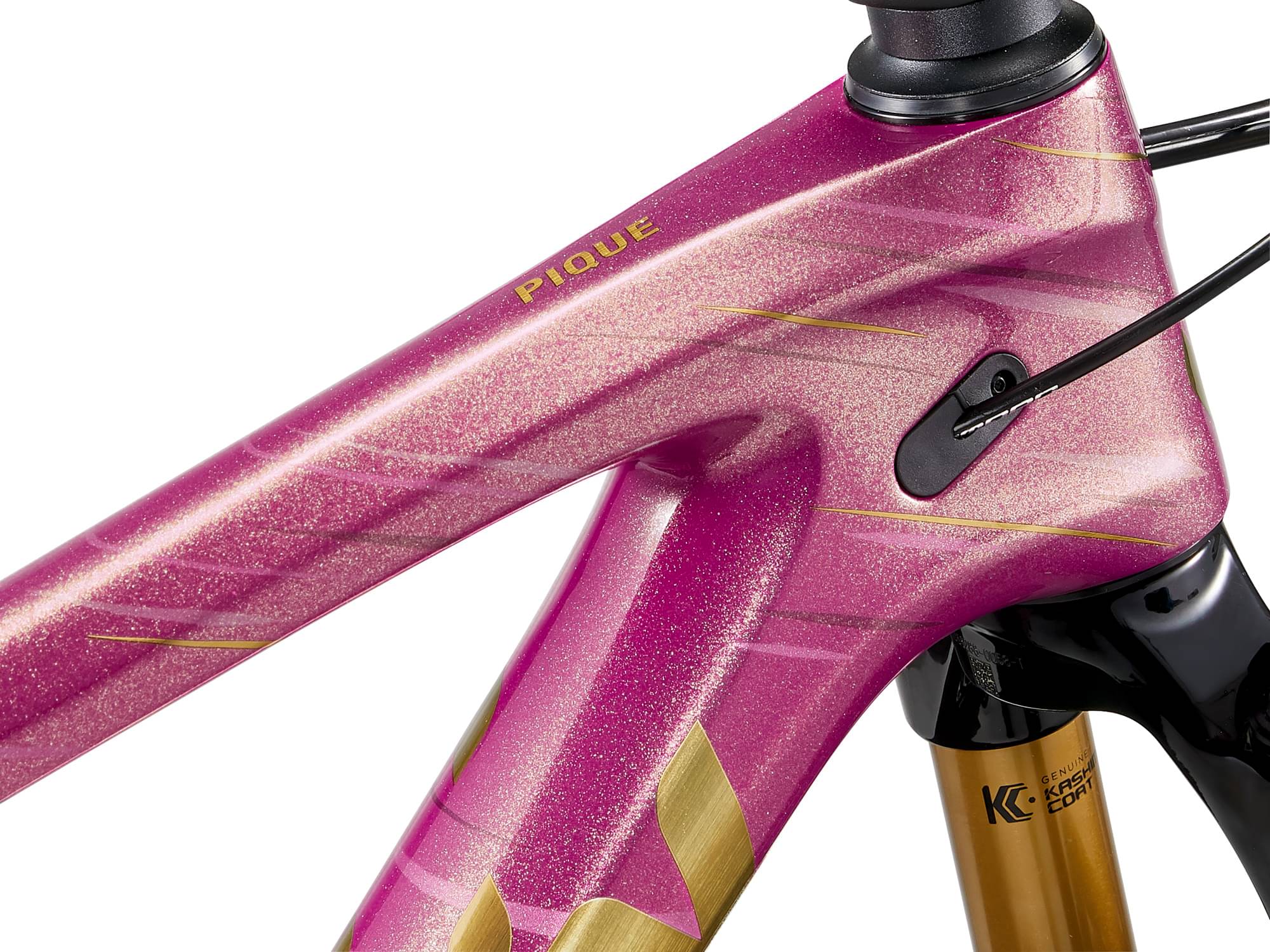

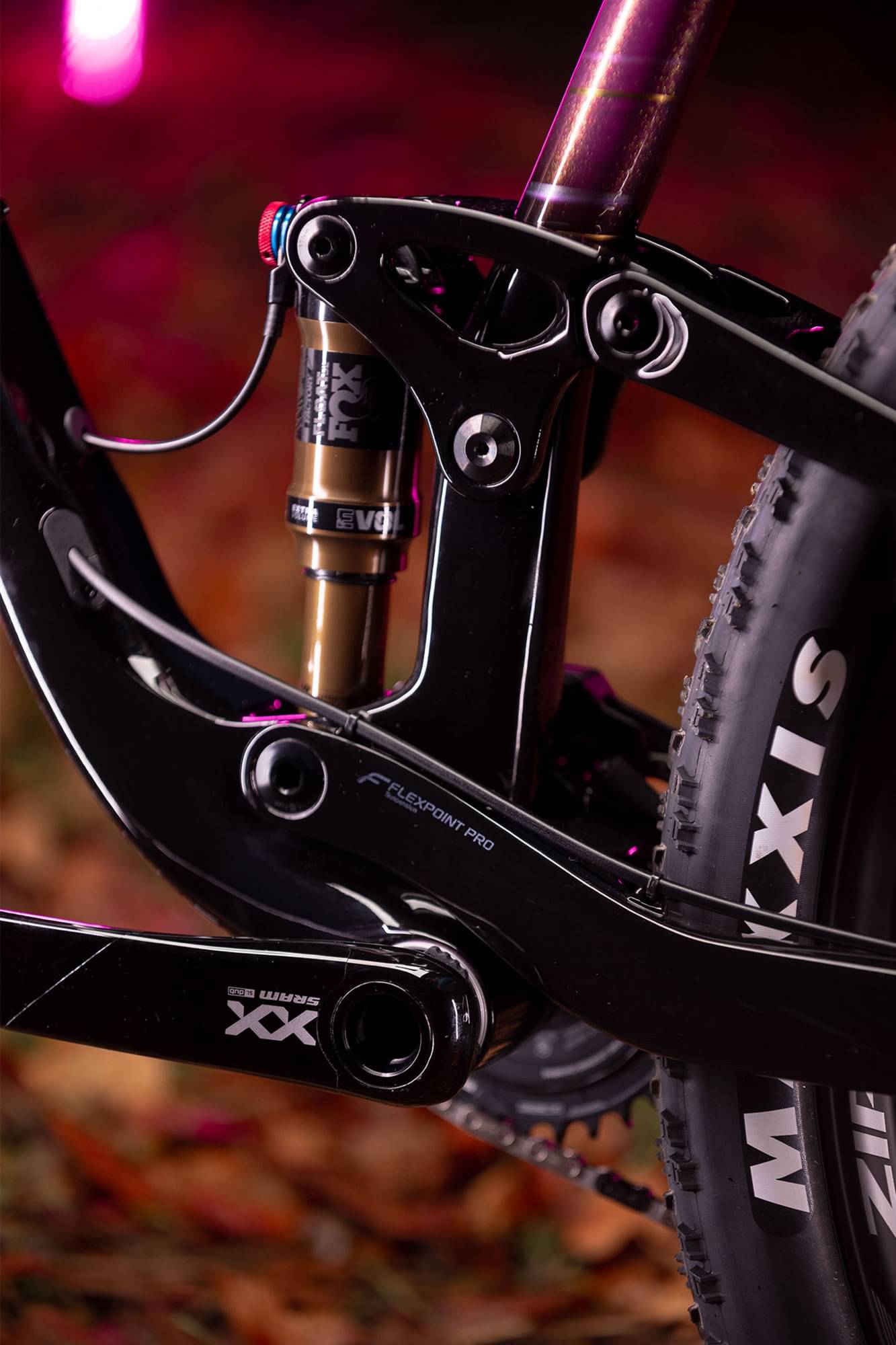

Advanced-grade composite front and rear triangles, 115mm FlexPoint Pro Suspension
Suspension Fork

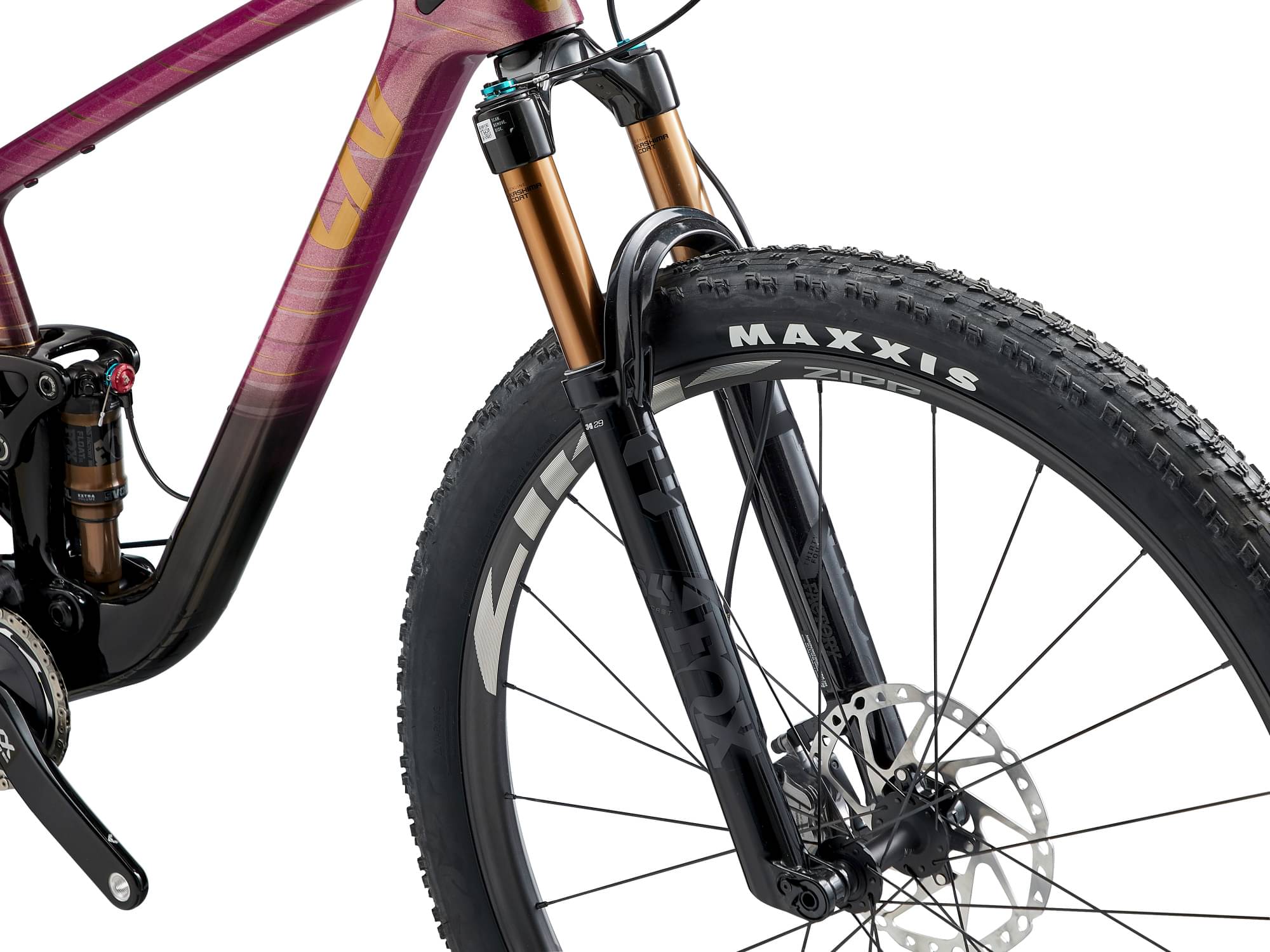

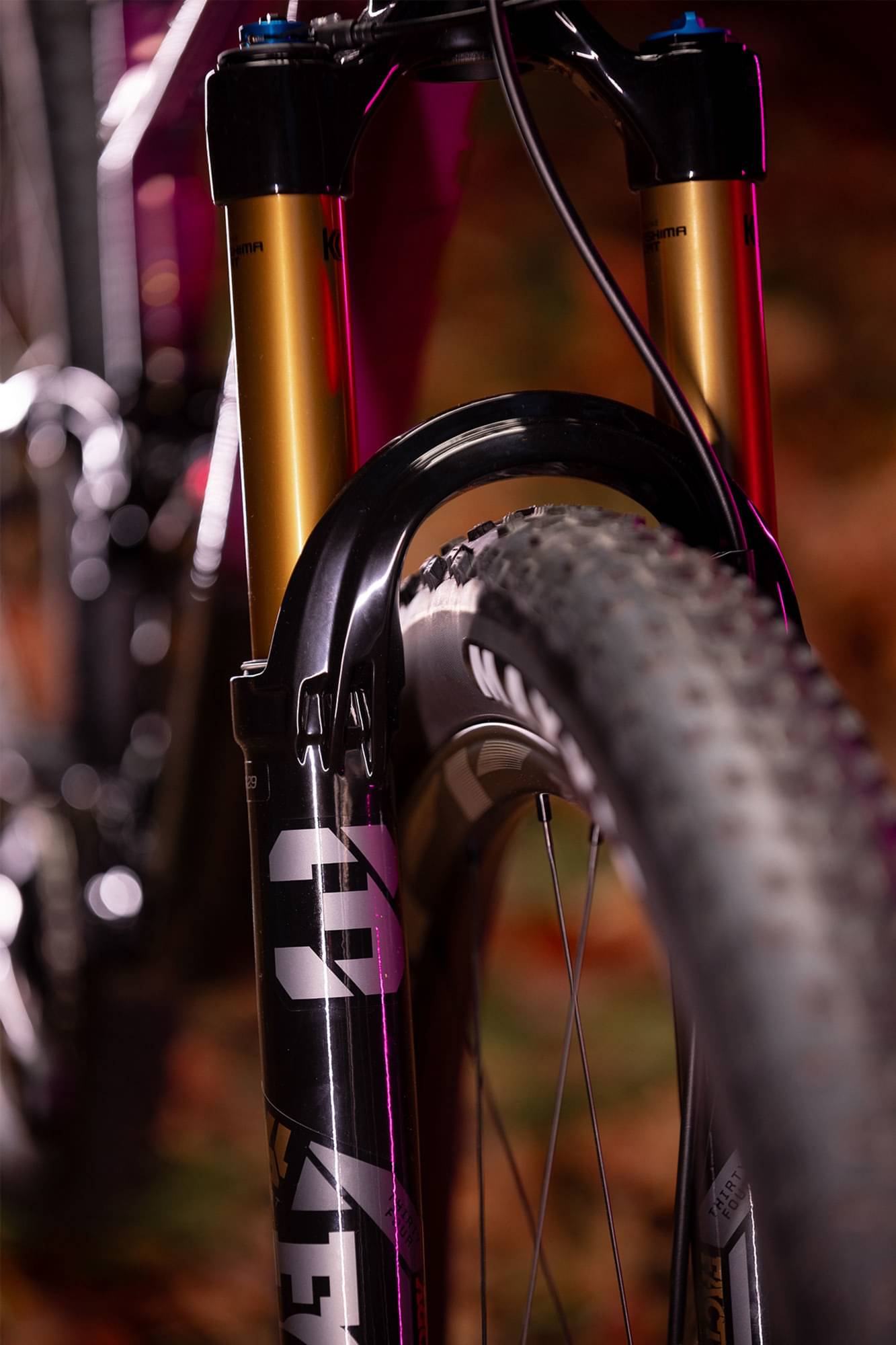

Fox 34 Float SC Factory, 120mm, FIT4 damper, Boost 15x110 Kabolt, tapered, tapered, 44mm offset, 3 position remote lockout

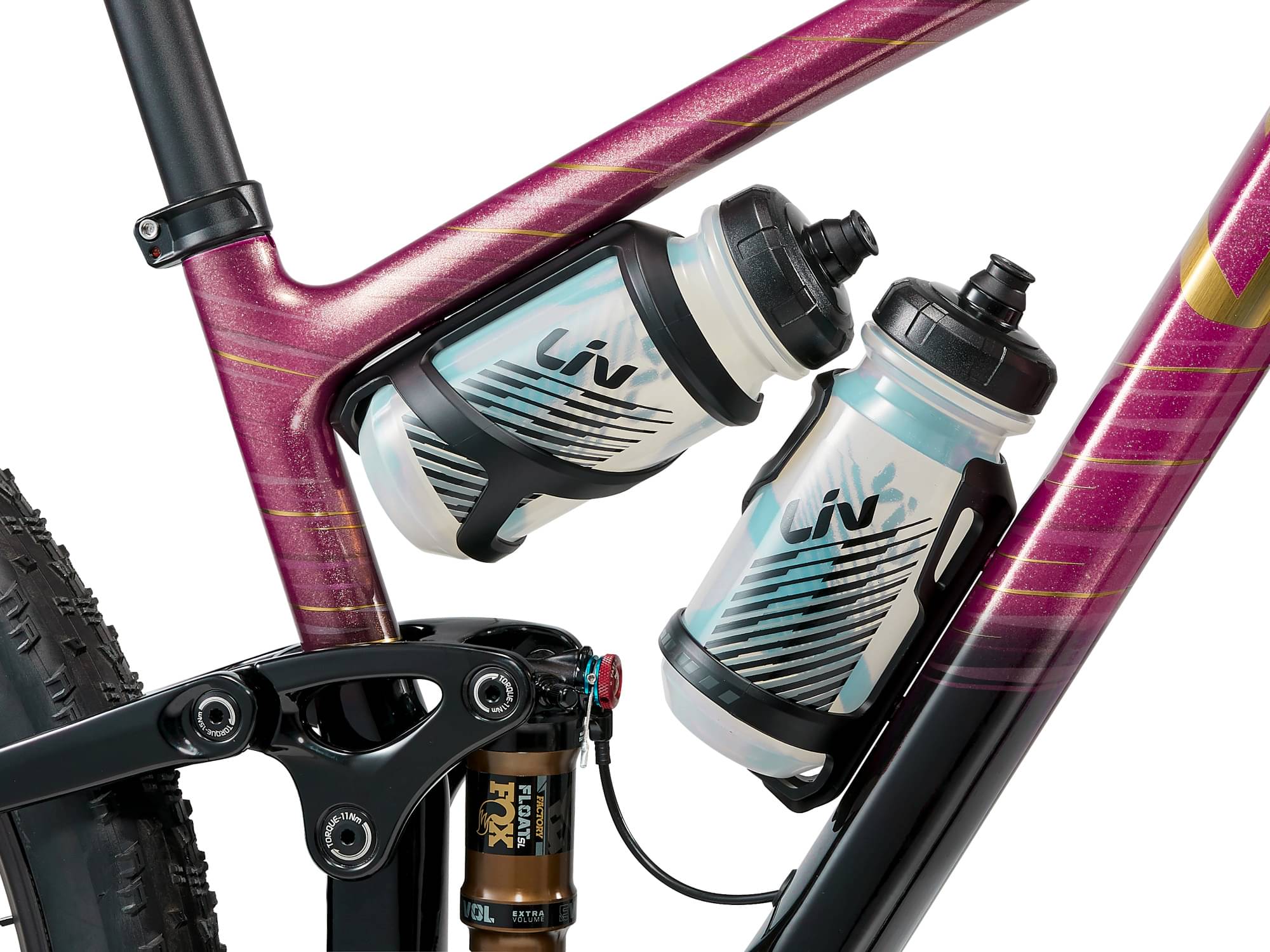

Rear Shock

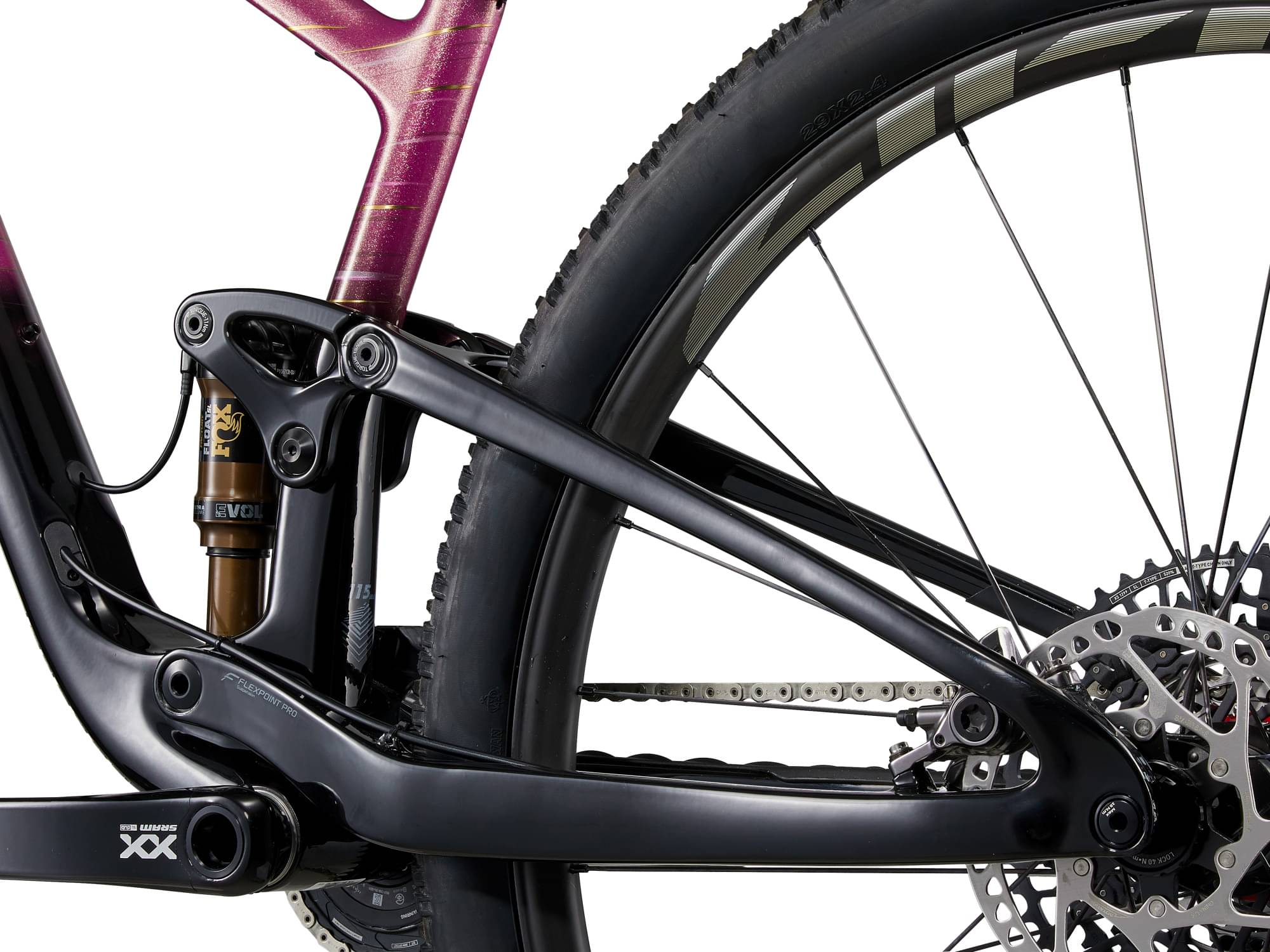

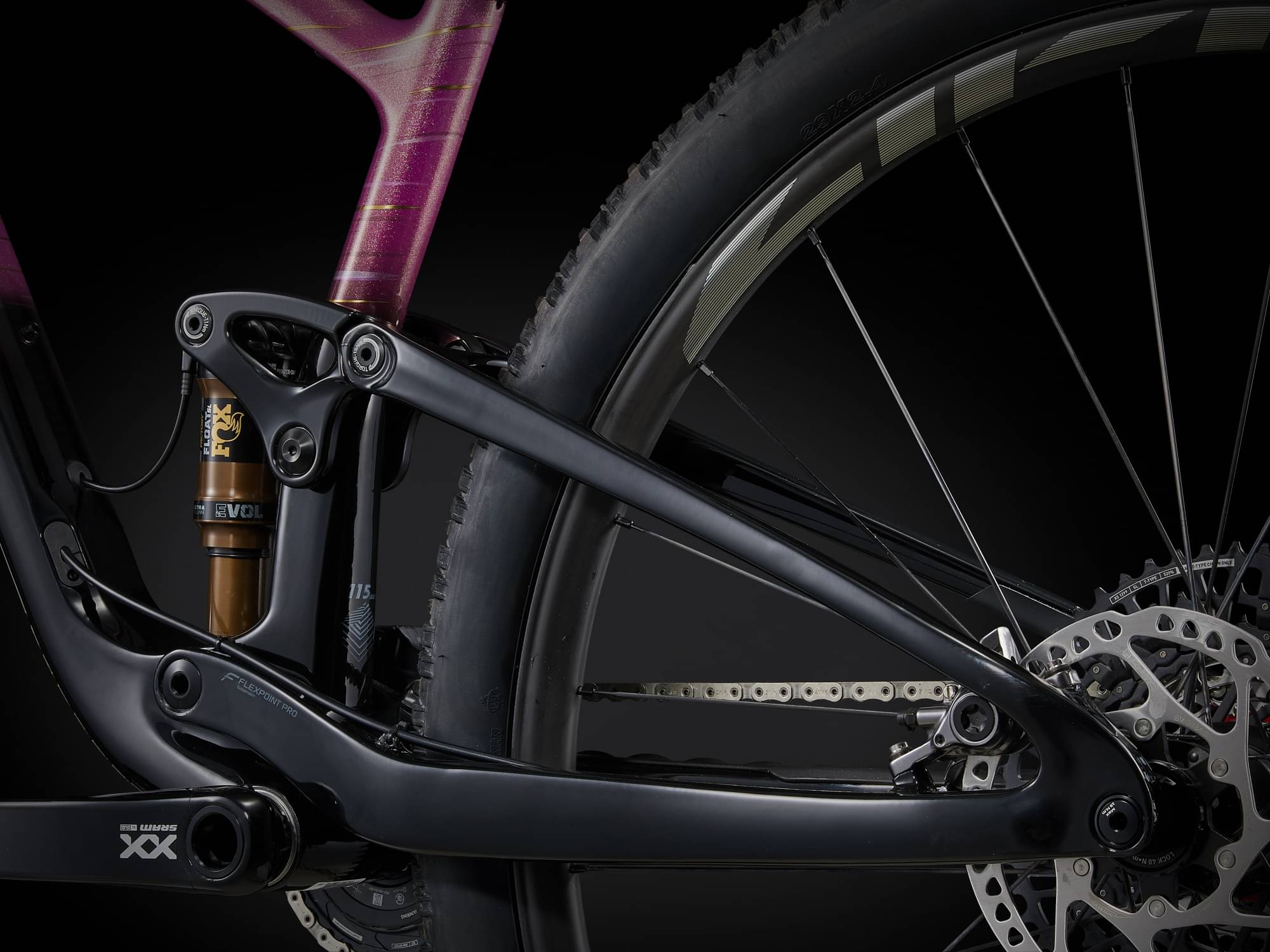

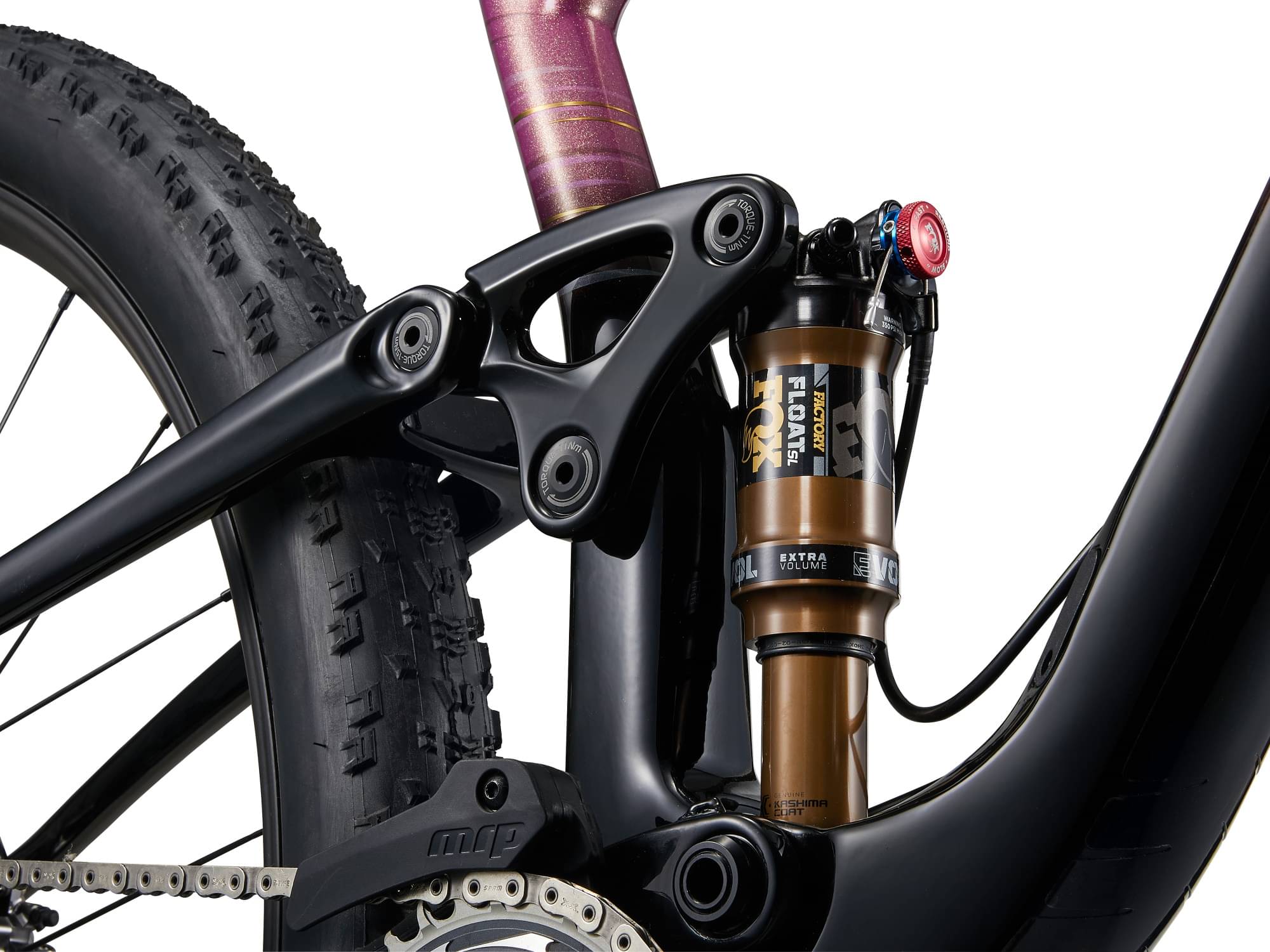

Fox Float SL Factory 165x45, custom tuned for Liv

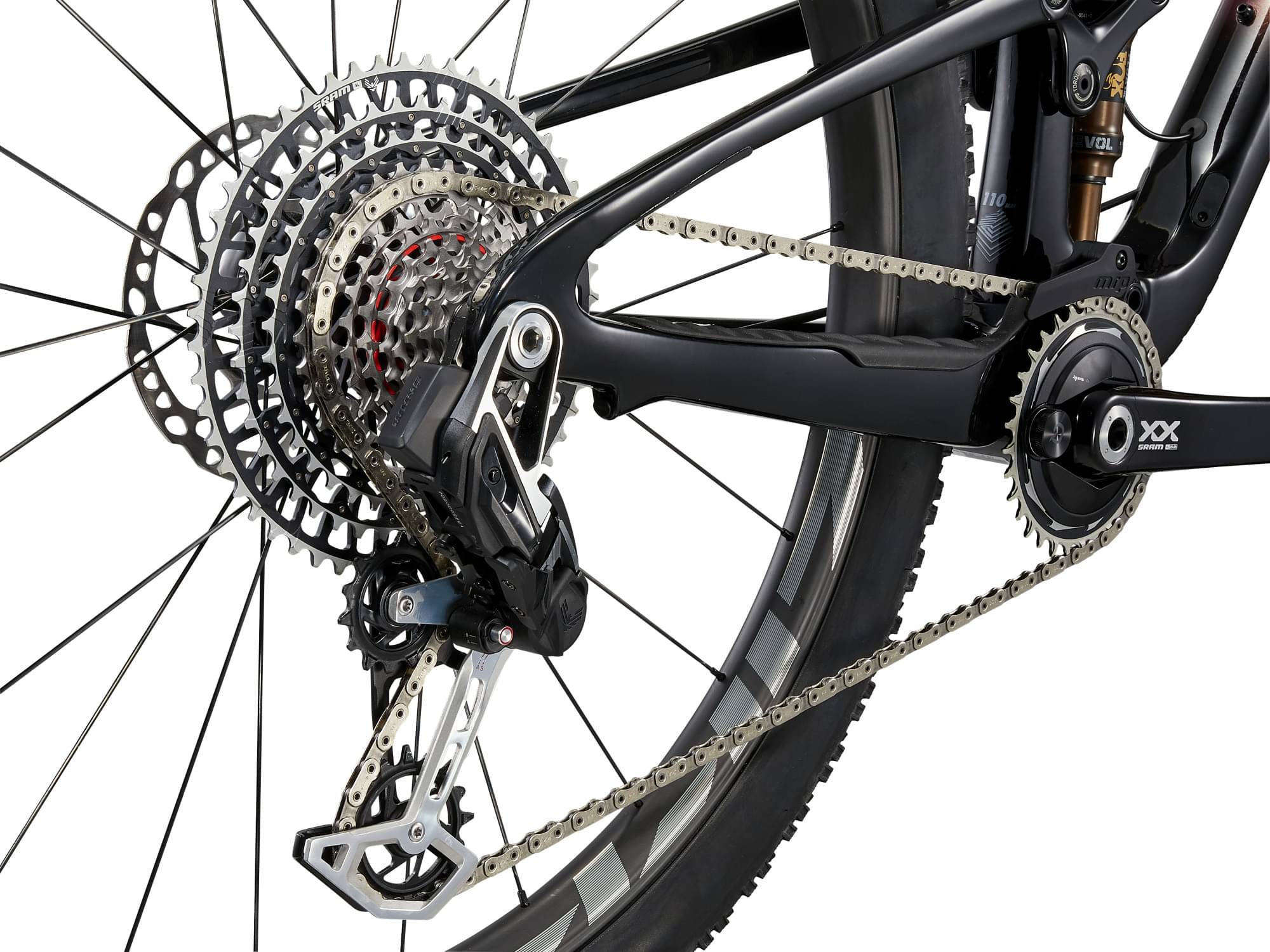

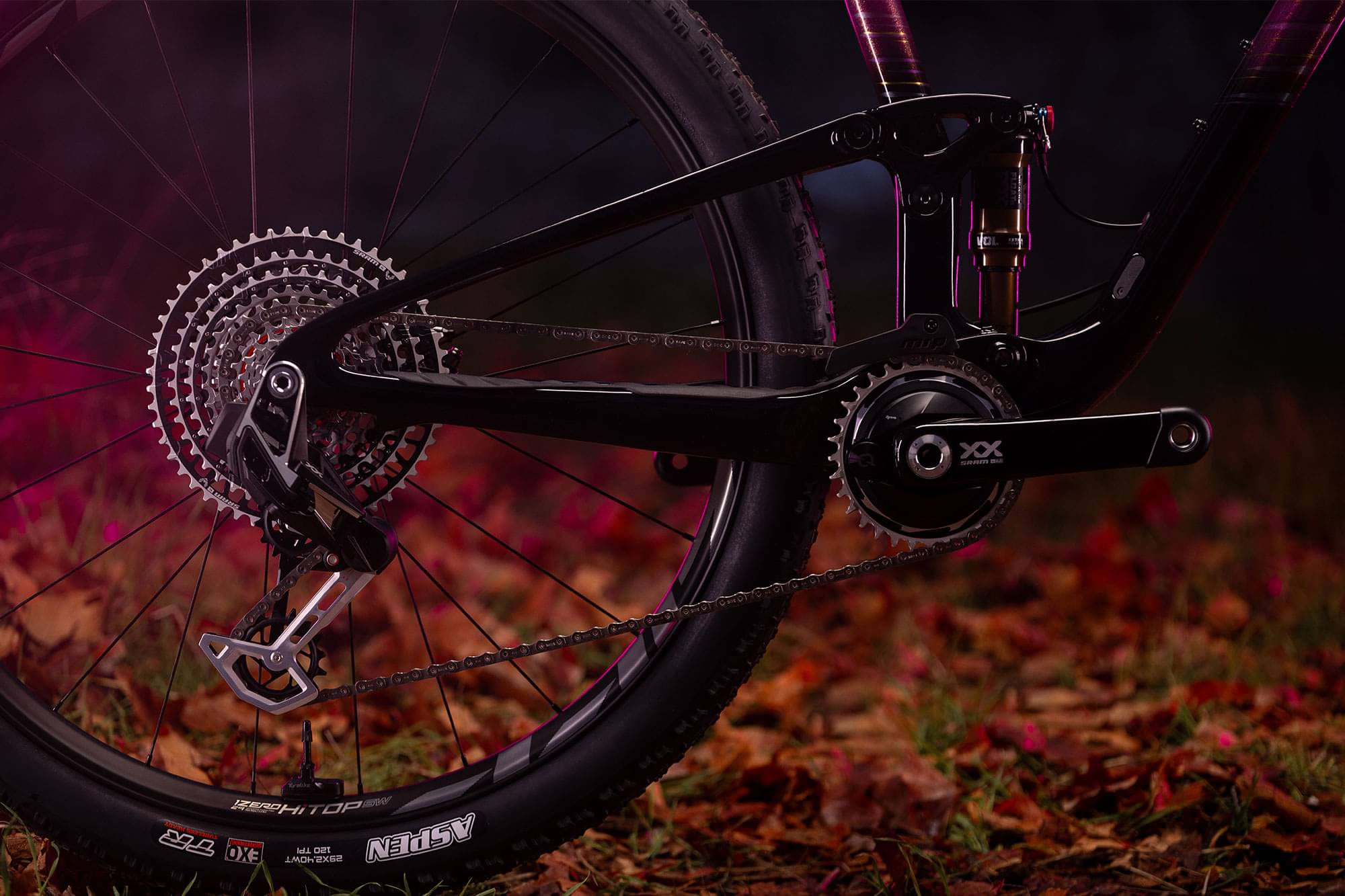

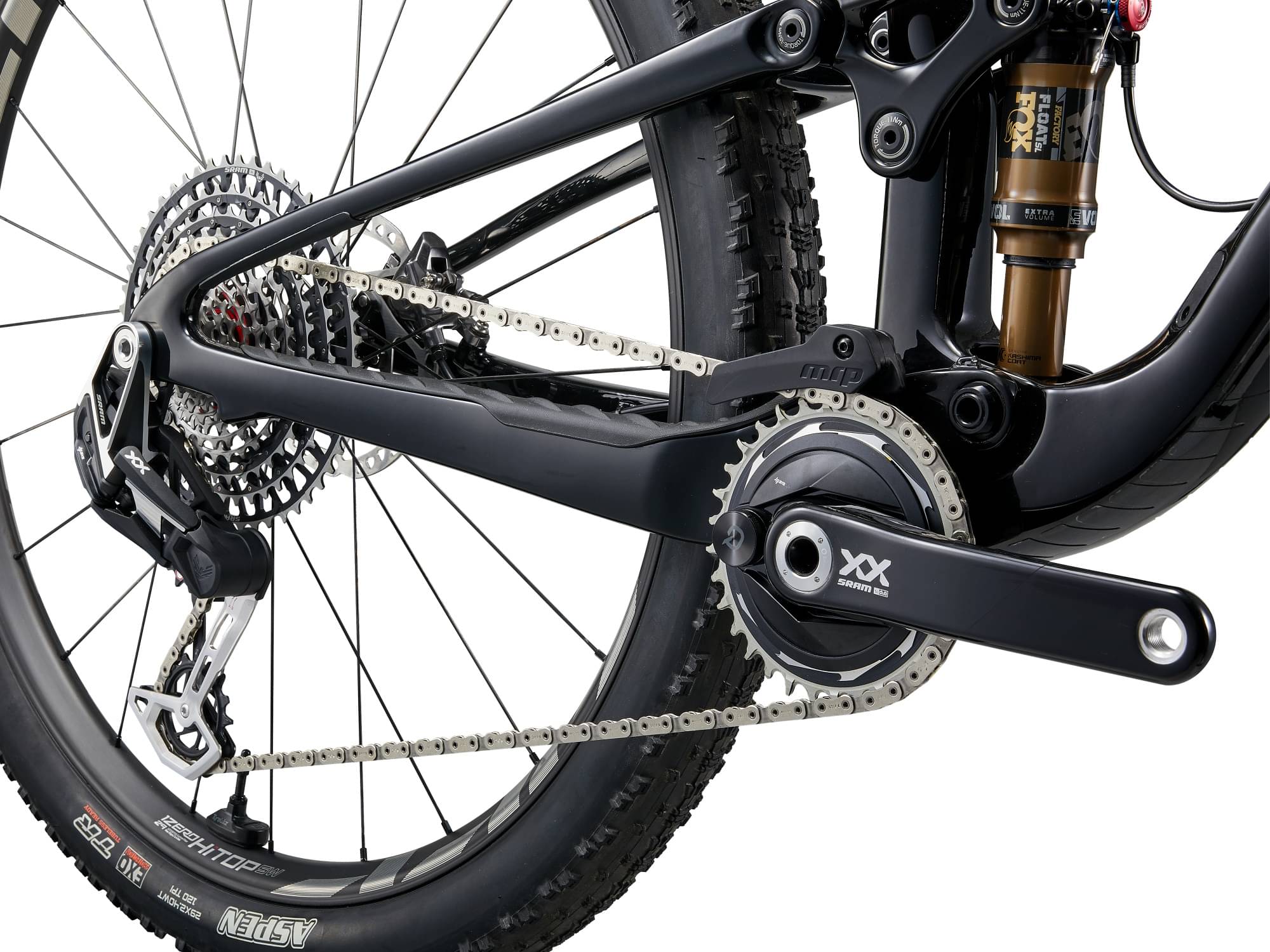

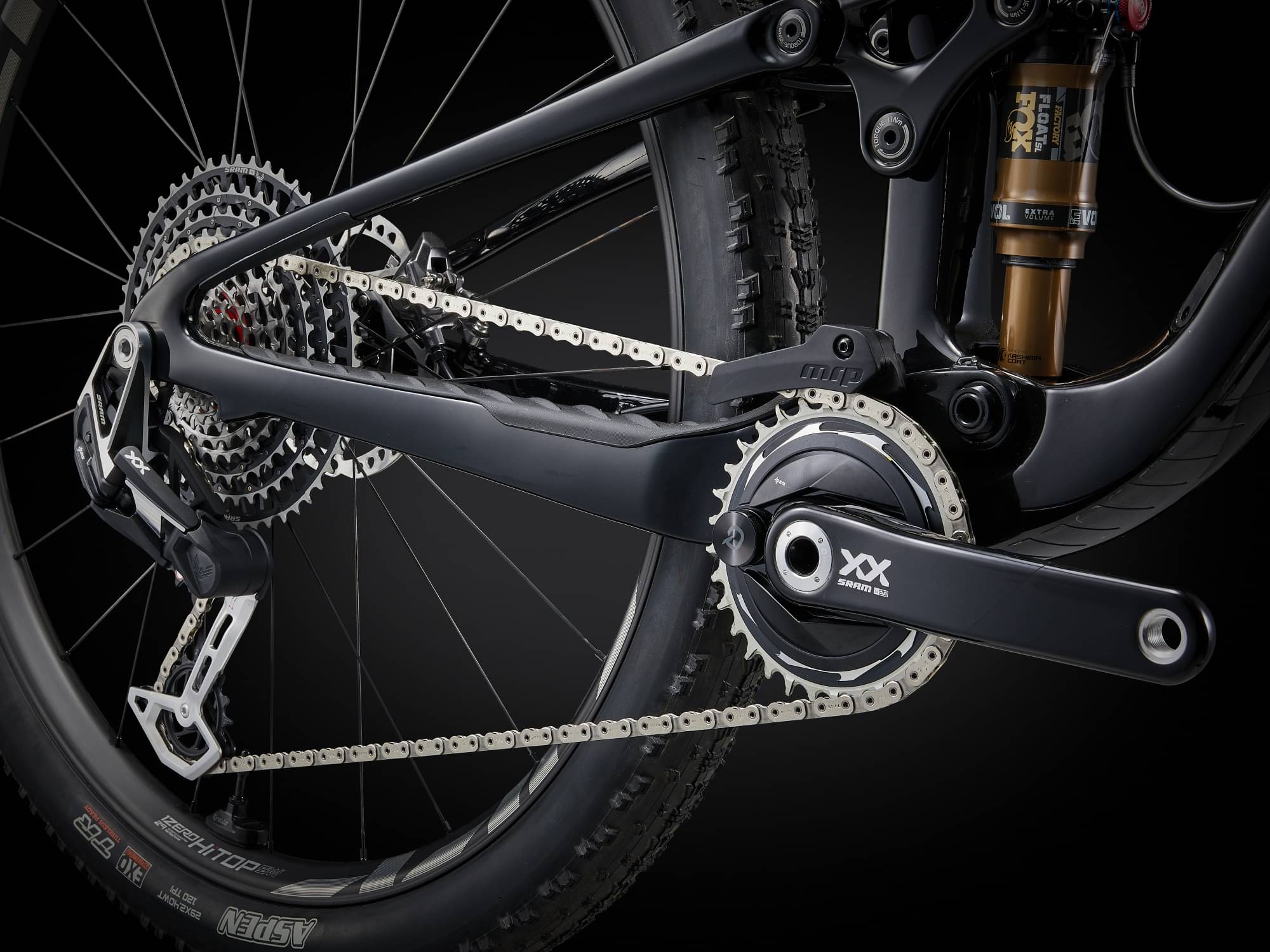

Drivetrain
Rear Derailleur
SRAM XX Eagle, T-Type AXS
Front Derailleur
N/A
Shift Levers
SRAM AXS, 1x12
Cassette
SRAM XX CS 1299 SL T-Type, 10x52
Crank
SRAM XX SL T-Type, power meter, alloy chainring 32t, 55mm chainline XS:165mm, S:170mm, M:170mm
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM XX T-Type
Pedals
N/A
Wheels
Front Hub
XD, Centerlock
Rear Hub
XD, Centerlock
Rims
ZIPP 1ZERO HiTop SL 29 WheelSystem, 30mm inner width
Spokes
Sapim
Tires

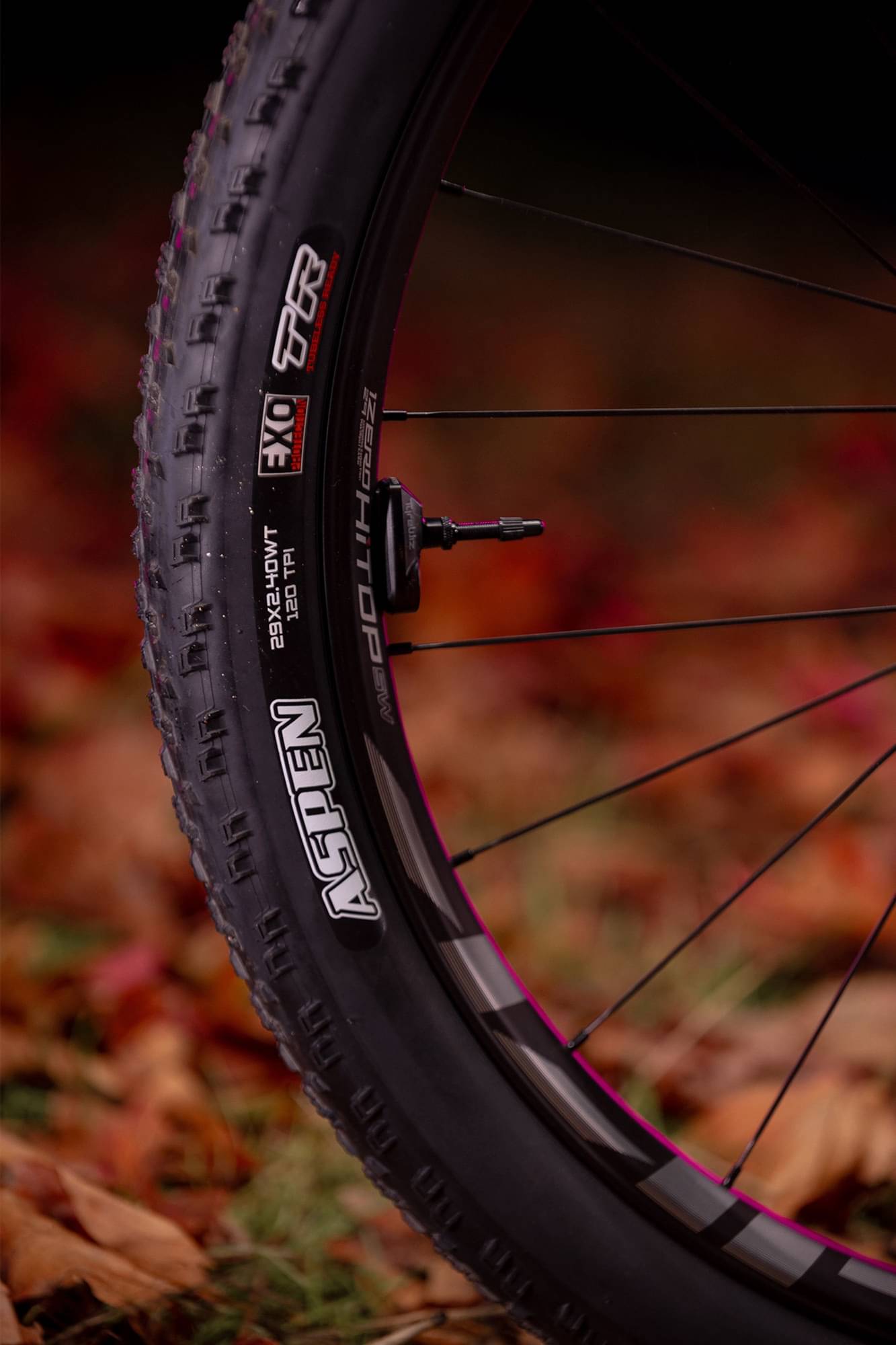

Maxxis Aspen, 29x2.4, foldable, TLR, EXO, tubeless
Brakes
Brakes
Shimano XTR, hydraulic, Shimano RT-64 centerlock rotors [F]180mm, [R]160mm
Brake Levers
Shimano XTR BL-M9100

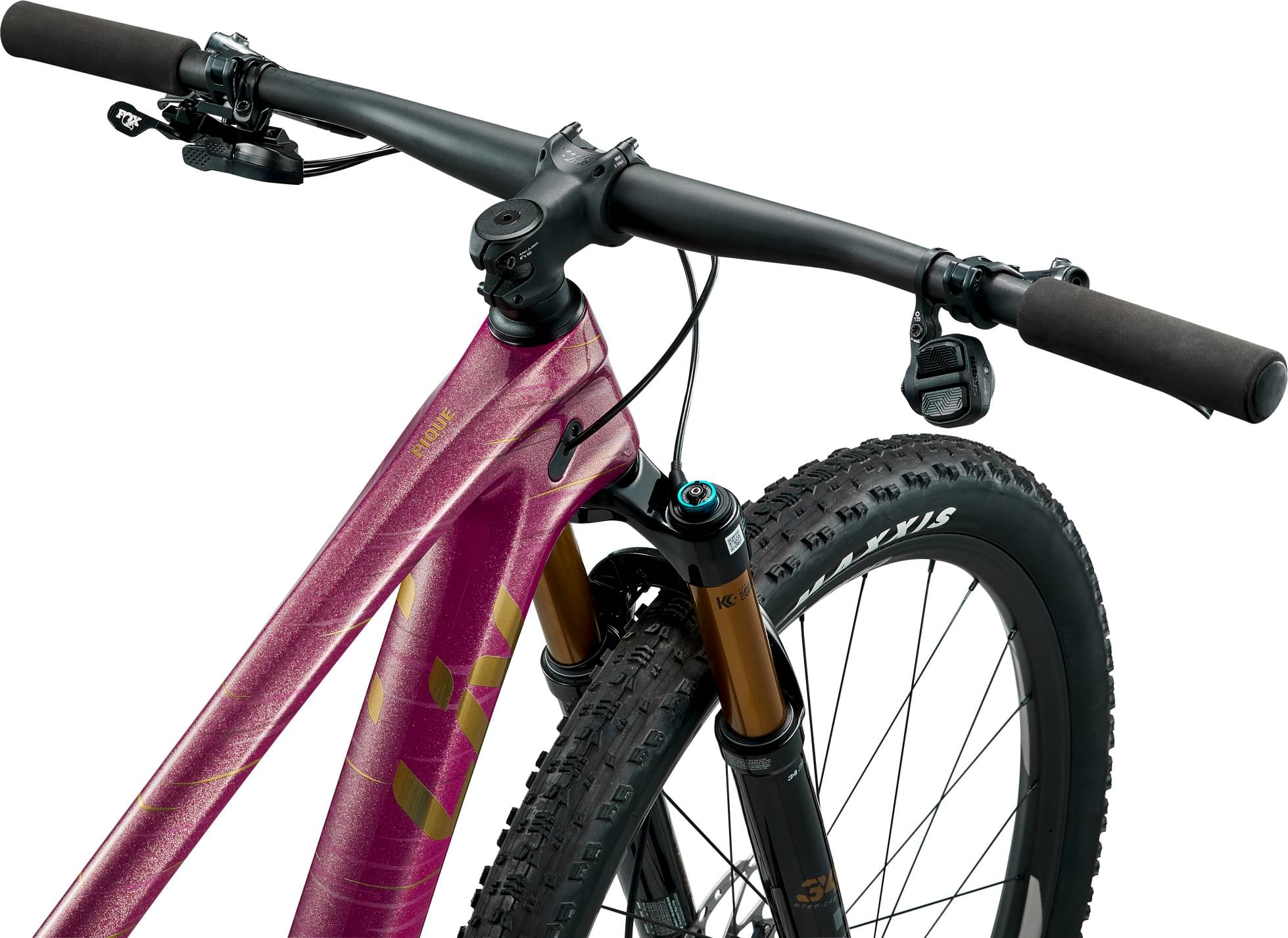

Cockpit
Stem
Giant Contact SL XC, alloy, 35mm XS: 60mm, S: 60mm, M: 70mm,
Handlebar
Giant Contact SLR XC, composite, 35mm XS: 760mm, S: 760mm, M: 760mm
Grips
Liv XC Pro, 32mm silicone
Seat
Saddle
Fi'zi:k Vento Argo R5

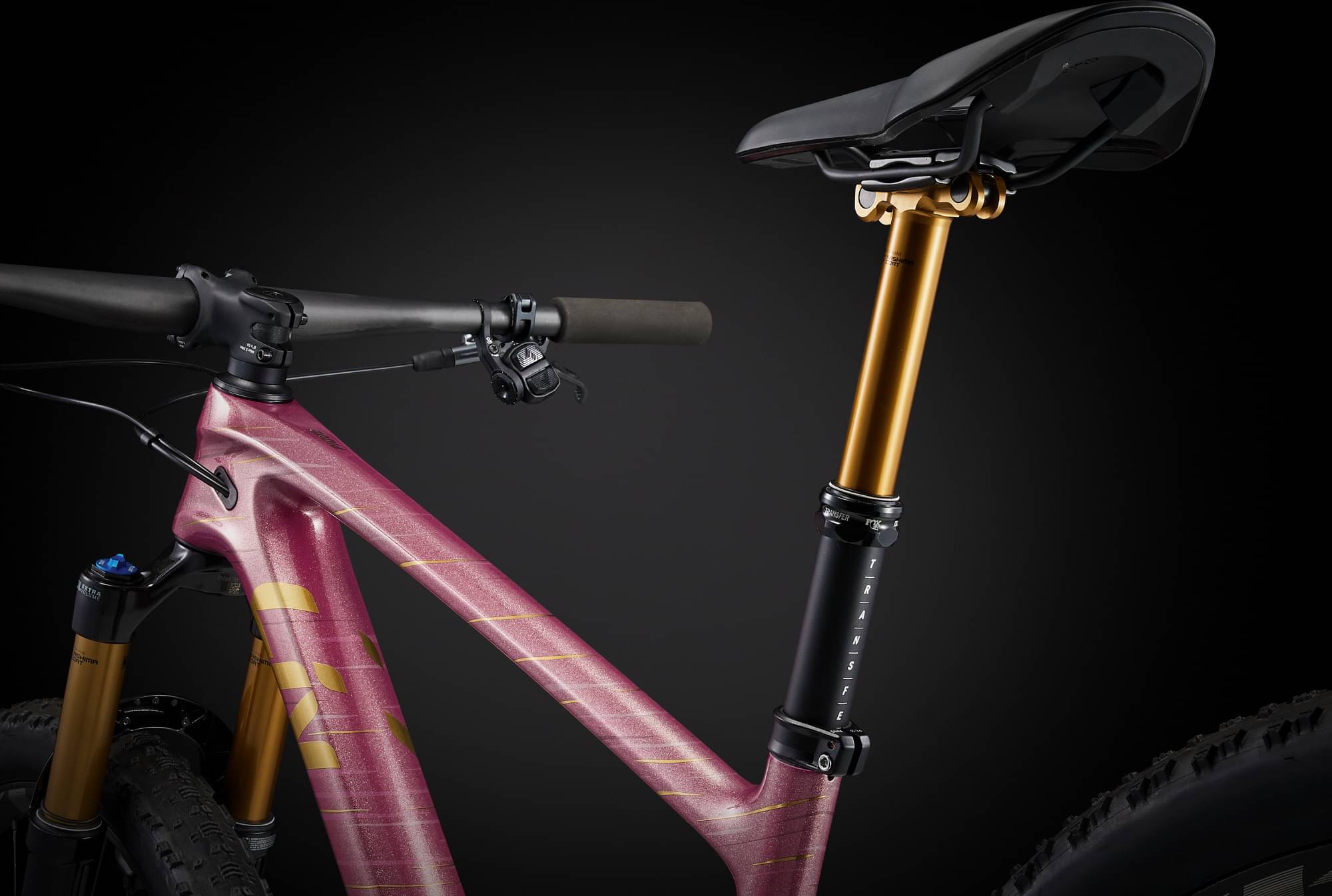

Seatpost

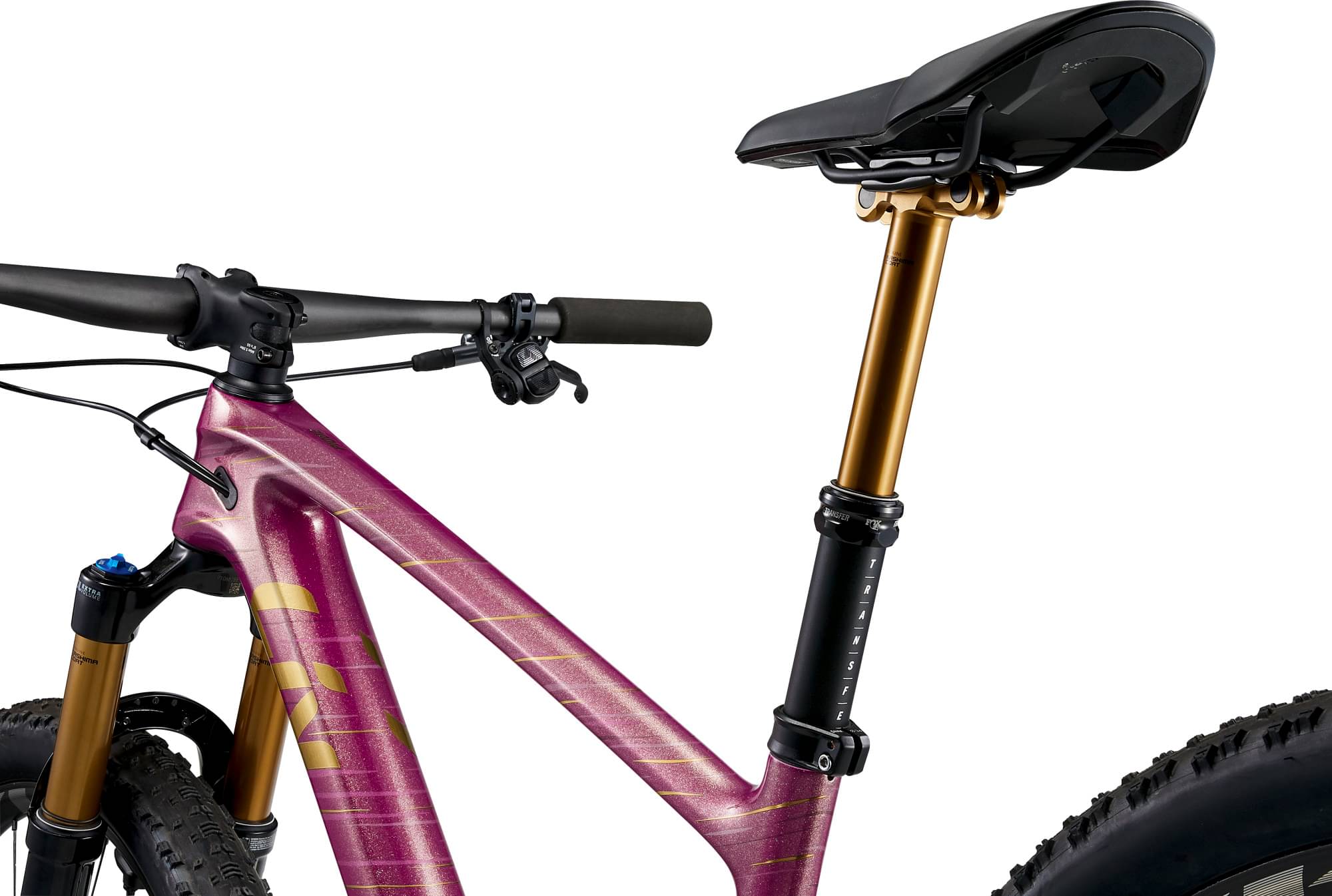

Fox Transfer dropper, remote XS: 100mm travel / 30.9 x 345mm S: 125mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.475 mm | 1.436 mm | 1.417 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm |
| Front Center | 690 mm | 706 mm | 723 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 112.2 mm | 112.2 mm | 112.2 mm |
| Stack | 599 mm | 603 mm | 612 mm |
| Reach | 406 mm | 420 mm | 432 mm |
| Top Tube Length | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 95 mm | 105 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1121 mm | 1137 mm | 1154 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Standover Height | 748 mm | 767 mm | 770 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 158 cm | 164 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm |
