Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 115mm -
Fork RockShox SID
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 163cm
SM
158cm - 169cm
MD
164cm - 175cm
LG
170cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components

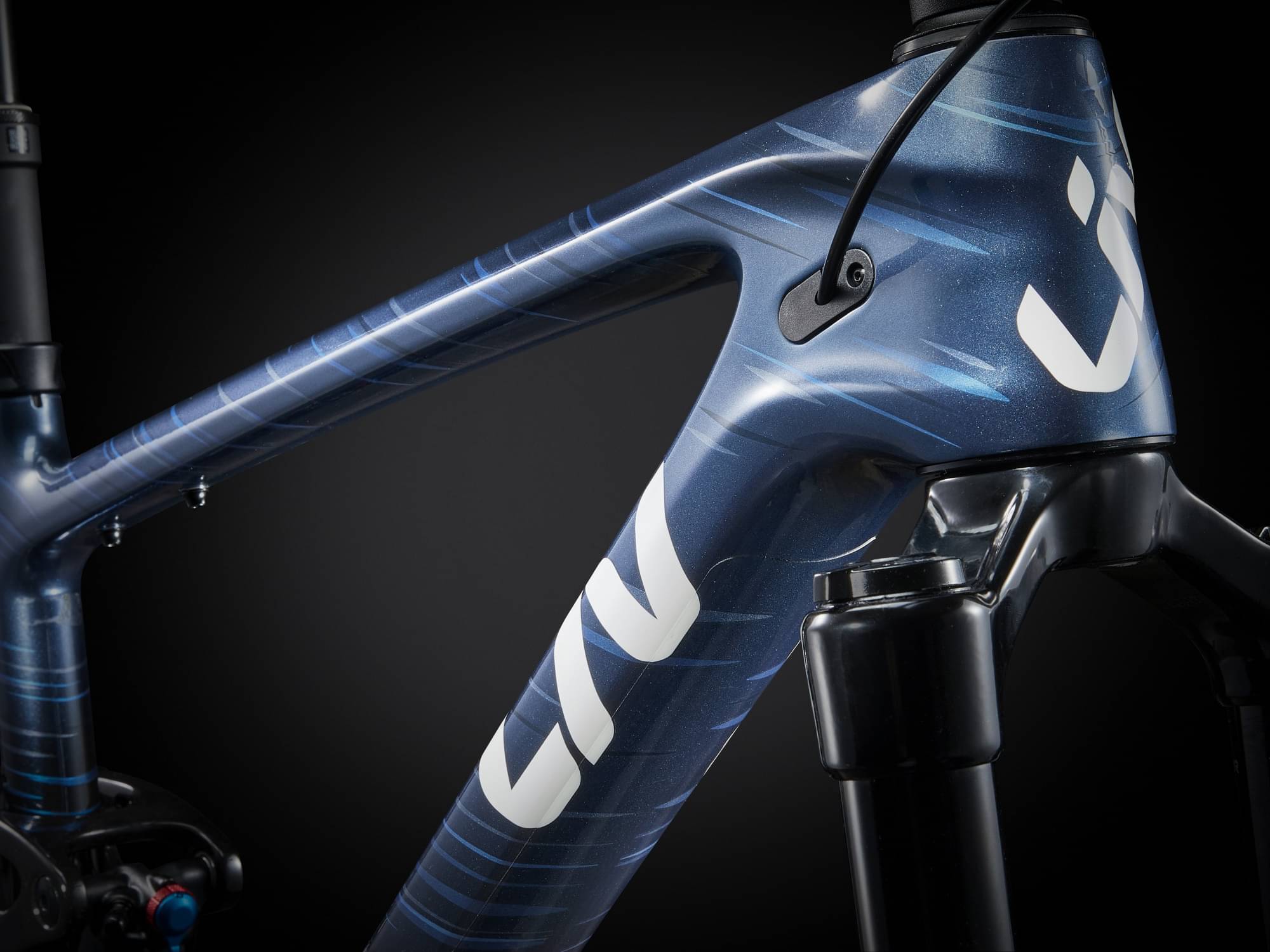

Frame
Frame
Advanced-grade composite front and rear triangles, 115mm FlexPoint Pro Suspension

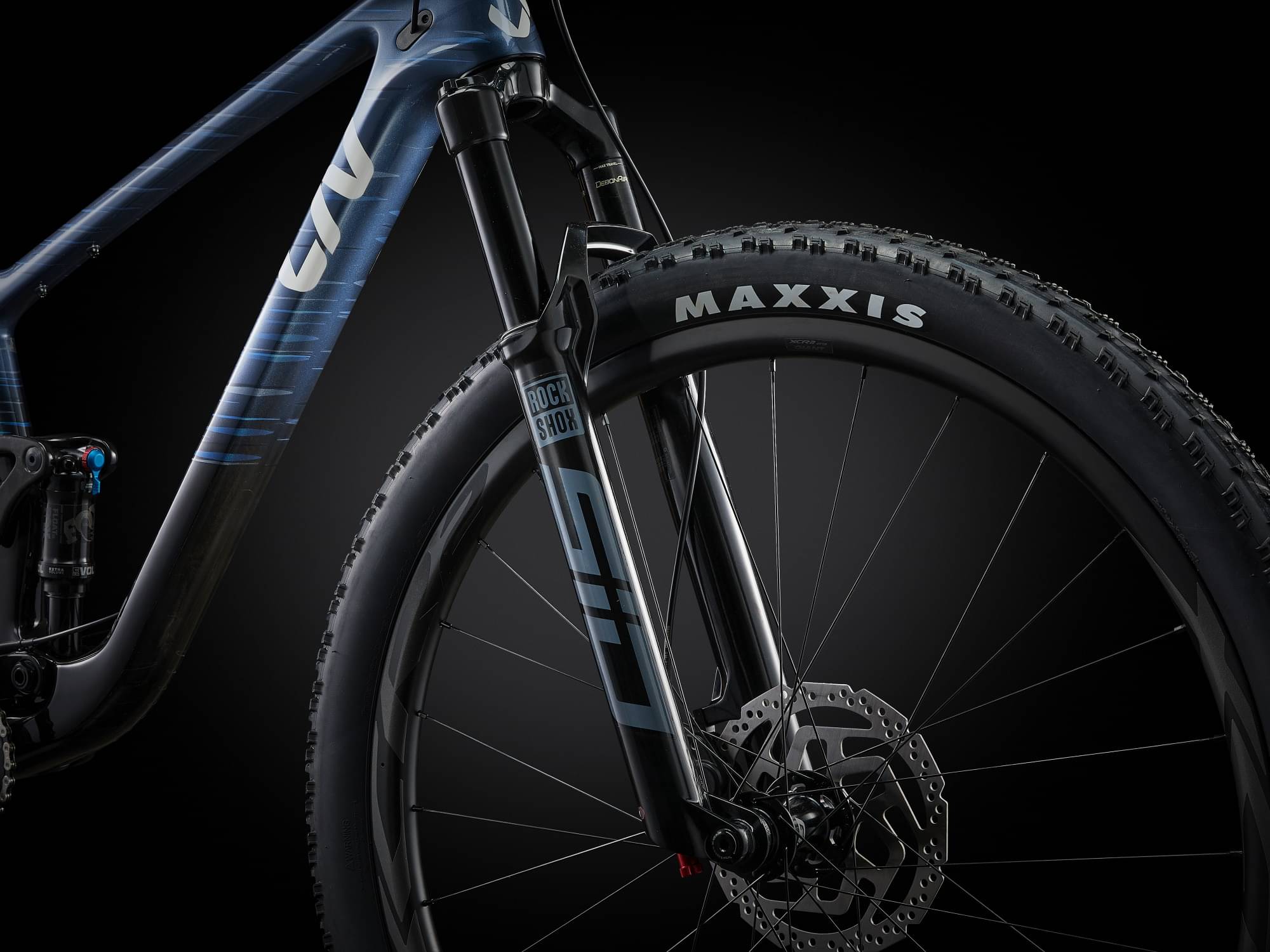

Suspension Fork

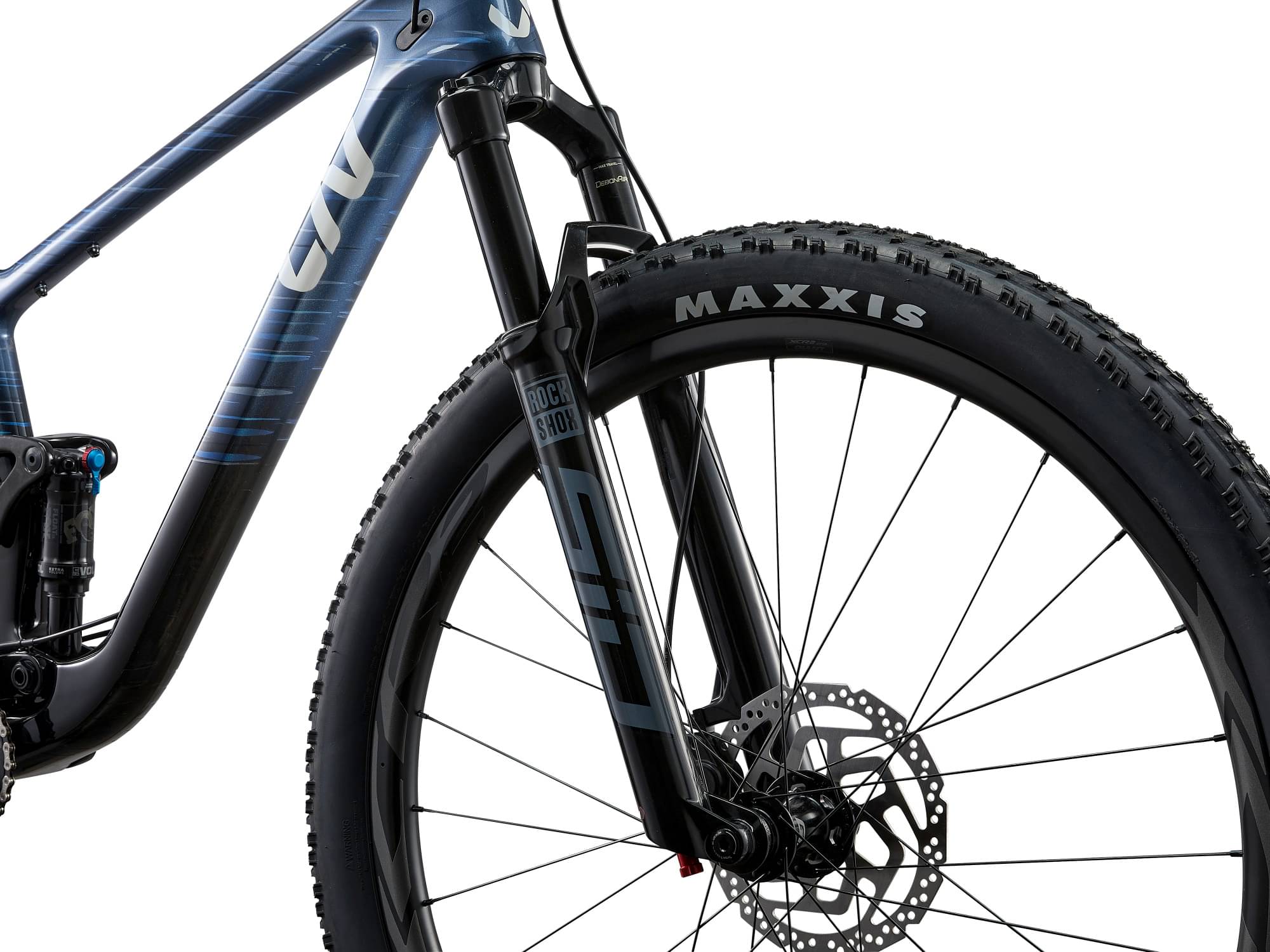

RockShox Sid, 120mm, Boost 15x110mm Maxle Stealth, tapered, tapered, 44mm offset, Rush RL
Rear Shock

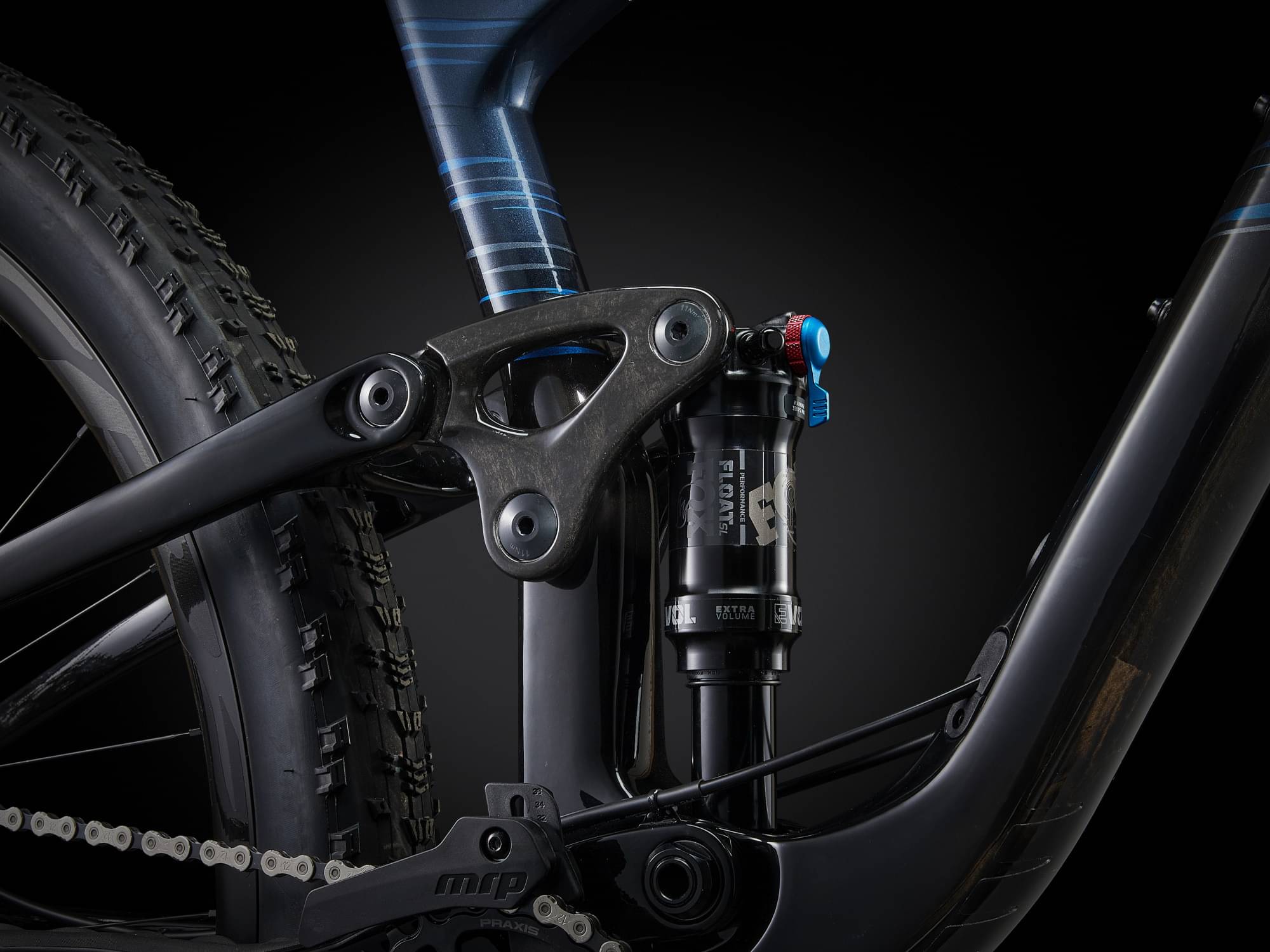

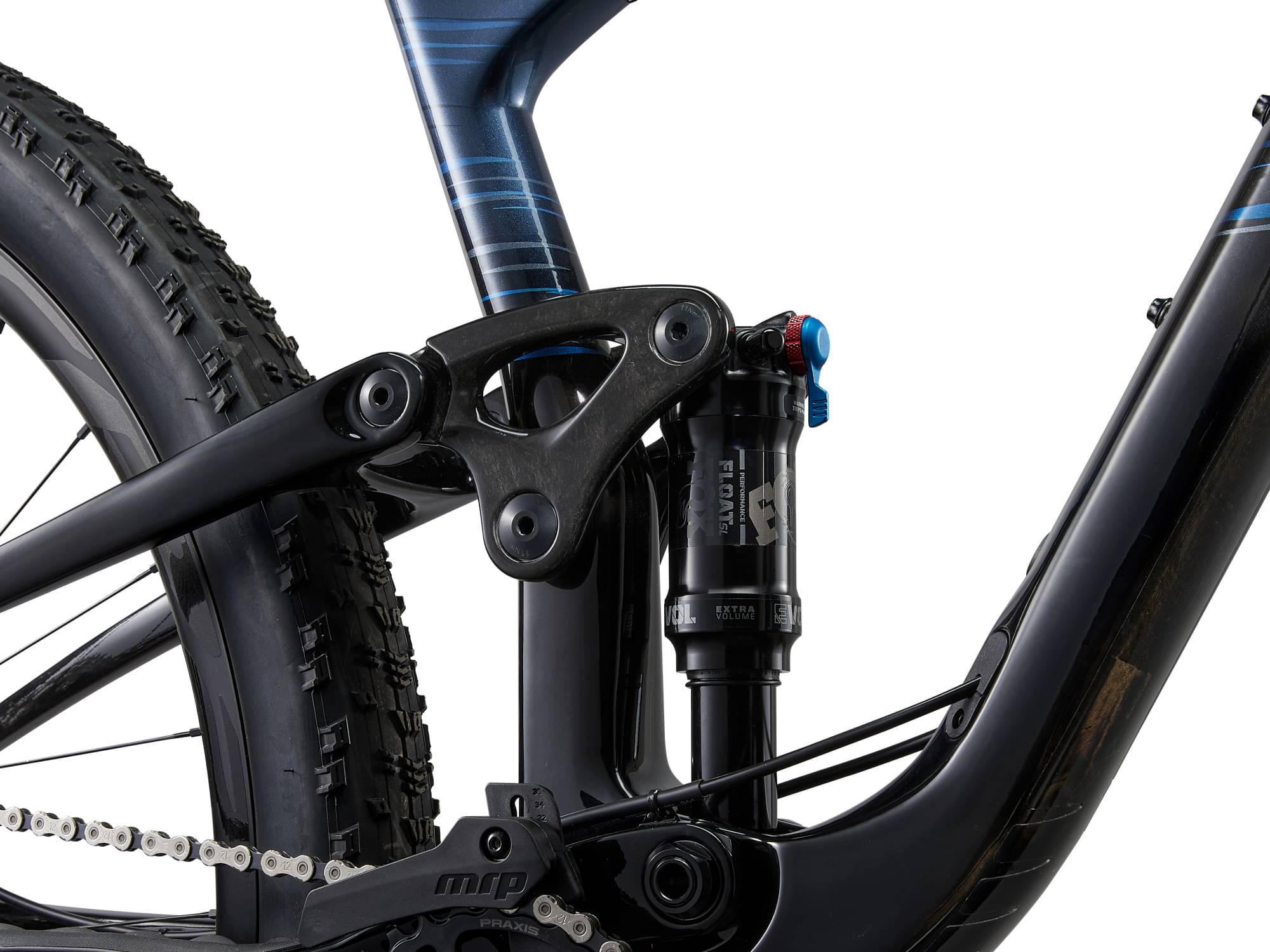

Fox Float SL Performance, 165x45, custom tuned for Liv

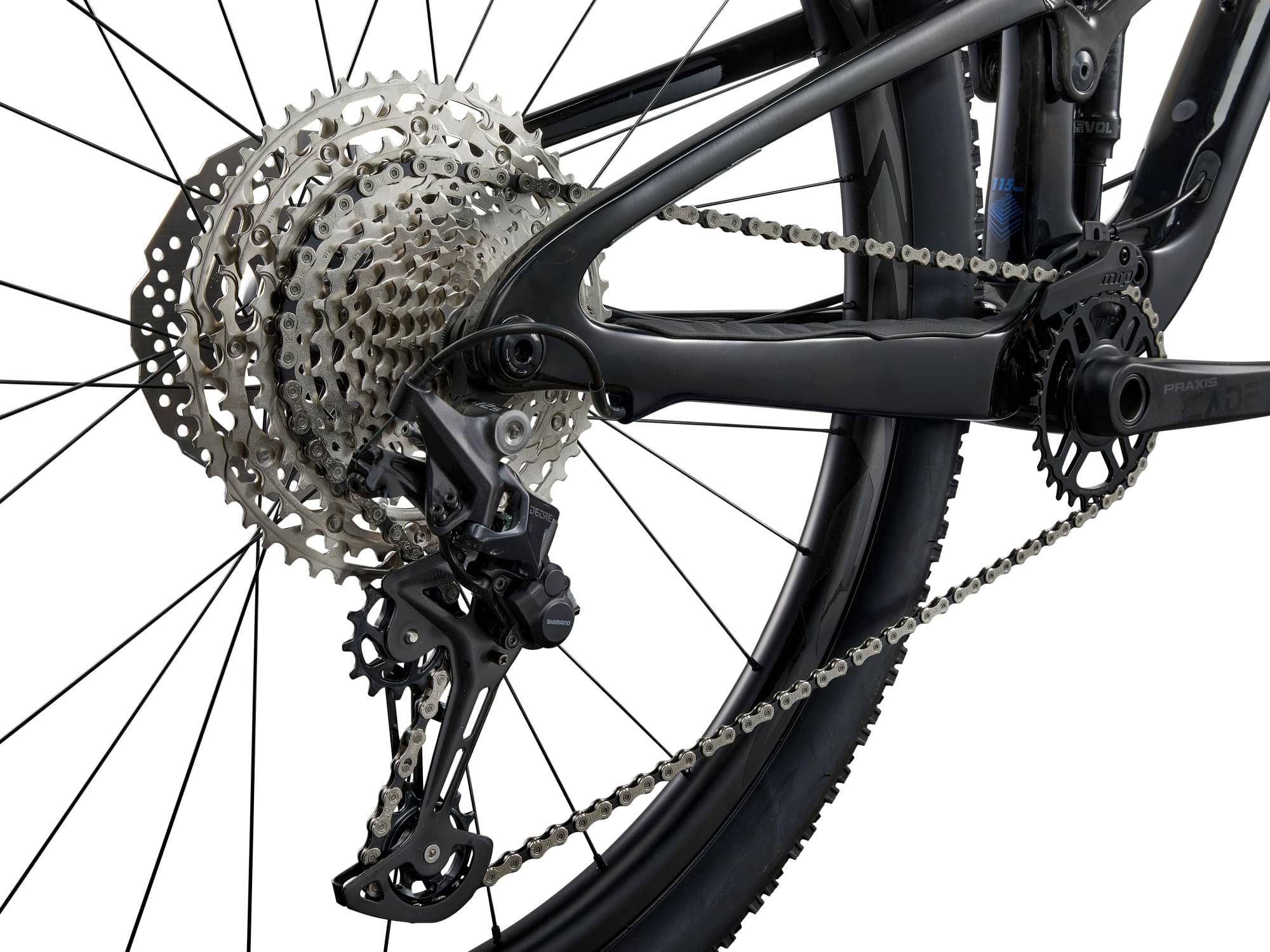

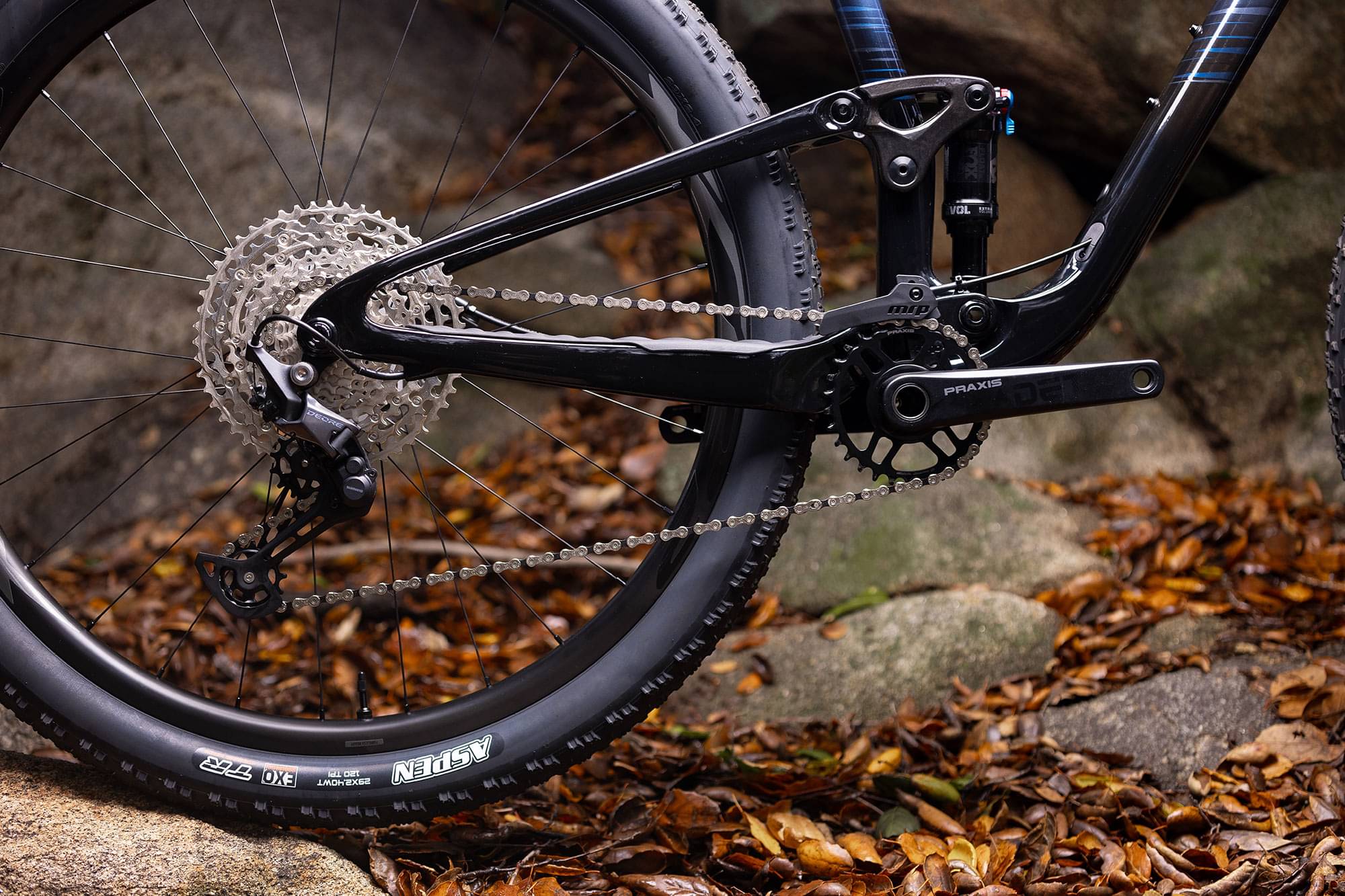

Drivetrain
Rear Derailleur
Shimano Deore M6100, Shadow +
Front Derailleur
N/A
Shift Levers
Deore M6100, 1x12
Cassette
Shimano Deore M6100, 10x51
Crank
Praxis Cadet, steel chainring 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 175mm
Bottom Bracket
Praxis, press fit
Chain
KMC X12
Pedals
N/A
Wheels
Front Hub
[F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Rear Hub
[F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Rims
Giant XCR 2 29 carbon WheelSystem, 25mm inner width
Spokes
Sapim
Tires
Maxxis Aspen, 29x2.4, foldable, TLR, EXO, tubeless
Brakes
Brakes
Shimano BR-MT410, hydraulic, Shimano RT-26 rotors [F]180mm, [R]160mm
Brake Levers
Shimano MT-401

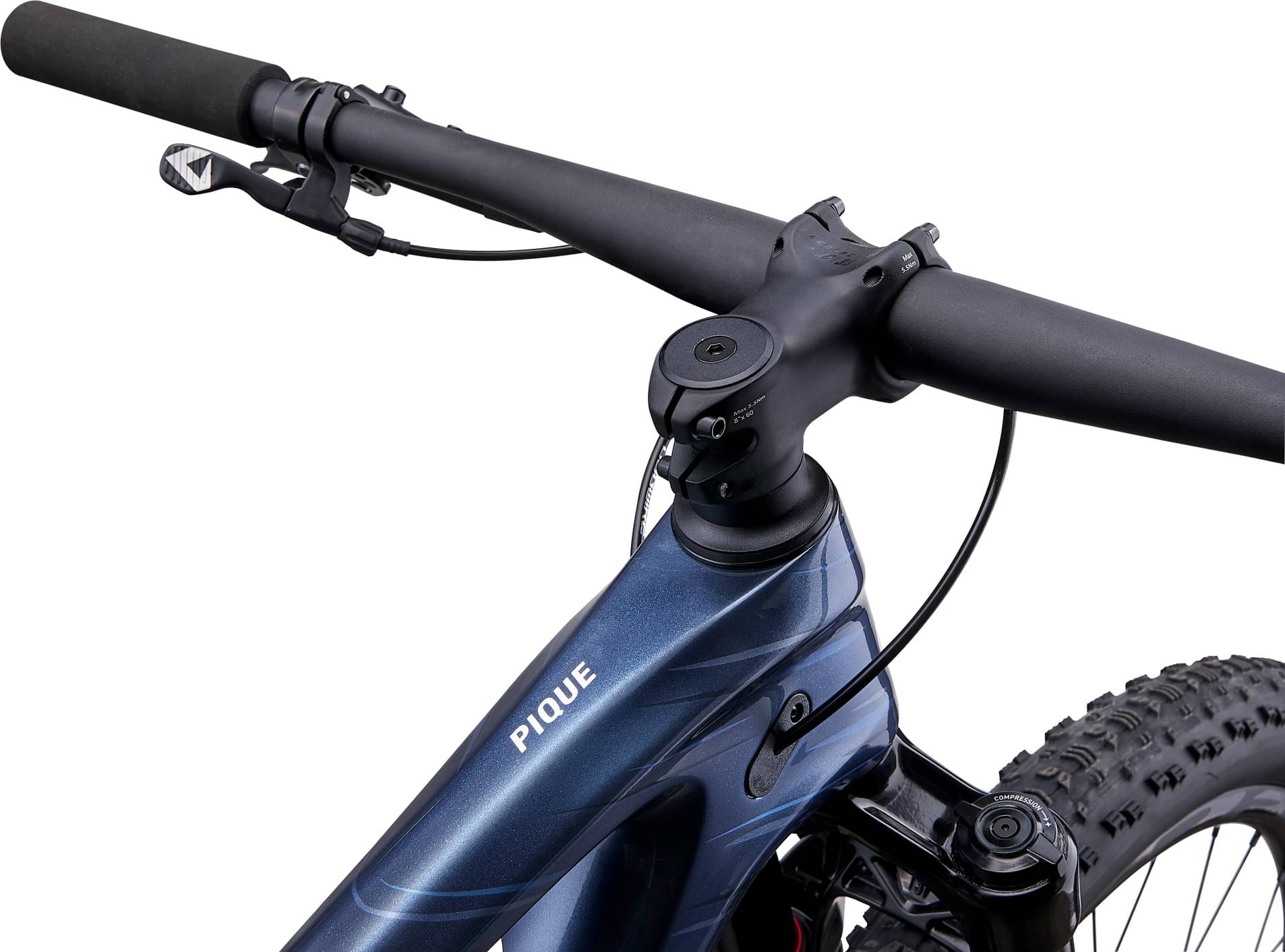

Cockpit

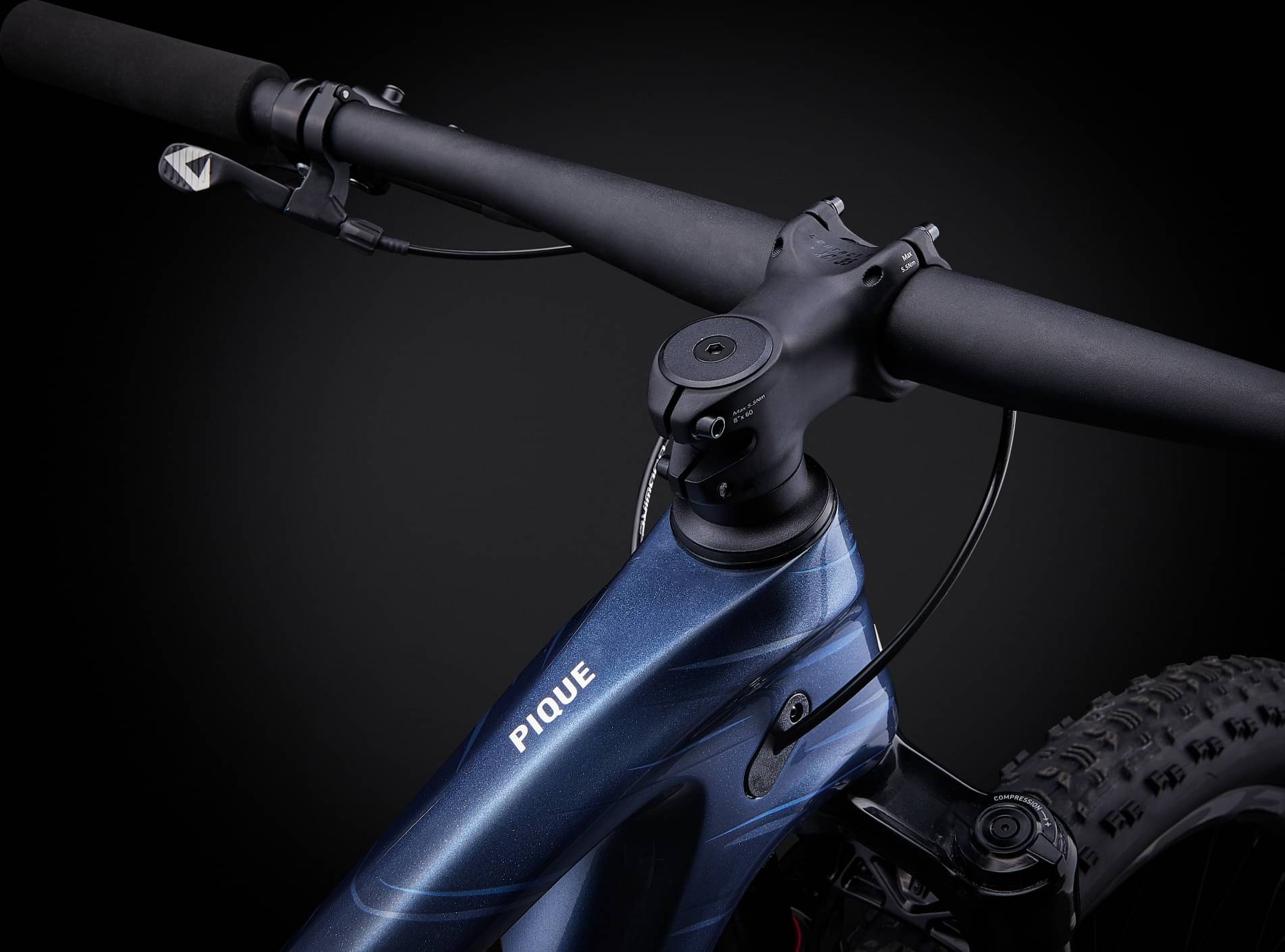

Stem
Giant Contact SL XC, alloy, 35mm XS: 60mm, S: 60mm, M: 70mm, L: 70mm
Handlebar
Giant Contact XC, alloy, 35mm XS: 760mm, S: 760mm, M: 760mm, L: 760mm
Grips
Liv XC Pro, 32mm
Seat
Saddle
Fi'zi:k Vento Argo R5
Seatpost
Giant Contact Switch, adjustable dropper, remote XS: 110-140mm travel / 30.9 x 395mm S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 140-170mm travel / 30.9 x 470mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.475 mm | 1.436 mm | 1.417 mm | 1.398 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm | 329 mm |
| Front Center | 690 mm | 706 mm | 723 mm | 739 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 112.2 mm | 112.2 mm | 112.2 mm | 112.2 mm |
| Stack | 599 mm | 603 mm | 612 mm | 622 mm |
| Reach | 406 mm | 420 mm | 432 mm | 445 mm |
| Top Tube Length | 555 mm | 570 mm | 585 mm | 600 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1121 mm | 1137 mm | 1154 mm | 1170 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 748 mm | 767 mm | 770 mm | 791 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 158 cm | 164 cm | 170 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm |
