Bike details
Overview
Key information split into simple groups.

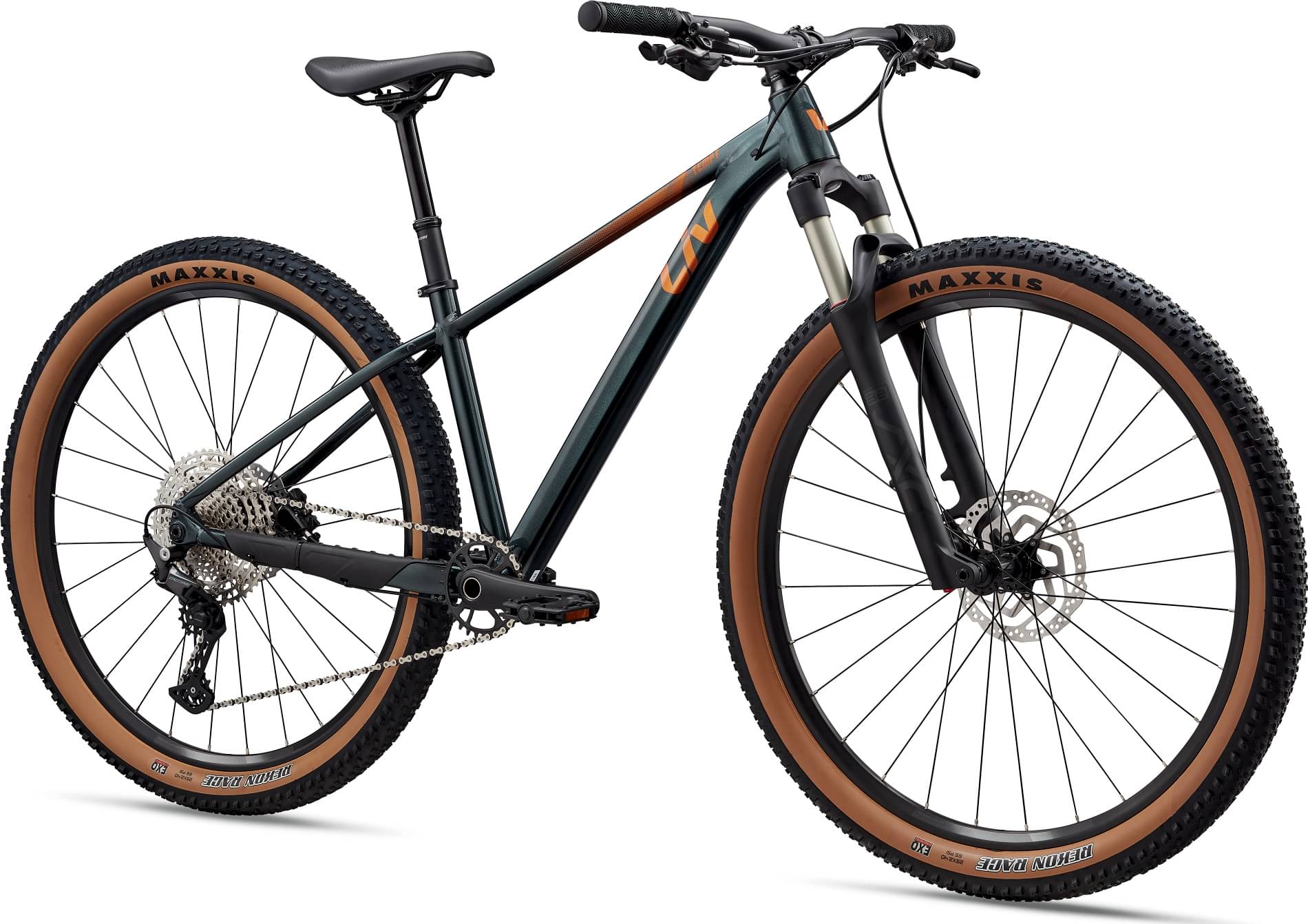

Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 163cm
SM
158cm - 169cm
SM
158cm - 169cm
MD
164cm - 175cm
LG
170cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components

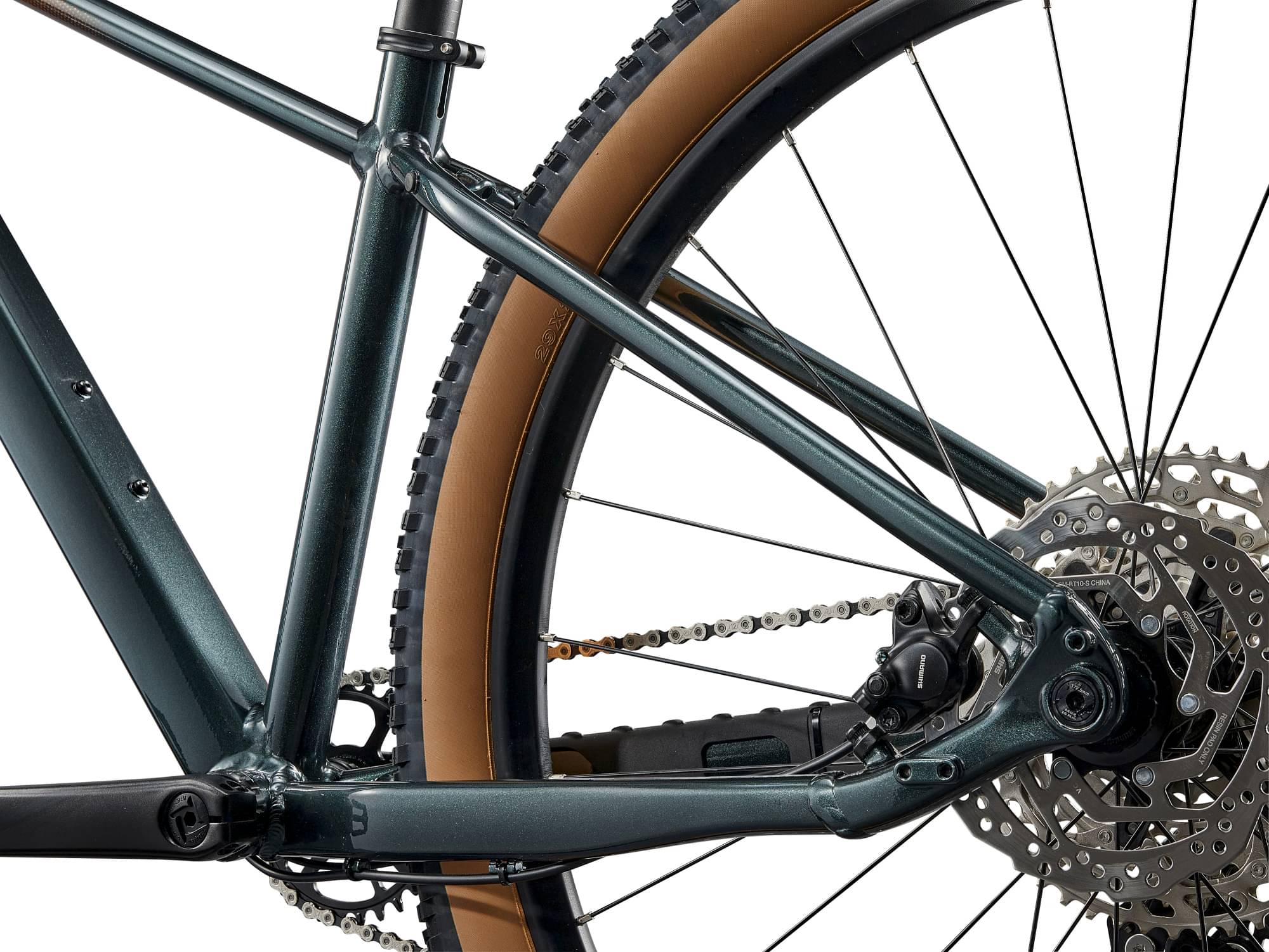

Frame
Frame
ALUXX-grade aluminium, disc

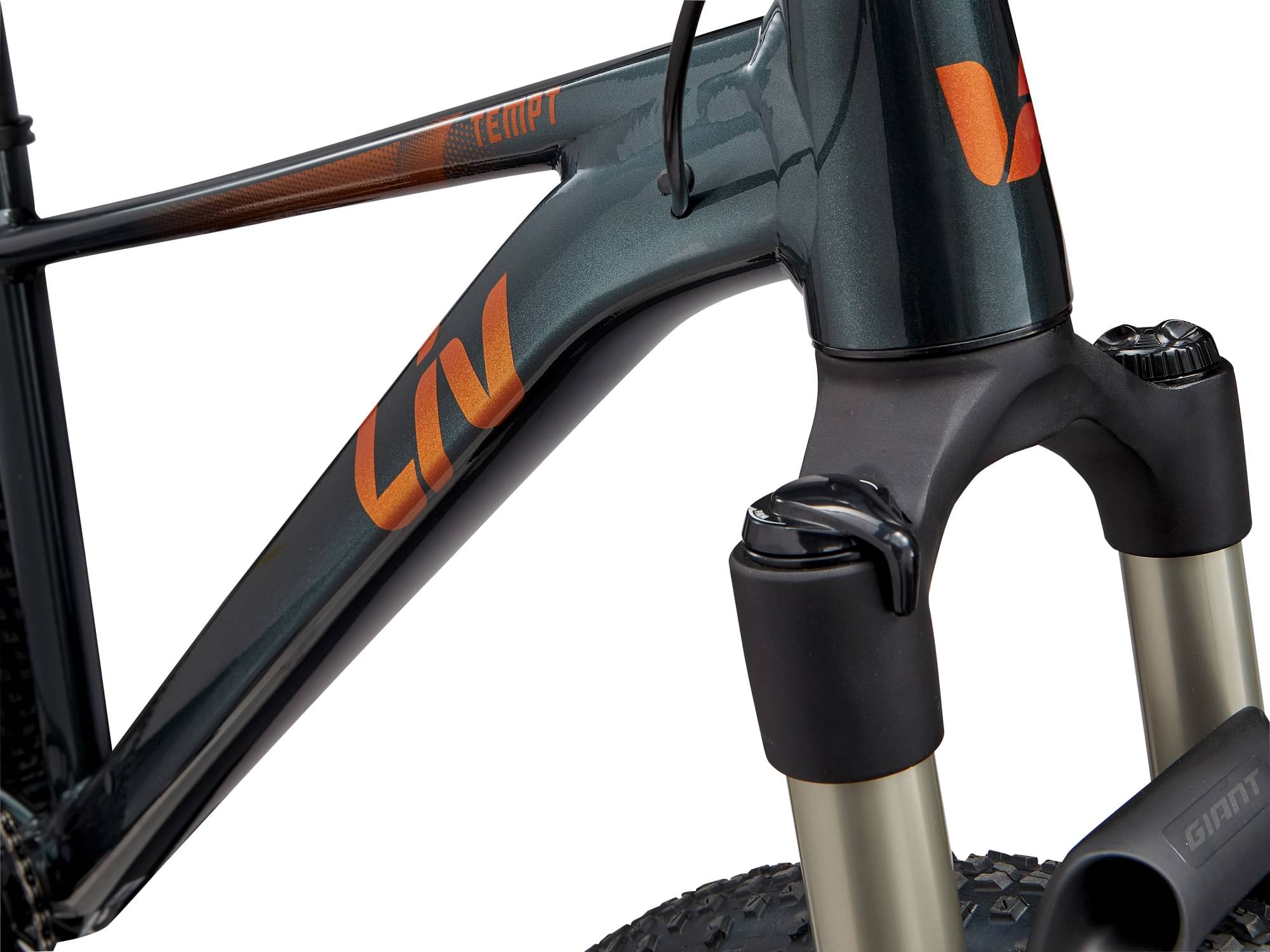

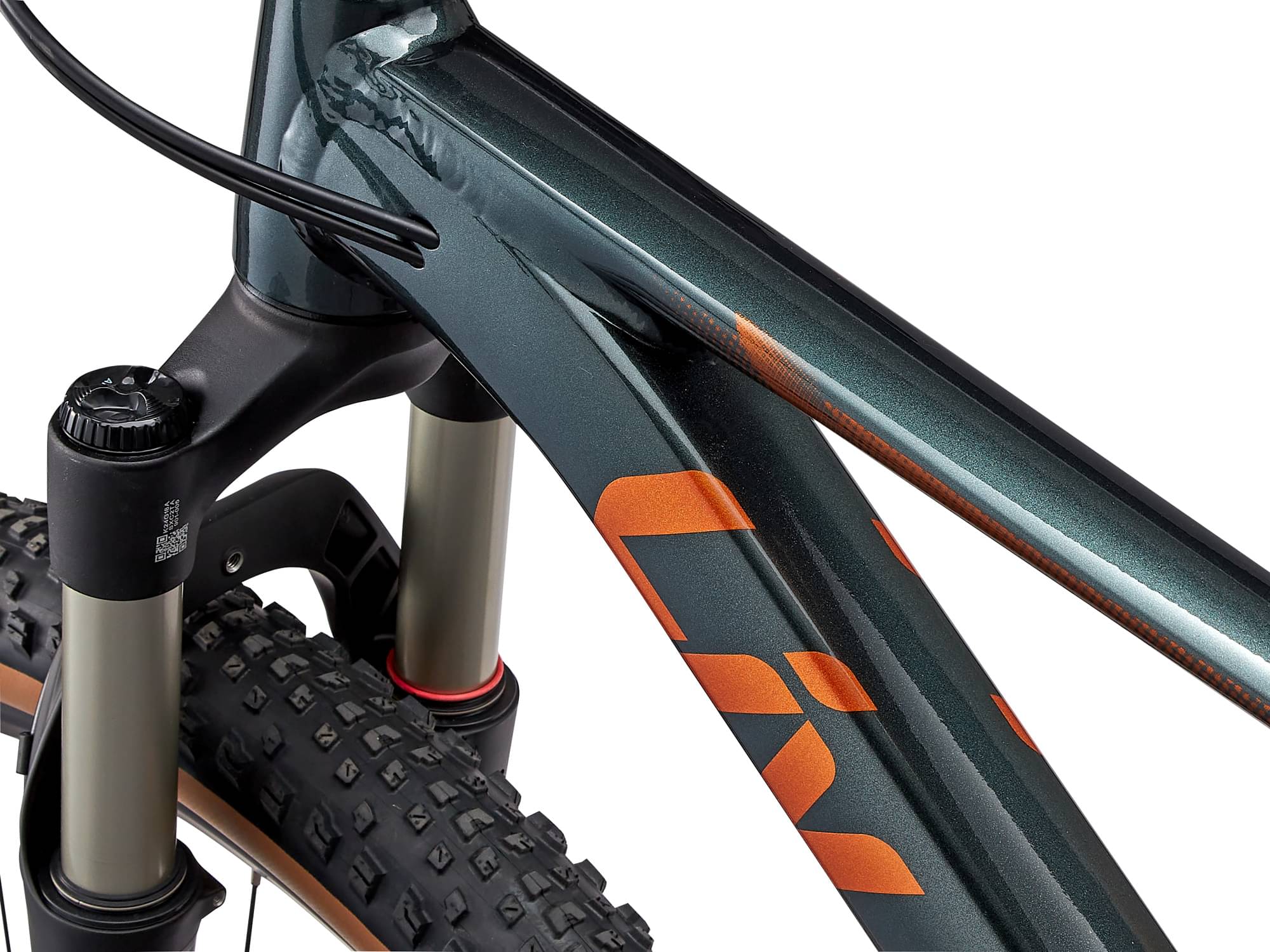

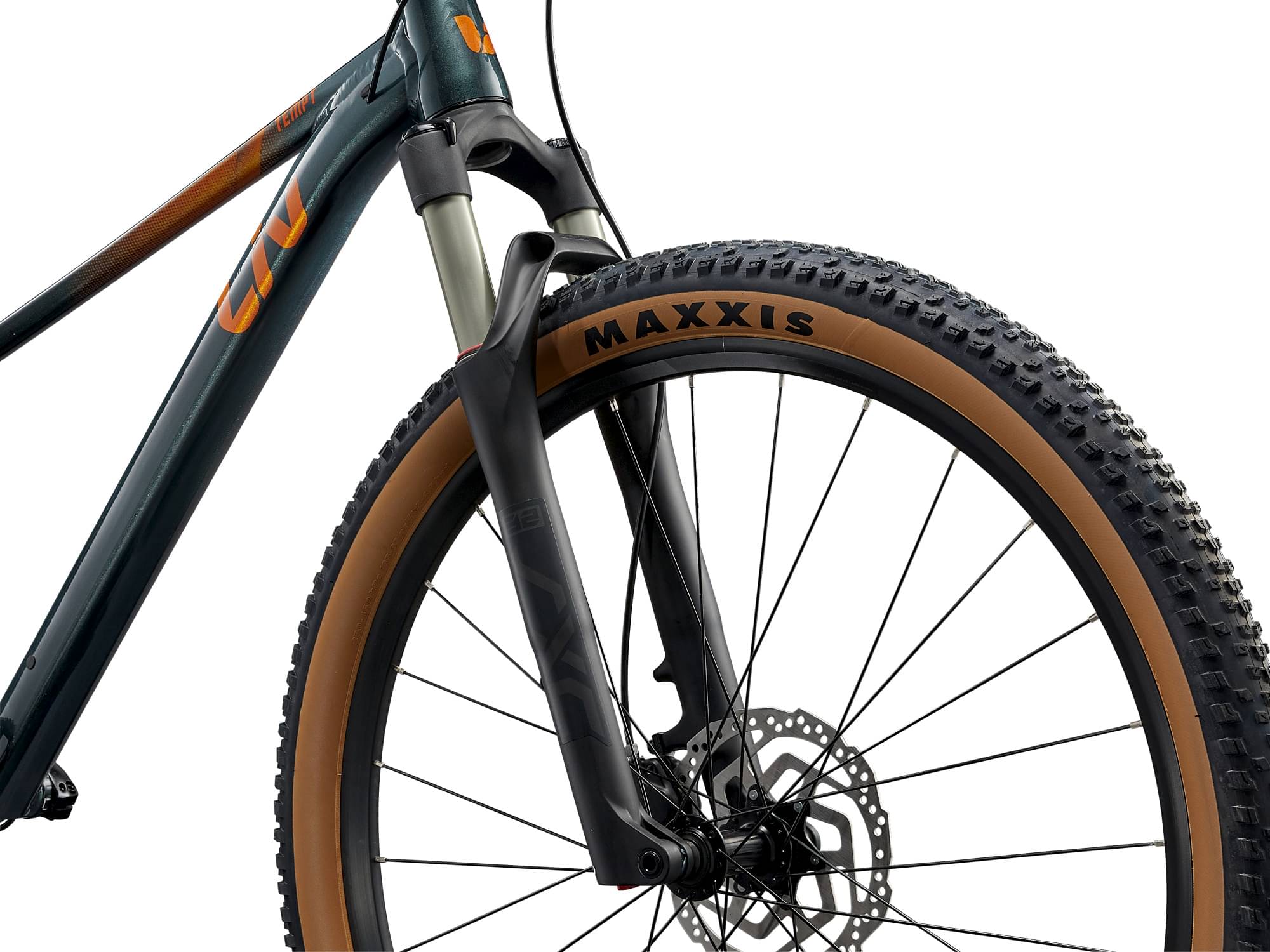

Suspension Fork
SXC32-2 RCL, air sprung, hydraulic lockout, tapered aluminium steerer, aluminium stanchions, 15x110 thru axle XS&S: 80mm travel (27.5) S-L:100mm travel (29)
Rear Shock
N/A

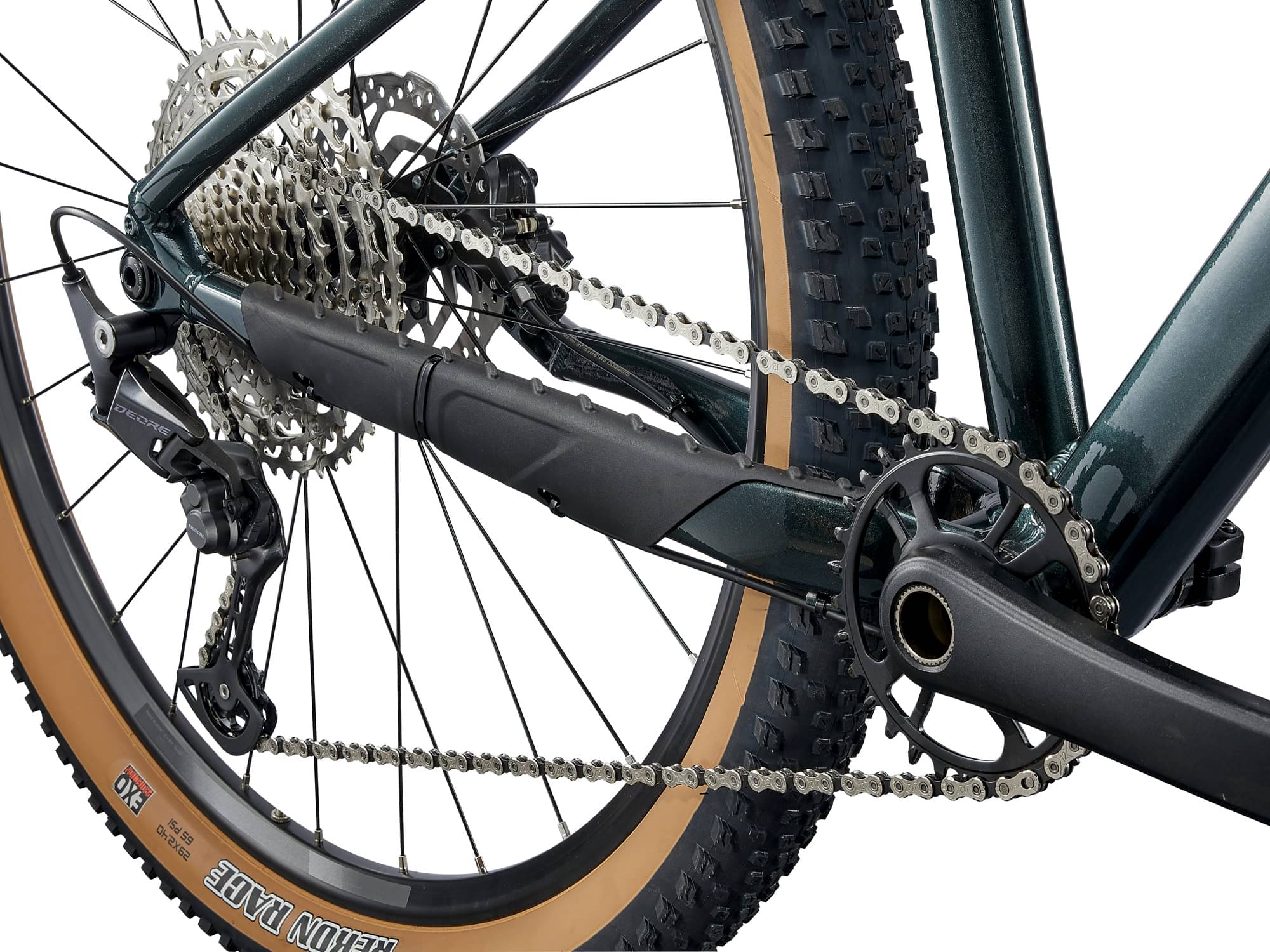

Drivetrain

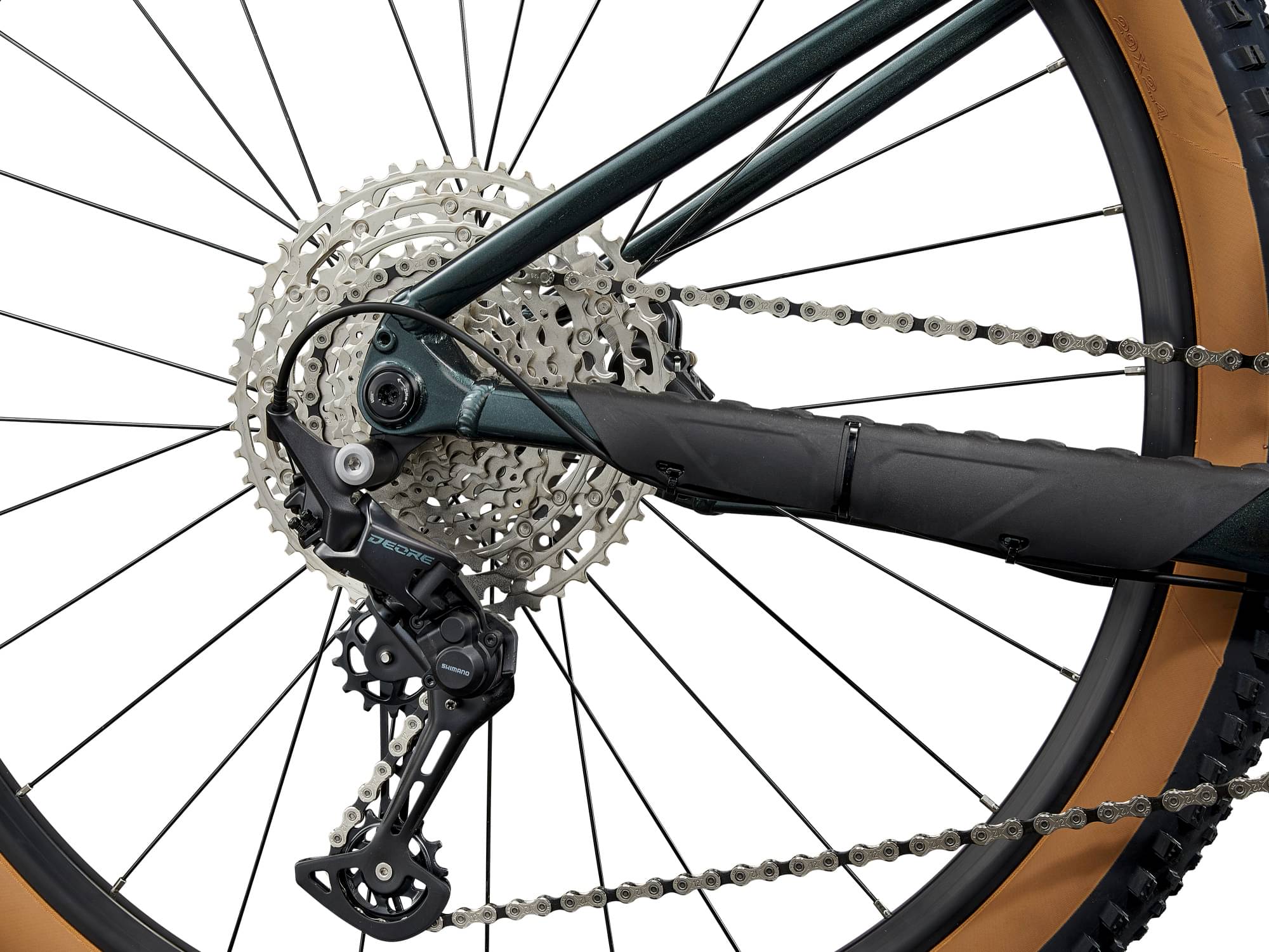

Rear Derailleur
Shimano Deore M6100
Front Derailleur
N/A
Shift Levers
Shimano Deore M6100, 1x12
Cassette
Shimano Deore M6100, 10x51
Crank
ProWheel MPX, 32t (27.5) or 30t (29)
Bottom Bracket
Cartridge
Chain
KMC X12
Pedals
MTB caged
Wheels
Front Hub
Shimano, sealed bearing, [F] 15x110 thru axle, [R] 12x142 thru-axle
Rear Hub
Shimano, sealed bearing, [F] 15x110 thru axle, [R] 12x142 thru-axle
Rims
Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
Spokes
stainless, 14g
Tires
Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead
Brakes
Brakes
Shimano BR-MT200, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm
Brake Levers
Shimano Deore BL-MT200
Cockpit
Stem
Giant Sport, 7-degree rise

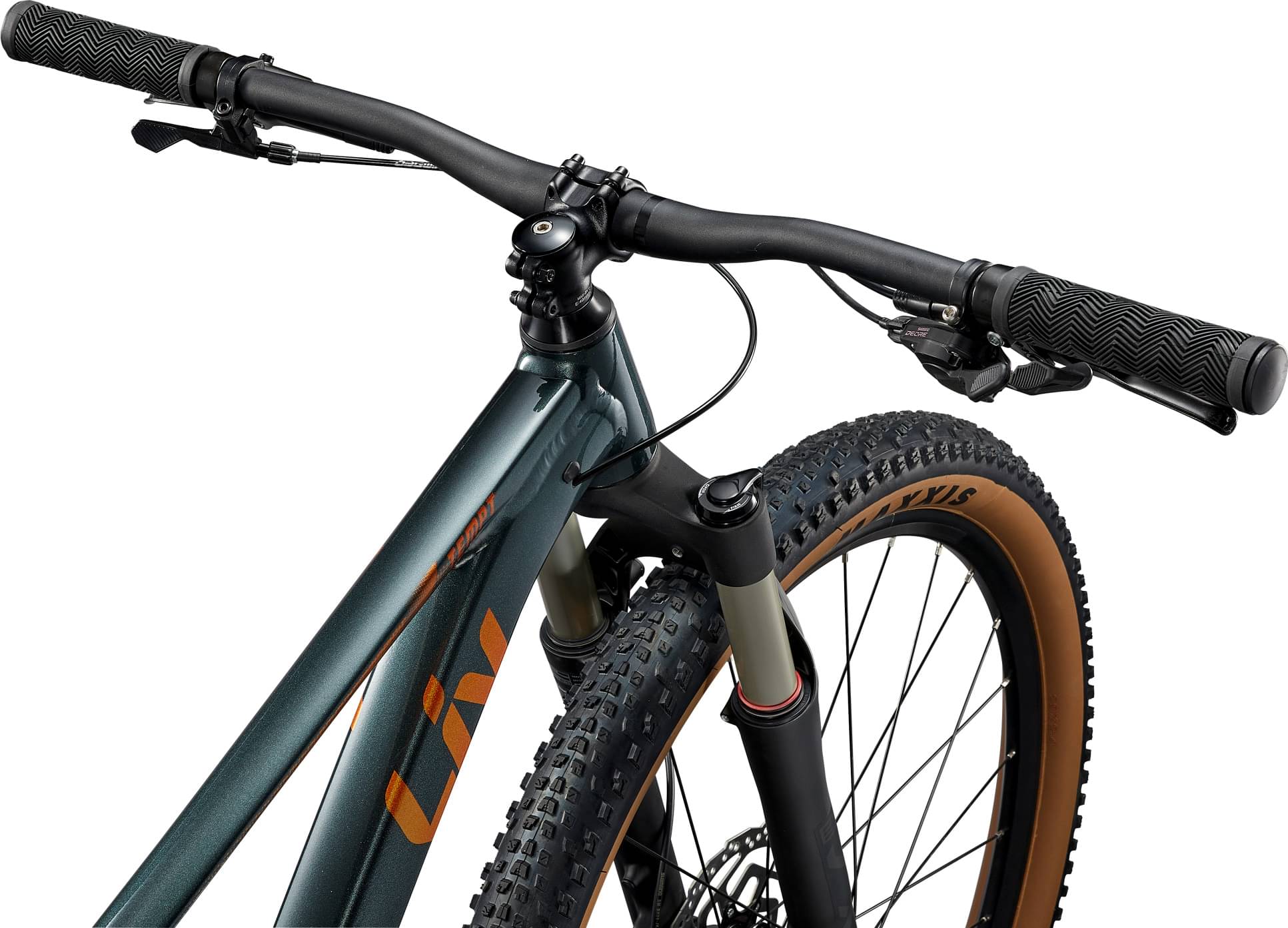

Handlebar
Giant Connect Trail, 31.8mm XS&S: 690mm (27.5) S-L: 750mm (29)
Grips
Giant Sole-O
Seat

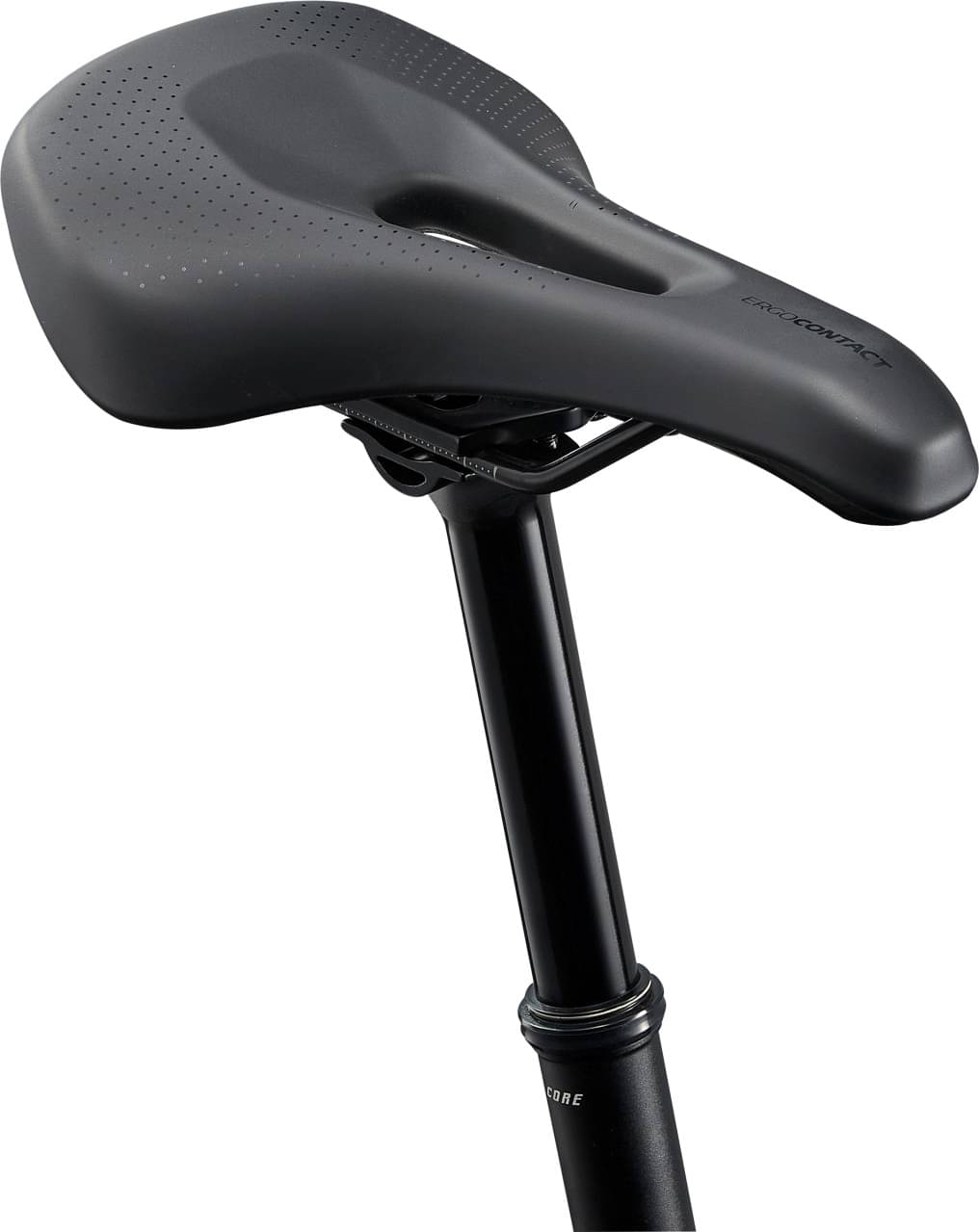

Saddle
Liv ErgoContact Trail

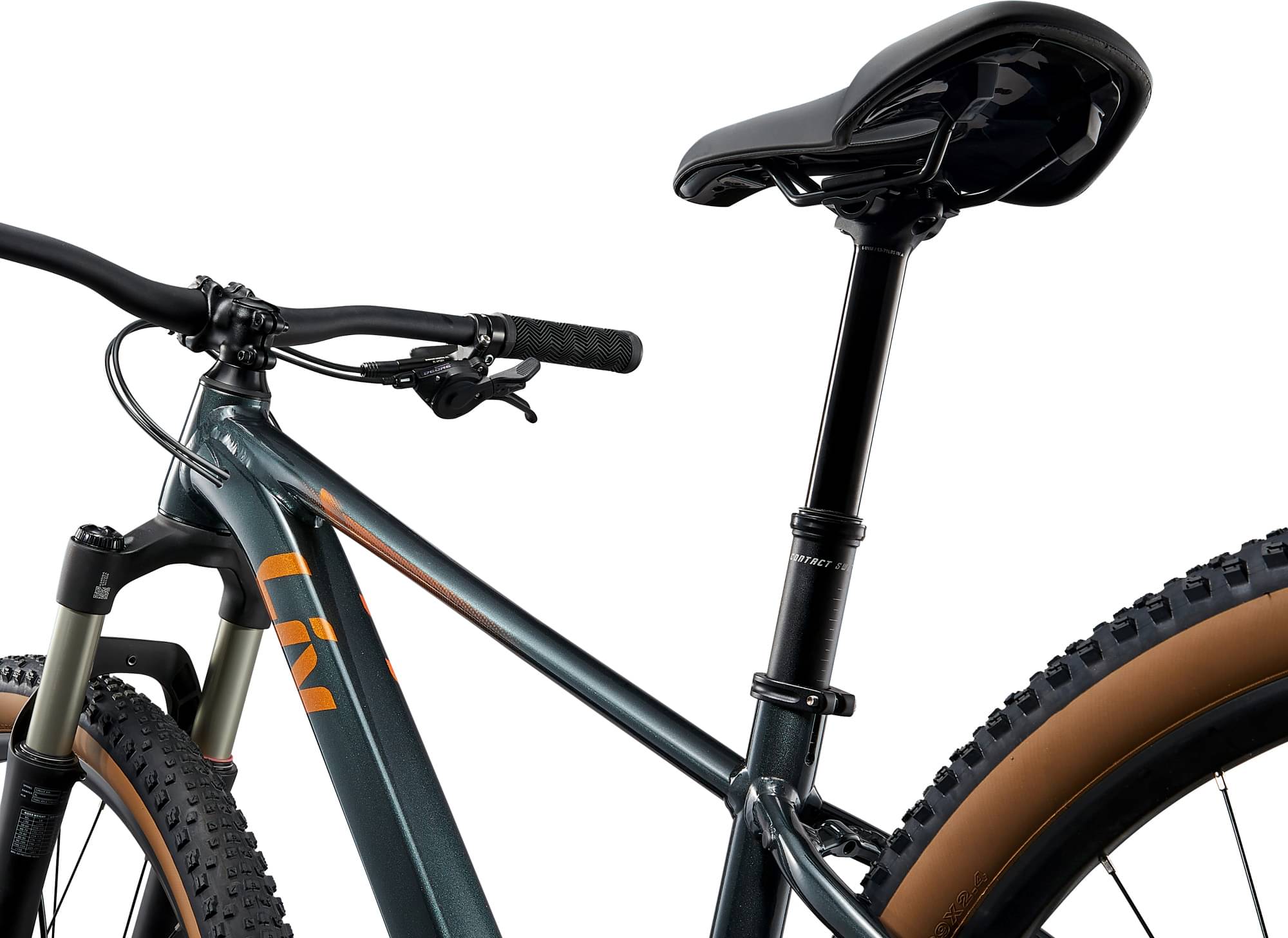

Seatpost
Giant Contact Switch Core 2 position dropper post, 30.9mm XS&S: 100mm drop x 350mm M&L: 120mm drop x 400mm (29)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.438 mm | 1.383 mm | 1.457 mm | 1.394 mm | 1.402 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 319 mm | 319 mm | 319 mm |
| Front Center | 644 mm | 665 mm | 680 mm | 708 mm | 710 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 51 mm |
| Trail | 105.2 mm | 105.2 mm | 108.9 mm | 108.9 mm | 94.3 mm |
| Stack | 548 mm | 553 mm | 593 mm | 602 mm | 610 mm |
| Reach | 381 mm | 400 mm | 407 mm | 432 mm | 435 mm |
| Top Tube Length | 538 mm | 558 mm | 571 mm | 599 mm | 610 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74.5 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 330 mm | 365 mm | 380 mm | 410 mm | 450 mm |
| Head Tube Angle | 67 ° | 67 ° | 67.5 ° | 67.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 95 mm | 90 mm | 100 mm | 105 mm |
| Chainstay Length | 440 mm | 440 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1080 mm | 1101 mm | 1129 mm | 1158 mm | 1160 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 680 mm | 689 mm | 689 mm | 708 mm | 757 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 158 cm | 158 cm | 164 cm | 170 cm |
| Rider Max Height | 163 cm | 169 cm | 169 cm | 175 cm | 181 cm |
