Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 163cm
SM
158cm - 169cm
SM
158cm - 169cm
MD
164cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

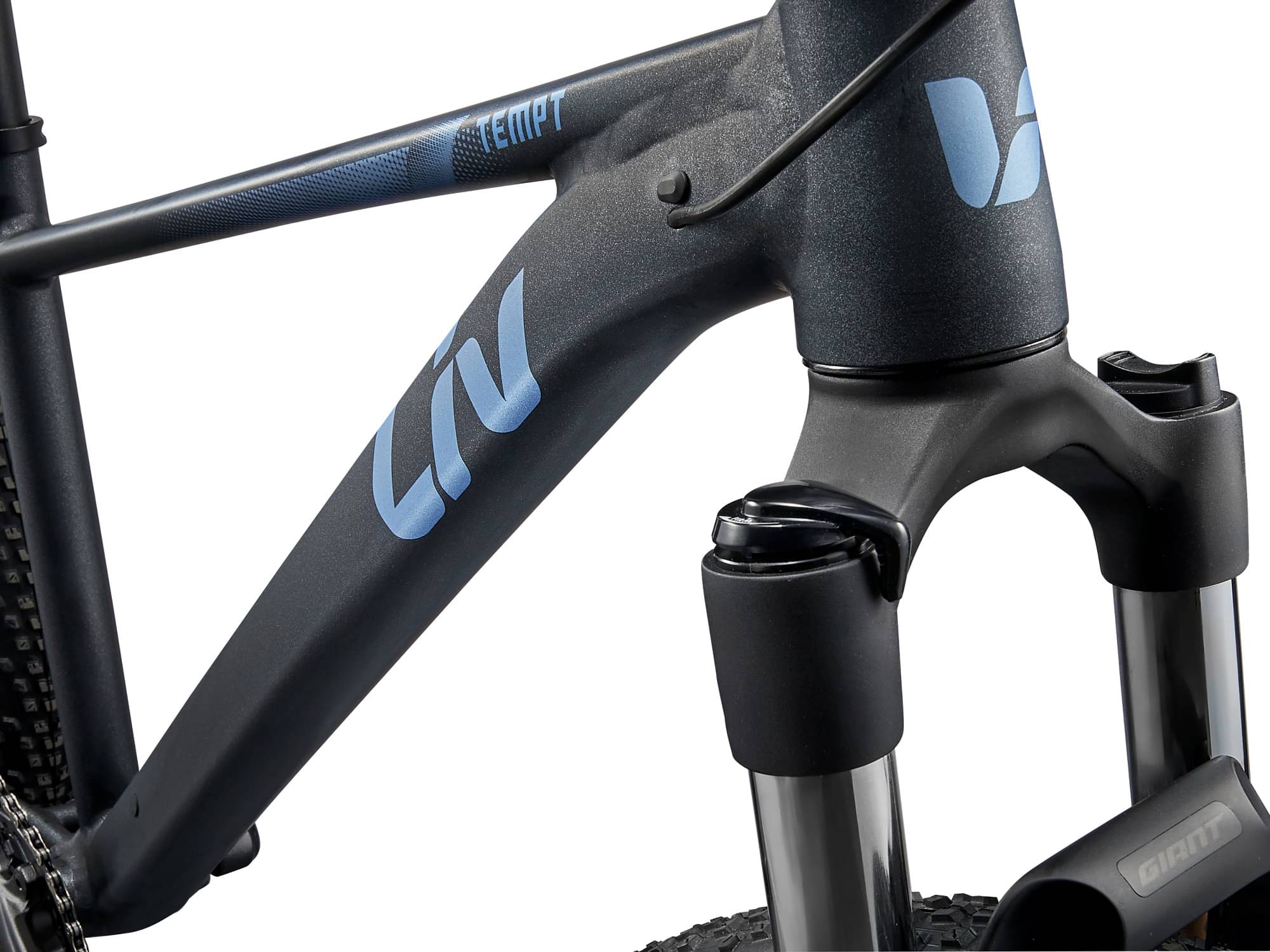

Frame
ALUXX-grade aluminium, disc

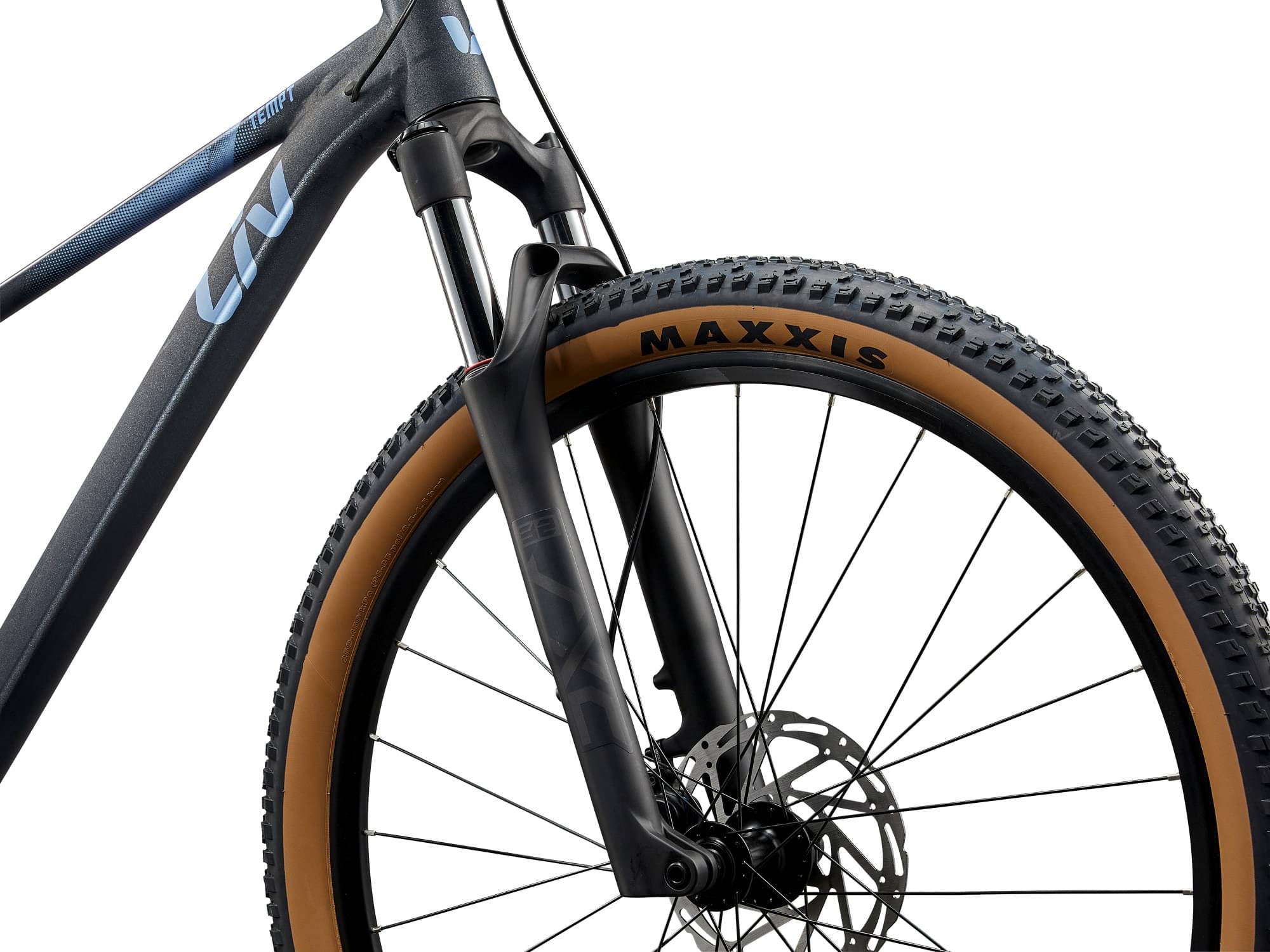

Suspension Fork
SXC32-3 RL, coil spring, Boost 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (29)
Rear Shock
N/A

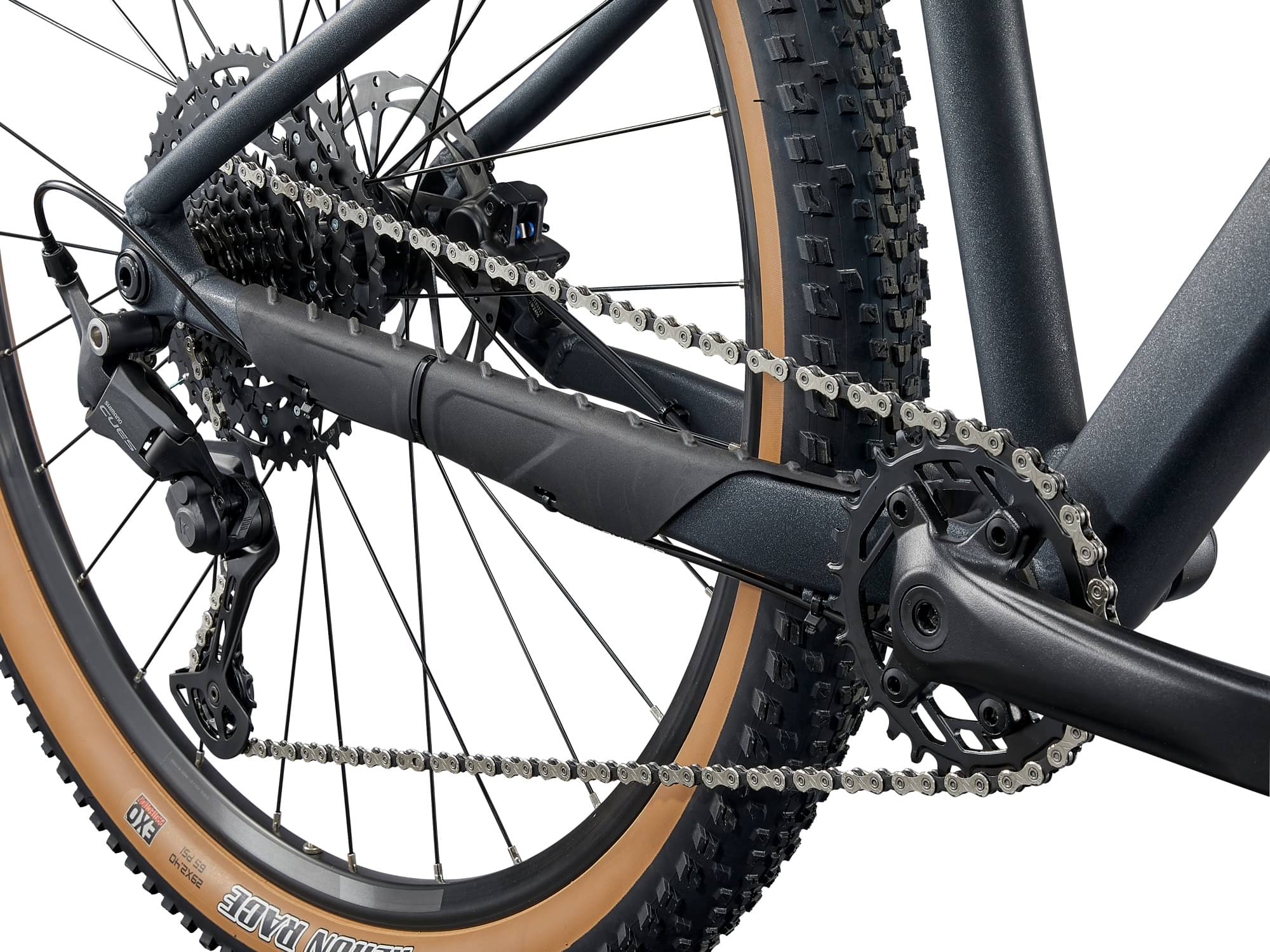

Drivetrain

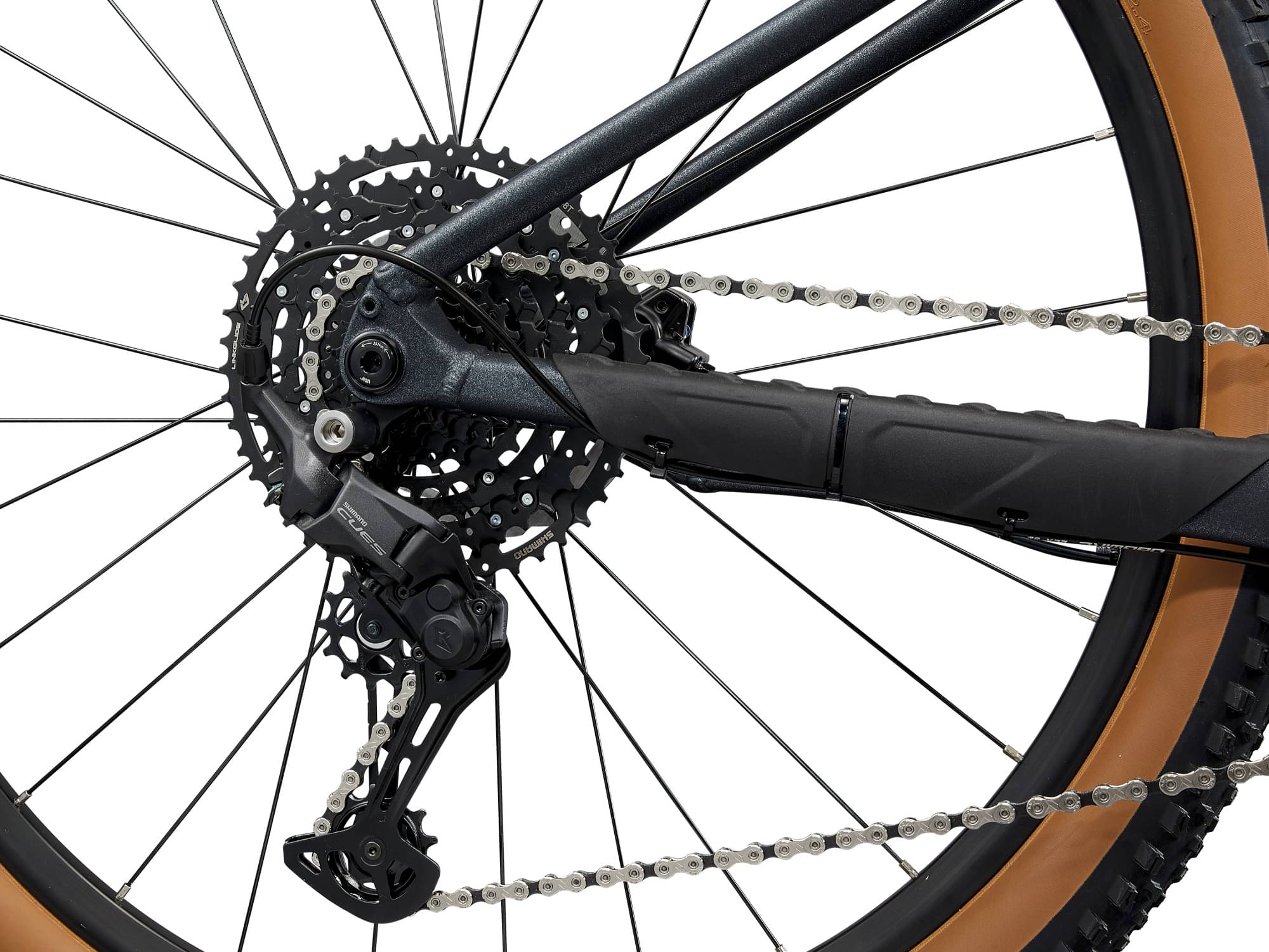

Rear Derailleur
Shimano CUES, U6000, Shadow+
Front Derailleur
N/A
Shift Levers
Shimano CUES, SL-6000, 1x10
Cassette
Shimano CUES CS-LG300, 11x48
Crank
ProWheel Charm, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29)
Bottom Bracket
Cartridge
Chain
KMC X11
Pedals
MTB caged
Wheels
Front Hub
Alloy, sealed
Rear Hub
Alloy, sealed
Rims
Giant GX03V 29 or 27.5, alloy, double wall
Spokes
Stainless, 14g

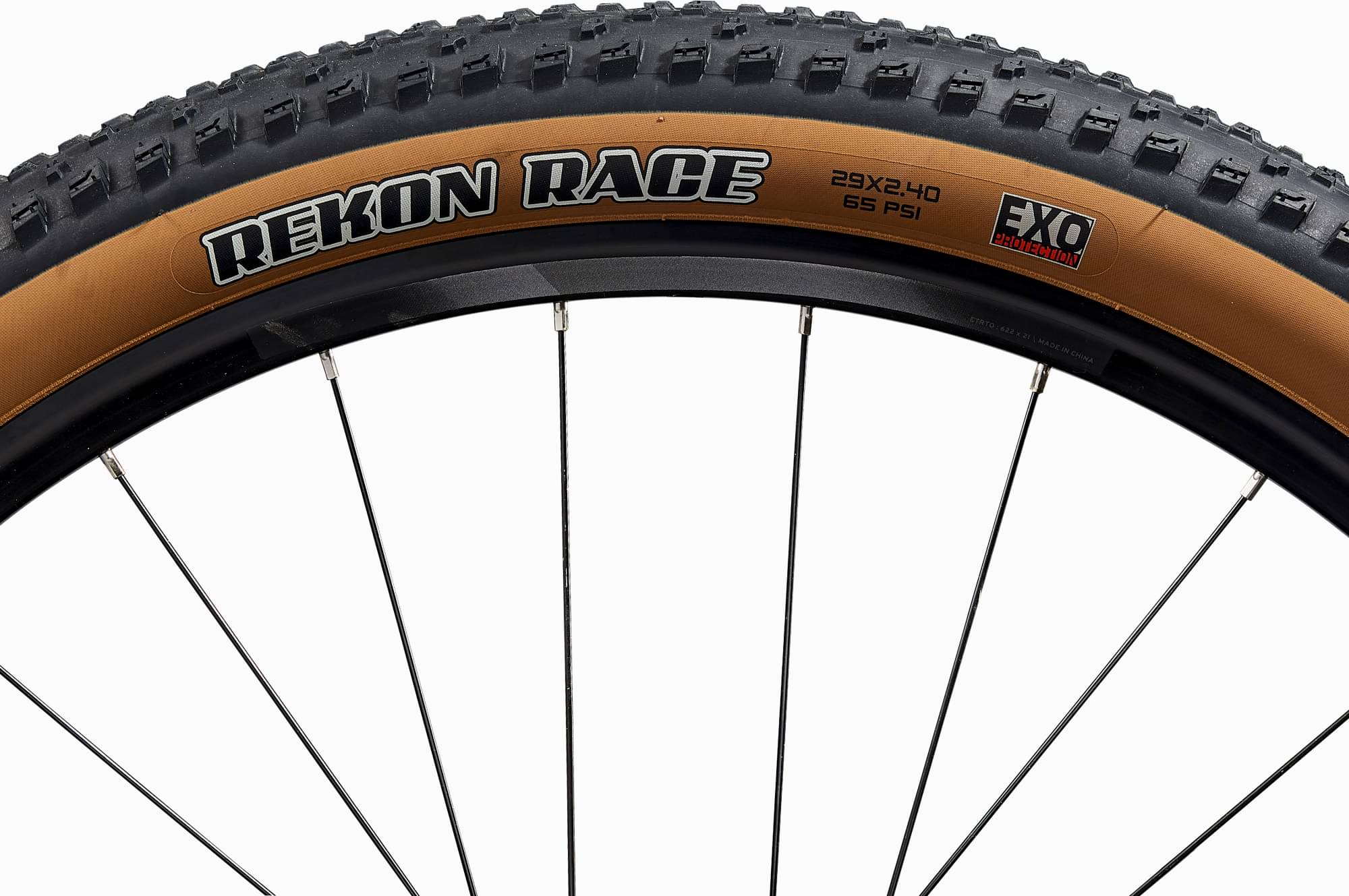

Tires
Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead
Brakes
Brakes

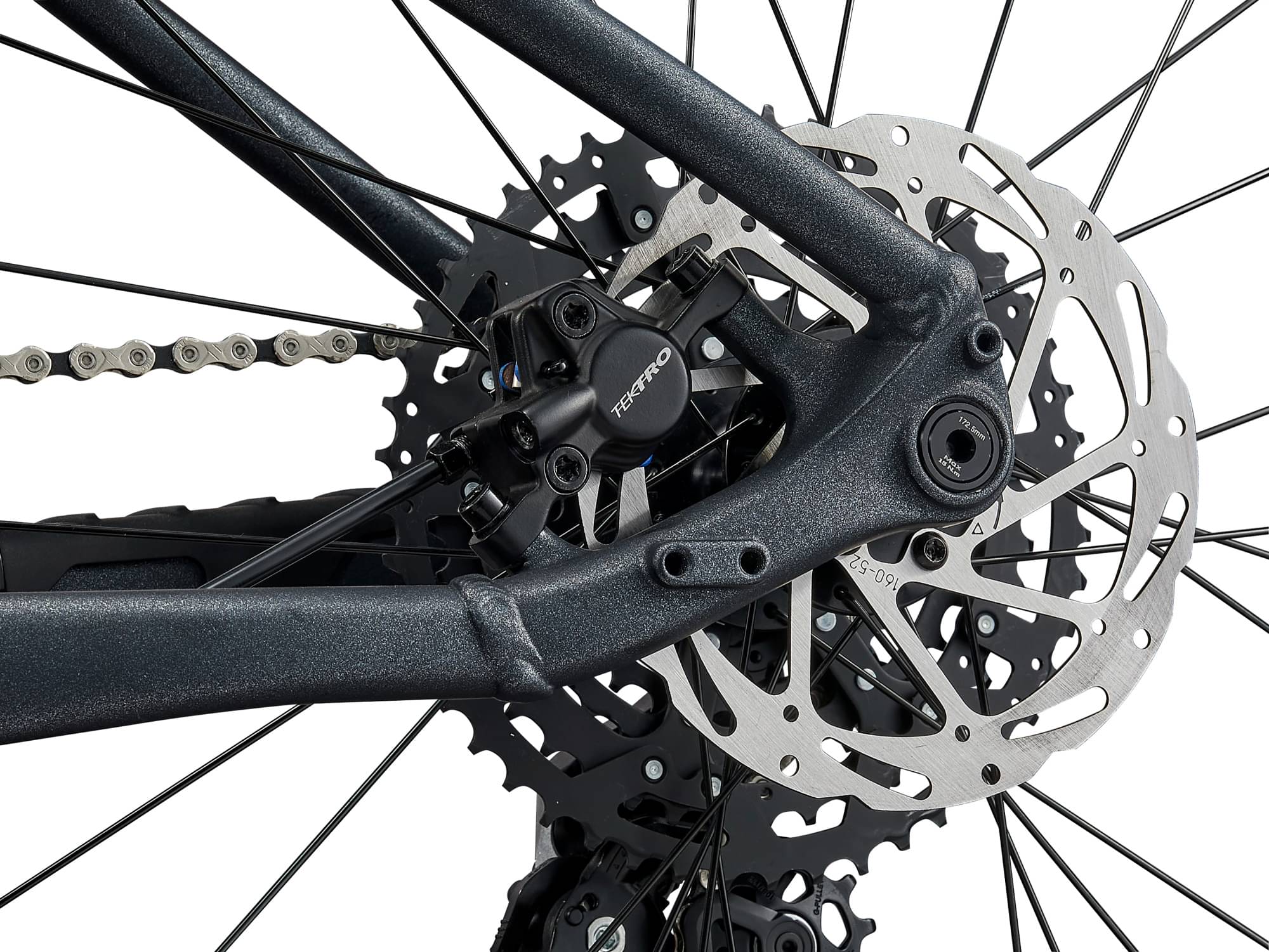

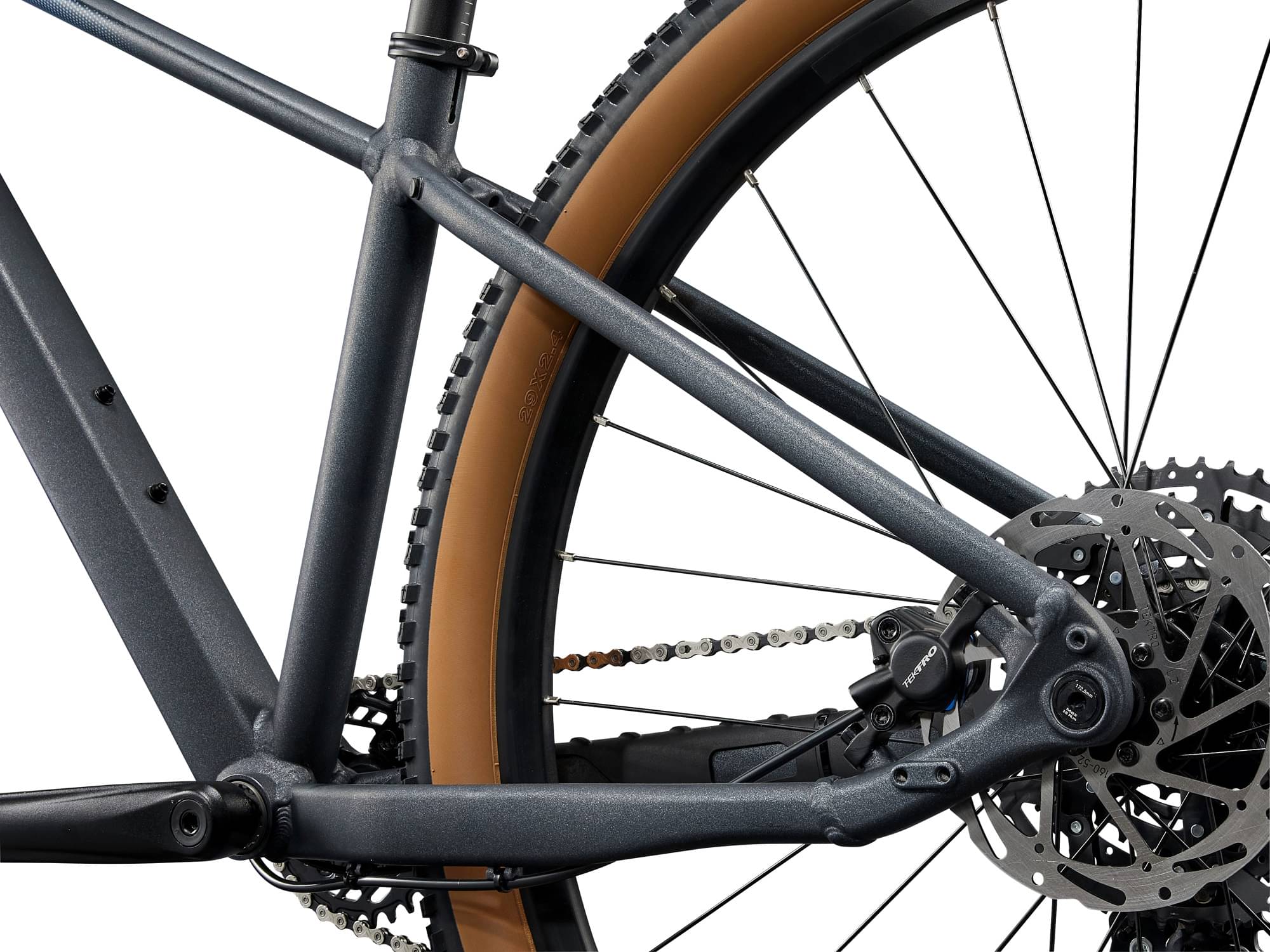

Tektro TKD149, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers
Tektro TKD143
Cockpit
Stem
Giant Sport, 7-degree XS: 40mm (27.5) S: 40mm (27.5) / 40mm (29) M: 50mm (29)
Handlebar
Giant Connect Trail, 31.8mm
Grips
Giant Sole-O
Seat

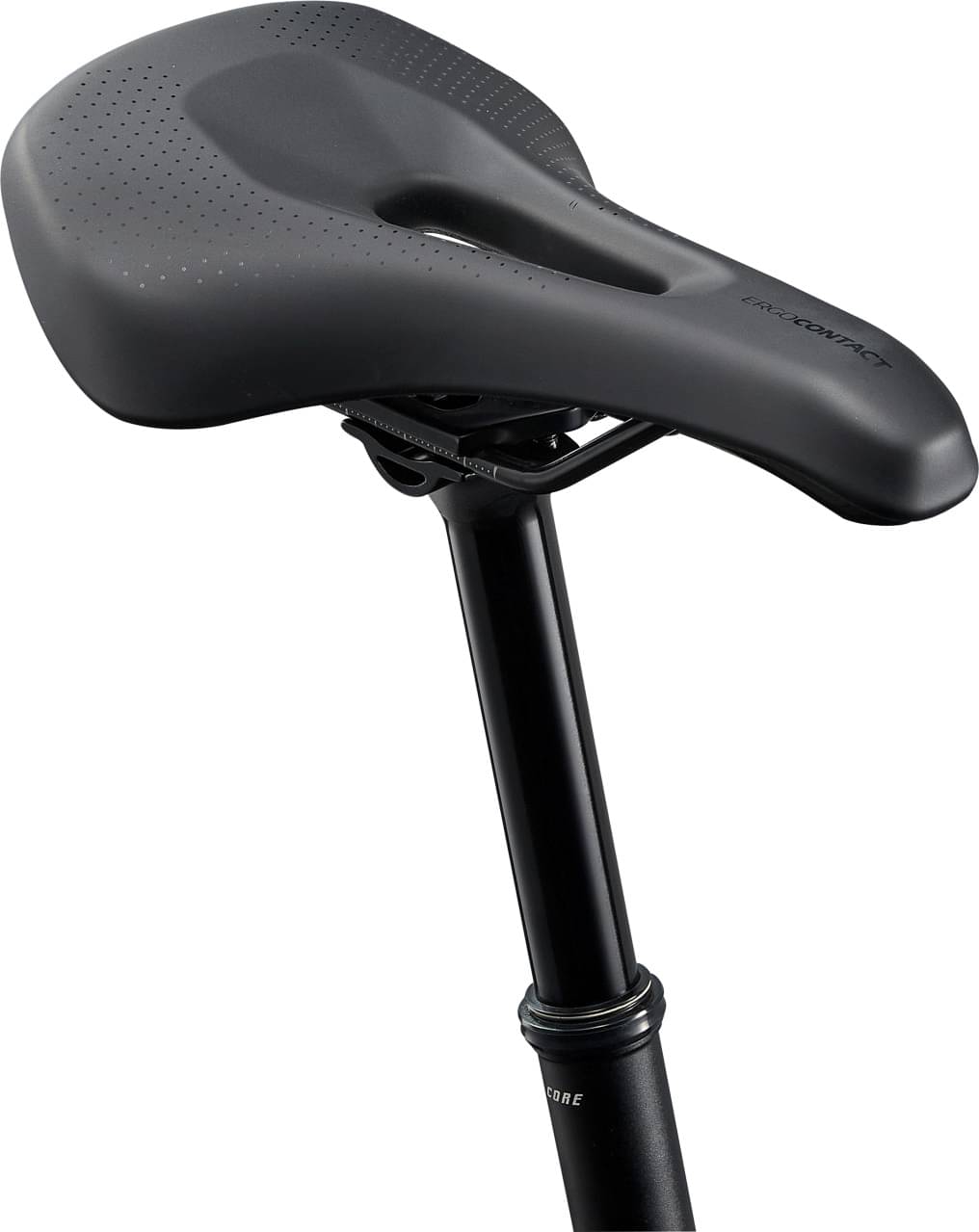

Saddle
Liv ErgoContact Trail

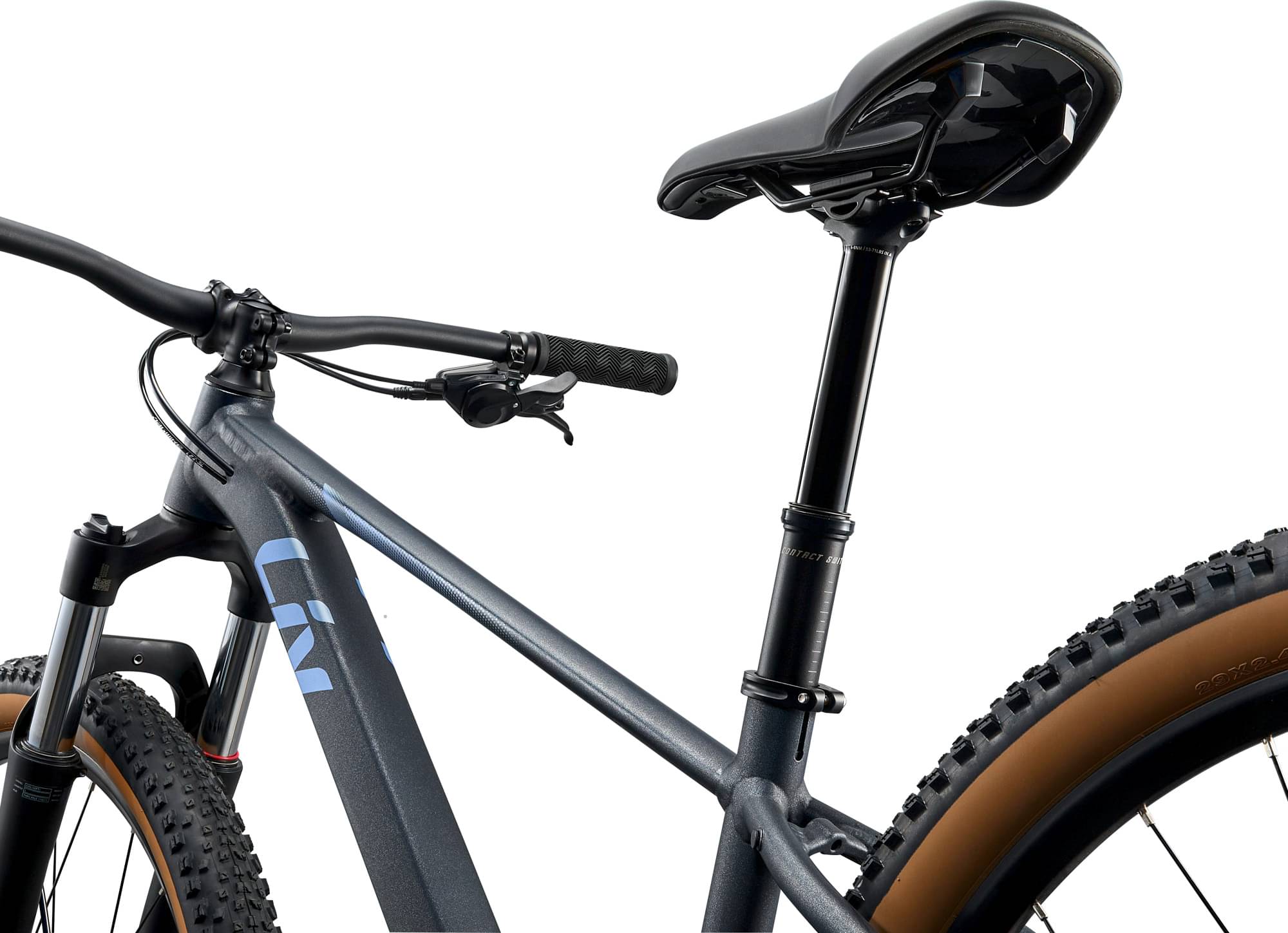

Seatpost
Giant Contact Switch Core dropper, remote XS: 100mm travel / 30.9 x 350mm (27.5") S: 100mm travel / 30.9 x 350mm (27.5") S: 125mm travel / 30.9 x 400mm (29) M: 125mm travel / 30.9 x 400mm (29)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.438 mm | 1.383 mm | 1.457 mm | 1.394 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 319 mm | 319 mm |
| Front Center | 644 mm | 665 mm | 680 mm | 708 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 105.2 mm | 105.2 mm | 108.9 mm | 108.9 mm |
| Stack | 548 mm | 553 mm | 593 mm | 602 mm |
| Reach | 381 mm | 400 mm | 407 mm | 432 mm |
| Top Tube Length | 538 mm | 558 mm | 571 mm | 599 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 330 mm | 365 mm | 380 mm | 410 mm |
| Head Tube Angle | 67 ° | 67 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 95 mm | 90 mm | 100 mm |
| Chainstay Length | 440 mm | 440 mm | 455 mm | 455 mm |
| Wheelbase | 1080 mm | 1101 mm | 1129 mm | 1158 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 55 mm | 55 mm |
| Standover Height | 680 mm | 689 mm | 689 mm | 708 mm |
| Wheels | 27" | 27" | 29" | 29" |
| Rider Min Height | 150 cm | 158 cm | 158 cm | 164 cm |
| Rider Max Height | 163 cm | 169 cm | 169 cm | 175 cm |
