Bike details
Overview
Key information split into simple groups.

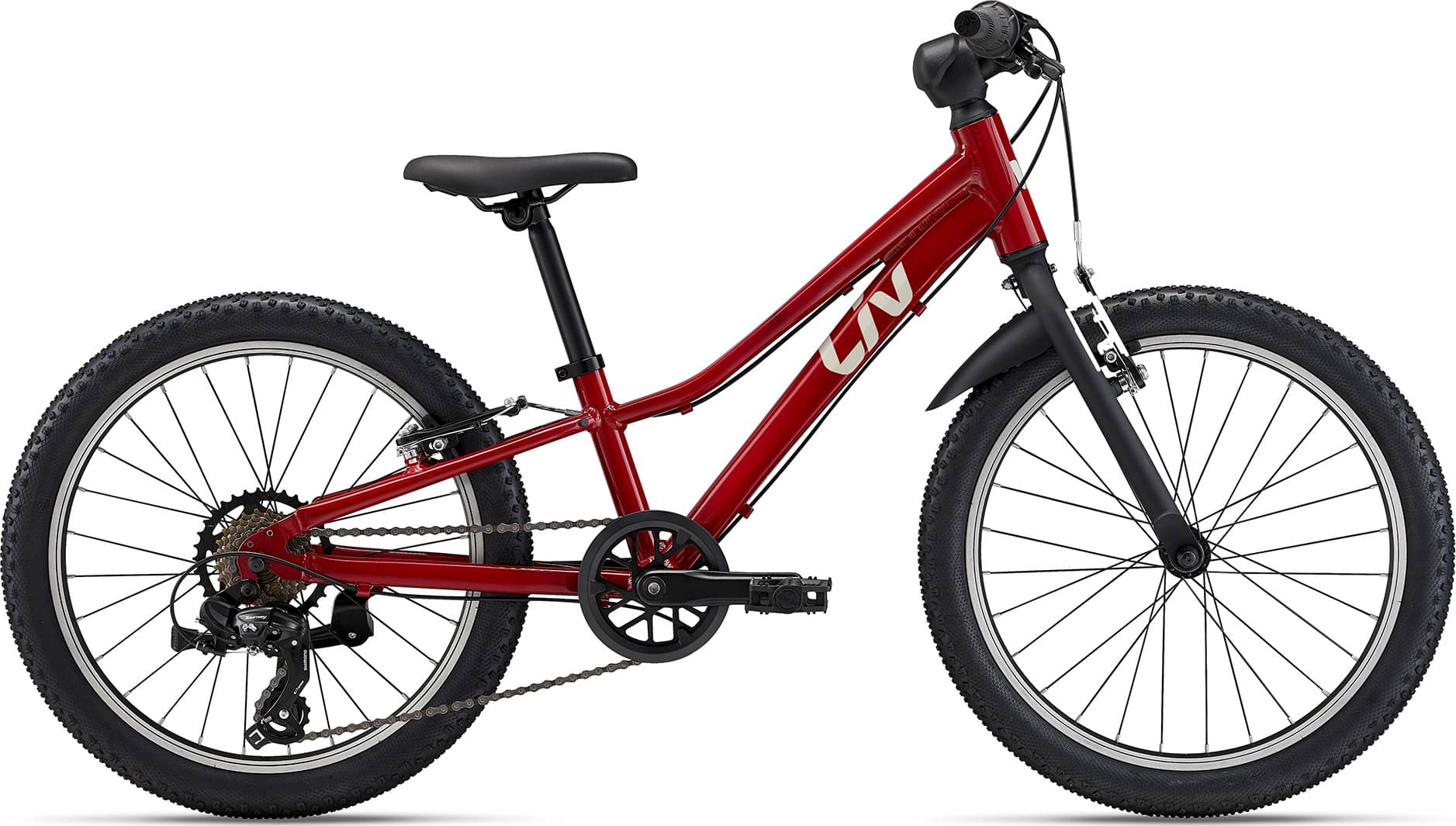

Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Groupset Tourney, Shimano -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
One Size
118cm - 138cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-grade aluminum
Suspension Fork
High Tensile Steel Rigid Fork, 1-1/8"
Rear Shock
N/A

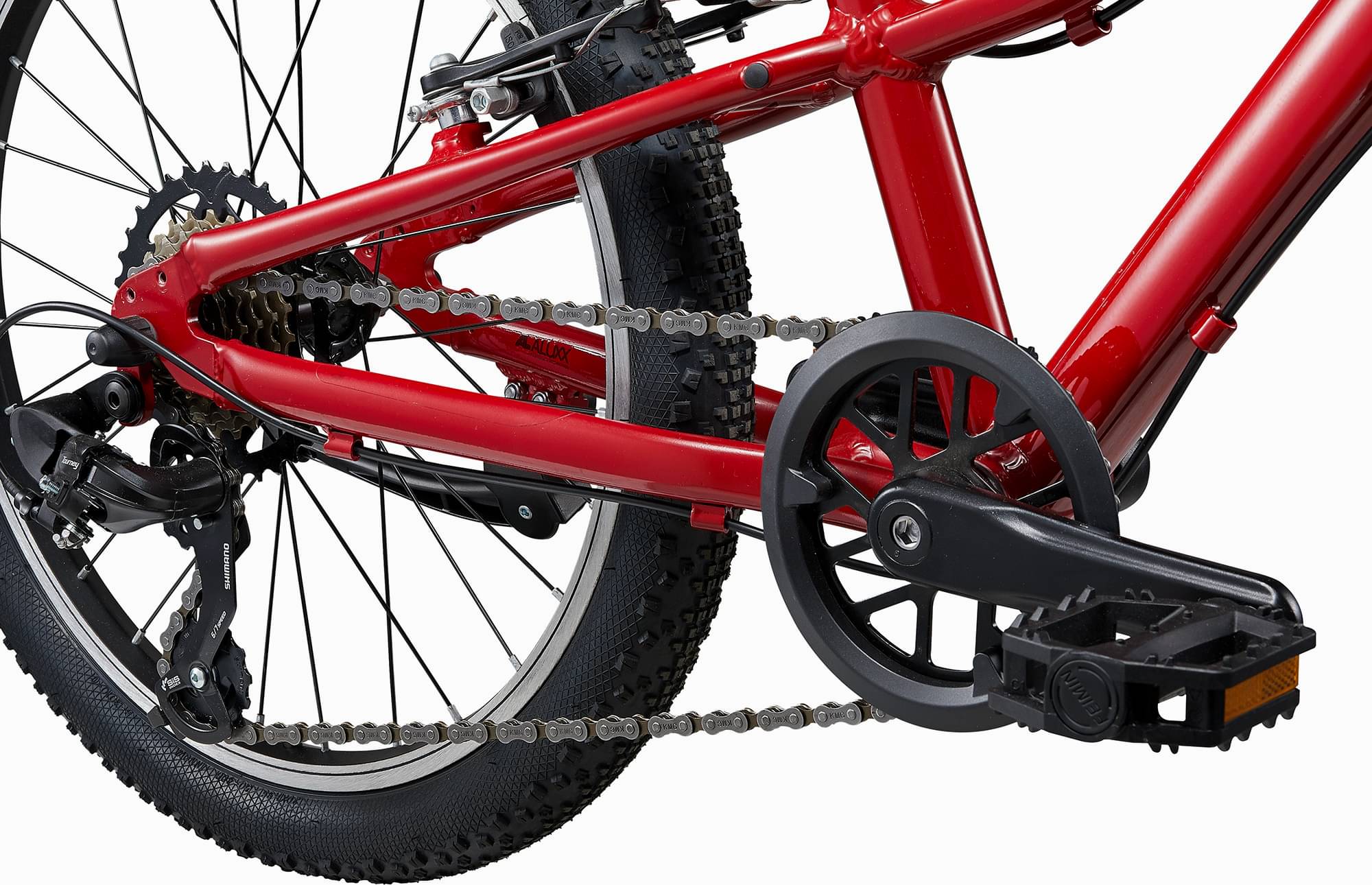

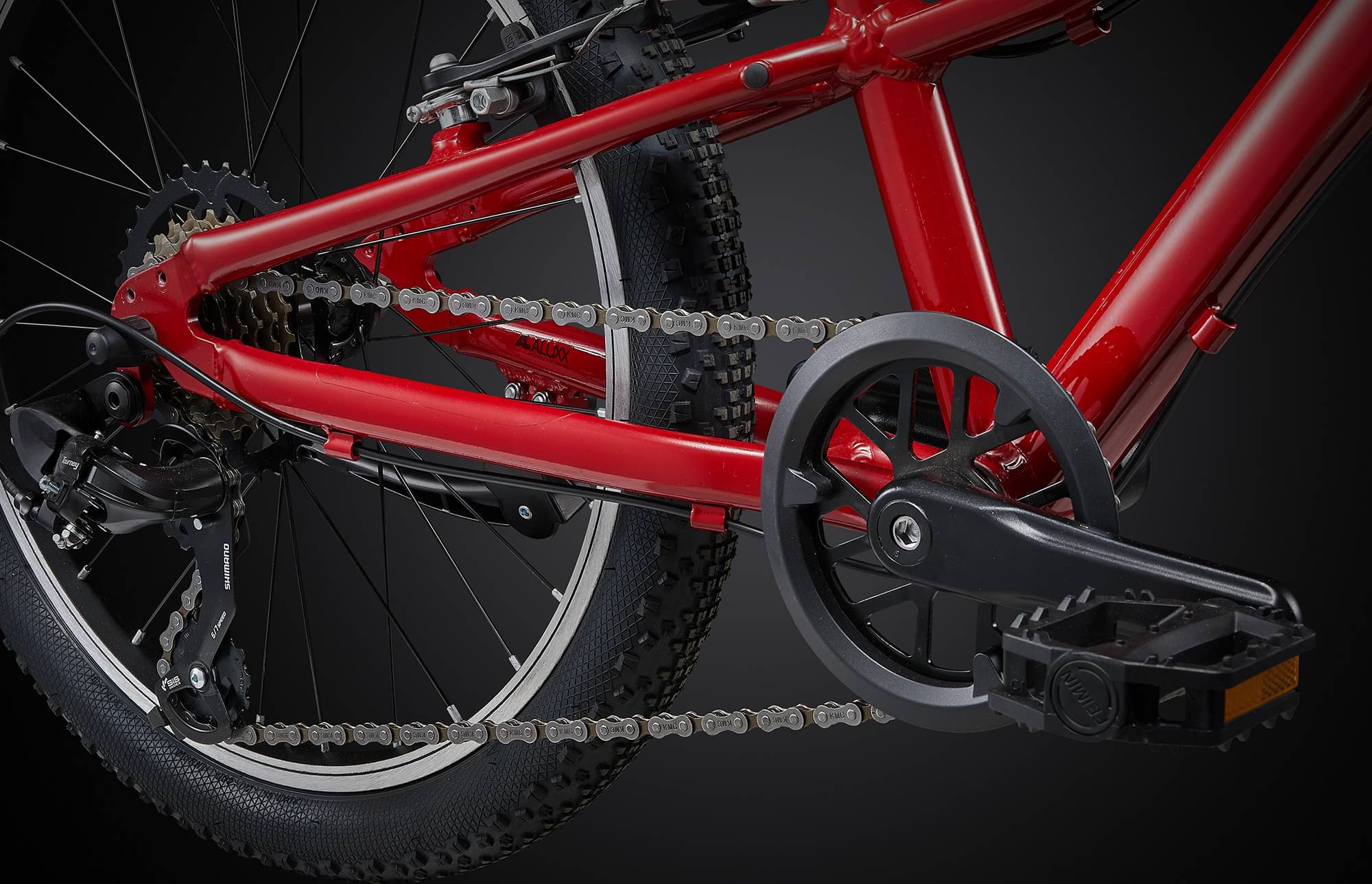

Drivetrain

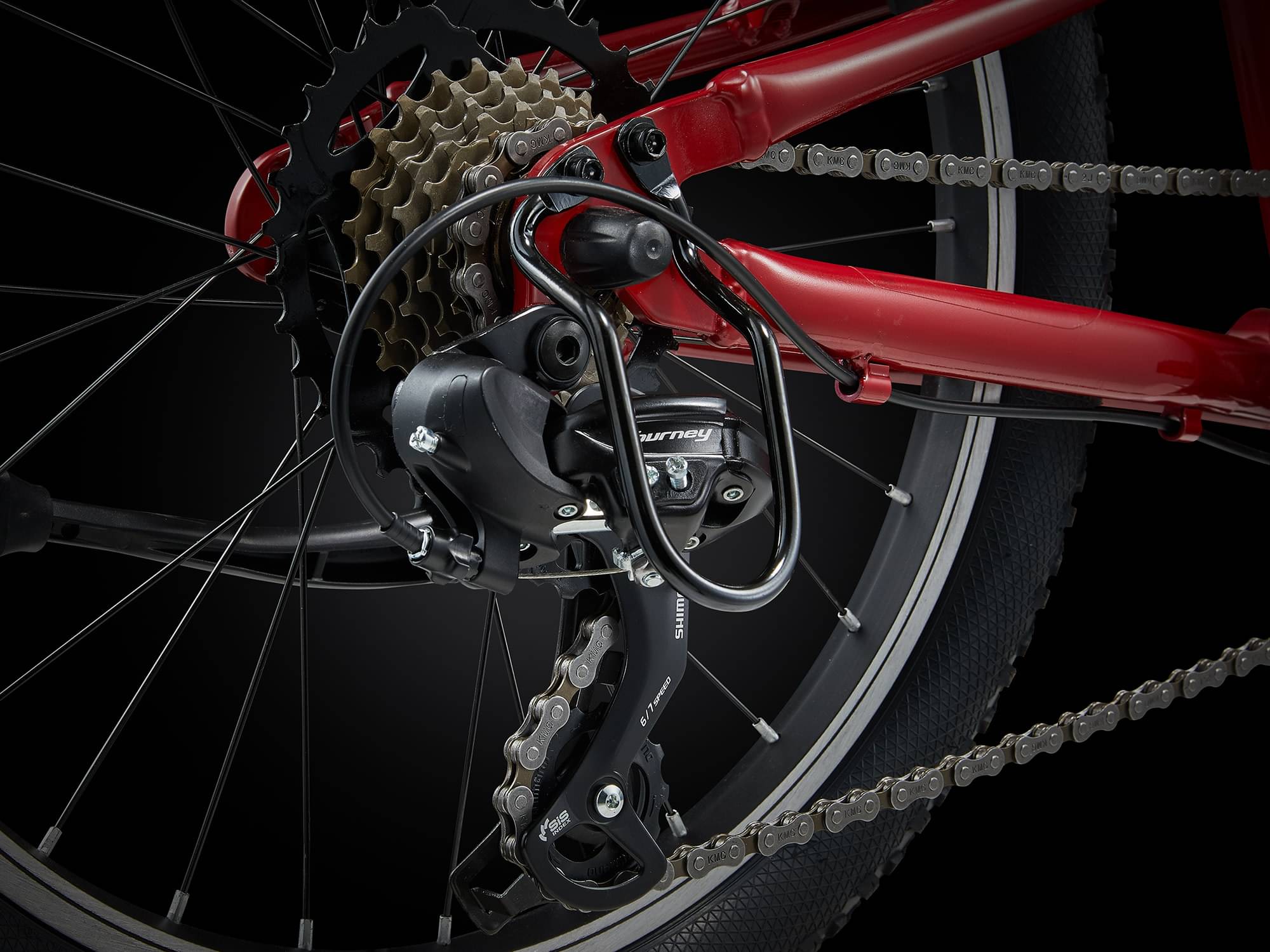

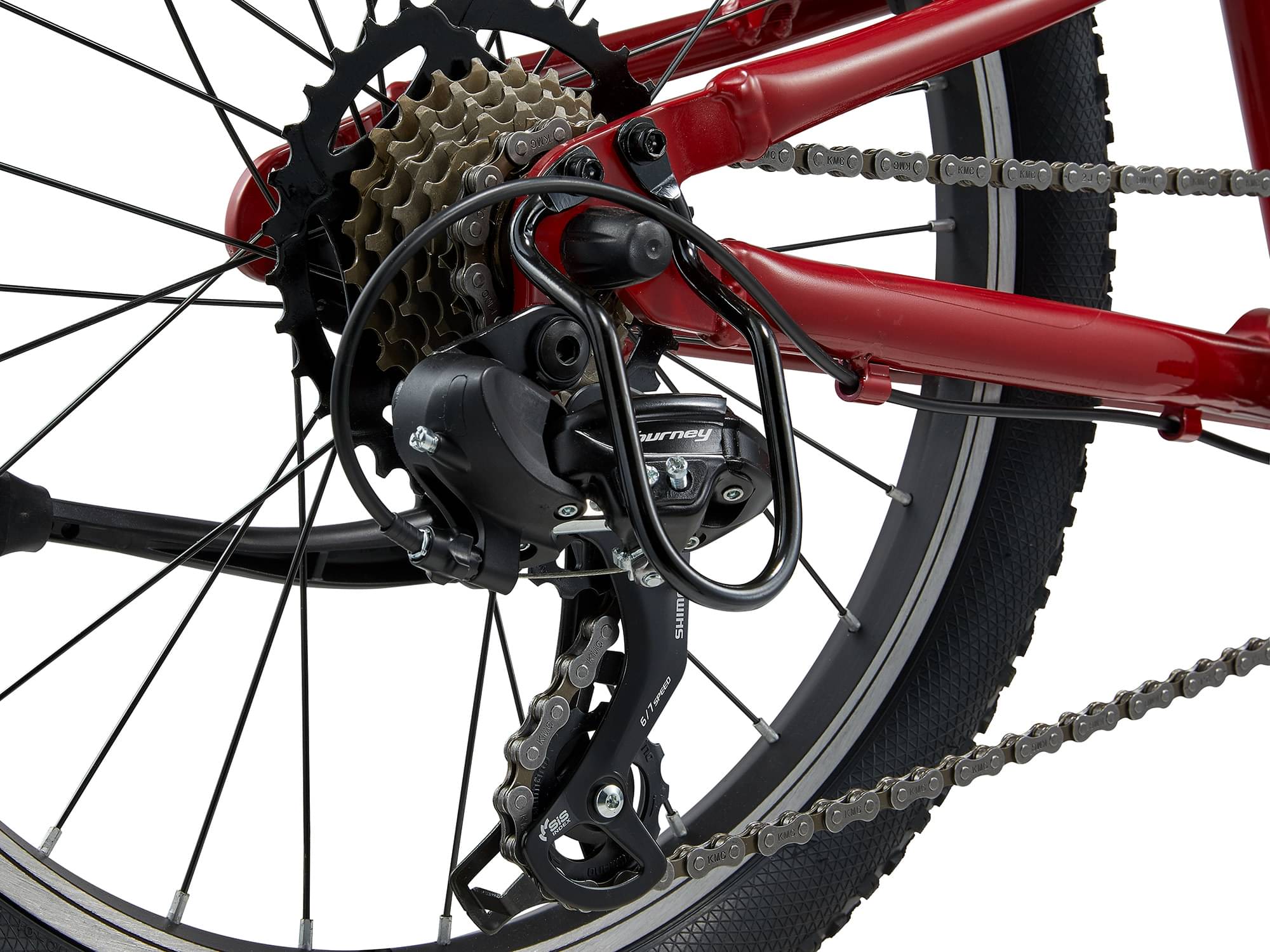

Rear Derailleur
Shimano Tourney RDTY300
Front Derailleur
N/A
Shift Levers
Shimano Revoshift SL-RV2007R
Cassette
14x34
Crank
Alloy 32T x 130mm with Chain Guard
Bottom Bracket
semi-cartridge
Chain
KMC HV500
Pedals
One-Piece Black PP, 9/16"
Wheels
Front Hub
Nutted Type, 28H
Rear Hub
Nutted Type, 28H
Rims
Giant Kids 20", 6061 Aluminum
Spokes
14g
Tires
Giant Junior Sport 20x1.95",22 TPI

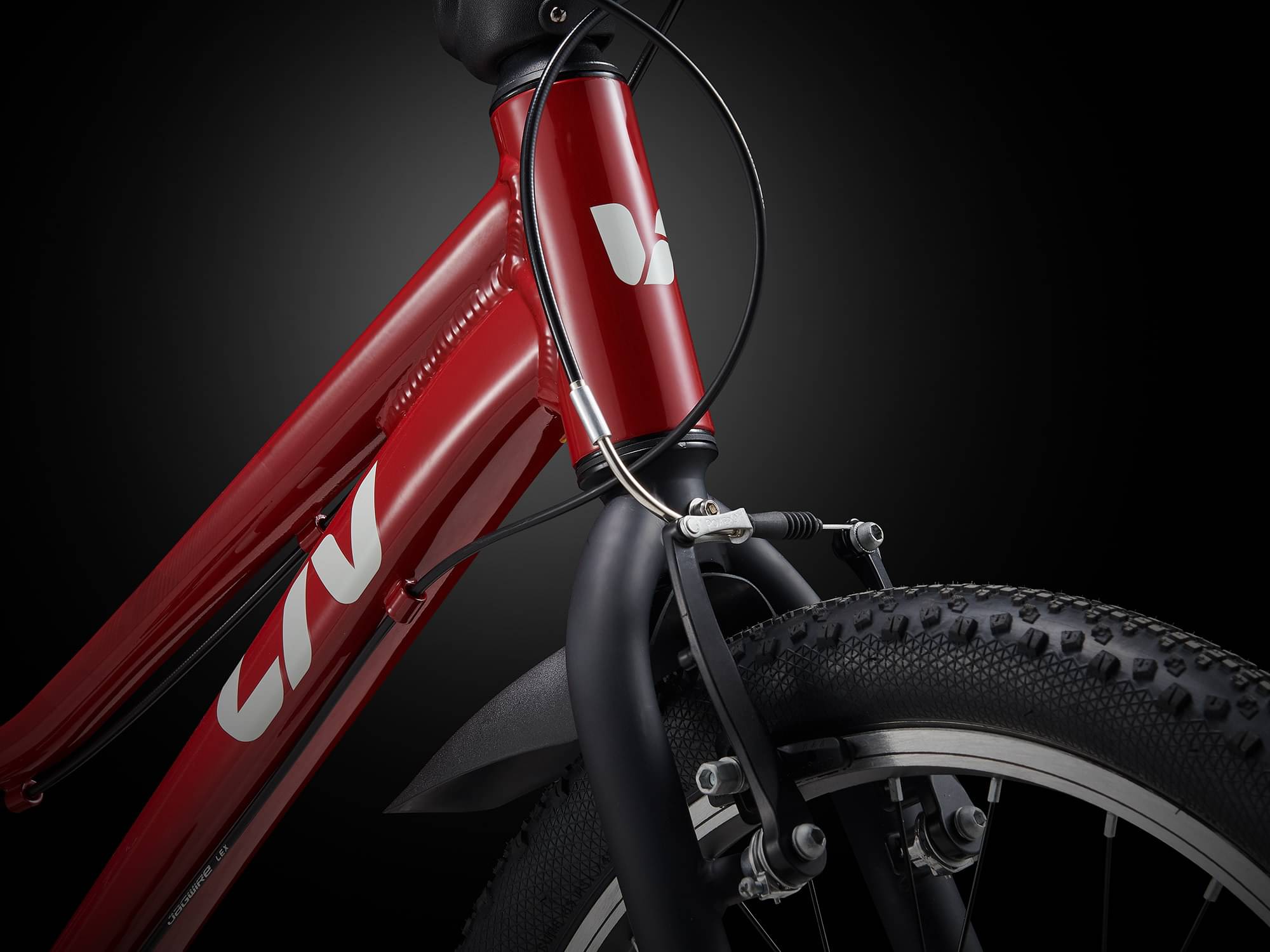

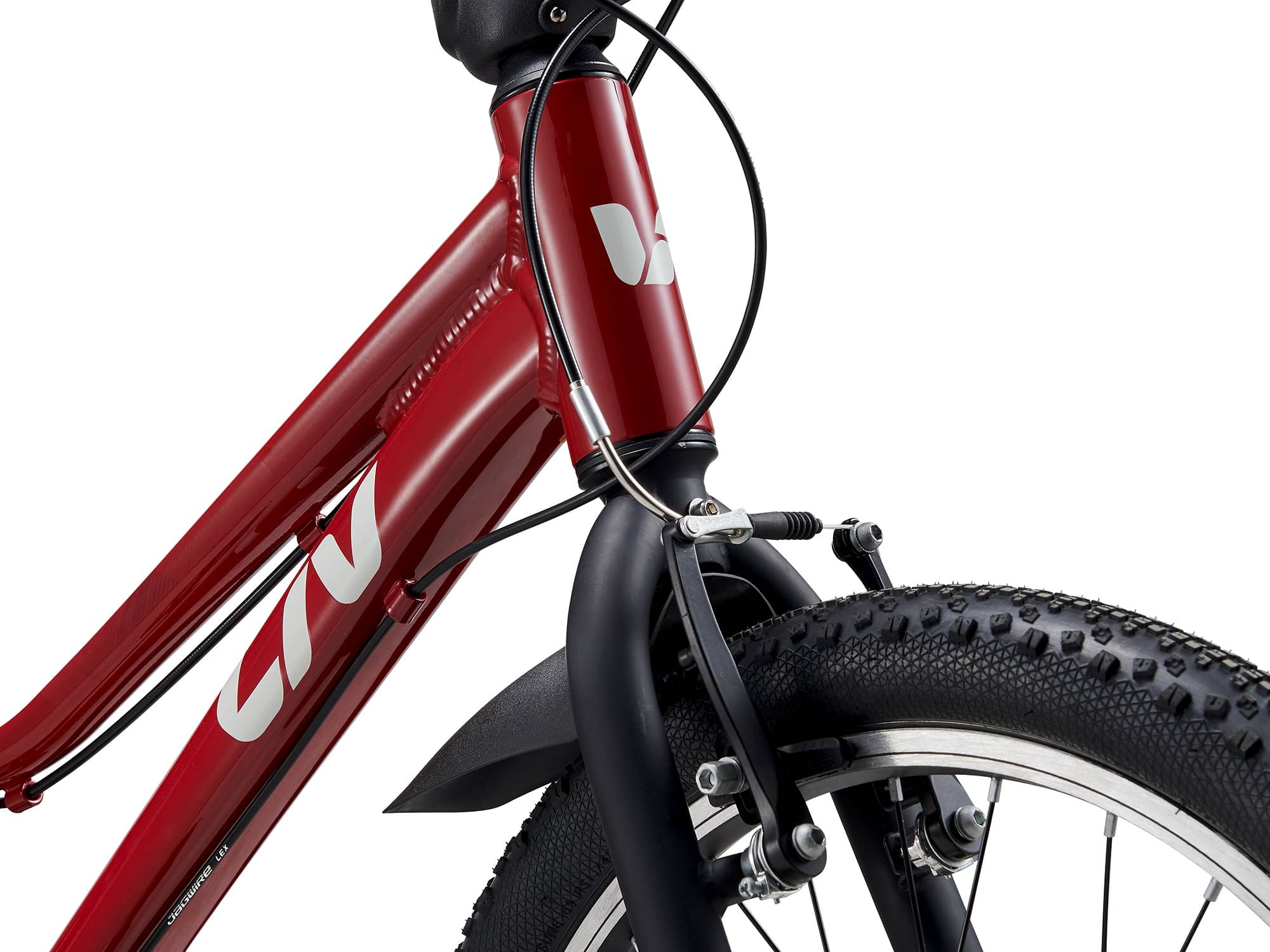

Brakes
Brakes
alloy, linear pull
Brake Levers
Alloy, Junior MTB Short reach w/ higher leverage ratio

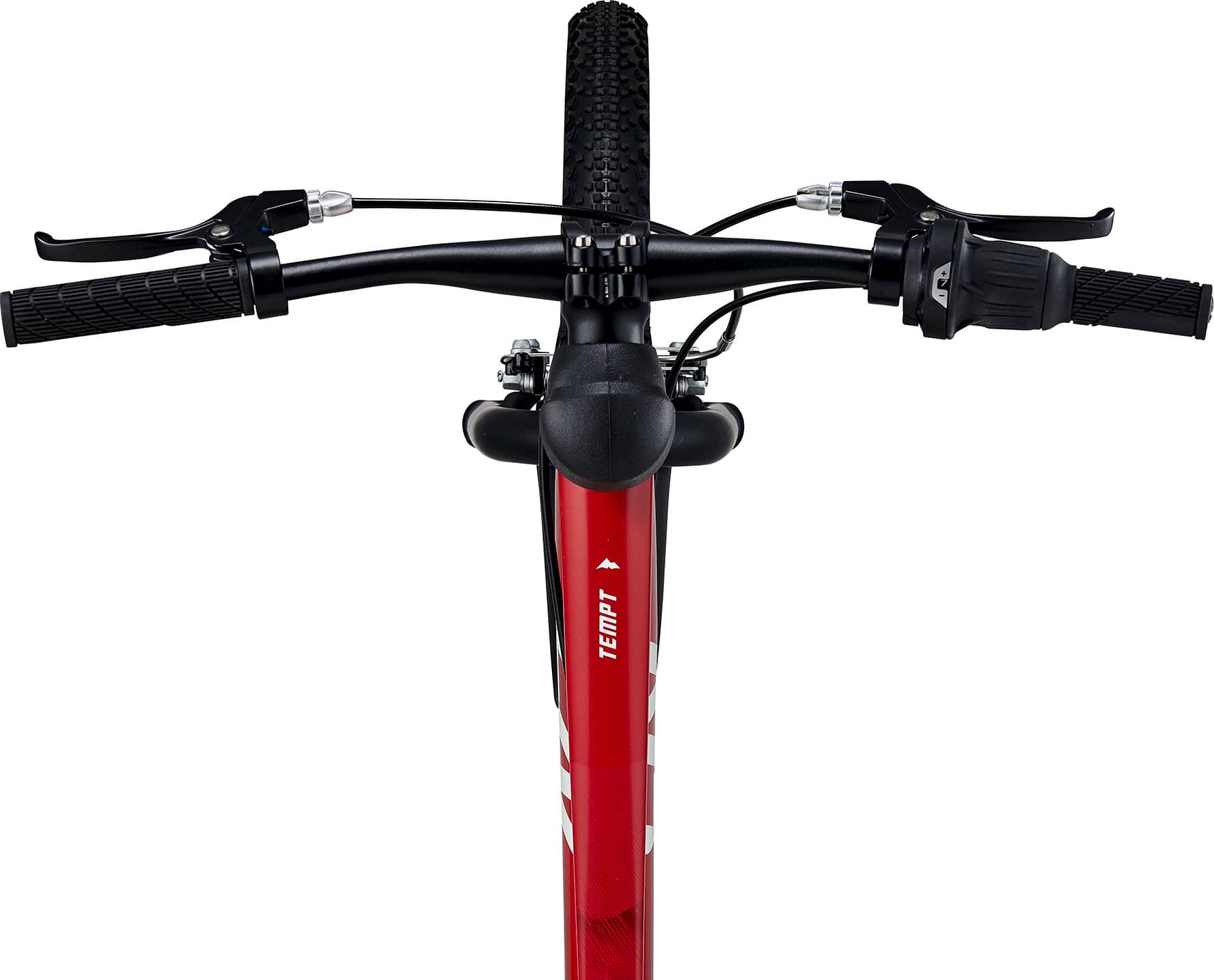

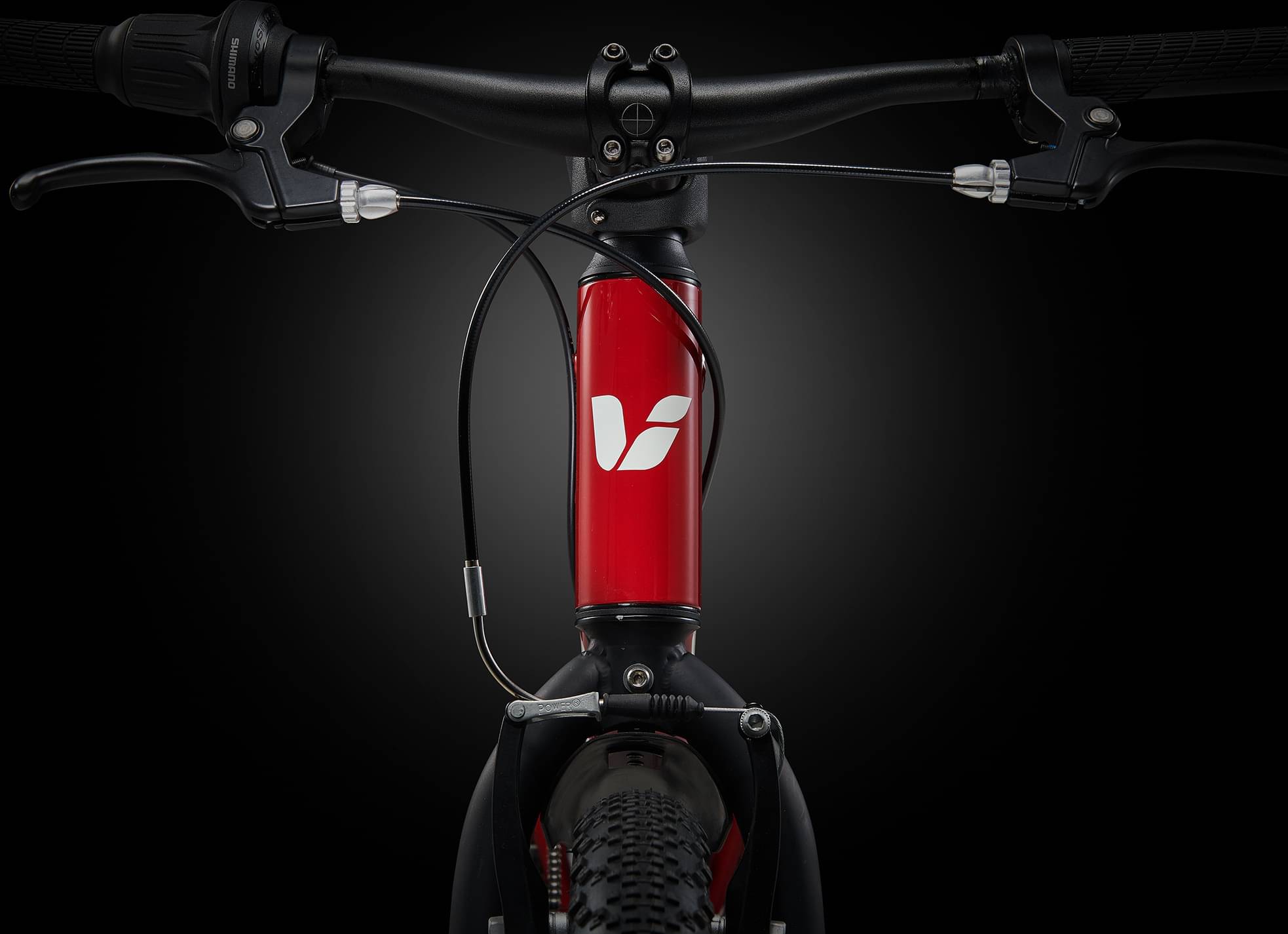

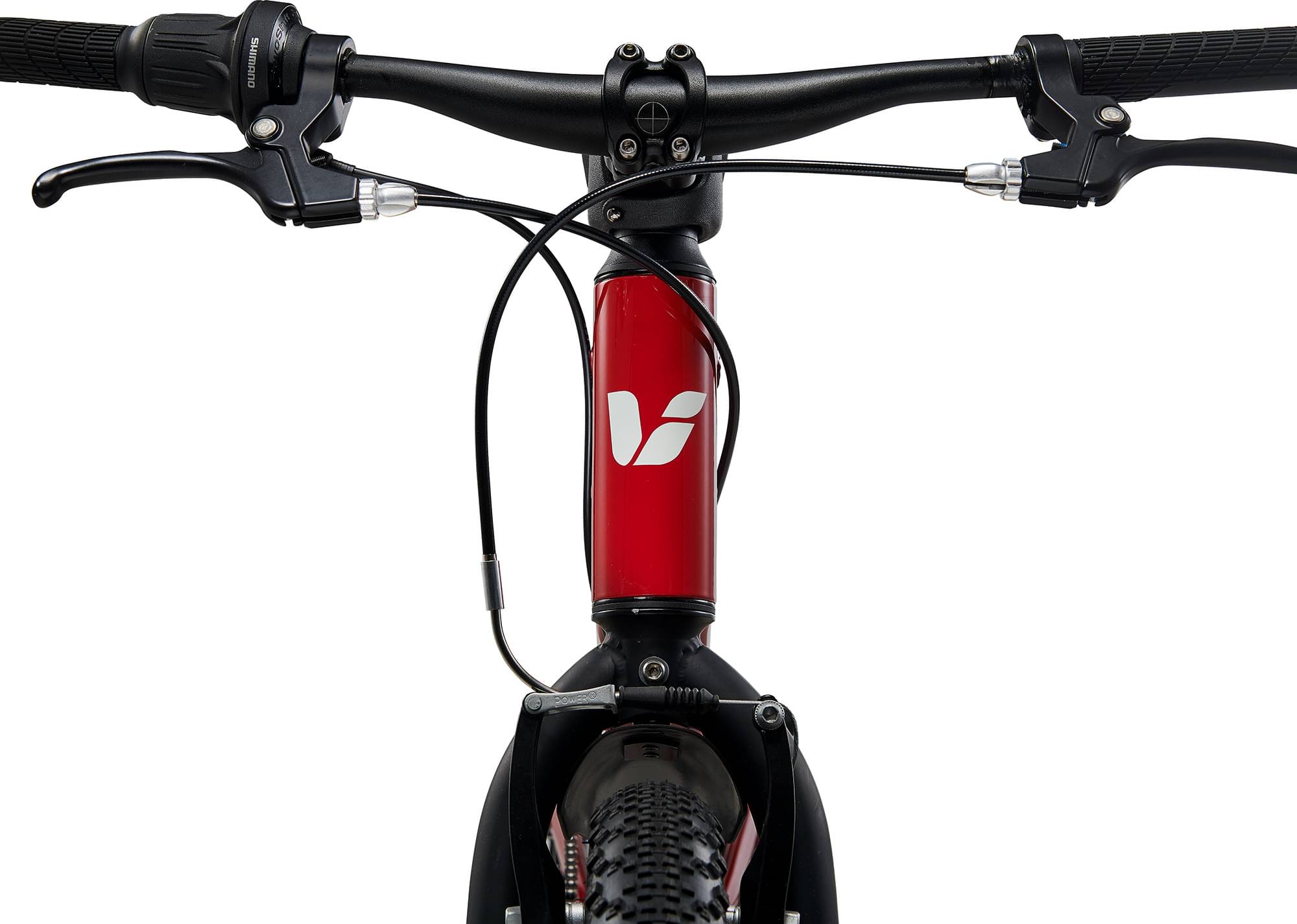

Cockpit
Stem
Alloy Ahead, 31.8mm clamp, 10 degrees rise, 60mm

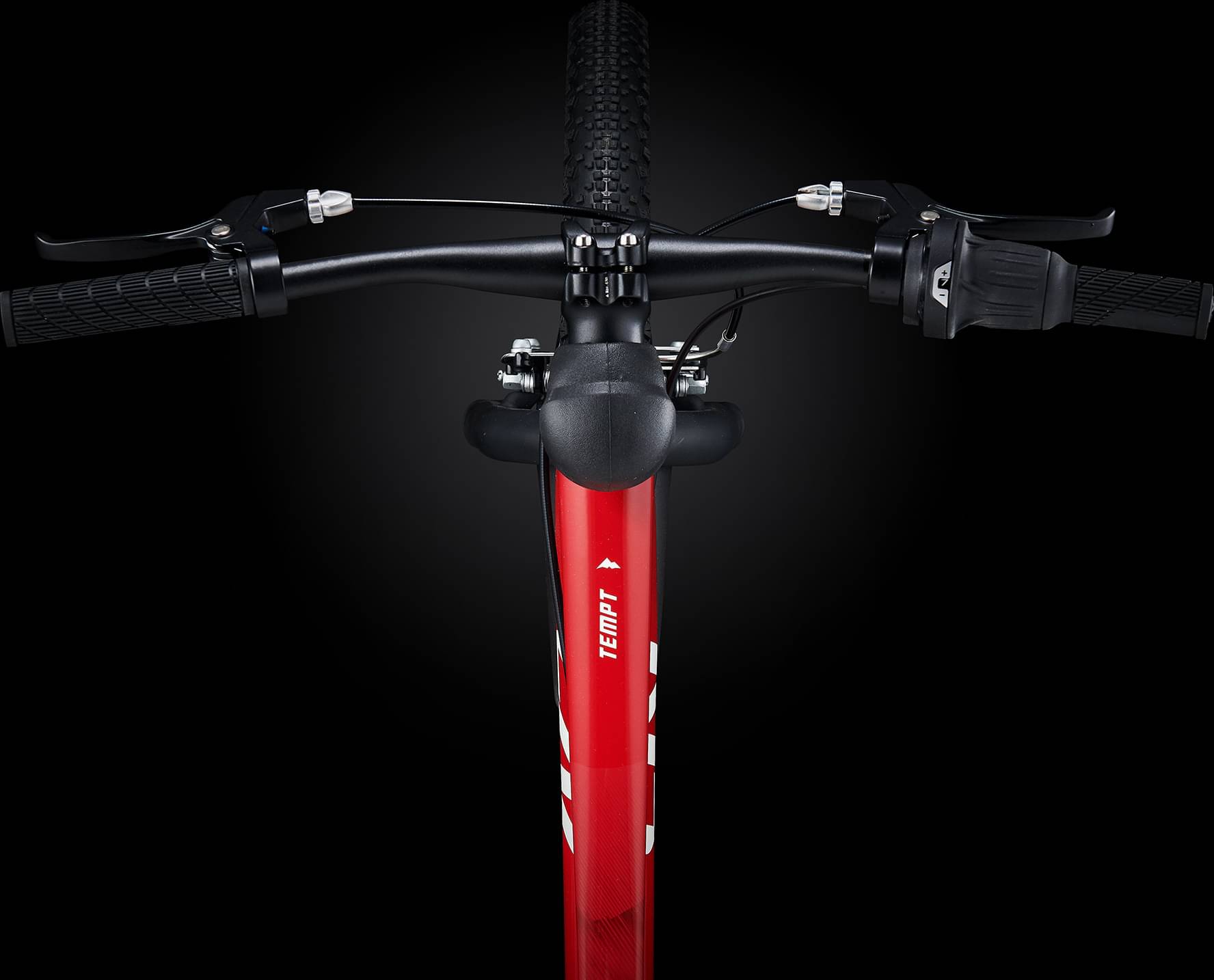

Handlebar
Giant kids tapered handlebar, 31.8mm, 30mm rise, 9-degree backsweep
Grips
Giant Junior
Seat
Saddle
Explora Jr.
Seatpost
Alloy, 27.2x280mm
Fit data
Geometry
