Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney -
Suspension Rigid -
Drivetrain 1 × 7 -
Brakes Rim
Sizing
Recommended size guide.
One Size
130cm - 150cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-grade aluminum
Suspension Fork
high-tensile steel, rigid
Rear Shock
N/A

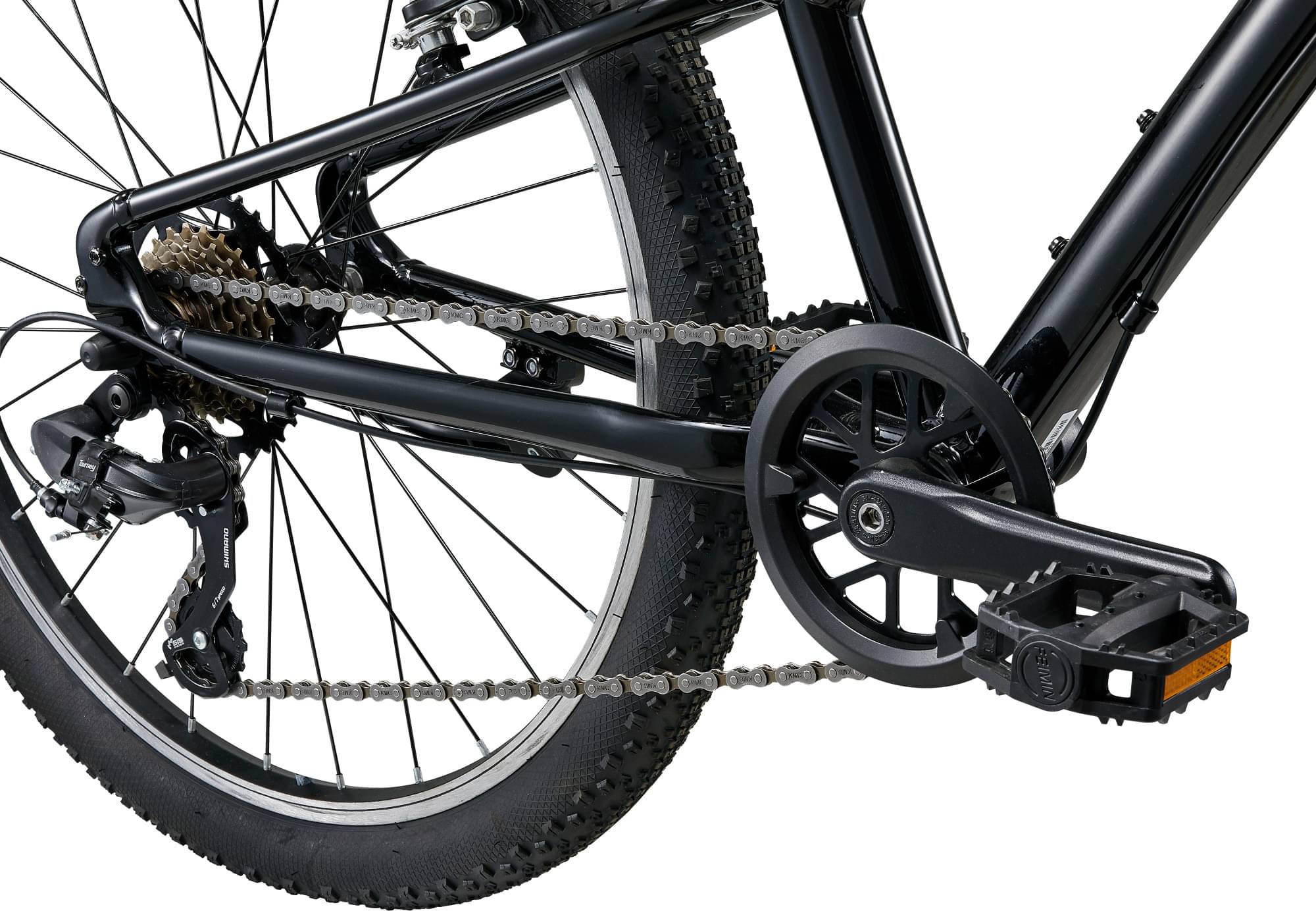

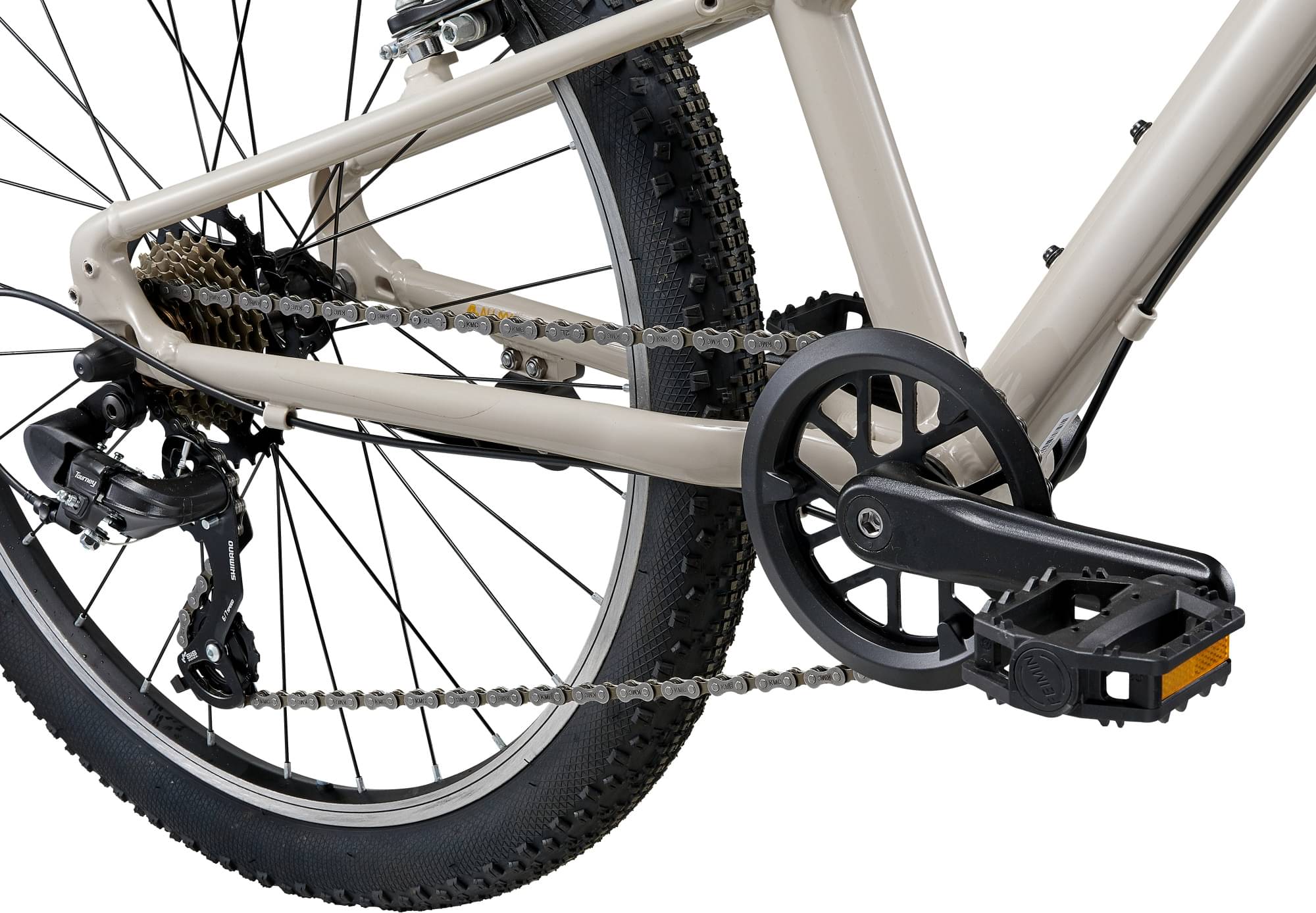

Drivetrain
Rear Derailleur
Shimano Tourney
Front Derailleur
N/A
Shift Levers
Shimano REVOSHIFT, 1x7
Cassette
14x34
Crank
steel, 32t, 140mm
Bottom Bracket
semi-cartridge
Chain
KMC HV500
Pedals
platform
Wheels
Front Hub
nutted, 28h
Rear Hub
nutted, 28h
Rims
Giant Kids 24", alloy
Spokes
stainless, 14g
Tires
Giant Junior Sport, 24x1.95", 22 tpi

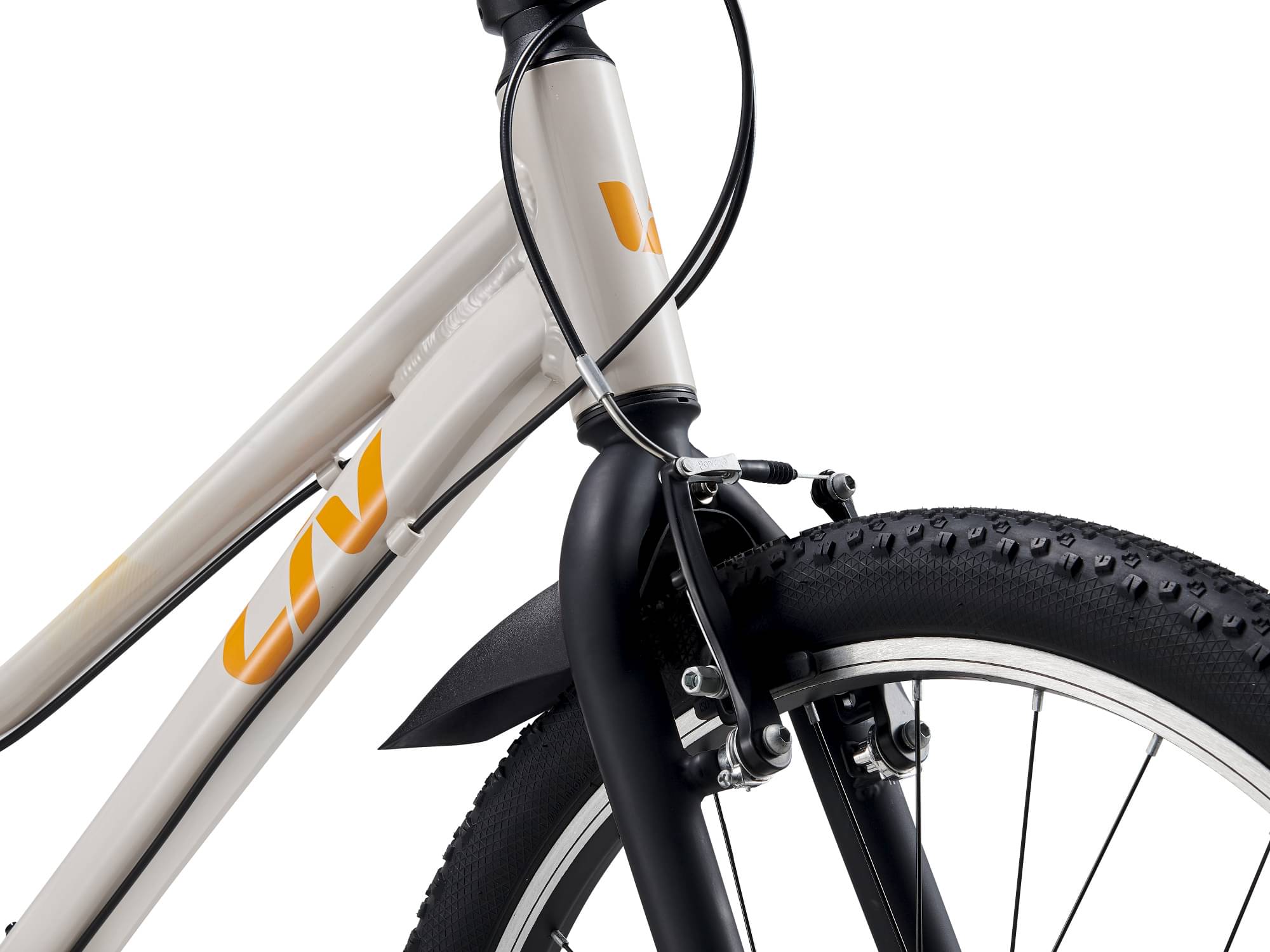

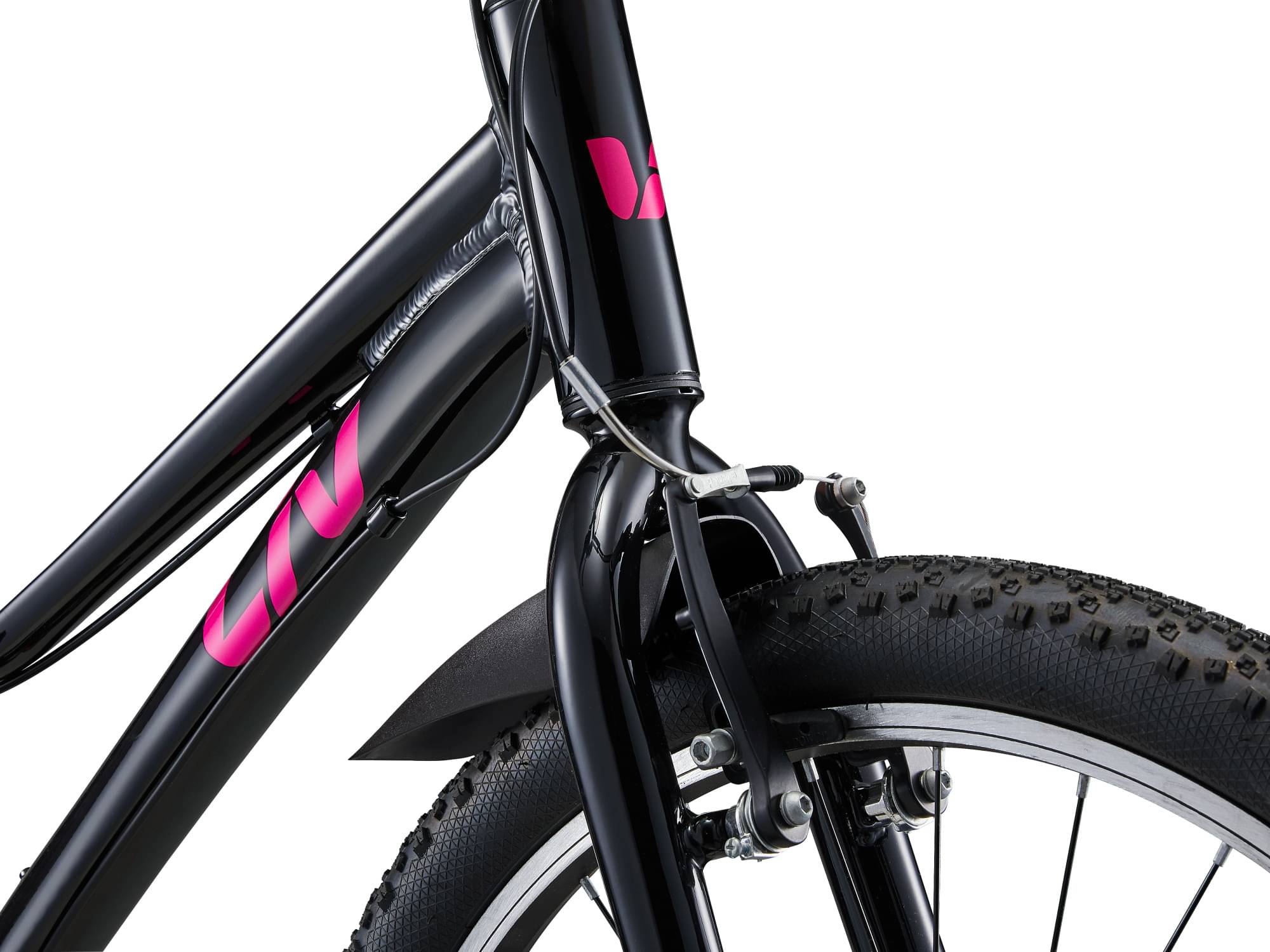

Brakes
Brakes
alloy, linear pull
Brake Levers
alloy, junior MTB

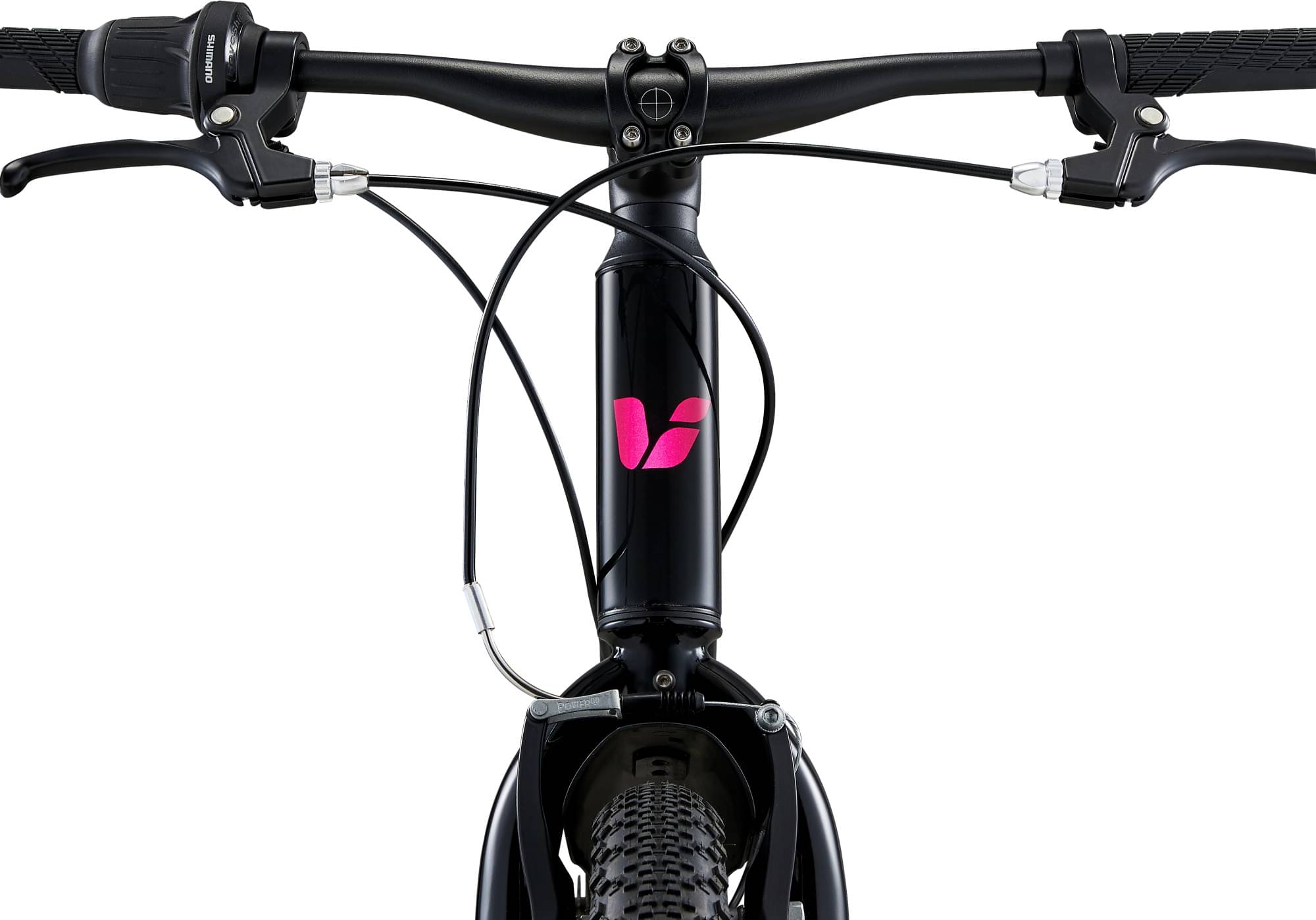

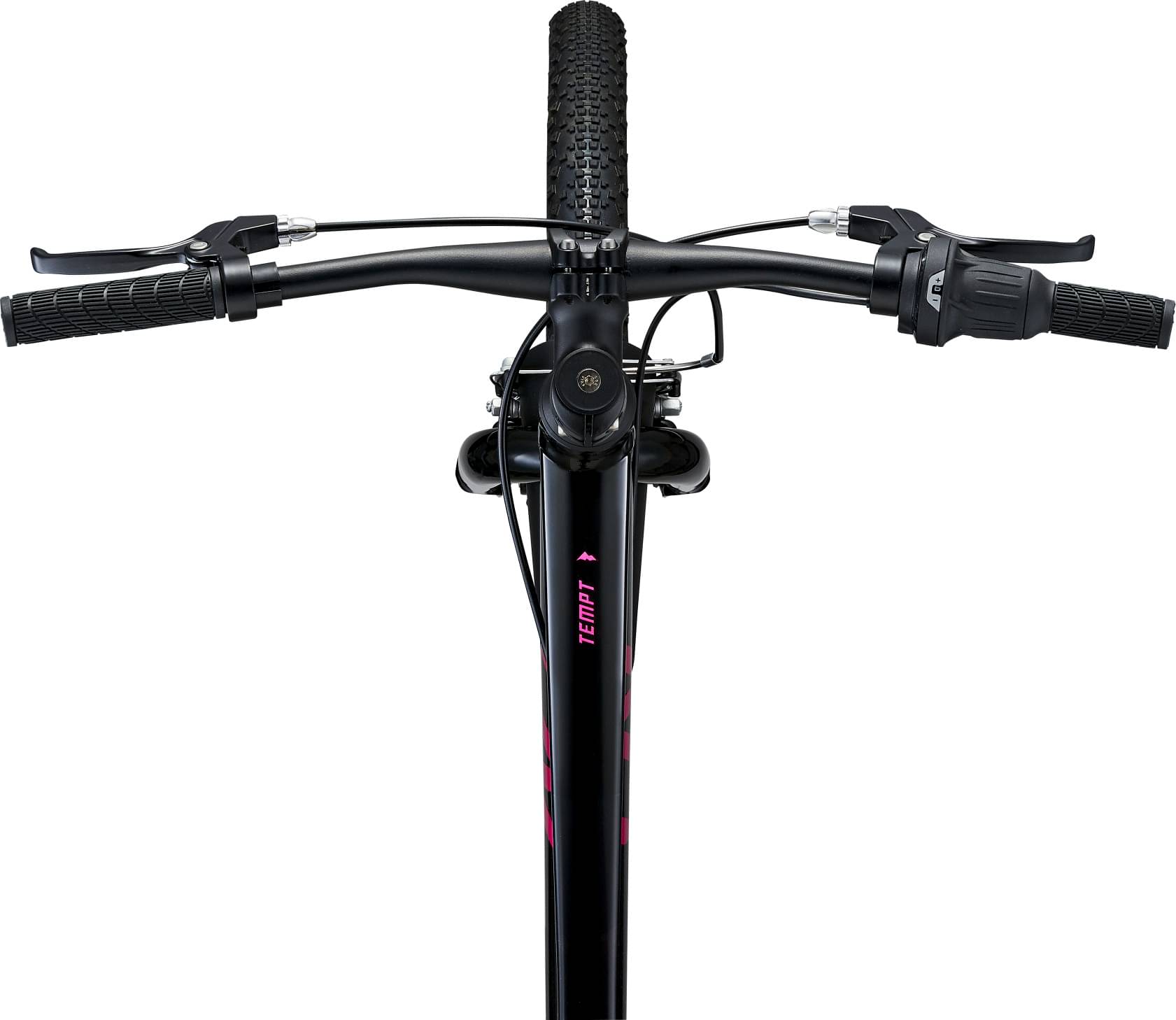

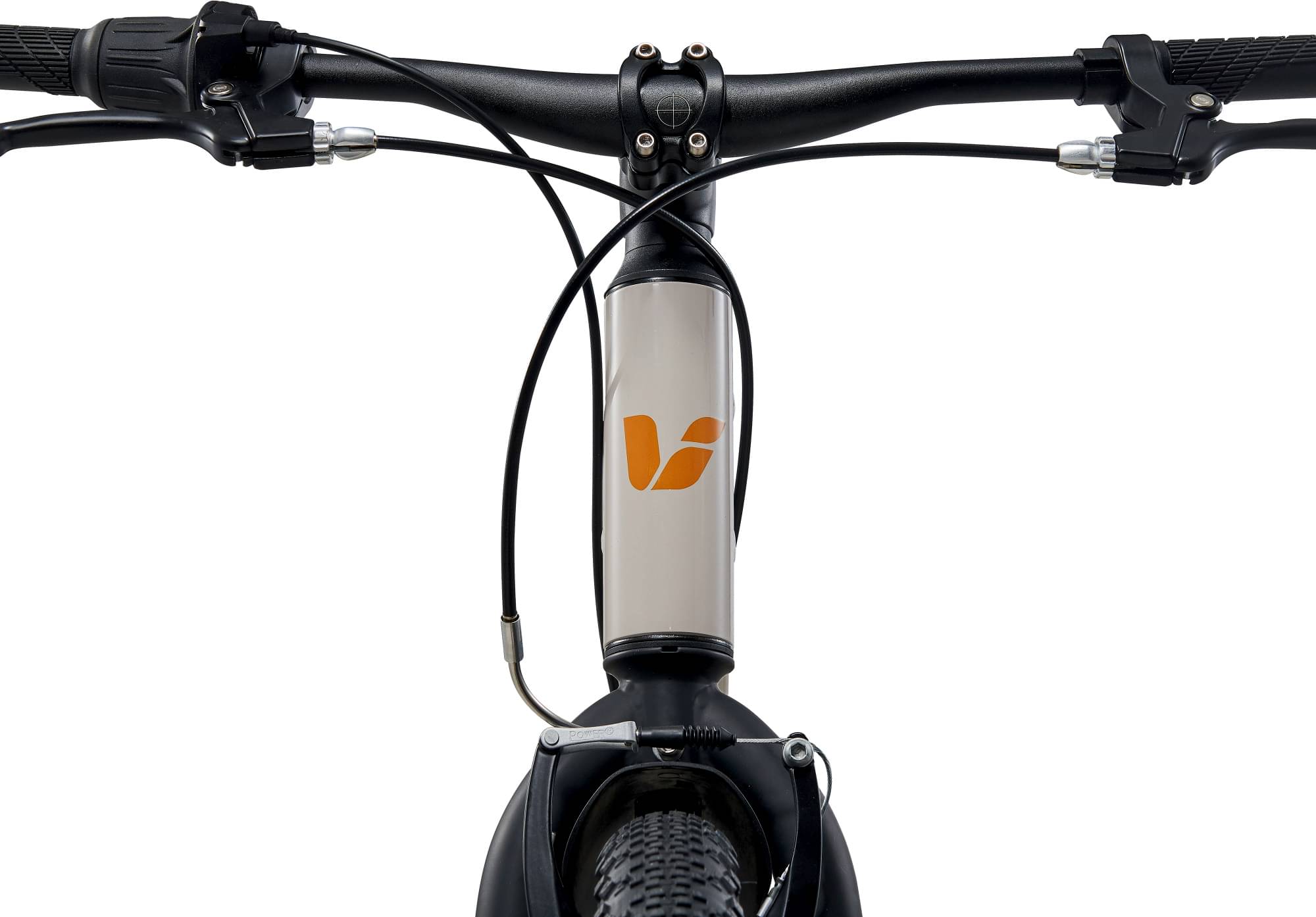

Cockpit
Stem
forged alloy Ahead, 10-degree
Handlebar
Giant Kids, alloy, 31.8mm, 10-degree rise, 60mm, custom taper design
Grips
Giant Junior, custom taper design
Seat
Saddle
Explora Jr.
Seatpost
alloy, single-bolt, 27.2x250mm
Fit data
Geometry
