Bike details
Overview
Key information split into simple groups.

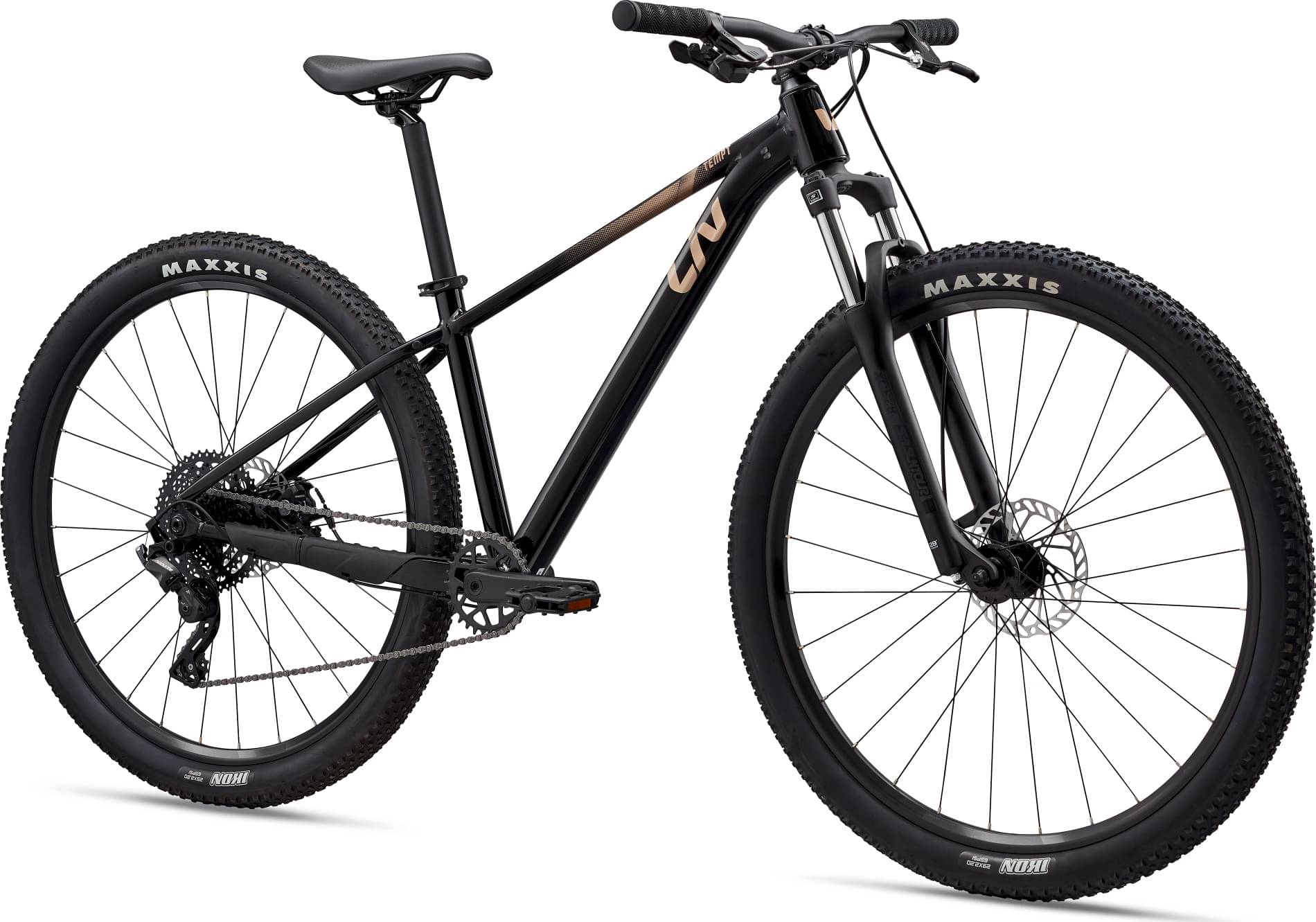

Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset microSHIFT Acolyte -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 169cm
MD
164cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

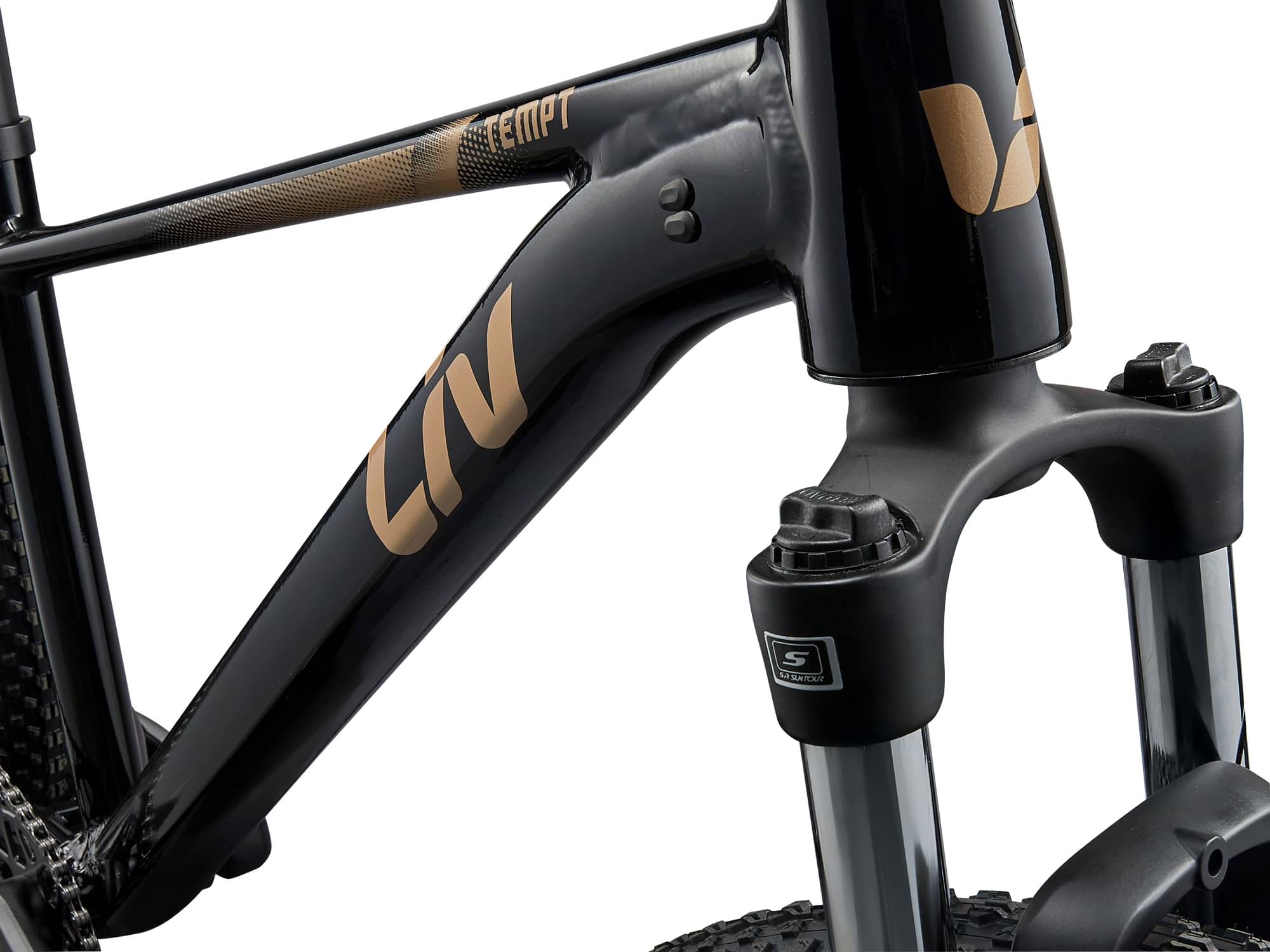

Frame
ALUXX-grade aluminium, disc

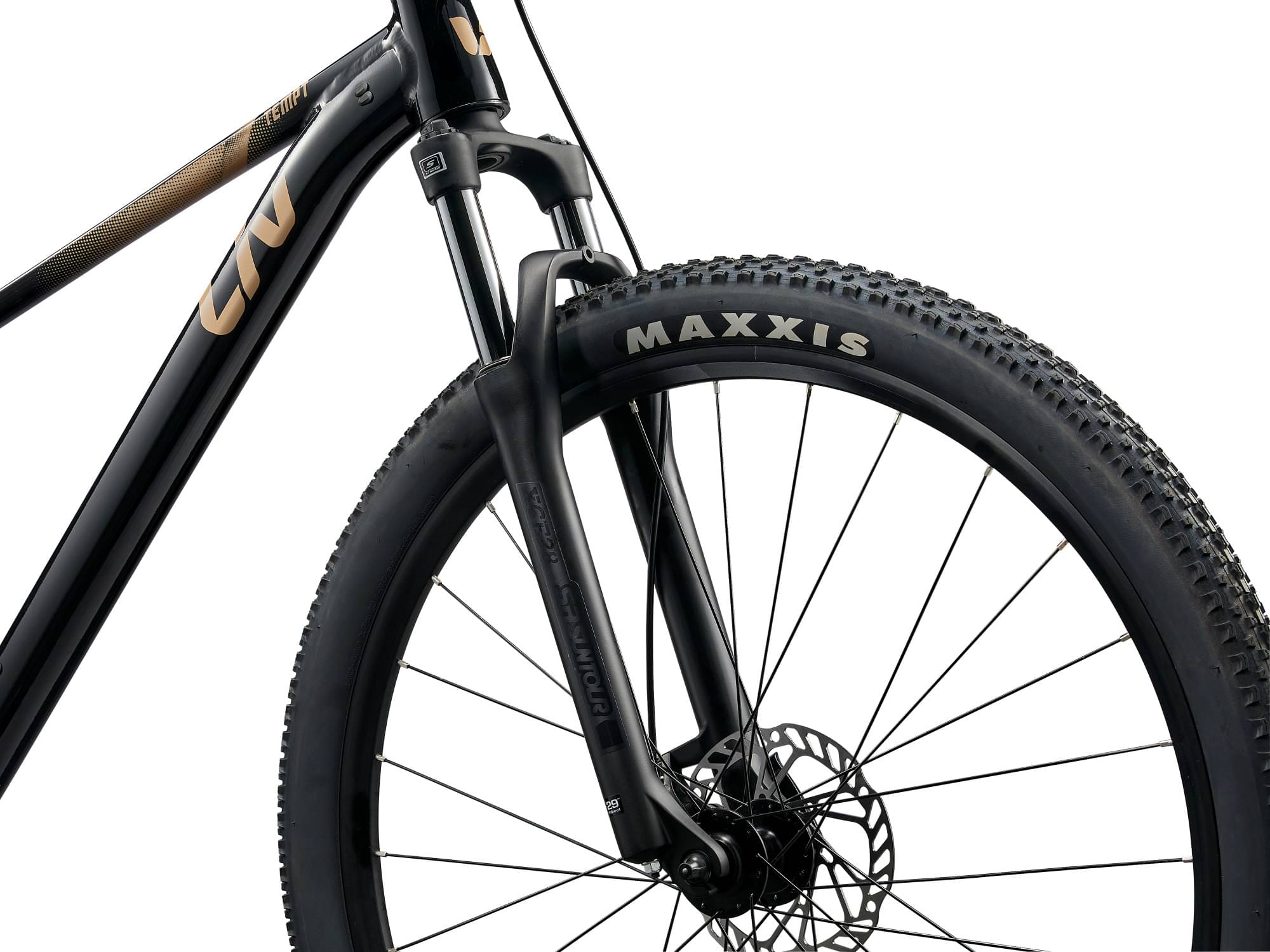

Suspension Fork
SR Suntour XCE 28, coil spring, 100mm, QR, steel steerer
Rear Shock
N/A

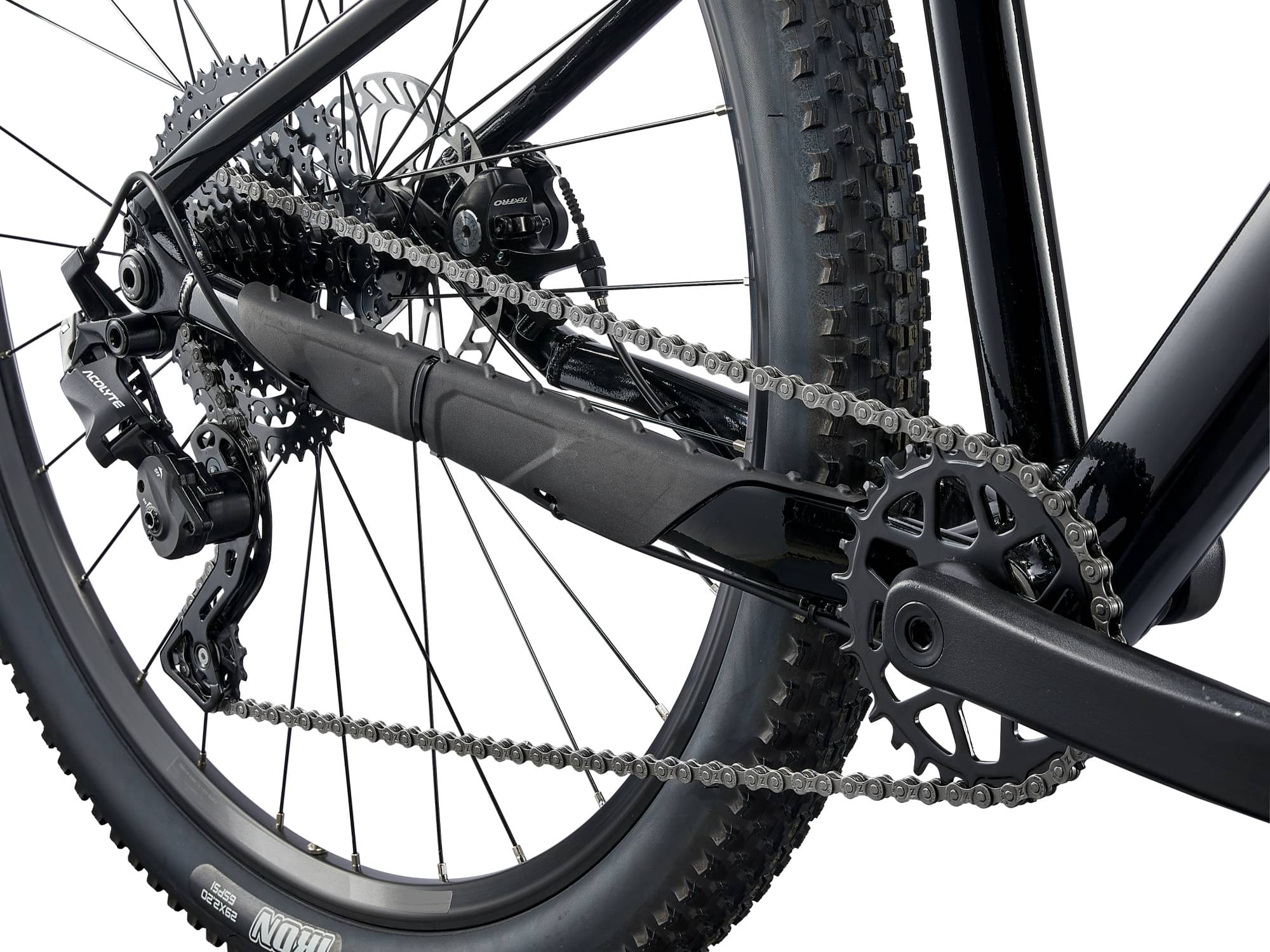

Drivetrain

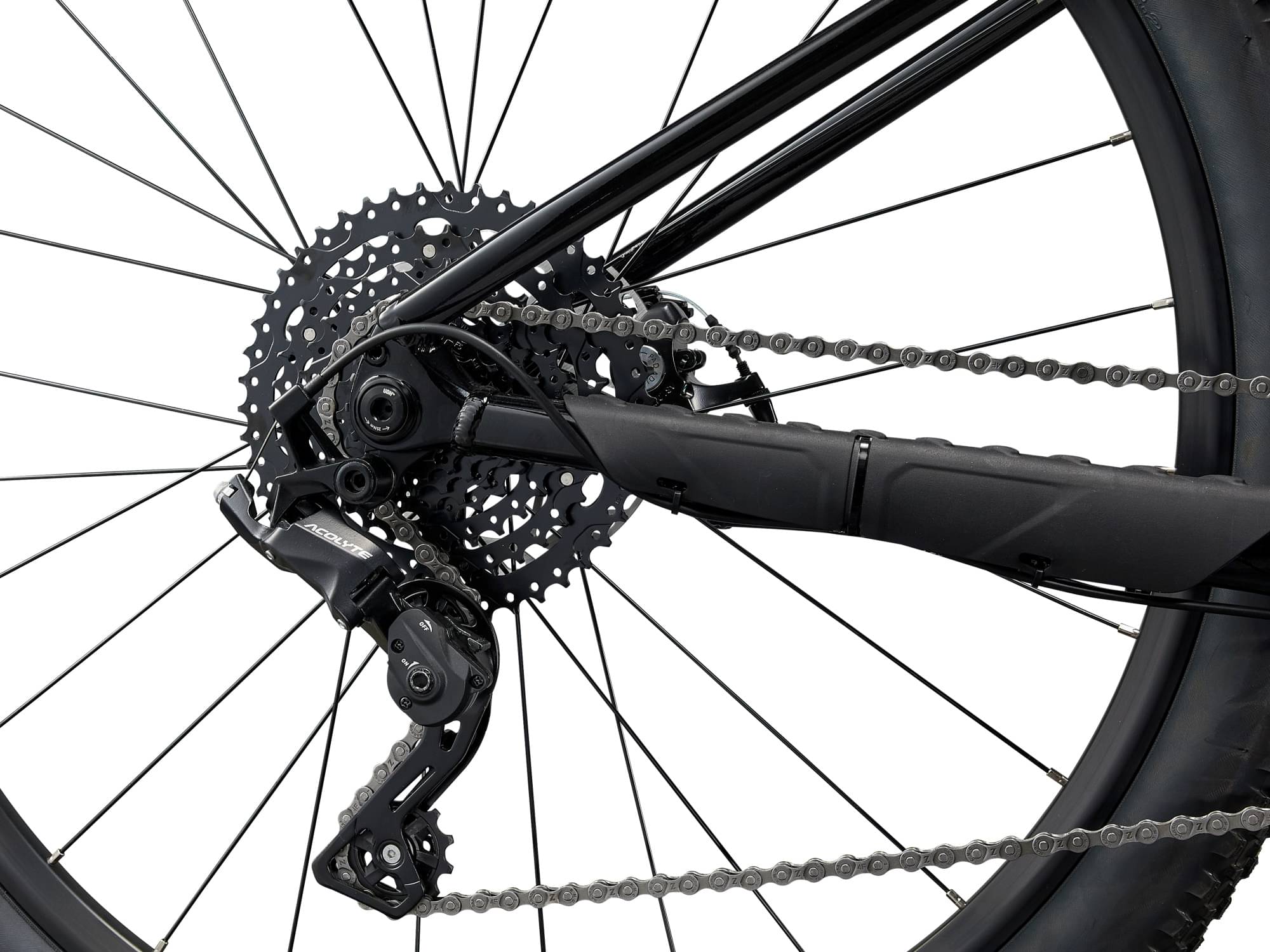

Rear Derailleur
microSHIFT Acolyte, M5185M w/clutch
Front Derailleur
N/A
Shift Levers
microSHIFT Acolyte, 1x8
Cassette
microSHIFT H083, 12x46
Crank
Prowheel Forged, 32t S: 170mm M: 170mm
Bottom Bracket
Cartridge
Chain
KMC 8.3
Pedals
MTB caged
Wheels
Front Hub
Alloy, sealed
Rear Hub
Alloy, sealed
Rims
Giant GX03V 29 alloy, double wall
Spokes
Stainless, 14g
Tires
Maxxis Ikon 29x2.2", wire bead
Brakes

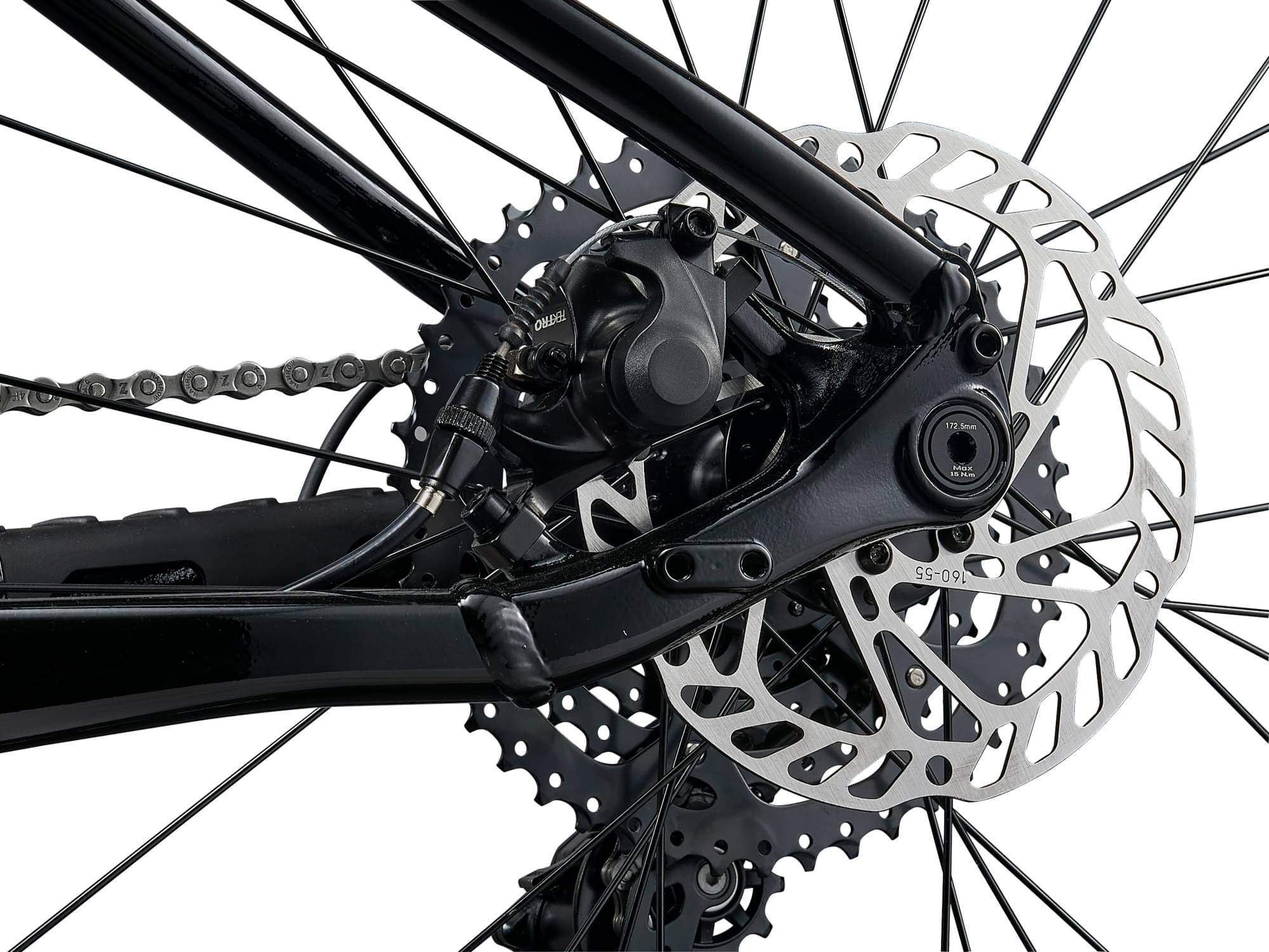

Brakes
TKB-172, mechanical [F]160mm, [R]160mm rotors
Brake Levers
Alloy

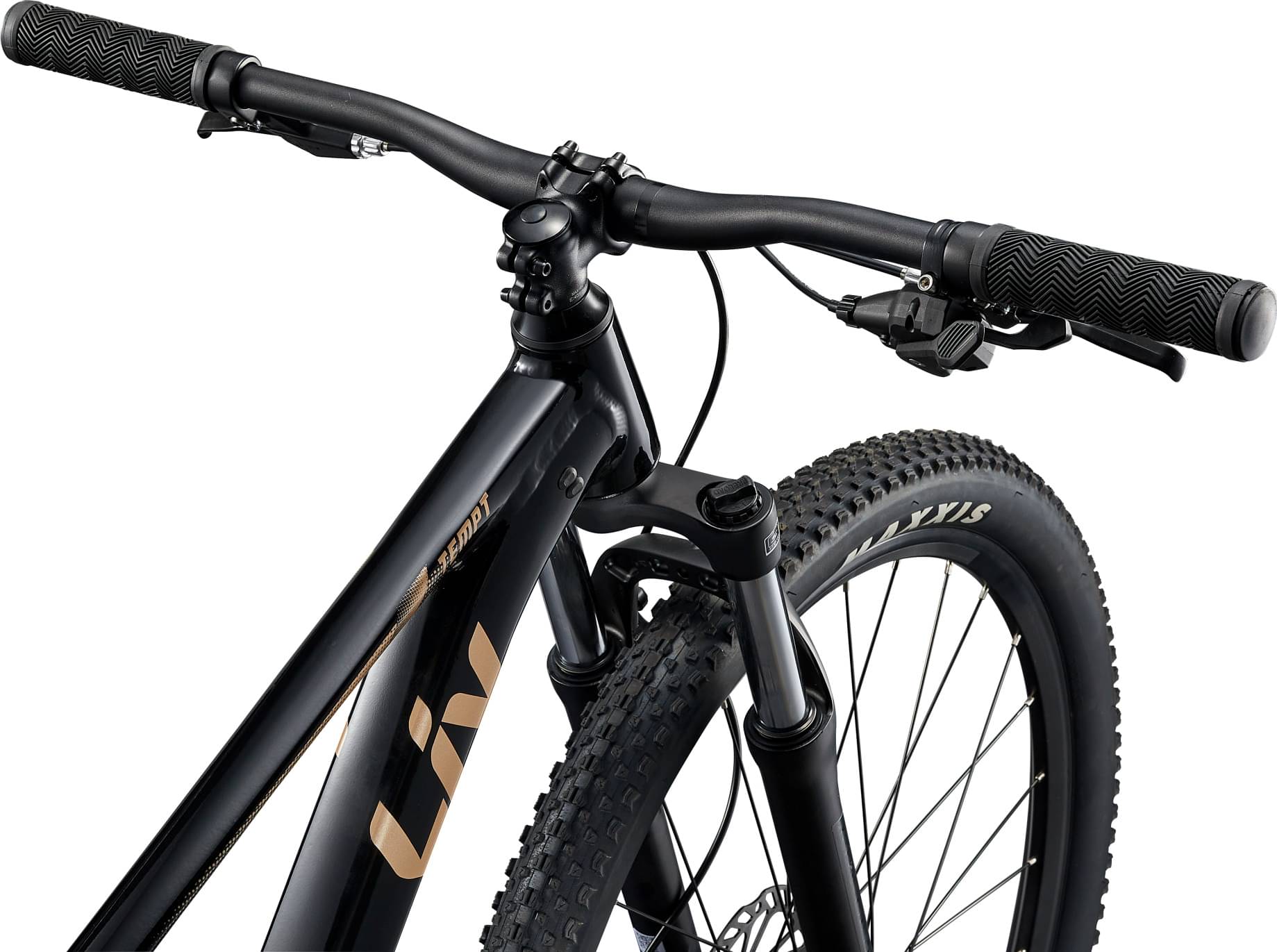

Cockpit
Stem
Giant Sport, 7-degree S: 40mm M: 50mm
Handlebar
Giant Connect Trail, 31.8mm
Grips
Giant Sole-O

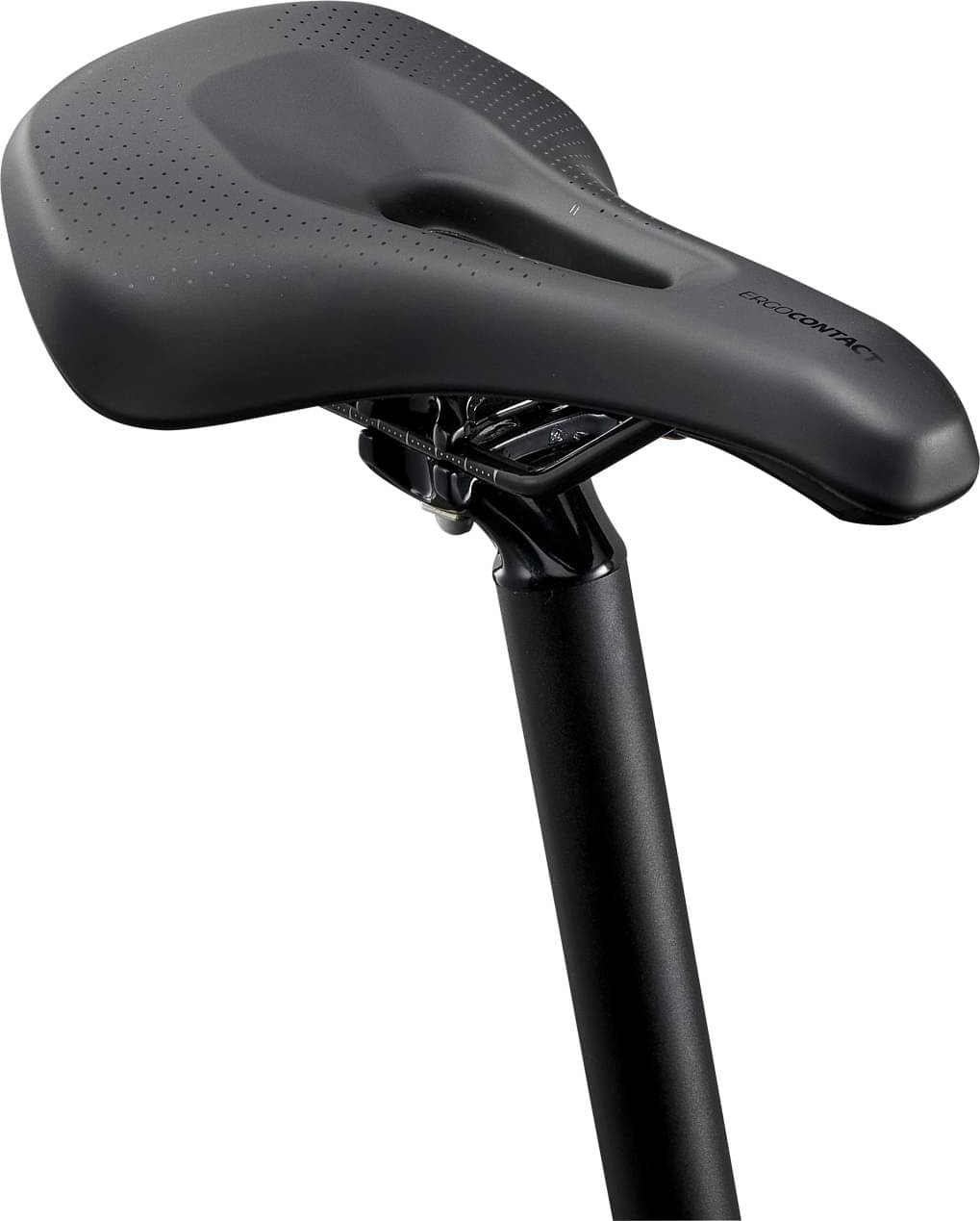

Seat
Saddle
Liv ErgoContact Trail
Seatpost
Giant Sport, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.457 mm | 1.394 mm |
| Bottom Bracket Height | 319 mm | 319 mm |
| Front Center | 680 mm | 708 mm |
| Rake | 44 mm | 44 mm |
| Trail | 108.9 mm | 108.9 mm |
| Stack | 593 mm | 602 mm |
| Reach | 407 mm | 432 mm |
| Top Tube Length | 571 mm | 599 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 410 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 100 mm |
| Chainstay Length | 455 mm | 455 mm |
| Wheelbase | 1129 mm | 1158 mm |
| Bottom Bracket Drop | 55 mm | 55 mm |
| Standover Height | 689 mm | 708 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 158 cm | 164 cm |
| Rider Max Height | 169 cm | 175 cm |
