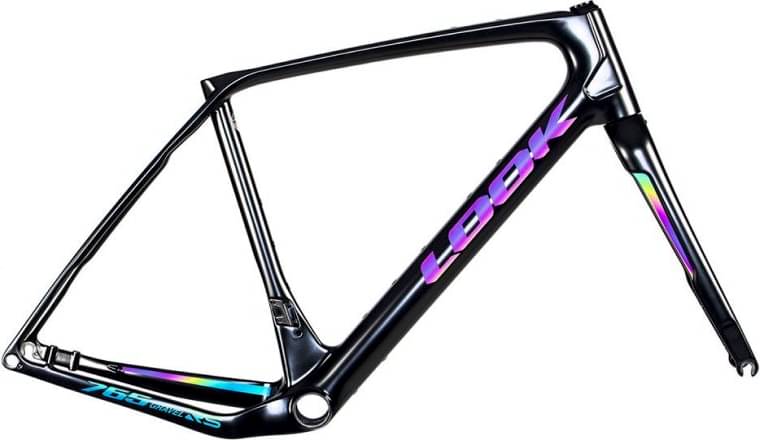

Look 765 Gravel RS Black Chromatic Frameset 2024
2024 Road
Estimate price |
3,000$
Weight | 1.3 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Suspension Fork
Ultra light high modulus carbon fork
Drivetrain
Bottom Bracket
BB 386
Wheels
Tires
Compatible with tires with a maximum of 700x40 mm or 27,5x2,03
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.493 mm | 1.518 mm | 1.541 mm | 1.564 mm | 1.585 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 577 mm | 595.5 mm | 614 mm | 632.5 mm | 651 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Stack | 530 mm | 554 mm | 578 mm | 602 mm | 626 mm |
| Reach | 355 mm | 365 mm | 375 mm | 385 mm | 395 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
