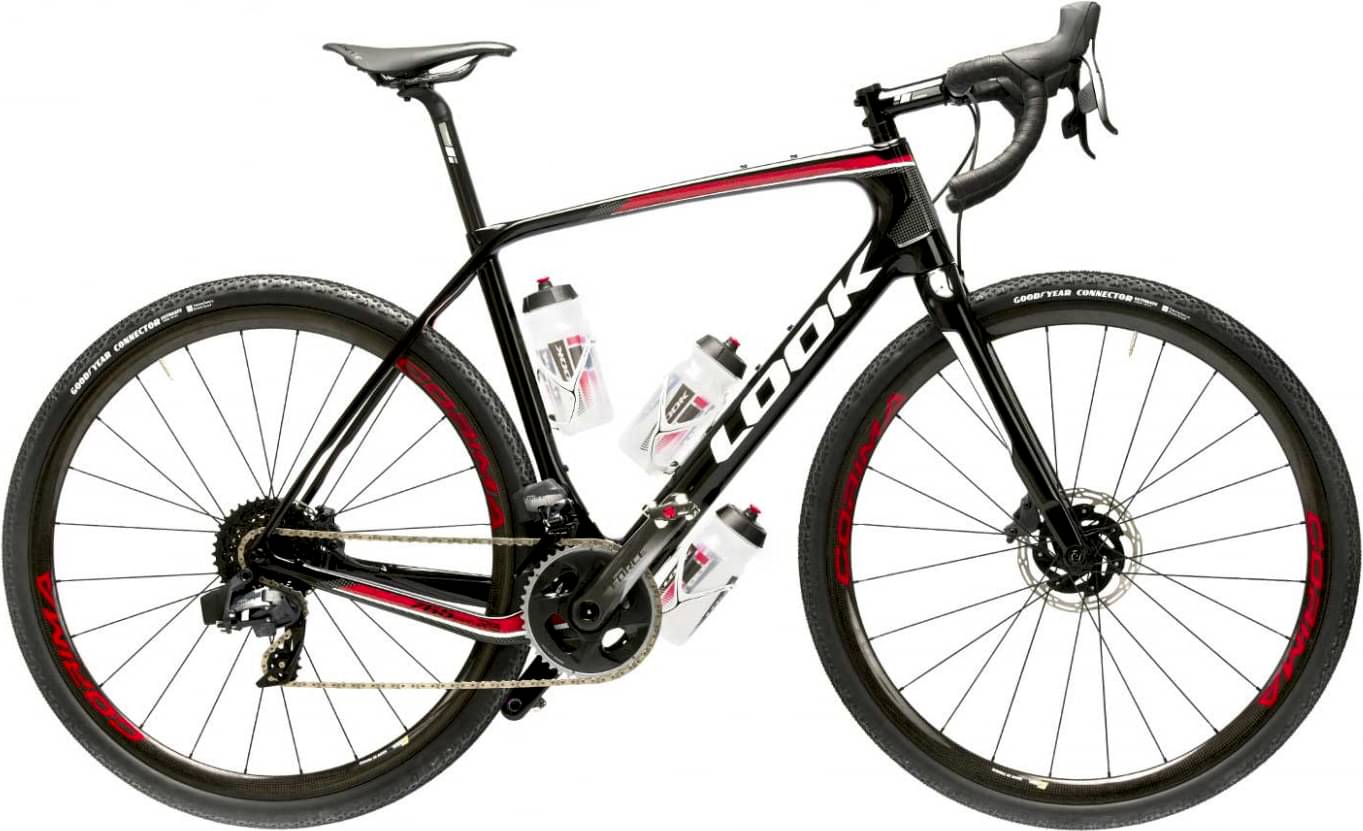

Look 765 GRAVEL RS FLINT HILLS Edition 2024
2024 Road
Estimate price |
8,000$
Weight | 9.39 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force, Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Drivetrain
Rear Derailleur
SRAM FORCE eTap AXS
Shift Levers
SRAM FORCE eTap AXS
Cassette
SRAM FORCE WIDE 10-36
Crank
SRAM FORCE
Chain
SRAM FORCE D1 12s
Wheels
Rims
CORIMA G30.5
Tires
Goodyear Connector 700x40
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
LOOK ALLOY SUPERLIGHT LS1 Stem
Handlebar
LOOK ALLOY LS2 Gravel
Seat
Saddle
LOOK by San Marco short fit carbon FX narrow open fit
Seatpost
LOOK LS1 CARBON CARBON SUPER LIGHT Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.493 mm | 1.518 mm | 1.541 mm | 1.564 mm | 1.585 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 577 mm | 595.5 mm | 614 mm | 632.5 mm | 651 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Stack | 530 mm | 554 mm | 578 mm | 602 mm | 626 mm |
| Reach | 355 mm | 365 mm | 375 mm | 385 mm | 395 mm |
| Top Tube Length | 507 mm | 524 mm | 552 mm | 569 mm | 586.5 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 535 mm | 560 mm |
| Head Tube Angle | 70.3 ° | 70.3 ° | 70.3 ° | 70.3 ° | 70.3 ° |
| Head Tube Length | 111.5 mm | 137 mm | 162.5 mm | 188 mm | 213.5 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 987 mm | 1005 mm | 1024 mm | 1043 mm | 1061 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
