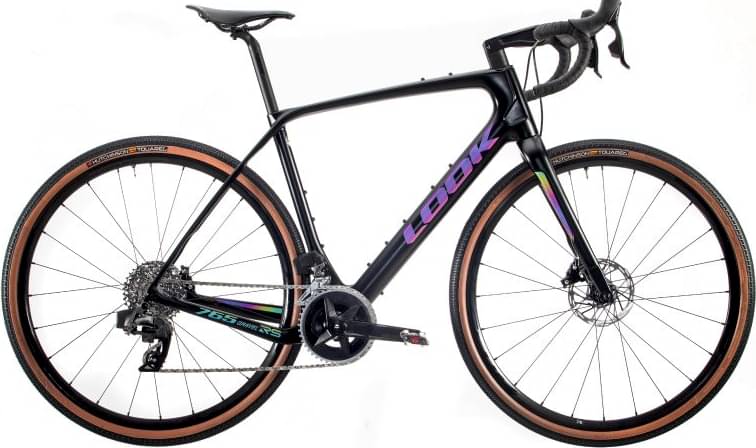

Look 765 GravelRS Rival eTap AXS 2×12 2024
2024 Road
Estimate price |
7,096$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Drivetrain
Rear Derailleur
SRAM RIVAL ETAP AXS WIRELESS
Shift Levers
SRAM RIVAL ETAP AXS WIRELESS HYDRAULIC
Cassette
SRAM RIVAL 12 SPEED 10 x 36 XG 1250
Crank
SRAM RIVAL WIDE 43 x 30 (XS-S 170/M-L 172,5 /XL 175)
Bottom Bracket
BB 386 / Token Ninja SRAM DUB
Chain
SRAM RIVAL 12
Wheels
Rims
FULCRUM RAPID RED 500 DB 2WF-R C23 BLACK
Tires
HUTCHINSON TOUAREG 700 x 40 TAN TUBELESS R.
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
LOOK LDS (XS-S : 80 / M 90 / L 100 / XL 110 )
Handlebar
LOOK LS2 AL GRAVEL 12°FLARE (XS –S 40 /M – L 42 / XL 44)
Seat
Saddle
LOOK by S MARCO SHORT FIT DYNAMIC open fit
Seatpost
LOOK LS1 CARBON SUPERLIGHT 27.2 mm 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.493 mm | 1.518 mm | 1.541 mm | 1.564 mm | 1.585 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 577 mm | 595.5 mm | 614 mm | 632.5 mm | 651 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Stack | 530 mm | 554 mm | 578 mm | 602 mm | 626 mm |
| Reach | 355 mm | 365 mm | 375 mm | 385 mm | 395 mm |
| Top Tube Length | 507 mm | 524 mm | 552 mm | 569 mm | 586.5 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 535 mm | 560 mm |
| Head Tube Angle | 70.3 ° | 70.3 ° | 70.3 ° | 70.3 ° | 70.3 ° |
| Head Tube Length | 111.5 mm | 137 mm | 162.5 mm | 188 mm | 213.5 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 987 mm | 1005 mm | 1024 mm | 1043 mm | 1061 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 745 mm | 765 mm | 793 mm | 816 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
