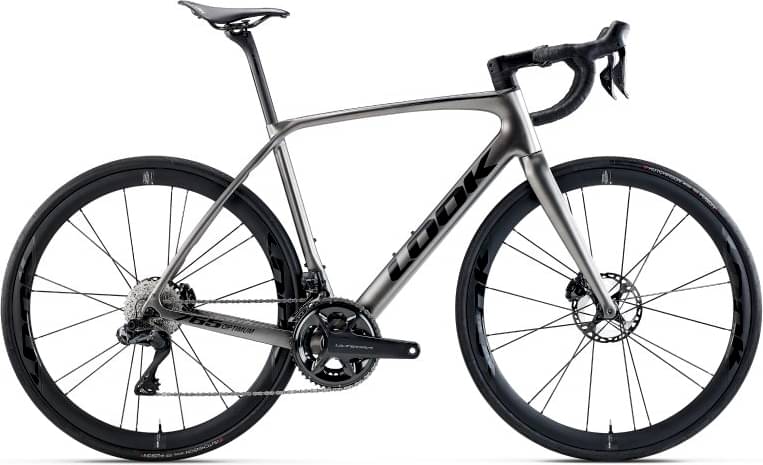

Look 765 Optimum Ultegra Di2 2024
2024 Road
Estimate price |
7,317$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Drivetrain
Rear Derailleur
SHIMANO ULTEGRA DI2 R8150
Shift Levers
SHIMANO ULTEGRA DI2 R8170
Cassette
SHIMANO ULTEGRA R8100 11 x 34
Bottom Bracket
BB T47 V24 85.5 / Token
Chain
SHIMANO M8100 12 Speed
Wheels
Rims
LOOK R 38 D Carbon Tubeless
Tires
HUTCHINSON FUSION 5 Tubeless Ready 700 X 30
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
LOOK LS3 Alloy (XS 80/ S 90 / M 100 / L 110 / XL 120)
Handlebar
LOOK Handlebar LS3 Alloy (XS 38 –S 40 / M – L 42 / XL 44)
Seat
Saddle
LOOK by SAN MARCO Short Fit Dynamic Open Fit
Seatpost
LOOK LS1 Carbon Super Light 27.2 mm 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.487 mm | 1.512 mm | 1.536 mm | 1.558 mm | 1.579 mm |
| Bottom Bracket Height | 260 mm | 260 mm | 262 mm | 262 mm | 265 mm |
| Front Center | 576 mm | 594 mm | 613 mm | 630 mm | 650 |
| Rake | 50 mm | 49 mm | 50 mm | 48 mm | 50 mm |
| Trail | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Stack | 534 mm | 558 mm | 582 mm | 606 mm | 630 mm |
| Reach | 359 mm | 369 mm | 379 mm | 389 mm | 399 mm |
| Top Tube Length | 511.8 mm | 528.7 mm | 545.5 mm | 562.4 mm | 579.3 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 535 mm | 560 mm |
| Head Tube Angle | 70.8 ° | 70.8 ° | 70.8 ° | 70.8 ° | 70.8 ° |
| Head Tube Length | 117 mm | 142 mm | 170 mm | 196 mm | 224 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 979 mm | 997 mm | 1017 mm | 1034 mm | 1055 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 73 mm | 73 mm | 71 mm |
| Standover Height | 742 mm | 766 mm | 790 mm | 814 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
