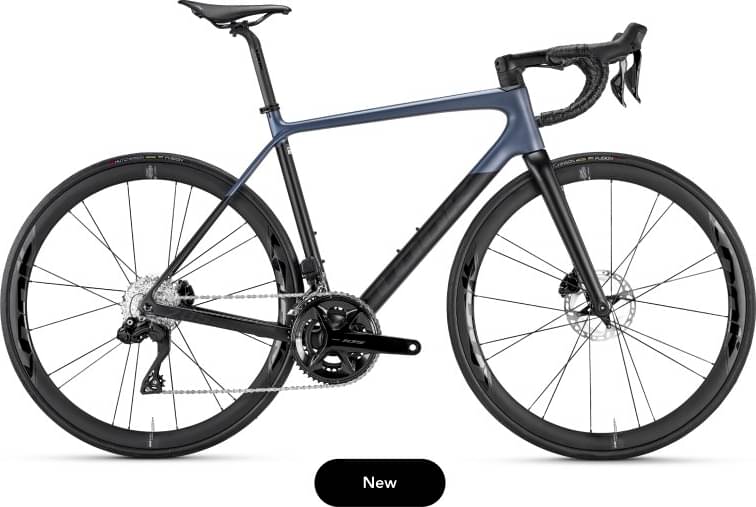

Look 785 Huez Shimano 105 Di2 2024
2024 Road
Estimate price |
6,387$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Drivetrain
Rear Derailleur
HIMANO 105 DI2 R7150
Shift Levers
SHIMANO 105 DI2 R7170
Cassette
SHIMANO 105 R7000 11 x 34
Crank
SHIMANO 105 R7100 50 x 34
Bottom Bracket
T47 TOKEN T47V24 PREMIUM BEARINGS
Chain
SHIMANO M7100 12 SPEED
Wheels
Rims
LOOK R 38 D CARBON SHIM BODY
Tires
HUTCHINSON FUSION 5 PERFORMANCE TUBELESS READY 700x25
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
LOOK LS3 ALLOY (XS 90 / S 100 / M L 110 / XL 120)
Handlebar
LOOK LS3 ALLOY AERO (XS:38 /S:40 M/L:42 XL:44)
Seat
Saddle
LOOK SHORT FIT DYNAMIC open fit
Seatpost
LOOK LS2 CARBON 27.2 mm 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.448 mm | 1.471 mm | 1.495 mm | 1.517 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 265 mm | 265 mm | 268 mm |
| Front Center | 569.8 mm | 587.6 mm | 586.7 mm | 603.9 mm | 621.7 mm |
| Rake | 50 mm | 50 mm | 43 mm | 43 mm | 43 mm |
| Trail | 59.8 mm | 59.8 mm | 59.3 mm | 59.3 mm | 59.3 mm |
| Stack | 519.2 mm | 543.3 mm | 567.3 mm | 591.3 mm | 615.3 mm |
| Reach | 365.3 mm | 375.3 mm | 385.6 mm | 395.5 mm | 405.6 mm |
| Top Tube Length | 509.3 mm | 526 mm | 543 mm | 559.6 mm | 576.3 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 480 mm | 504 mm | 530 mm | 554 mm | 579 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 94.4 mm | 119.6 mm | 140.7 mm | 165.8 mm | 193.5 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 969 mm | 986 mm | 986 mm | 1004 mm | 1022 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 70 mm | 70 mm | 68 mm |
| Standover Height | 709 mm | 733 mm | 761 mm | 785 mm | 812 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
