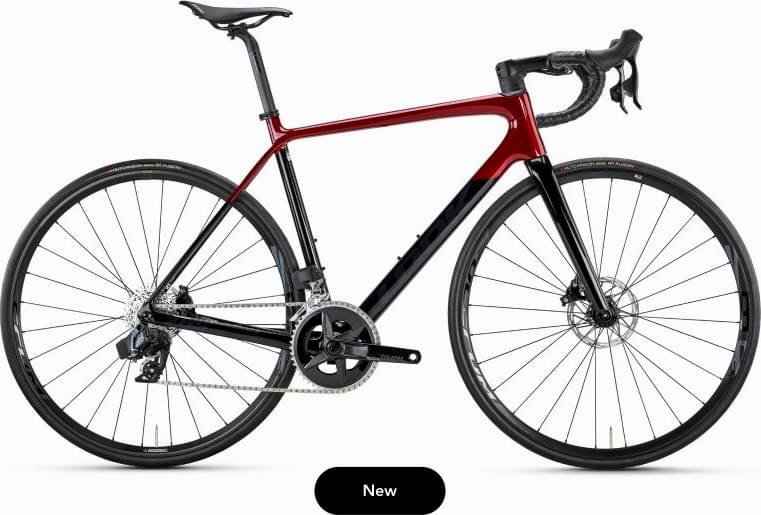

Look 785 Huez SRAM Rival eTap AXS 2024
2024 Road
Estimate price |
5,805$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS, SRAM -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Drivetrain
Rear Derailleur
SRAM RIVAL ETAP AXS WIRELESS
Shift Levers
SRAM RIVAL ETAP AXS WIRELESS
Cassette
SRAM RIVAL 12s 10x30
Crank
SRAM RIVALETAP AXS 48 x 35
Bottom Bracket
BB T47 SRAM DUB T47 85,5 ROAD
Chain
SRAM RIVAL
Wheels
Rims
FULCRUM RACING 900 BD 2WF R C19 XDR BODY
Tires
HUTCHINSON FUSION 5 PERFORMANCE TUBELESS READY 700x25
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
LOOK LS3 ALLOY (XS 90 / S 100 / M L 110 / XL 120)
Handlebar
LOOK LS3 ALLOY AERO (XS:38 /S:40 M/L:42 XL:44)
Seat
Saddle
LOOK SHORT FIT DYNAMIC open fit
Seatpost
LOOK LS2 CARBON 27.2 mm 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.448 mm | 1.471 mm | 1.495 mm | 1.517 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 265 mm | 265 mm | 268 mm |
| Front Center | 569.8 mm | 587.6 mm | 586.7 mm | 603.9 mm | 621.7 mm |
| Rake | 50 mm | 50 mm | 43 mm | 43 mm | 43 mm |
| Trail | 59.8 mm | 59.8 mm | 59.3 mm | 59.3 mm | 59.3 mm |
| Stack | 519.2 mm | 543.3 mm | 567.3 mm | 591.3 mm | 615.3 mm |
| Reach | 365.3 mm | 375.3 mm | 385.6 mm | 395.5 mm | 405.6 mm |
| Top Tube Length | 509.3 mm | 526 mm | 543 mm | 559.6 mm | 576.3 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 480 mm | 504 mm | 530 mm | 554 mm | 579 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 94.4 mm | 119.6 mm | 140.7 mm | 165.8 mm | 193.5 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 969 mm | 986 mm | 986 mm | 1004 mm | 1022 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 70 mm | 70 mm | 68 mm |
| Standover Height | 709 mm | 733 mm | 761 mm | 785 mm | 812 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
