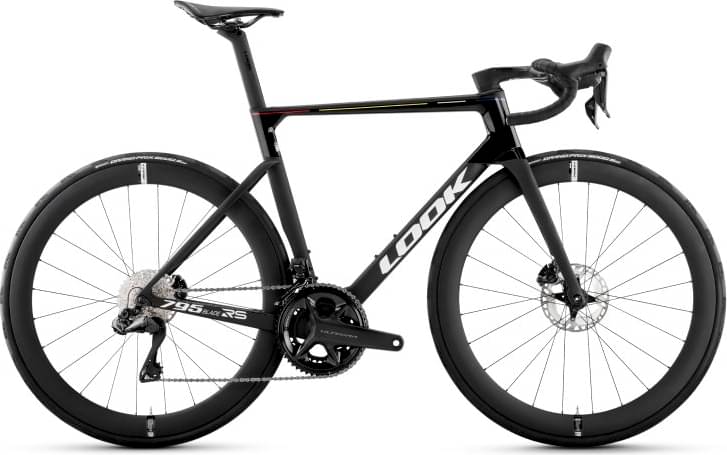

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.346 mm | 1.35 mm | 1.377 mm | 1.404 mm | 1.429 mm | 1.452 mm |
| Bottom Bracket Height | 260 mm | 263 mm | 263 mm | 265 mm | 265 mm | 268 mm |
| Front Center | 569.8 mm | 569.8 mm | 587.6 mm | 586.7 mm | 603.9 mm | 621.6 mm |
| Rake | 56.3 mm | 50 mm | 50 mm | 43 mm | 43 mm | 43 mm |
| Trail | 59.8 mm | 59.8 mm | 59.8 mm | 59.3 mm | 59.3 mm | 59.3 mm |
| Stack | 486.2 mm | 501.2 mm | 525.2 mm | 549.2 mm | 573.2 mm | 597.2 mm |
| Reach | 361.3 mm | 371.3 mm | 381.3 mm | 391.2 mm | 401.2 mm | 411.2 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 463 mm | 479.6 mm | 504.4 mm | 529.9 mm | 554.8 mm | 579.7 mm |
| Head Tube Angle | 70.7 ° | 71.8 ° | 71.8 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 77.9 mm | 90.4 mm | 115.6 mm | 136.7 mm | 161.8 mm | 198.5 mm |
| Bottom Bracket Drop | 75 mm | 73 mm | 73 mm | 70 mm | 70 mm | 68 mm |
| Standover Height | 741 mm | 765 mm | 790 mm | 815 mm | 841 mm | mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
