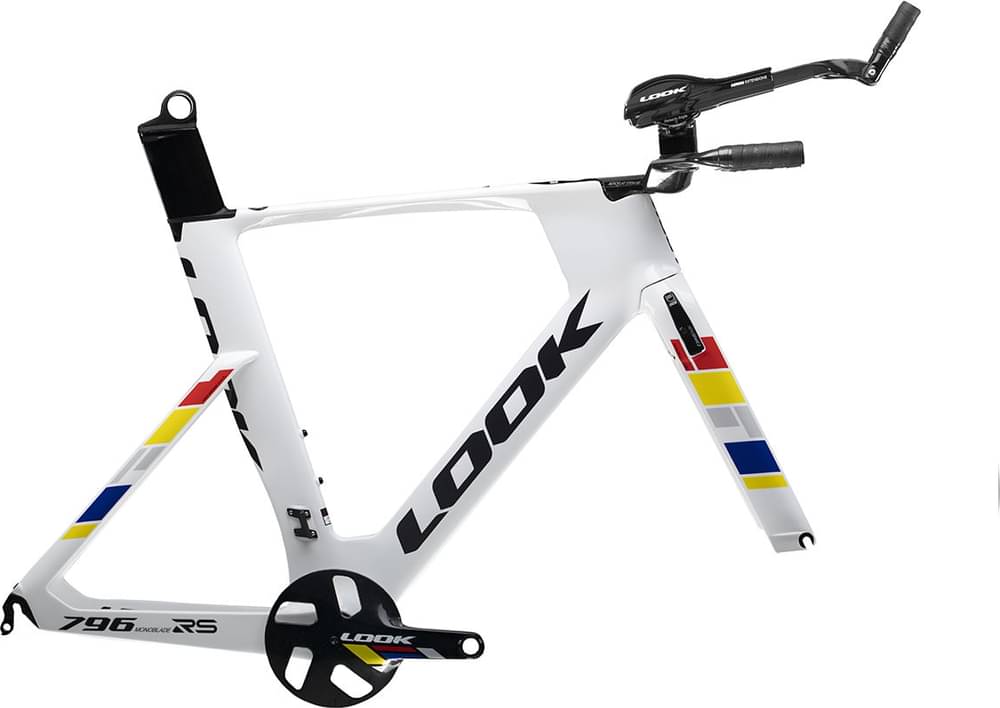

Look 796 MONOBLADE RS – FRAMESET 2020
2020 Road
Estimate price |
8,000$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Drivetrain
Crank
LOOK ZED 3 (without chainrings)
Bottom Bracket
BB 65 LOOK specific
Wheels
Tires
Compatible with tires with a maximum size of 25 mm
Cockpit
Stem
LOOK AEROFLAT stem aluminium available lengths: from 85 to 110 mm
Handlebar
AEROFLATBAR reversible carbon handlebar. AERGO multi-position carbon arm rest and extension
Seat
Seatpost
LOOK AEROPOST with reversible head. Replaceable saddle tube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.28 mm | 1.28 mm | 1.28 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm |
| Front Center | 570 mm | 608 mm | 646 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 61.5 mm | 61.5 mm | 61.5 mm |
| Stack | 491 mm | 525.5 mm | 560 mm |
| Reach | 385 mm | 412 mm | 439 mm |
| Top Tube Length | 501 mm | 536 mm | 571 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 641 mm | 606 mm | 641 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 150.3 mm | 114 mm | 150.3 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm |
| Wheelbase | 966 mm | 1004 mm | 1043 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Standover Height | 784 mm | 818 mm | 853 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
796 MONOBLADE RS – FRAMESET belongs to the Look 796 model. There are 2 frames that carry this model name.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Aero frames average price
According to our calculations, the average cost of an Aero frame that is reliable is 2657$. However, you could also get a good Aero frame even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 8000$. Comparing this to the average Aero frame price, we see that the price is 201.09% more expensive.
796 MONOBLADE RS – FRAMESET components
Fork material
When it comes to the fork, this frame has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
