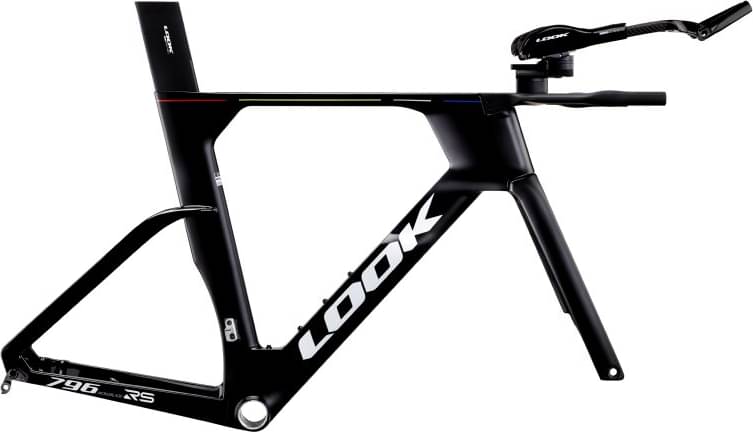

Look 796 MONOBLADE RS – FRAMESET 2024
2024 Road
Estimate price |
8,132$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.277 mm | 1.301 mm | 1.324 mm | 1.345 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 578.6 mm | 598.4 mm | 618.1 mm | 637.8 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 62.6 mm | 62.6 mm | 62.6 mm | 62.6 mm |
| Stack | 502 mm | 527 mm | 552 mm | 577 mm |
| Reach | 393 mm | 405 mm | 417 mm | 429 mm |
| Top Tube Length | 508.9 mm | 526.7 mm | 544.4 mm | 562.2 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 512.5 mm | 541 mm | 567 mm | 592 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 96.6 mm | 124.8 mm | 151 mm | 177.2 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 977 mm | 997 mm | 1017 mm | 1036 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 772 mm | 797 mm | 822 mm | 847 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
796 MONOBLADE RS – FRAMESET is part of the Look 796 model. Look released 3 frames variations of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Aero frames average price
According to our calculations, the average cost of an Aero frame that is reliable is 2657$. However, this doesn’t mean that if you spend less money on an Aero frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
When Look released this model in 2024, its price was 7402$. Comparing the average cost of an Aero frame to this one, you will see that 796 MONOBLADE RS – FRAMESET price is 178.58% higher.
796 MONOBLADE RS – FRAMESET components
Fork material
796 MONOBLADE RS – FRAMESET has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Sizes
This frame is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
