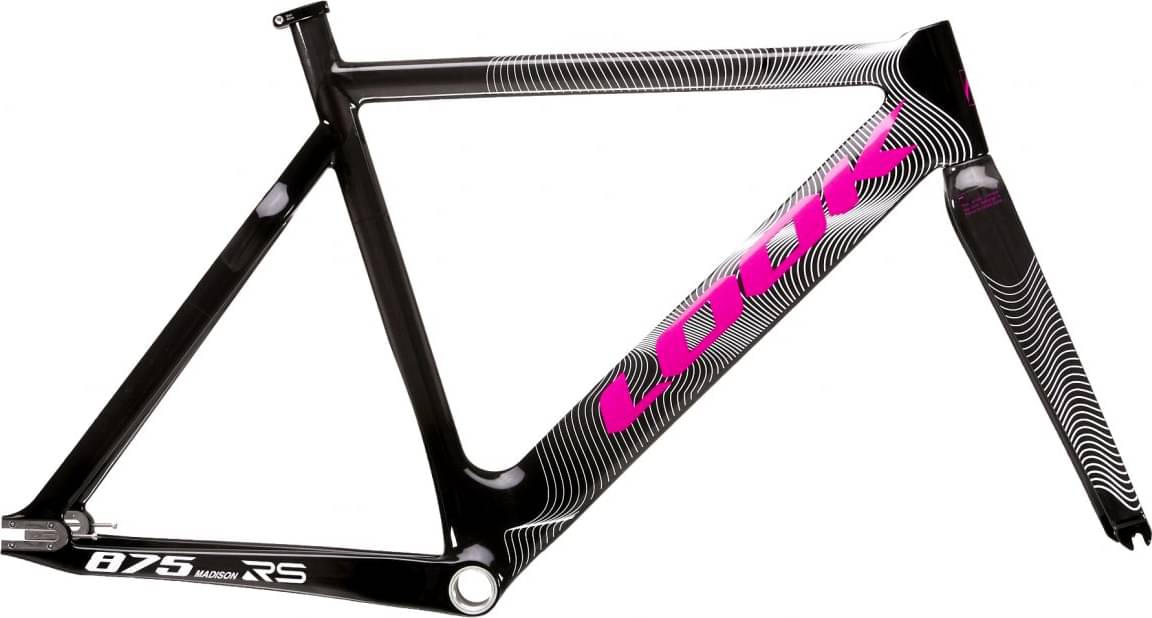

Look 875 MADISON RS TEAM CRIT LIMITED EDITION – FRAMESET 2024

2024 Road

Estimate price | 1,988$

Open compare Use advisor

Look 875 Madison Rs Team Crit Limited Edition Frameset 2024

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
- Road
- |
- Track
Frame Carbon
Suspension Rigid

Sizing

Recommended size guide.

XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

carbon

Suspension Fork

High modulus carbon fork

Drivetrain

Bottom Bracket

BSA 68 mm

Wheels

Tires

Compatible with tyres with a maximum size of 25 mm

Fit data

Geometry

Numbers for sizing and ride feel.

Size	XS	SM	MD	LG	XL
Stack Reach Ratio	1.333 mm	1.286 mm	1.244 mm	1.207 mm	1.174 mm
Bottom Bracket Height	286 mm	286 mm	286 mm	286 mm	286 mm
Front Center	539 mm	568 mm	598 mm	627 mm	657 mm
Rake	43 mm	43 mm	43 mm	43 mm	43 mm
Trail	59 mm	59 mm	59 mm	59 mm	59 mm
Stack	480 mm	495 mm	510 mm	525 mm	540 mm
Reach	360 mm	385 mm	410 mm	435 mm	460 mm
Top Tube Length	502 mm	531.5 mm	561 mm	590.5 mm	620 mm
Seat Tube Angle	73.5 °	73.5 °	73.5 °	73.5 °	73.5 °
Seat Tube Length	500 mm	525 mm	550 mm	570 mm	590 mm
Head Tube Angle	73 °	73 °	73 °	73 °	73 °
Head Tube Length	95 mm	110.5 mm	126 mm	142 mm	157.5 mm
Chainstay Length	380 mm	380 mm	380 mm	380 mm	380 mm
Wheelbase	913 mm	942 mm	973 mm	1002 mm	1032 mm
Bottom Bracket Drop	50 mm	50 mm	50 mm	50 mm	50 mm
Standover Height	745 mm	760 mm	774 mm	790 mm	805 mm
Wheels	700	700	700	700	700
Rider Min Height	156 cm	163 cm	171 cm	179 cm	185 cm
Rider Max Height	166 cm	174 cm	182 cm	189 cm	195 cm
