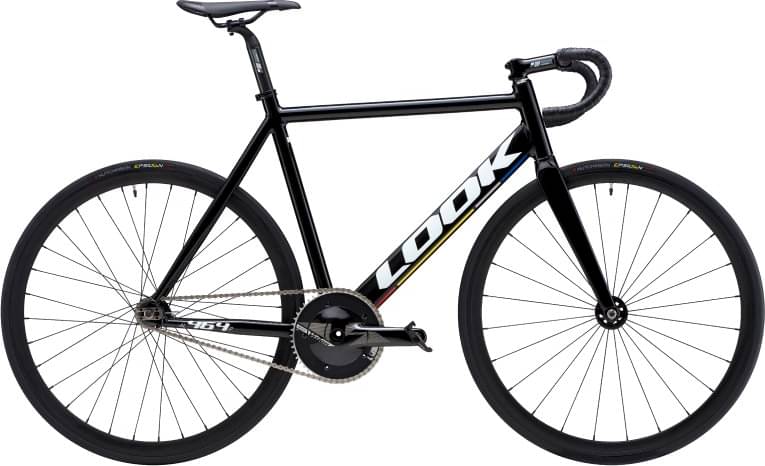

Look AL 464 P 2024
2024 Road
Estimate price |
1,861$
Weight | 7.88 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Vision -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Drivetrain
Crank
Vision 1x50 t, 170 mm
Chain
KMC K710, 1/2"x1/8"
Wheels
Rims
AlexRims Track Black reversible
Tires
Hutchinson Espsilon fold 700x23 mm
Cockpit
Stem
LOOK alloy LS2 +/- 7°
Handlebar
LOOK alloy LS2 compact
Seat
Saddle
San Marco Monza
Seatpost
LOOK LS2 carbon 31,6 mm x 350 m
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.361 mm | 1.344 mm | 1.36 mm | 1.36 mm | mm |
| Bottom Bracket Height | 287 mm | 287 mm | 287 mm | 287 mm | mm |
| Front Center | 556.6 mm | 572.4 mm | 597.3 mm | 617.3 mm | mm |
| Trail | 58.4 mm | 55.3 mm | 55.3 mm | 55.3 mm | mm |
| Stack | 504.1 mm | 519.1 mm | 547.8 mm | 567 mm | mm |
| Reach | 370.4 mm | 386.2 mm | 402.7 mm | 417 mm | mm |
| Bottom Bracket Drop | 49 mm | 49 mm | 49 mm | 49 mm | mm |
| Standover Height | 747 mm | 766 mm | 795 mm | 815 mm | mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
