Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 26" -
Fork MRP -
Groupset SLX, Race Face -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
MRP Rock Solid Carbon Fat Fork
Drivetrain
Shift Levers
Shimano SLX 11 speed
Cassette
Shimano SLX 11-46t
Crank
Race Face Aeffect Cinch Crankset, 30t, 1x11
Bottom Bracket
100mm Threaded
Wheels
Rims
Sun Mulefut 80 V2 26" Fatbike Disc Wheelset
Tires
Kenda Juggernaut Elite 26x4.0"
Brakes
Brakes
Magura MT2 Disc
Disk Rotors
Magura Storm SL
Cockpit
Stem
FSA Omega Stem
Handlebar
FSA Comet Low Rise Handlebar 31.8x18x740mm
Headset
FSA Orbit C-40-ACB
Seat
Saddle
Lynskey Sport
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.557 mm | 1.524 mm | 1.515 mm | 1.483 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm | 319 mm |
| Front Center | 262 mm | 270 mm | 277 mm | 286 mm |
| Rake | 20 mm | 21 mm | 21 mm | 20 mm |
| Trail | 105 mm | 104 mm | 104 mm | 105 mm |
| Stack | 251 mm | 255 mm | 261 mm | 266 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 150 mm | 170 mm | 190 mm | 210 mm |
| Head Tube Angle | 69.8 ° | 69.8 ° | 69.8 ° | 69.8 ° |
| Head Tube Length | 43 mm | 47 mm | 49 mm | 55 mm |
| Wheelbase | 445 mm | 454 mm | 461 mm | 469 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Standover Height | 291 mm | 313 mm | 329 mm | 346 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

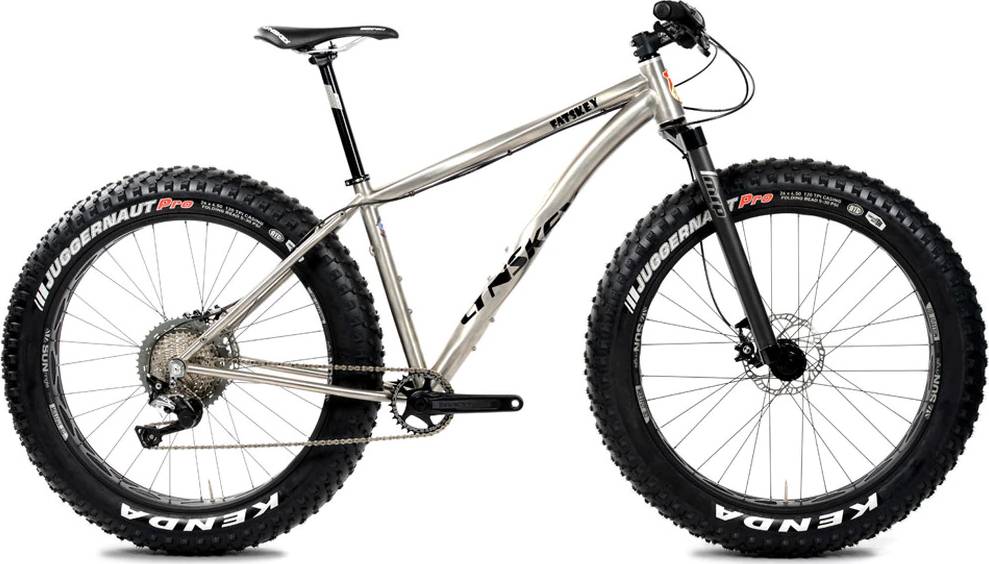

Fatskey SHIMANO SLX MAGURA RACE FACE is part of the Lynskey Fatskey model. There is 1 bike that carries this model name.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fatbike bikes
If you want to purchase a solid Fatbike bike, it is important to know that the average cost is 1743$. However, even though the average price of a Fatbike bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The fork installed on this bike is the MRP model. The travel on this model is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Fatskey SHIMANO SLX MAGURA RACE FACE bike is equipped with the 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Lynskey Fatskey SHIMANO SLX MAGURA RACE FACE has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Lynskey Fatskey SHIMANO SLX MAGURA RACE FACE bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
