Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c / 650b -
Groupset Force 1, EX1 -
Suspension Rigid -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
XS
155cm - 168cm
SM
163cm - 174cm
SM
163cm - 174cm
MD
170cm - 181cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
LG
181cm - 193cm
XL
188cm - 200cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Lynskey Pro GR Gravel Fork with 12mm Thru Axle
Drivetrain
Rear Derailleur
SRAM Force 1 Rear Derailleur, 11 speed, Long Cage
Cassette
SRAM NX PG-1130 11-SPEED CASSETTE 11-42t
Crank
SRAM EX1 ISIS Crankset for Bosch BB Interface
Bottom Bracket
Bosch, press-fit
Chain
SRAM PC-1170 11 Speed Chain
Wheels
Rims
Vision Team 30 Disc
Tires
Kenda Alluvium Pro 700x40
Brakes
Brakes
SRAM Force 1 HRD Front Lever w/Caliper
Disk Rotors
SRAM Centerline 160mm Rotor
Cockpit
Stem
FSA Omega Stem +/- 6° Rise
Handlebar
FSA Omega Compact Alloy Handlebar
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Motor & Battery
Motor
Bosch Performance Line CX Electric Motor
Battery
Bosch PowerPack 500
Charger
Bosch Compact Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | MD/LG | MD/LG | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.47 mm | 1.47 mm | 1.5 mm | 1.5 mm | 1.53 mm | 1.53 mm | 1.58 mm | 1.58 mm | 1.59 mm | 1.59 mm |
| Bottom Bracket Height | 269 mm | mm | 271 mm | mm | 271 mm | mm | 274 mm | mm | 274 mm | mm | 276 mm | mm |
| Front Center | 595 mm | 595 mm | 605 mm | 605 mm | 612 mm | 612 mm | 625 mm | 625 mm | 633 mm | 633 mm | 650 | 650 |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 64 mm | 74 mm | 67 mm | 69 mm | 63 mm | 69 mm | 63 mm | 67 mm | 61 mm | 67 mm | 61 mm |
| Stack | 529 mm | 529 mm | 549 mm | 549 mm | 569 mm | 569 mm | 589 mm | 589 mm | 614 mm | 614 mm | 634 mm | 634 mm |
| Reach | 369 mm | 369 mm | 374 mm | 374 mm | 379 mm | 379 mm | 384 mm | 384 mm | 389 mm | 389 mm | 399 mm | 399 mm |
| Top Tube Length | 523 mm | 523 mm | 537 mm | 537 mm | 549 mm | 549 mm | 564 mm | 564 mm | 579 mm | 579 mm | 599 mm | 599 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 450 mm | 470 mm | 470 mm | 490 mm | 490 mm | 510 mm | 510 mm | 530 mm | 530 mm | 550 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 110 mm | 126 mm | 126 mm | 145 mm | 145 mm | 169 mm | 169 mm | 193 mm | 193 mm | 217 mm | 217 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1017 mm | 1017 mm | 1027 mm | 1027 mm | 1035 mm | 1035 mm | 1049 mm | 1049 mm | 1056 mm | 1056 mm | 1074 mm | 1074 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 78 mm | 78 mm | 78 mm | 78 mm | 75 mm | 75 mm | 75 mm | 75 mm | 73 mm | 73 mm |
| Standover Height | 715 mm | 715 mm | 736 mm | 736 mm | 757 mm | 757 mm | 779 mm | 779 mm | 799 mm | 799 mm | 823 mm | 823 mm |
| Wheels | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 |
| Rider Min Height | 155 cm | 155 cm | 163 cm | 163 cm | 170 cm | 170 cm | 175 cm | 175 cm | 181 cm | 181 cm | 188 cm | 188 cm |
| Rider Max Height | 168 cm | 168 cm | 174 cm | 174 cm | 181 cm | 181 cm | 187 cm | 187 cm | 193 cm | 193 cm | 200 cm | 200 cm |
Model Overview

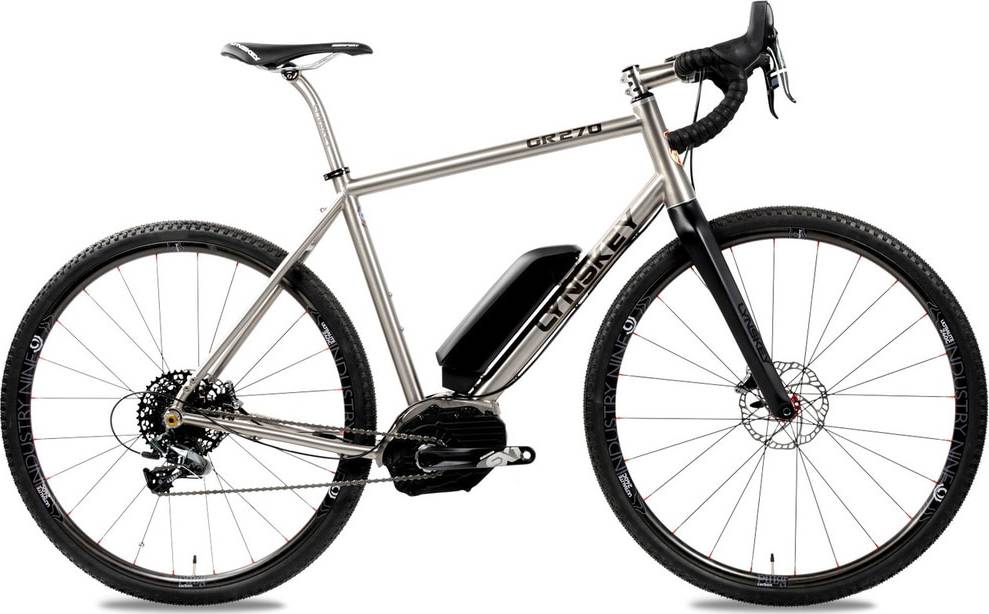

GR 270e E-Bike SRAM Force Bosch belongs to the Lynskey E Gr model. There is 1 e-bike that carries this model name.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel e-bikes
According to our math, the average price for a trustworthy Gravel e-bike is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Wheels
The wheels on GR 270e E-Bike SRAM Force Bosch are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The GR 270e E-Bike SRAM Force Bosch has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
GR 270e E-Bike SRAM Force Bosch comes in 12 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
